GE PWB7030SL3SS Microwave Or Advantium

Model: PWB7030SL3SS

Save Part Not Listed?
product name

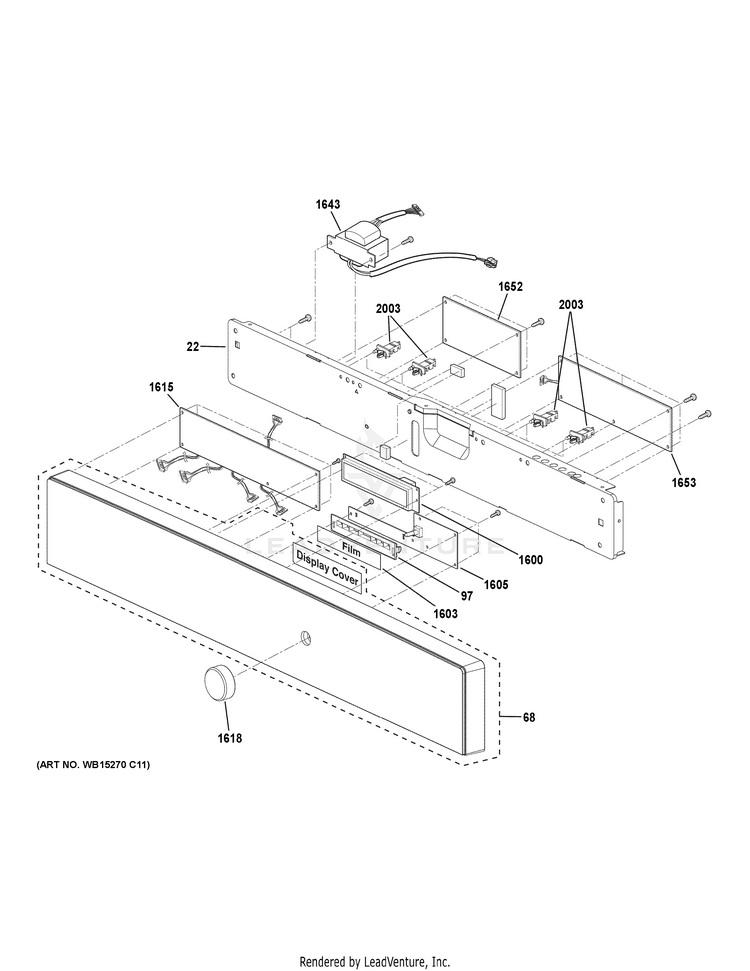

CONTROL PARTS

...
...
22
CONTROL BOARD BRACKET GEH-WB34X22089
...
68
CONTROLER ASM GEH-WB07X27765
...
97
HOLDER DISPLAY GEH-WB02X11227
...
1600
DIGITRON GEH-WB27X10856
...
1603
INDICATOR GEH-WB27X30032
...
1605
PCB ASM, SUB GEH-WB27X30033
...
1615
MAIN BOARD GEH-WB27X27761
...
1618
KNOB GEH-WB03X21244
...
1643
TRANSFORMER GEH-WB26X26580
...
1652
POWER BOARD GEH-WB27X28000
...
1653
RELAY BOARD GEH-WB27X27760
...
2003
SUPPORTER,BOARD GEH-WB02X11322

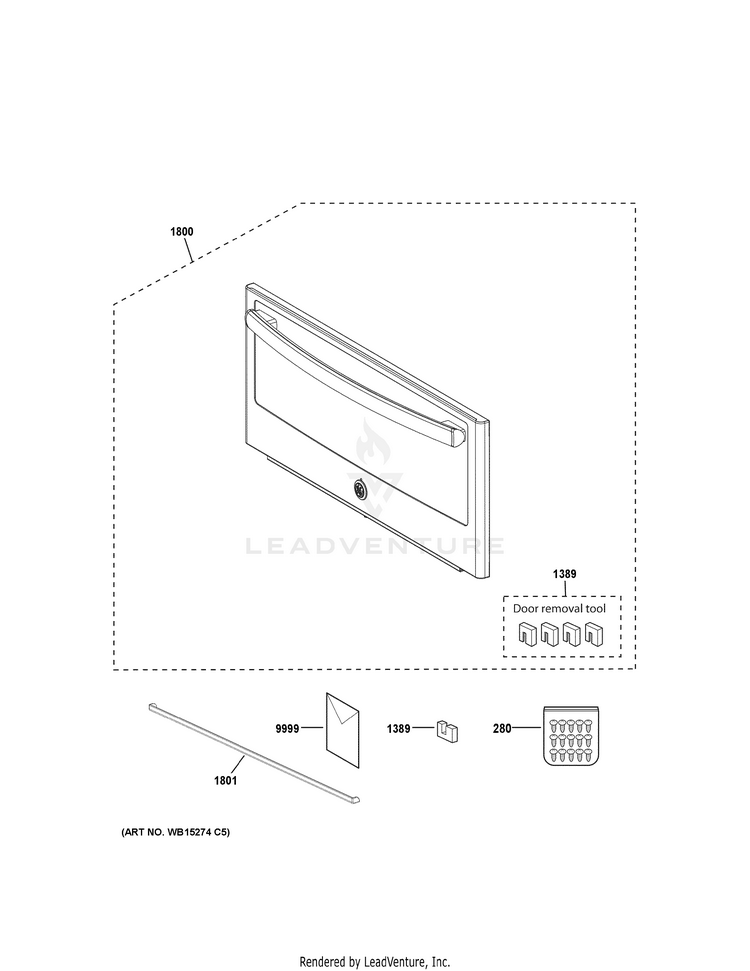

DOOR PARTS

...
...
280
ADV HARDWARE ASM BAG GEH-WB01X10304
...
1389
DOOR REMOVAL TOOL GEH-WB01X10364
...
1800
STAINLESS STEEL DOOR WITH FLAT GE LOGO GEH-WB56X30352
...
1801
BARRIER SS GEH-WB07X27763
...
9999
PM INSTALL INSTRUCTIONS GEH-31-2000001
...
9999
PM MINI MANUAL GEH-31-30816
...
9999
PM USE AND CARE MANUAL GEH-49-40777

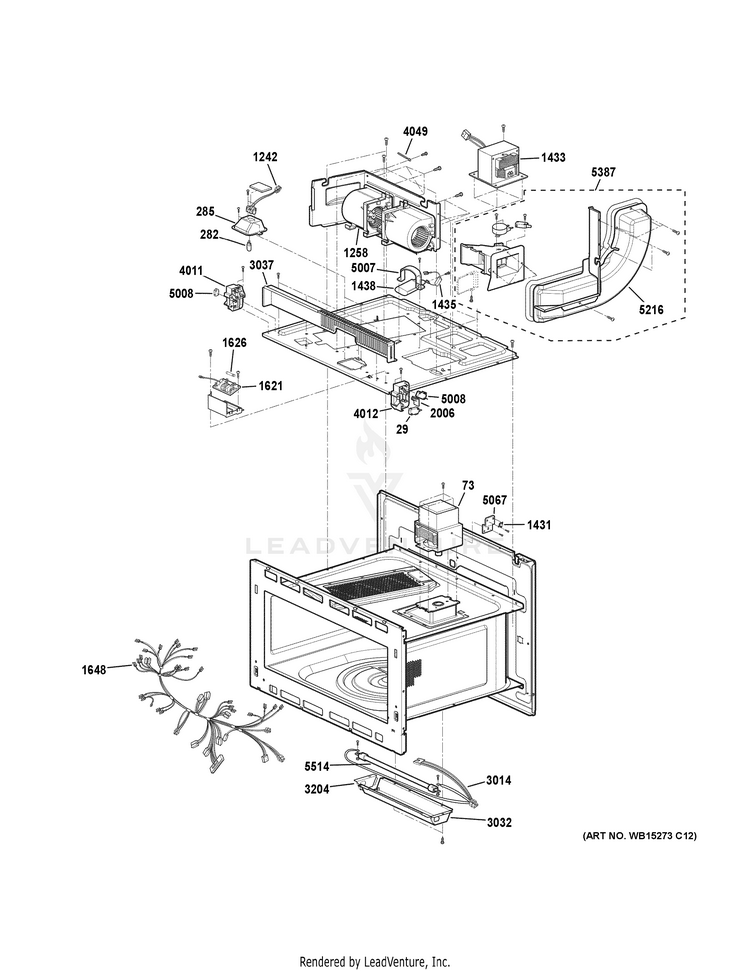

INSULATOR PARTS

...
...
29
WB24X10029 GEH-WB24X815
...
73
MAGNETRON GEH-WB27X26081
...
282
LAMP HALOGEN GEH-WB08X10057
...
285
COVER LAMP GEH-WB02X11211
...
1242
HOLDER ASM GEH-WB06X10646
...
1258
MOTOR(CIRC) CIRCULATION GEH-WB26X10182
...
1431
THERMOSTAT GEH-WB20X10048
...
1433
TRANSFORMER,HIGH VOLTAGE GEH-WB17X10030
...
1435
CABLE ASM GEH-WB18X10286
...
1438
CAPACITOR, H.V GEH-WB27X10701
...
1621
NOISE FILTER GEH-WB27X27311
...
1626
FUSE GEH-WB27X10388
...
1648
HARNESS SINGLE GEH-WB18X27764
...
2006
LEVER GEH-WB02X11214
...
3014
HARNESS,SINGLE GEH-WB18X10387
...
3032
REFLECTOR GEH-WB02X11318
...
3037
PROTECTOR (MECH) GEH-WB06X10645
...
3204
BRACKET HEATER GEH-WB02X11223
...
4011
BOARD LATCH LT GEH-WB06X10639
...
4012
BOARD LATCH RT GEH-WB06X10640
...
4049
HOLDER WIRE GEH-WB02X11233
...
5007
BRACKET CAPACITOR GEH-WB02X11226
...
5008
SWITCH MONTR GEH-WB24X817
...
5067
BRACKET- MAGNETRON GEH-WB02X10721
...
5216
DUCT GEH-WB02X11230
...
5387
DUCT ASM GEH-WB34X22117
...
5514
HEATER MIRACLON GEH-WB21X10141

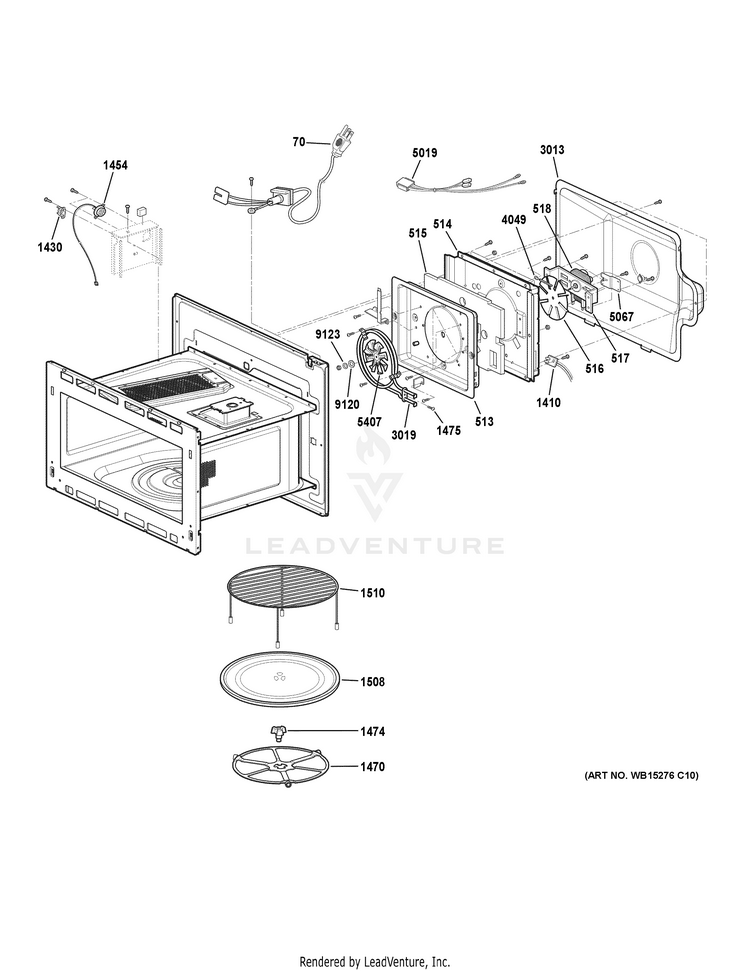

INTERIOR PARTS

...
...
70
POWER CORD ASM GEH-WB18X21246
...
513
CHAMBER GEH-WB06X10641
...
514
CHAMBER GEH-WB06X10642
...
515
GLASS WOOL GEH-WB06X10650
...
516
BLADE,MTR CL GEH-WB6X475
...
517
BRACKET - MTR CIRCU GEH-WB02X10542
...
518
MOTOR,AC FAN GEH-WB26X10211
...
1410
THERMISTOR NTC GEH-WB18X10287
...
1430
THERMOSTAT GEH-WB21X10149
...
1454
SENSOR ASM GEH-WB27X10857
...
1470
ROTATING RING ASM GEH-WB06X10651
...
1474
SHAFT ASM GEH-WB06X10693
...
1475
SCREW TRUSS GEH-WB1X1504
...
1508
TRAY GLASS GEH-WB49X10166
...
1510
RACK GEH-WB49X10213
...
3013
COVER BACK GEH-WB56X10637
...
3019
HEATER SHEATH GEH-WB44X10050
...
4049
HOLDER WIRE GEH-WB02X11233
...
5019
HARNESS, SINGLE GEH-WB18X21249
...
5067
BRACKET- MAGNETRON GEH-WB02X10721
...
5407
FAN - STIRRER GEH-WB06X10266
...
9120
WASHER,PLAIN GEH-WB1X1521
...
9123
WASHER, SPLK GEH-WB1X1522

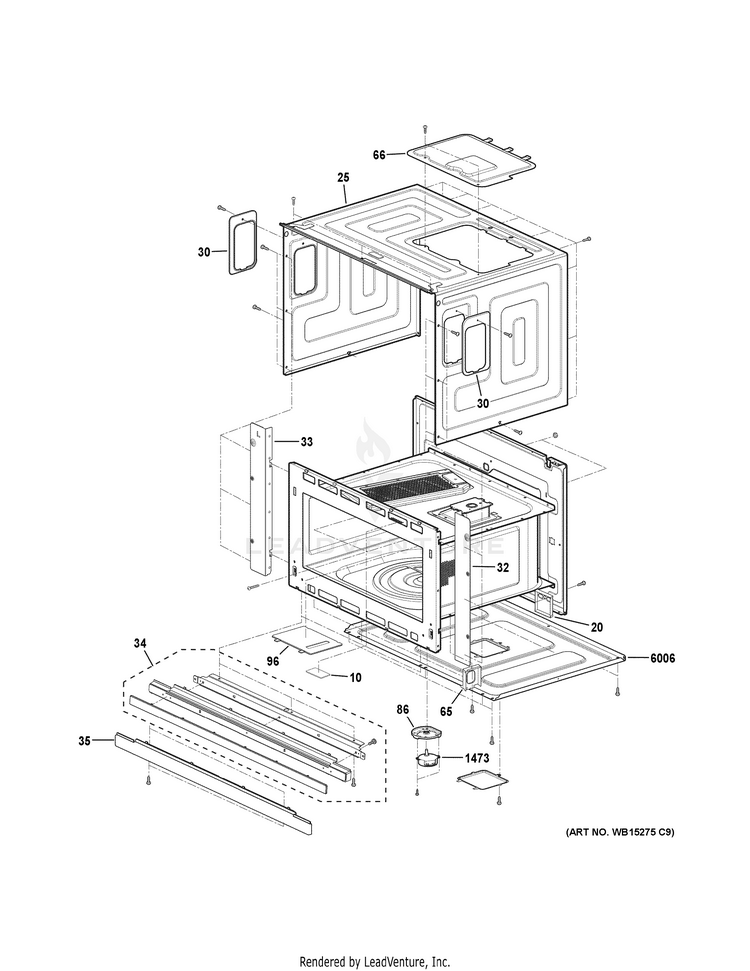

OVEN CAVITY PARTS

...
...
10
SEAL TAPE GEH-WB55X10802
...
20
BRACKET GEH-WB02X11225
...
25
OUTER CASE, FLAT GEH-WB56X26535
...
30
DOOR SWITCH ACCESS CVR GEH-WB02X10684
...
32
TRIM, SIDE RIGHT GEH-WB07X11231
...
33
TRIM, SIDE LEFT GEH-WB07X11230
...
34
TRIM, BOTTOM GEH-WB07X21382
...
35
PLATE,BOTTOM GEH-WB07X11225
...
65
BRACKET GEH-WB02X11224
...
66
COVER, TOP GEH-WB34X21258
...
86
MOUNT GEH-WB06X10649
...
96
CANOPY MICA GEH-WB06X10638
...
1473
MOTOR TURNTABLE GEH-WB26X10193
...
6006
BASE PLATE GEH-WB63X21381
