GE PVM9179DK1WW Microwave Or Advantium

Model: PVM9179DK1WW

Save Part Not Listed?
product name

CONTROL PARTS

...
...
98
CONTROL PANEL ASM WW GEH-WB56X27059
...
99
KNOB, DIAL GEH-WB03X20776
...
100
MAIN BOARD GEH-WB27X27054
...
106
ASM PCB SUB ENCODER GEH-WB24X10193
...
107
WIRE HARNESS B GEH-WB18X21435
...
111
WIRE GND PCB GEH-WB18X10122

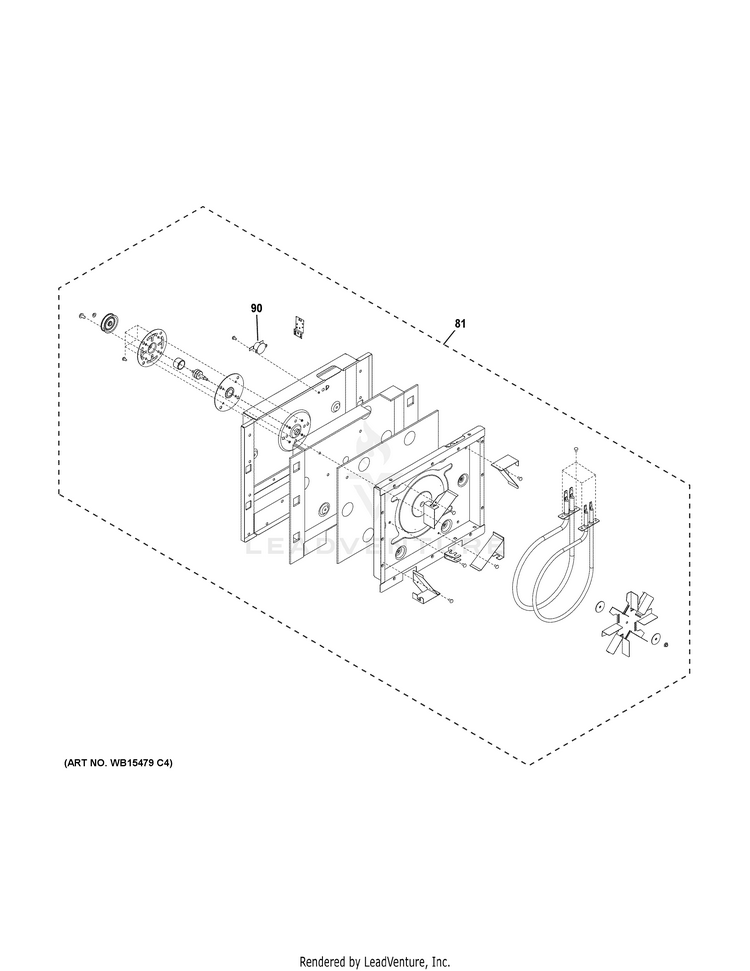

CONVECTION FAN

...
...
81
CASING ASM GEH-WB56X27048
...
90
CONVECTION TCO GEH-WB24X29271

DOOR PARTS

...
...
87
END CAP, DOOR GEH-WB06X10947
...
88
DOOR ASM BB GEH-WB56X27038
...
89
HANDLE, WW GEH-WB15X26776
...
9999
PM QUICK GUIDE ADDITION GEH-49-40771
...
9999
PM INSTALLATION INSTRUCT GEH-49-40769
...
9999
PM QUICK REF OTR CONV GEH-49-40772
...
9999
PM MINI MANUAL GEH-31-30858
...
9999
PM OWNERS MANUAL GEH-49-40774
...
9999
PM INSTALLATION TEMPLATE GEH-31-30799

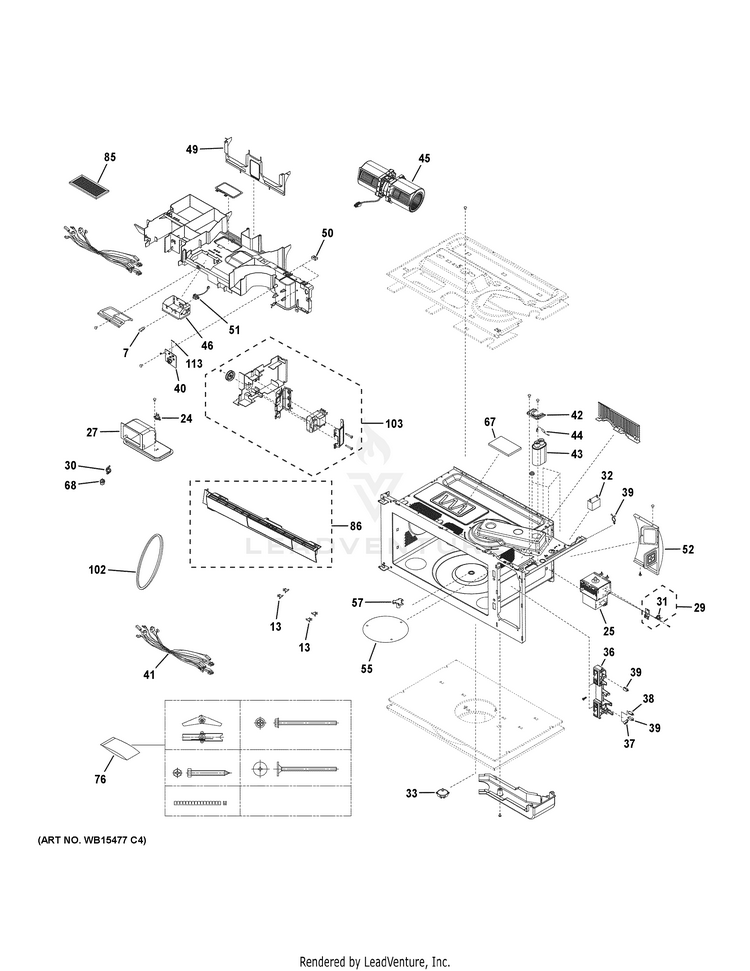

OVEN CAVITY PARTS (1)

...
...
7
BULB HALOGEN (120V 20W) GEH-WB36X10213
...
13
HOLDER RACK GEH-WB02X27051
...
24
MAGNETRON TCO GEH-WB24X29270
...
25
ASM-MAGNETRON GEH-WB27X10939
...
27
DUCT EXHAUST GEH-WB34X27049
...
29
THERMOSTAT ASM W/ BRKT GEH-WB24X26785
...
30
HOLDER-SENSOR GEH-WB02X27451
...
31
MAGNETRON THERMOSTAT GEH-WB24X26784
...
32
CAPACITOR- MOTOR GEH-WB27X10170
...
33
TURNTABLE, MOTOR GEH-WB26X10233
...
36
LATCH BODY GEH-WB10X27044
...
37
LEVER-S/W GEH-WB06X10128
...
38
SWITCH-MICRO GEH-WB24X10075
...
39
SWITCH GEH-WB24X10038
...
40
NOISE FILTER ASM GEH-WB02X27056
...
41
MAIN WIRE HARNESS ASM GEH-WB18X27039
...
42
BRACKET-HVC GEH-WB34X27023
...
43
CAPACITOR 2100V/0.86 MIC GEH-WB27X10240
...
44
DIODE ASSY GEH-WB27X1160
...
45
MOTOR VENTILATION GEH-WB26X27040
...
46
BRACKET-OVEN GEH-WB34X27024
...
49
BRACKET-DUCT UPPER REAR GEH-WB34X27022
...
50
NUT-MOUNTING GEH-WB01X27055
...
51
LAMP SOCKET-HALOGEN GEH-WB25X27053
...
52
BRACKET-REAR ASM GEH-WB34X27047
...
55
COVER STIRRER GEH-WB34X27027
...
57
COUPLER GEH-WB06X27025
...
67
GLASS-OVEN LAMP GEH-WB02X27050
...
68
GAS SENSOR GEH-WB24X799
...
76
HARDWARE ASM GEH-WB06X10889
...
85
CHARCOAL FILTER GEH-WB02X11544
...
86
GRILLE VENT WW GEH-WB07X27060
...
102
BELT-TIMING GEAR GEH-WB02X27021
...
103
CONVENTION MOTOR-AIR GUI GEH-WB26X27057
...
113
FUSE GEH-WB27X10474

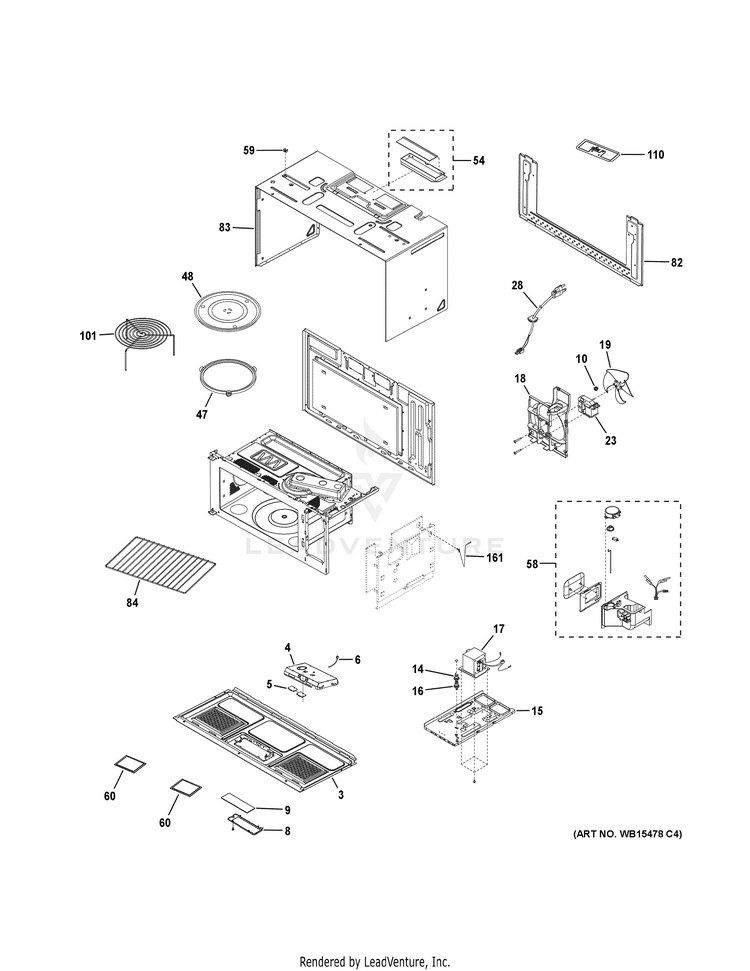

OVEN CAVITY PARTS (2)

...
...
3
BASE BOTTOM GEH-WB63X10073
...
4
BRACKET-BOTTOM LAMP GEH-WB34X26805
...
5
SOCKET HALOGEN LAMP GEH-WB02X26814
...
6
CABLE CLAMP GEH-WB01X26804
...
8
COVER-GLASS GEH-WB36X10217
...
9
GLASS COOKTOP LAMP GEH-WB36X10071
...
10
SPRING-BLADE GEH-WB09X10042
...
14
TCO - BOTTOM GEH-WB21X10162
...
15
BASE PLATE GEH-WB63X27020
...
16
THERMO SWTCH GEH-WB27X709
...
17
TRANS H.V GEH-WB20X10044
...
18
COVER MOTOR GEH-WB34X27026
...
19
BLADE, FAN GEH-WB02X20626
...
23
MOTOR, FAN GEH-WB26X10262
...
28
POWER CORD ASM GEH-WB18X10442
...
47
GUIDE ROLLER ASM GEH-WB02X27043
...
48
COOKING-TRAY GEH-WB49X10002
...
54
ASM HOOD DAMPER GEH-WB06X10920
...
58
COVER MGT GEH-WB02X27042
...
59
NUT TOP MOUNTING GEH-WB01X10071
...
60
FILTER, AIR GEH-WB02X11534
...
82
PLATE MOUNTING ASM GEH-WB56X10446
...
83
OUTER CASE WW GEH-WB56X27061
...
84
RACK-WIRE GEH-WB48X29756
...
101
ASM WIRE RACK-MIDDLE GEH-WB48X27110
...
110
HOOD DAMPER ASM GEH-WB02X27037
...
161
SENSOR TEMP GEH-WB02X27046
