GE PT920SR1SS Electric Range

Model: PT920SR1SS

Save Part Not Listed?
product name

BODY PARTS

...
...
20
BRACKET CAPACITOR MTR GEH-WB02T10152
...
133
DOOR BUMPER GEH-WB01T10022
...
157
SWITCH HIGH LMT OV BACK GEH-WB24T10081
...
201
WRAPPER OVN CAV ASM GEH-WB63T10160
...
202
FRAME FRONT GEH-WB63T10153
...
211
RETAINER INSLN SDE GEH-WB02T10284
...
212
RETAINER INSLN BTM GEH-WB02T10372
...
217
COVER WIRE UPR GEH-WB02T10373
...
219
RETAINER INSLN BACK GEH-WB02T10377
...
220
DUCT BTM AIR GEH-WB02T10502
...
223
WB35K5116 GEH-WB35K5117
...
230
INSULATION TOP GEH-WB35T10183
...
231
INSULATION GEH-WB35T10186
...
232
INSULATION GEH-WB35T10182
...
233
INSULATION BTM GEH-WB35T10181
...
240
RACK OVEN GEH-WB48T10050
...
241
RACK OVN SLIDE ASM 30 WO GEH-WB48T10070
...
251
ELEMENT BAKE ASM (2100W) GEH-WB44T10110
...
252
UNIT BROIL ASM GEH-WB44T10106
...
253
SENSOR ASM GEH-WB21T10018
...
257
LAMP APPLIANCE GEH-WB08T10022
...
258
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
259
OVEN BULB LENS GEH-WB25T10002
...
262
TRIM VERT SDE ASM RT GEH-WB07T10581
...
262
TRIM VERT SDE ASM LT GEH-WB07T10582
...
265
DIVIDER AIR (BK) GEH-WB02T10421
...
268
TRIM BTM CAB (BK) GEH-WB07T10583
...
273
PR0BE COVER GEH-WB34K5140
...
277
RECEIVER HINGE GEH-WB10T10083
...
280
PROBE THERMISTOR GEH-WB20T10025
...
282
TUBE VNT ASM GEH-WB28T10215
...
291
COVER GEH-WB02X9152
...
489
PAN REFLECTOR HDN BAKE GEH-WB49T10019
...
490
PAN REFLECTOR SIDE GEH-WB49T10018
...
534
SUPPORT OVN CAV GEH-WB02T10249
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
594
HARNESS WIRE PROBE GEH-WB18T10397
...
752
SCREW GEH-WB01K5200
...
760
SCREW-BLK GEH-WB01K5165
...
809
SCREW GEH-WB01X1137
...
810
SCREW GEH-WB01X1253
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
887
TRIM SCREW-BLK GEH-WB01K5173
...
935
WASHER GEH-WB01K5174
...
942
WASHER GEH-WB01X5573
...
945
LOCKWASHER GEH-WB01K5046
...
998
NUT MEAT PROBE GEH-WB01X5572
...
1002
SCR 10-16 AB IHW .625 NI GEH-WB01T10072
...
1005
SCREW 10-32 TR T GEH-WB01T10008

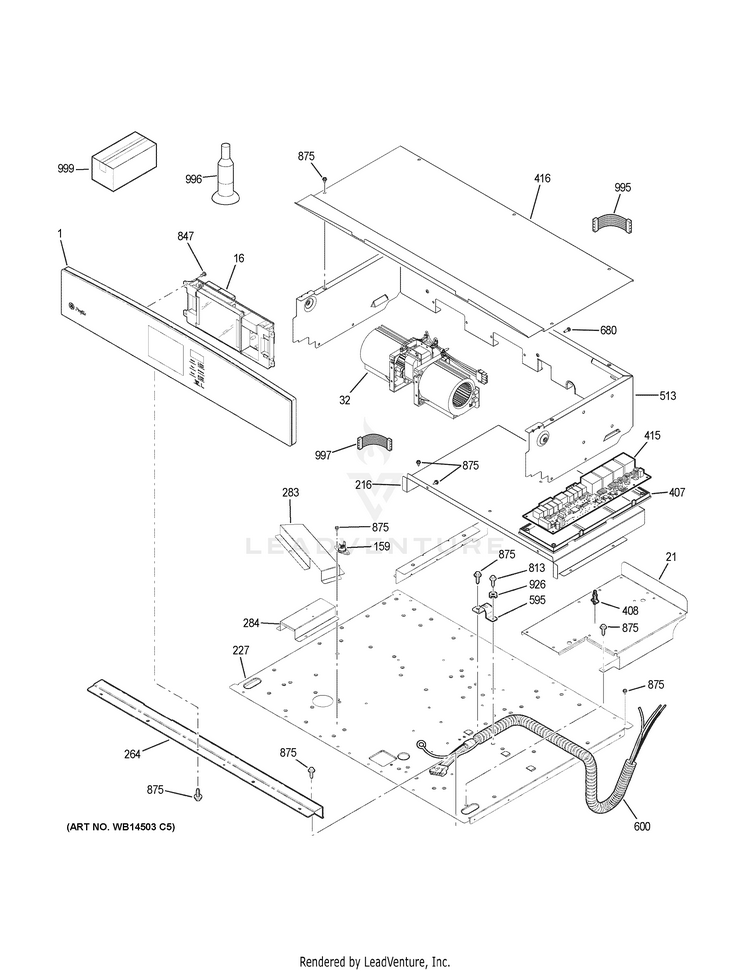

CONTROL PANEL

...
...
1
CONTROL FRAME ASM GEH-WB27T10989
...
1
LABEL WIRE DIAG GEH-229C5988P001
...
16
HOUSING LCD & BKT ASM GEH-WB27T11300
...
21
BRACKET BOARD SUPT GEH-WB02T10400
...
32
FAN BLOWER GEH-WB26T10048
...
159
SWITCH LIMIT BIMETAL GEH-WB24T10172
...
216
COVER TOP WIRE GEH-WB02T10374
...
227
RETAINER INSLN TOP GEH-WB02T10378
...
264
TRIM VENT INNER (BK) GEH-WB07T10580
...
283
DUCT OVN EXHAUST GEH-WB02T10402
...
284
DUCT OVN EXHAUST GEH-WB02T10403
...
407
FRAME BOARD RELAY GEH-WB02T10512
...
408
STANDOFF GEH-WB02T10207
...
415
BOARD ASM RELAY GEH-WB27T11299
...
416
COVER FAN HOUSING GEH-WB02T10565
...
513
HOUSING FAN GEH-WB26T10047
...
595
CONDUIT CLAMP GEH-WB02K5126
...
600
CONDUIT WIRE ASM 52" GEH-WB18T10444
...
680
SCR 7-19 HXW 1/2 GEH-WR01X1850
...
813
SCREW GROUND GEH-WB01X1261
...
847
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
926
GROUND WASHER GEH-WB01X1260
...
995
HARNESS WIRE LOGIC GEH-WB18T10475
...
996
LUBRICANT CLEANER GEH-WB02T10303
...
997
HARNESS WIRE GT LCD GEH-WB18T10402
...
997
HARNESS WIRE GT LCD GEH-WB18T10474
...
999
INSTRUCTION INSTALL GEH-31-10730
...
999
PM INSTALL INSTRUCTIONS GEH-31-10662
...
999
PM MANUAL MINI & WD ASM GEH-31-14859
...
999
PM MANUAL USE & CARE GEH-40-80607

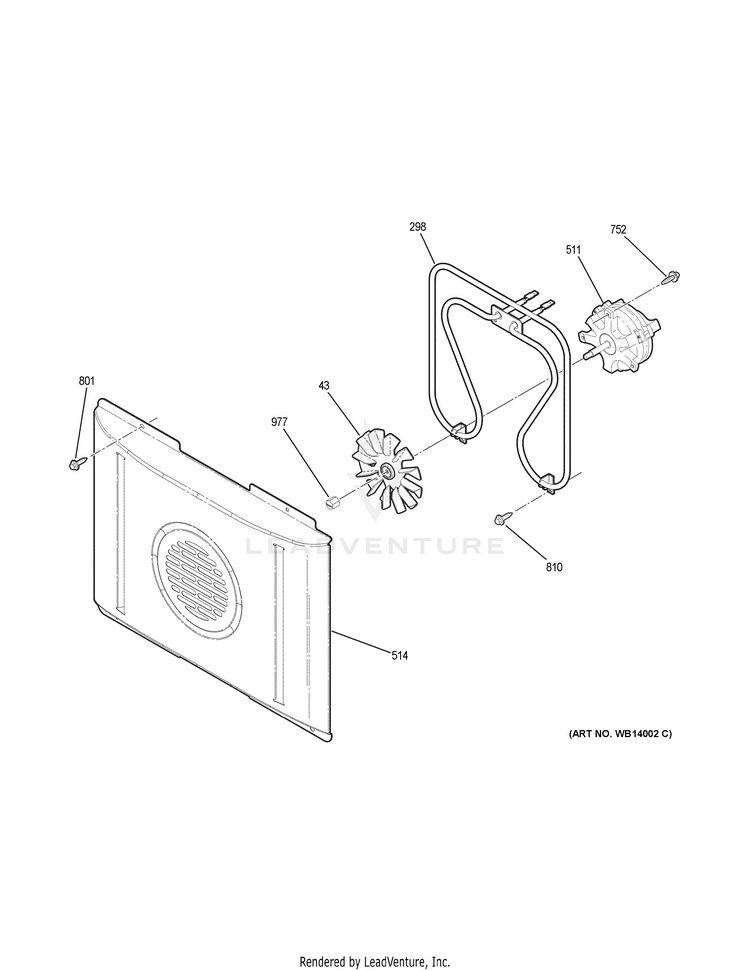

CONVECTION FAN

...
...
43
HUB BLADE ASM GEH-WB02T10289
...
298
ELEMENT CONVX ASM GEH-WB44T10086
...
511
MOTOR PSC CONV GEH-WB26T10043
...
514
COVER FAN CONV GEH-WB26T10061
...
752
SCREW GEH-WB01K5200
...
801
SCREW GEH-WB01M0001
...
810
SCREW GEH-WB01X1253
...
977
NUT GEH-WB02T10017

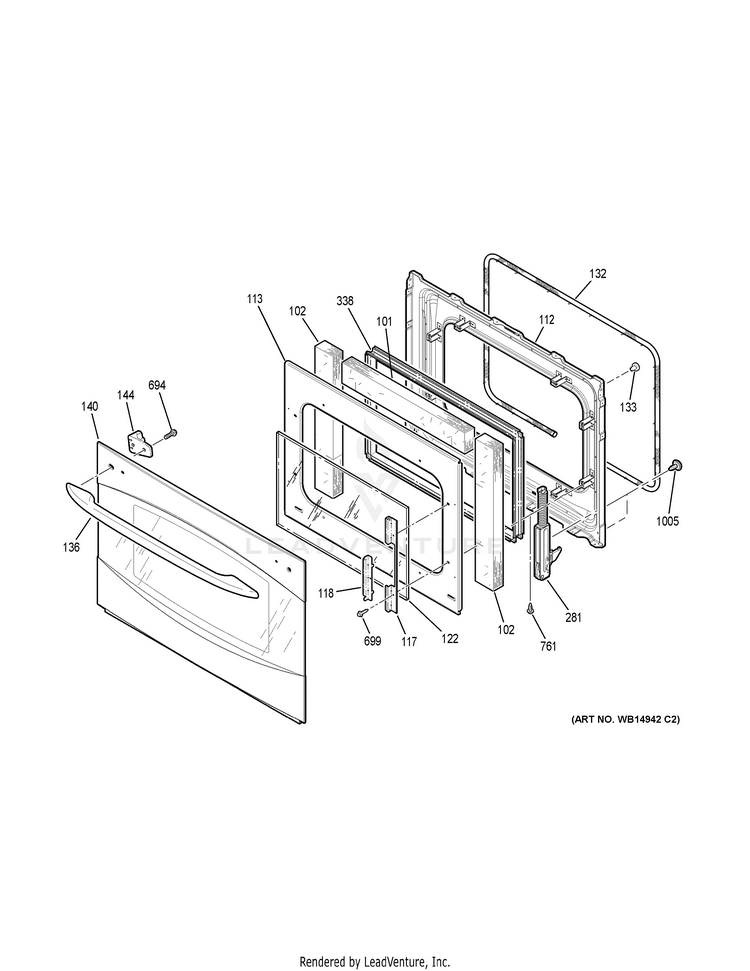

DOOR

...
...
101
INSULATION OVN DR TOP GEH-WB35T10072
...
102
INSULATION DOOR GEH-WB35T10135
...
112
LINING OVN DR ASM GEH-WB55T10183
...
113
RETAINER INSLN OVN DR GEH-WB02T10371
...
117
RETAINER GLASS OVN DR GEH-WB56T10320
...
118
RETAINER GLASS OVN DR GEH-WB56T10321
...
122
OVEN DOOR GLASS-INNER GEH-WB57K5230
...
132
GASKET OVN DR GEH-WB32T10014
...
133
DOOR BUMPER GEH-WB01T10022
...
136
30" SS PROFILE HANDLE GEH-WB15T10192
...
140
DOOR OTR ASM 30 (SS) GEH-WB56T10283
...
144
BRACKET REINFORCEMENT 30 GEH-WB02T10375
...
281
HINGE DOOR LT GEH-WB10T10109
...
281
HINGE DOOR RT GEH-WB10T10108
...
338
PACK WINDOW ASM GEH-WB56T10105
...
694
SCREW 10-16 X 1.000 HWH GEH-WB01T10066
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
761
SCREW GEH-WB01K5049
...
1005
SCREW 10-32 TR T GEH-WB01T10008

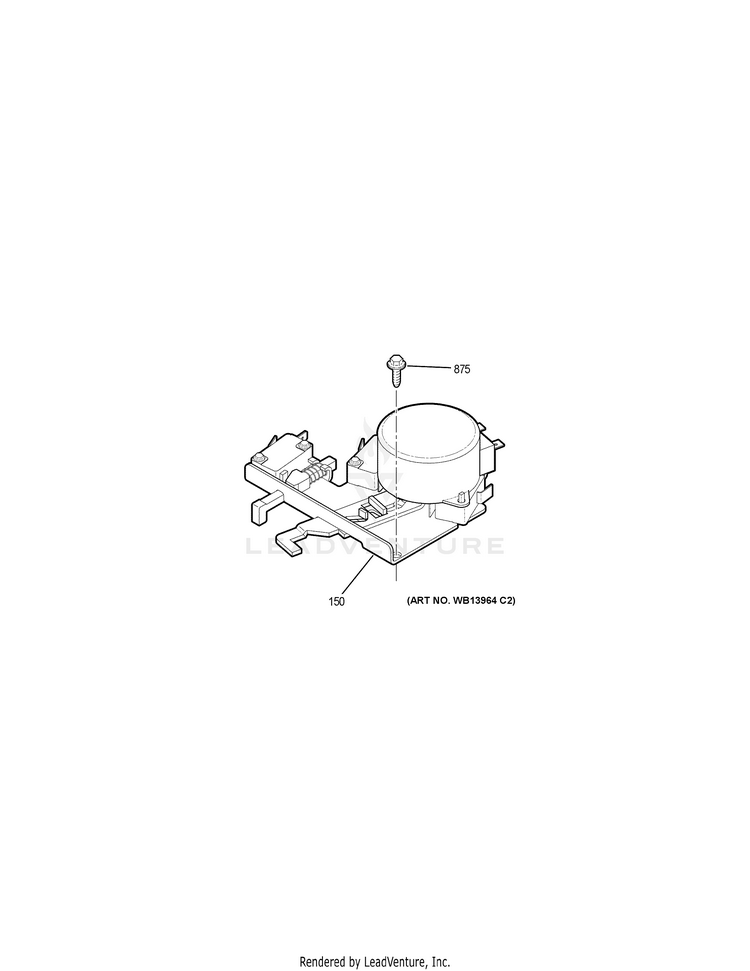

DOOR LOCK

...
...
150
LATCH AND TAPE ASM GEH-WB14T10082
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
