GE PT9200SL1SS Electric Range

Model: PT9200SL1SS

Save Part Not Listed?
product name

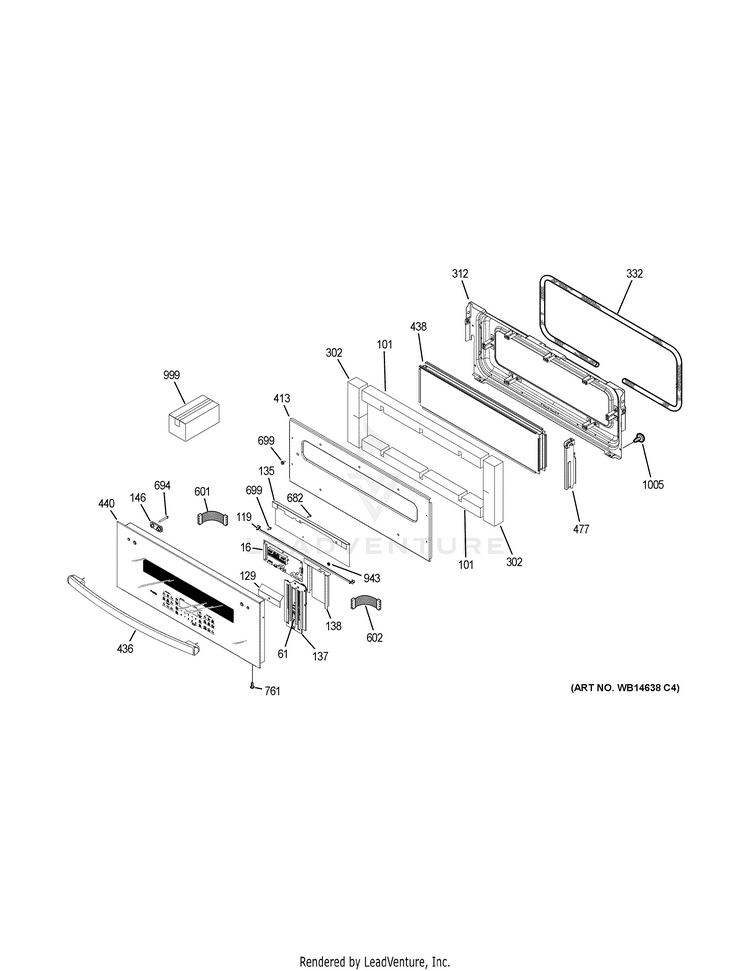

CONTROL PANEL & DOOR

...
...
16
DISPLAY MODULE CONTROL GEH-WB27X27912
...
61
BOARD SLIDER INTERFACE GEH-WB27T11070
...
101
INSULATION OVN DR TOP UP GEH-WB35T10167
...
119
WIPER DOOR GEH-WB02T10444
...
129
COVER SLIDER TOP GEH-WB02T10448
...
135
COVER TOUCH BOARD GEH-WB02T10446
...
137
SLIDER ASM BASE GEH-WB63T10143
...
138
COVER SLIDER GEH-WB02T10420
...
146
HANDLE BRACKET MTG (BK) GEH-WB02X27916
...
302
INSULATION OV DR UPRSIDE GEH-WB35T10168
...
312
LINER OVN DR ASM(UPR-BK) GEH-WB63X20011
...
332
OVEN DOOR GASKET GEH-WB35X27911
...
413
RETAINER INSLN OVN DR GEH-WB02T10423
...
436
HANDLE AND END CAP ASM GEH-WB15X27281
...
438
WINDOW PACK ASM UPR GEH-WB56T10244
...
440
OUTER DOOR UPPER ASM 30" GEH-WB56X27909
...
477
RECEIVER HINGE UPR (RT) GEH-WB10T10100
...
477
RECEIVER HINGE UPR ( LT) GEH-WB10T10101
...
601
LED RIBBON CONNECTOR GEH-WB18T10420
...
602
DOOR SIGNAL HARNESS GEH-WB18X31100
...
602
GLASS TOUCH RIBN CONN GEH-WB18T10422
...
682
SCREW 6-32X3/5" 1/4 HEX GEH-WB01K5186
...
694
SCREW 10-32 HEX 1 3/4 IN GEH-WB01T10132
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
761
SCR 8-18X.450 AB FLT20 S GEH-WB01T10110
...
943
NUT KEPS 8-32 SPECIAL GEH-WB01T10074
...
999
PM OWNERS MANUAL GEH-49-80786
...
999
PM MANUAL MINI & WD ASM GEH-31-17244
...
999
PM INSTALL INSTRUCTIONS GEH-31-11064
...
999
PM INSTALL INSTRUCTIONS GEH-31-11063
...
1005
SCREW 10-32 TR T GEH-WB01T10008

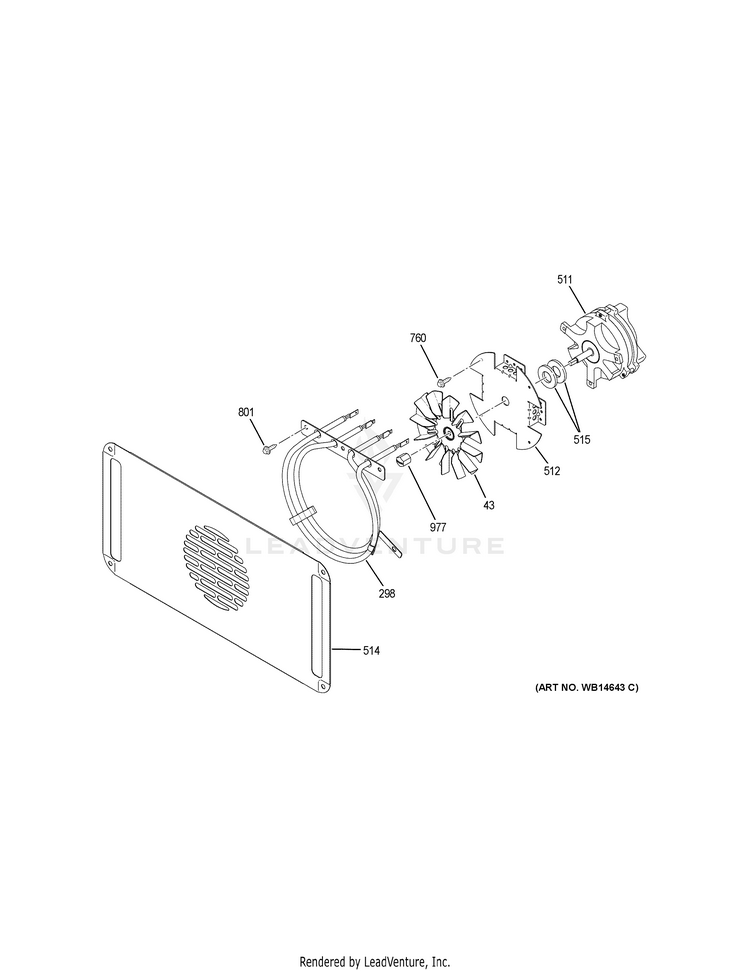

CONVECTION FAN

...
...
43
HUB BLADE ASM GEH-WB02T10289
...
298
ELEMENT CONX ASM GEH-WB44T10093
...
511
MOTOR PSC CONV GEH-WB26T10037
...
512
BRACKET CONVX MTR MTG GEH-WB02T10445
...
514
CONV FAN COVER GEH-WB34X27903
...
515
GASKET CONV FAN GEH-WB01T10079
...
760
SCREW GEH-WB01K5028
...
801
SCREW GEH-WB01M10002
...
977
NUT GEH-WB02T10017

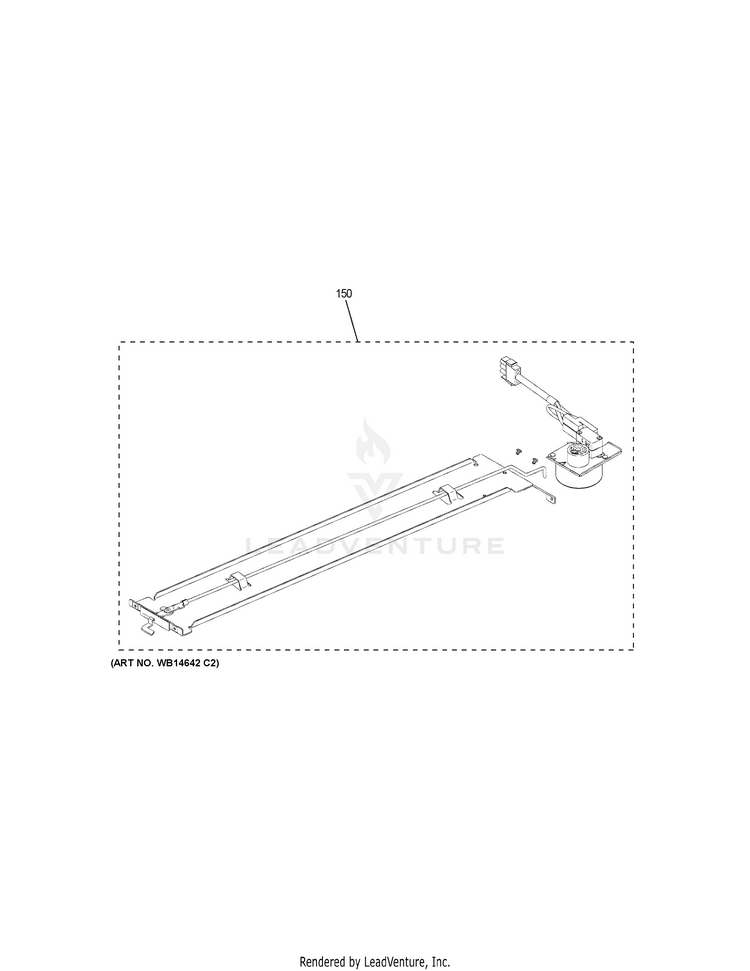

DOOR LOCK

...
...
150
LATCH & HARNESS ASM GEH-WB14T10067

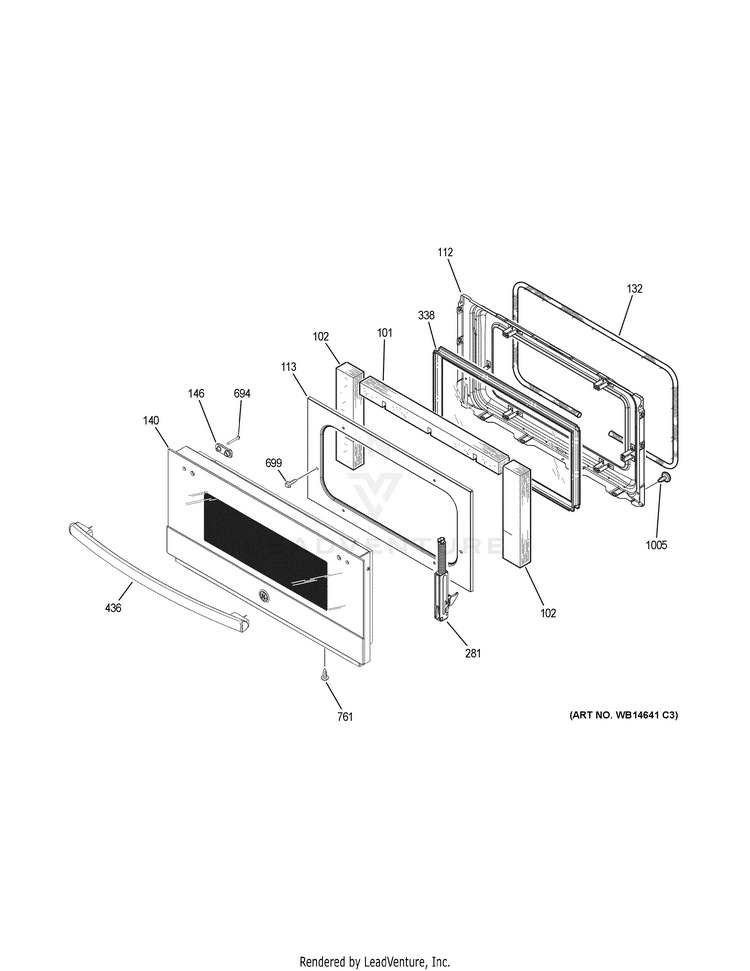

LOWER DOOR

...
...
101
INSULATION OVN DR TOP UP GEH-WB35T10167
...
102
INSULATION OVN DR SDE GEH-WB35T10198
...
112
OVEN DOOR LINER LOWER ASM GEH-WB56X27915
...
113
RETAINER INS OVN DR BTM GEH-WB02T10442
...
132
OVEN DOOR GASKET GEH-WB35X27918
...
140
OUTER DOOR LOWER ASM 30" GEH-WB56X27910
...
146
HANDLE BRACKET MTG (BK) GEH-WB02X27916
...
281
HINGE DOOR LT GEH-WB10T10121
...
281
HINGE DOOR RT GEH-WB10T10120
...
338
WINDOW PACK ASM GEH-WB56X27914
...
436
HANDLE AND END CAP ASM GEH-WB15X27281
...
694
SCREW 10-32 HEX 1 3/4 IN GEH-WB01T10132
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
761
SCR 8-18X.450 AB FLT20 S GEH-WB01T10110
...
1005
SCREW 10-32 TR T GEH-WB01T10008

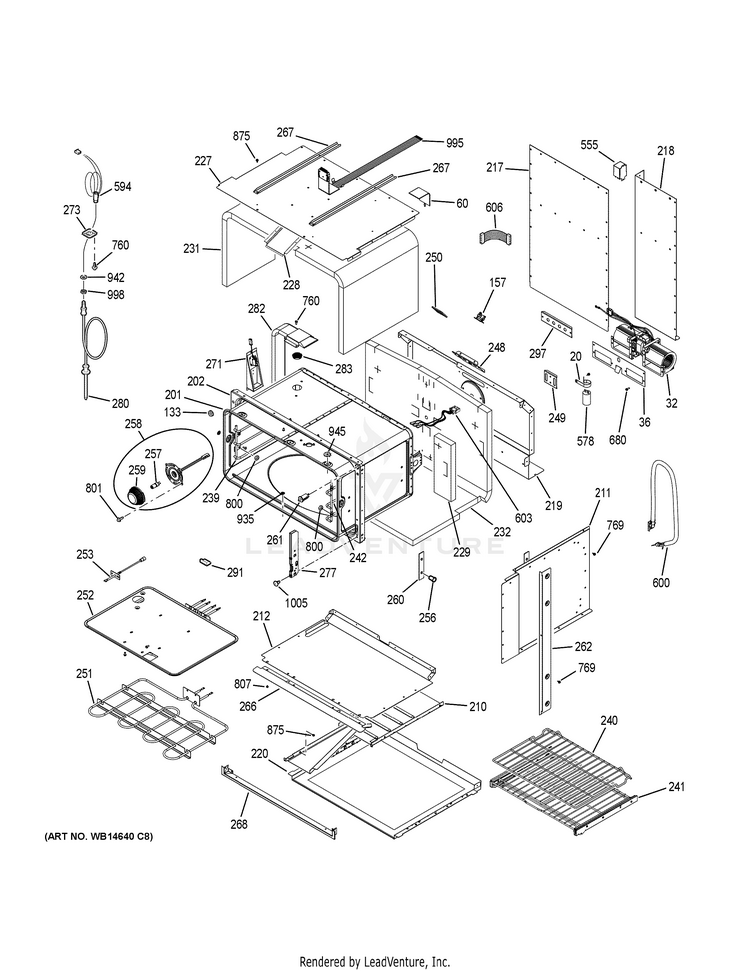

LOWER OVEN

...
...
20
BRACKET CAPACITOR MTR GEH-WB02T10152
...
32
FAN BLOWER GEH-WB26X31059
...
36
PLATE BLOWER ASM GEH-WB02T10447
...
60
SLEEVE SPRING STEEL GEH-WB02T10449
...
133
DOOR BUMPER GEH-WB01T10022
...
157
SWITCH HIGH LIMIT GEH-WB24T10161
...
201
OVEN CAVITY WRAPPER ASM LWR GEH-WB63X27931
...
202
FRONT FRAME LOWER GEH-WB63X27913
...
210
RAIL BTM VENTURI SUPT GEH-WB63T10139
...
211
RETAINER INSLN LWR SIDE GEH-WB02T10424
...
212
RETAINER INSLN LWR BTM GEH-WB02T10427
...
217
COVER RELAY BOARD GEH-WB02T10440
...
218
COVER BACK GEH-WB02T10435
...
219
LOWER BACK RETAINER INSULATION GEH-WB34X27900
...
220
DUCT BTM AIR GEH-WB02T10422
...
227
RETAINER INSN LWR ASM GEH-WB02T10426
...
228
RETAINER LATCH GEH-WB02T10459
...
229
INSULATION BACK LWR GEH-WB35T10208
...
231
INSULATION WRAPPER GEH-WB35T10205
...
232
INSULATION BACK/BTM LWR GEH-WB35T10206
...
239
OVEN RACK GUIDE LH (GY) GEH-WB48X27908
...
240
OVEN RACK (GY) GEH-WB48X27904
...
241
OVEN RACK SLIDE ASM GEH-WB48X27906
...
242
OVEN RACK GUIDE RH (GY) GEH-WB48X27907
...
248
PLATE BACK BROIL LWR GEH-WB02T10437
...
249
PLATE BACK BAKE GEH-WB02T10438
...
250
GASKET BACK LAMP GEH-WB04T10070
...
251
ELEMENT BAKE ASM LWR GEH-WB44T10092
...
252
ELEMENT BROIL ASM LWR GEH-WB44T10091
...
253
SENSOR ASM GEH-WB21X22134
...
256
RETAINER BOLT GEH-WB01T10107
...
257
LAMP HALOGEN G9 GEH-WB08T10045
...
258
LAMP HALOGEN ASM GEH-WB25T10093
...
259
OV LAMP LENS GEH-WB25T10013
...
260
CAVITY BRACE ASM GEH-WB07X27905
...
261
SWITCH SPDT HIGH AMP GEH-WB24T10160
...
262
TRIM VERT SDE (LT) GEH-WB07T10645
...
266
DIVIDER AIR GEH-WB02T10443
...
267
RAIL SUPPORT GEH-WB63T10141
...
268
TRIM BOTTOM ASM GEH-WB07T10647
...
271
SWITCH SAIL ASM GEH-WB24T10157
...
273
PROBE COVER GEH-WB02X8309
...
277
RECEIVER HINGE GEH-WB10X28563
...
280
PROBE THERMISTOR GEH-WB20T10025
...
282
TUBE VENT ASM LWR GEH-WB28T10219
...
283
ELIMINATOR SMOKE GEH-WB38T10033
...
291
COVER GEH-WB02X9152
...
297
PLATE BACK CONVX GEH-WB02T10439
...
555
RELAY GEH-WB18T10352
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
594
HARNESS WIRE PROBE GEH-WB18T10394
...
600
OPTIONAL 6' CONDUIT WIRE ASM GEH-WB18X27932
...
600
CONDUIT WIRE ASM GEH-WB18X27917
...
603
PLUNGER HARNESS WIRE GEH-WB18X28257
...
606
SIGNAL HARNESS WIRE GEH-WB18X31101
...
680
SCR 7-19 HXW 1/2 GEH-WR01X1850
...
760
SCREW GEH-WB01K5028
...
769
SCR 8-18 B HXW 1/4 S GEH-WB01X0500
...
800
RACK GUIDE NUT GEH-WB01X21270
...
801
SCREW GEH-WB01M10002
...
807
SCREW-BLK GEH-WB01K5165
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
935
WASHER GEH-WB01K5174
...
942
WASHER GEH-WB01X5573
...
945
LOCKWASHER GEH-WB01K5046
...
995
RIBBON CONNECTOR ASM GEH-WB18T10419
...
998
NUT MEAT PROBE GEH-WB01X5572
...
1005
SCREW 10-32 TR T GEH-WB01T10008

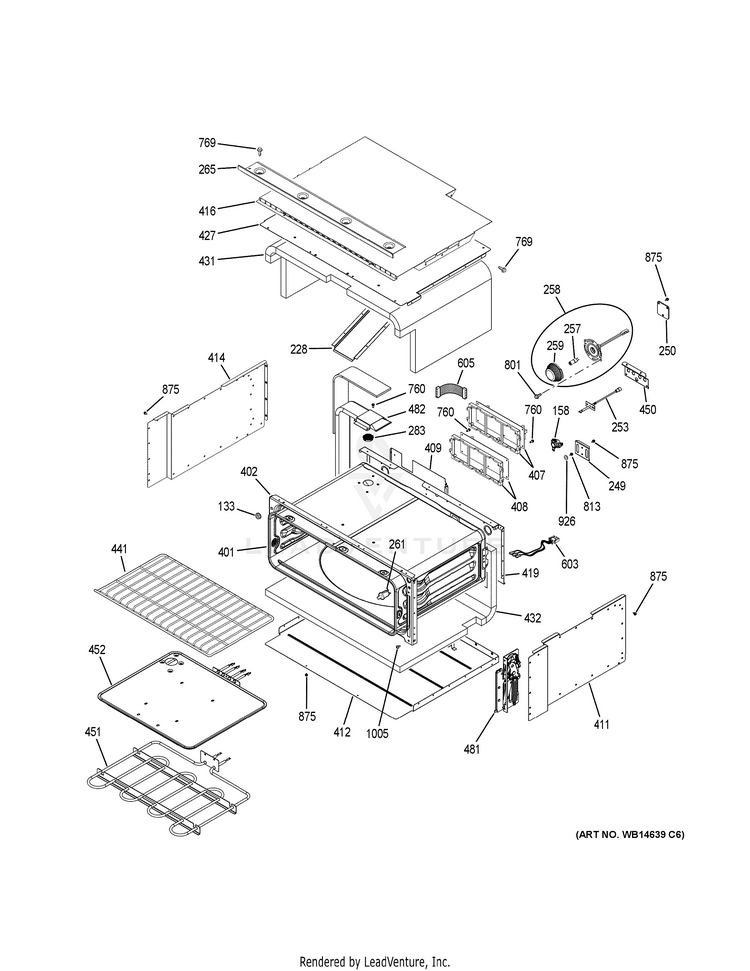

UPPER OVEN

...
...
133
DOOR BUMPER GEH-WB01T10022
...
158
SWITCH HIGH LIMIT GEH-WB24T10155
...
228
RETAINER LATCH GEH-WB02T10459
...
249
PLATE BACK BAKE GEH-WB02T10438
...
250
GASKET BACK LAMP GEH-WB04T10070
...
253
SENSOR ASM GEH-WB21X22134
...
257
LAMP HALOGEN G9 GEH-WB08T10045
...
258
LAMP HALOGEN ASM GEH-WB25T10093
...
259
OV LAMP LENS GEH-WB25T10013
...
261
SWITCH SPDT HIGH AMP GEH-WB24T10160
...
265
TRIM TOP CAB (BK) GEH-WB07T10650
...
283
ELIMINATOR SMOKE GEH-WB38T10033
...
401
WRAPPER OVN CAV ASM GEH-WB63T10162
...
402
FRONT FRAME UPR GEH-WB63X27901
...
407
FRAME BOARD ASM GEH-WB27T11068
...
408
FRAME BOARD ASM GEH-WB27T11069
...
409
BRACKET RELAY BOARD GEH-WB02T10582
...
411
RETAINER INSLN UPR SIDE GEH-WB02T10429
...
412
RTNER INSLN UPR BTM ASM GEH-WB02T10433
...
414
RETAINER INSLN UPR SIDE GEH-WB02T10430
...
416
COVER TOP GEH-WB02T10434
...
419
RETAINER INSLN UPR BACK GEH-WB02T10432
...
427
RETAINER INSN UPR ASM GEH-WB02T10431
...
431
INSULATION WRAPPER GEH-WB35T10204
...
432
INSULATION BACK/BTM UPR GEH-WB35T10207
...
441
RACK OVEN GEH-WB48T10042
...
450
PLATE BACK BROIL UPR GEH-WB02T10436
...
451
ELEMENT BAKE ASM GEH-WB44T10090
...
452
SHIELD BROIL ASM GEH-WB44T10089
...
481
HINGE ASM (LT) GEH-WB10T10119
...
481
HINGE ASM (RT) GEH-WB10T10118
...
482
TUBE VENT ASM UPR GEH-WB28T10218
...
603
PLUNGER HARNESS WIRE GEH-WB18X28257
...
605
SAIL SWITCH AND PROBE HARNESS GEH-WB18X31102
...
760
SCREW GEH-WB01K5028
...
769
SCR 8-18 B HXW 1/4 S GEH-WB01X0500
...
801
SCREW GEH-WB01M10002
...
813
SCREW GROUND GEH-WB01X1261
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
926
GROUND WASHER GEH-WB01X1260
...
1005
SCREW 10-32 TR T GEH-WB01T10008
