GE PT9050SF6SS Electric Range

Model: PT9050SF6SS

Save Part Not Listed?
product name

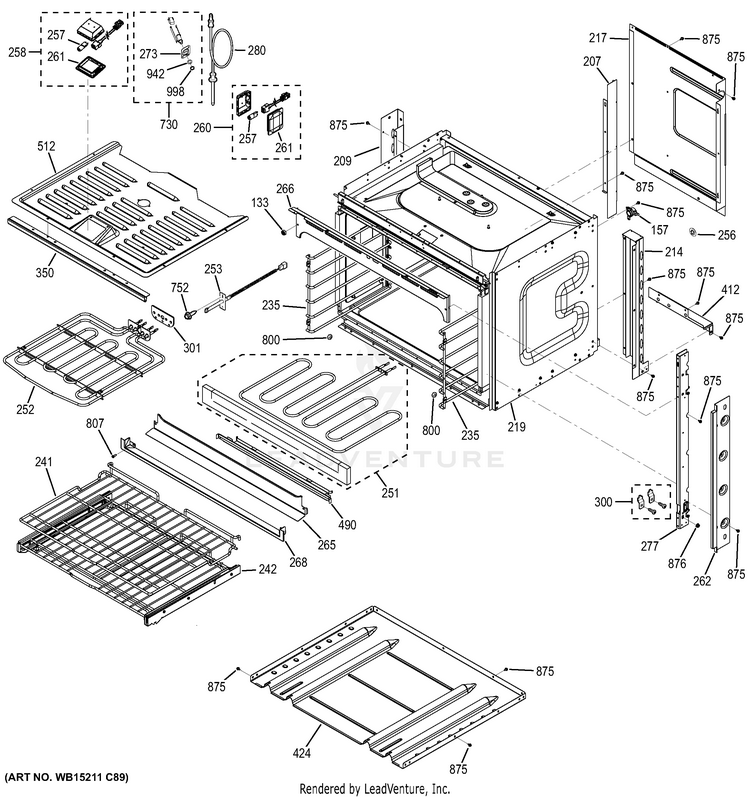

BODY PARTS

...
...
133
BUMPER DOOR GEH-WB03T10341
...
157
SWITCH HIGH LIMIT GEH-WB24T10164
...
207
DIVIDER AIR CENTER GEH-WB34T10134
...
209
CHANNEL REAR LT GEH-WB34X21910
...
214
CHANNEL REAR GEH-WB55X10971
...
217
COVER - UPPER REAR DUCT GEH-WB34T10136
...
219
RETAINER INSLN SDE GEH-WB34X21913
...
235
GUIDE OVN RACK LT GEH-WB48X21766
...
235
GUIDE OVN RACK RT GEH-WB48X21765
...
241
RACK FLAT GEH-WB48X23857
...
242
RACK OVN SLIDE ASM GEH-WB48X21764
...
251
HIDDEN BAKE ELEMENT KIT GEH-WB44X21667
...
252
ELEMENT BROIL ASM GEH-WB44X23640
...
253
SENSOR ASM GEH-WB21X10165
...
256
RETAINER BOLT GEH-WB01T10107
...
257
LAMP HALOGEN BULB G9 GEH-WB25T10102
...
258
LAMP HALOGEN ASM, TOP GEH-WB25X23730
...
260
LAMP HALOGEN ASM, SIDE GEH-WB25X23731
...
261
LENS OVEN LIGHT GEH-WB34T10145
...
262
TRIM VERTICAL SIDE SS GEH-WB07T10772
...
265
TRIM VENT LWR GEH-WB07X21187
...
266
TRIM VENT UPPER BLACK GEH-WB07T10800
...
268
TRIM BOTTOM CABINET GEH-WB07T10786
...
273
PR0BE COVER GEH-WB34K5140
...
277
BRACE VERTICAL RIGHT BLK GEH-WB07T10754
...
277
BRACE VERTICAL LEFT BLK GEH-WB07T10755
...
280
PROBE THERMISTOR GEH-WB20T10025
...
300
HINGE BRACKET ASM KIT GEH-WB49X21652
...
301
GASKET BROIL ELEMENT GEH-WB35X21972
...
350
TRIM BROIL ELEMENT (BK) GEH-WB07T10787
...
412
COVER LOWER RT AIR DUCT GEH-WB34T10151
...
424
COVER BOTTOM AIR DUCT GEH-WB34T10158
...
490
COVER HIDDEN BAKE GEH-WB55T10197
...
512
PLATE - TOP OVEN GEH-WB37T10024
...
730
MEAT PROBE AND HARNESS GEH-WB18X23585
...
752
SCREW GEH-WB01K5200
...
800
RACK GUIDE NUT GEH-WB01X21270
...
807
SCREW-NICKLE GEH-WB01X1174
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
876
LOCK NUT GEH-WB01T10127
...
942
WASHER GEH-WB01X5573
...
998
NUT MEAT PROBE GEH-WB01X5572

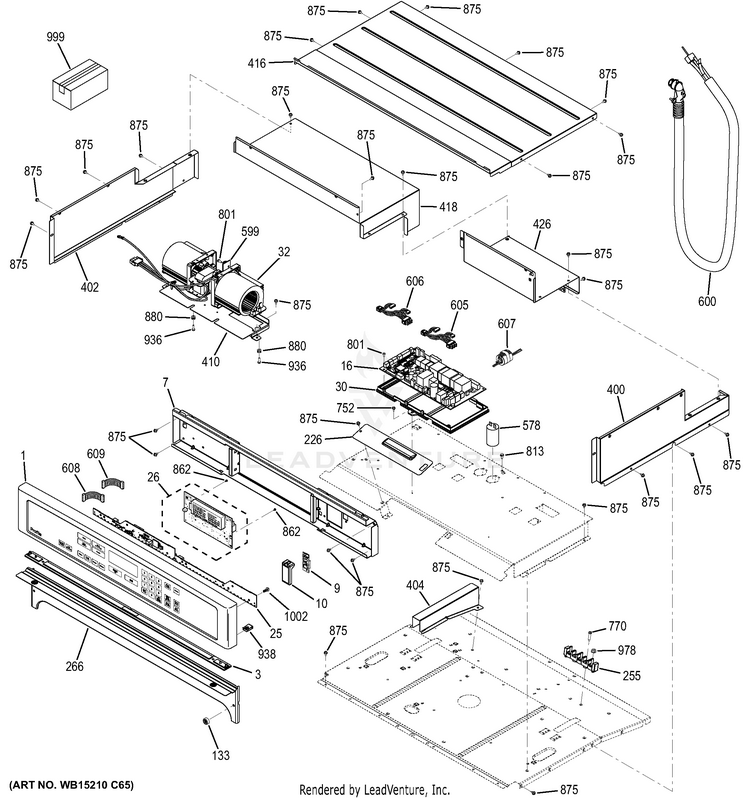

CONTROL PANEL

...
...
1
CONTROL PANEL ASM (SS) GEH-WB56X25769
...
1
LABEL WIRE DIAGRAM GEH-229C6152P002
...
3
DIFFUSER AND TAPE ASM GEH-WB34X25767
...
7
CONTROL PANEL MOUNTING B GEH-WB34X23557
...
9
BOARD WIFI CAT MODULE GEH-WB27X26299
...
10
HOUSING TRANSCEIVER GEH-WB02X20265
...
16
BOARD MACHINE CONTROL GEH-WB27X25554
...
25
BOARD LED LIGHTS GEH-WB27X23725
...
26
BOARD AND OVERLAY ASM GEH-WB27X23040
...
30
FRAME BOARD - PLASTIC GEH-WB02X20274
...
32
COOLING FAN GEH-WB26X24020
...
133
BUMPER DOOR GEH-WB03T10341
...
226
COVER LATCH ACCESS GEH-WB34T10161
...
255
BLOCK TERMINAL GEH-WB17T10024
...
266
TRIM VENT UPPER BLACK GEH-WB07T10800
...
400
COVER TOP RIGHT EDGE GEH-WB34T10164
...
402
COVER TOP LEFT EDGE GEH-WB44T10126
...
404
CHANNEL UPPER AIR VENT GEH-WB34T10150
...
410
BRACKET UPPER FAN MOUNT GEH-WB37T10026
...
416
COVER HOUSING FRT GEH-WB34T10165
...
418
COVER TOP REAR GEH-WB34T10157
...
426
COVER WIRE REAR GEH-WB35T10273
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
599
BOARD FAN SENSOR GEH-WB27T11463
...
600
CONDUIT WIRE ASM GEH-WB18T10567
...
600
OPTIONAL 6 FT CONDUIT GEH-WB18T10578
...
605
HARNESS WIRE MAIN GEH-WB18X23721
...
606
HARNESS WIRE LATCH COM GEH-WB18X23726
...
607
HARNESS WIRE COM GEH-WB18T10556
...
608
HARNESS WIRE DISPLA-WIFI GEH-WB18T10557
...
609
HARNESS WIRE LED JUMPER GEH-WB18T10558
...
752
SCREW GEH-WB01K5200
...
770
SCREW GEH-WB01K5072
...
801
6-19 X 1/4 TORX PAN HEAD GEH-WD02X10129
...
862
SCREW GEH-WB01X1178
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
880
GROMMET GEH-WB01T10128
...
936
SCREW 7-19 1/4HEX 1/2IN GEH-WB01T10130
...
938
CLIP GEH-WB01K5209
...
978
HEX NUT GEH-WB01X1259
...
999
MANUAL U&C TIP SHEET GEH-49-80597
...
999
PM OWNERS MANUAL GEH-49-80754
...
999
PM MINI MANUAL GEH-31-17107
...
999
PM WI FI INSTRUCTIONS GEH-31-11013
...
999
PM INSTALL INSTRUCTIONS GEH-31-10979
...
999
PM INSTALL INSTRUCTIONS GEH-31-10957
...
999
INSTRUCTION INSTALL GEH-31-10882
...
1002
SCR 8-18 B PNP 3/8 S ZN GEH-WR01X10791

CONVECTION FAN

...
...
43
BLADE FAN CONVECTION GEH-WB02T10598
...
223
INSULATION CONVECT FAN GEH-WB35T10259
...
298
ELEMENT CONVX GEH-WB44X21671
...
511
MOTOR CONVX GEH-WB26X23476
...
514
COVER CONVECTION FAN GEH-WB37T10023
...
515
GASKET CONV FAN GEH-WB04T10071
...
516
DUCT CONVECTION FAN GEH-WB37T10022
...
951
SCREW 8-18 T20 3/8 IN GEH-WB01T10134
...
977
NUT HEX GEH-WB02T10608

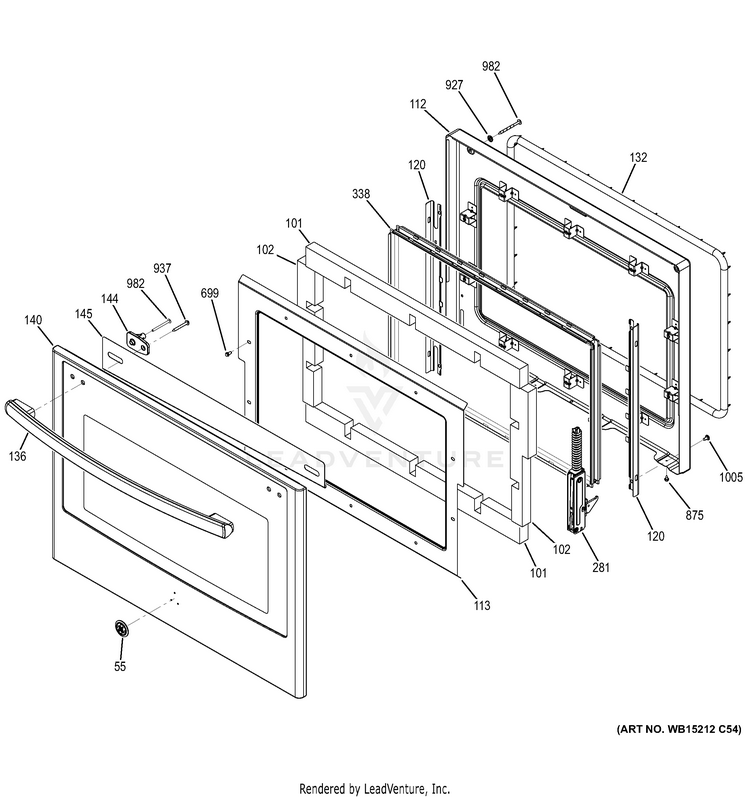

DOOR

...
...
55
BADGE GE GEH-WB02T10589
...
101
INSULATION DR TOP GEH-WB35X21737
...
102
INSULATION DR SIDE GEH-WB35X21672
...
112
LINER OVEN DOOR ASM GEH-WB55T10199
...
113
RETAINER INSLN OVN DR GEH-WB34T10131
...
120
SUPPORT LINER GEH-WB34X21384
...
132
GASKET OVEN DOOR GEH-WB04T10091
...
136
HANDLE AND END CAP ASM GEH-WB15X27281
...
140
DOOR GLASS AND TRIM ASM GEH-WB56X27383
...
144
SUPPORT HANDLE GEH-WB02T10603
...
145
DEFLECTOR OVEN DOOR GEH-WB34T10142
...
281
HINGE DOOR LH GEH-WB10X27493
...
281
HINGE DOOR RH GEH-WB10X27494
...
338
WINDOW PACK ASM GEH-WB56X27480
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
927
CONTOURED WASHER GEH-WB01X0119
...
937
SCREW 10-32 HEX 1 3/4 IN GEH-WB01T10132
...
982
SCREW 10-32 T20 2 1/2 IN GEH-WB01T10131
...
1005
SCREW 10-32 TR T GEH-WB01T10008

DOOR LOCK

...
...
150
LATCH ASM GEH-WB10X23475
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
