GE PSE25KBLNHTS Refrigerator

Model: PSE25KBLNHTS

Back To Assemblies

Save Part Not Listed?
product name

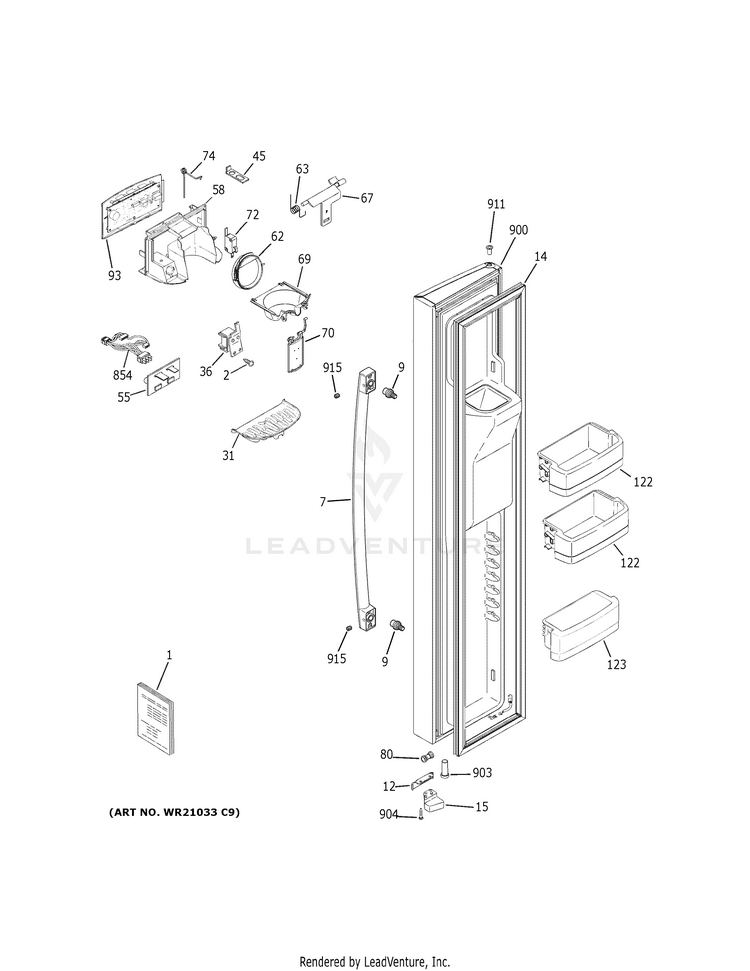

FREEZER DOOR

...
...
1
PM MINI MANUAL AND WIRING GEH-31-1000062
...
1
PM QUICK USE & CARE CAFE GEH-49-60822
...
2
SCR 4-10 PL PNP 3/4 SS GEH-WR02X12257
...
7
BLACK STAINLESS DOOR HANDLE GEH-WR12X31327
...
9
FASTENER DOOR HANDLE GEH-WR01X11007
...
12
FREEZER DOOR STOP BLACK GEH-WR01X28628
...
14
GASKET DOOR FZ DG GEH-WR24X25780
...
15
CAM CLOSURE FZ BLACK GEH-WR02X10779
...
31
RECESS GRILL DORIAN GRAY GEH-WR17X29213
...
36
SOLENOID ASM GEH-WR62X10055
...
45
RETAINER RECESS DOOR GEH-WR02X8818
...
55
BOARD ASM DISP LIGHTING GEH-WR55X10899
...
58
HOUSING SHIELD DISP GEH-WR17X12500
...
62
DOOR RECESS ASM GEH-WR17X11653
...
63
SPRING RECESS DOOR GEH-WR02X10585
...
67
CRANK DOOR RECESS GEH-WR17X10706
...
69
DISPENSER ICE FUNNEL GEH-WR17X21781
...
70
DISPENSER PADDLE DORIAN GRAY GEH-WR17X29214
...
72
SWITCH GEH-WR23X10783
...
74
SPRING TORSION GEH-WR02X12256
...
80
UNION CONNECTOR GEH-WR02X11330
...
93
DISPENSER INTERFACE & BOARD DORIAN GRAY GEH-WR55X30721
...
122
MODULE SHELF FZ GEH-WR71X10291
...
123
MODULE SHELF FZ FIXED GEH-WR71X10501
...
854
HARNESS RECESS DISPENSOR GEH-WR23X10665
...
900
REFRIGERATOR - FREEZER DOOR BLACK STAINL GEH-WR78X29219
...
903
FREEZER DOOR BOTTOM THIMBLE BLACK GEH-WR01X28633
...
904
SCR 10-16 GEH-WR01X10582
...
911
THIMBLE DOOR GEH-WR01X10975
...
915
SET SCREW GEH-WR01X20424
