GE PSB9240EF3ES Microwave Or Advantium

Model: PSB9240EF3ES

Back To Assemblies

Save Part Not Listed?
product name

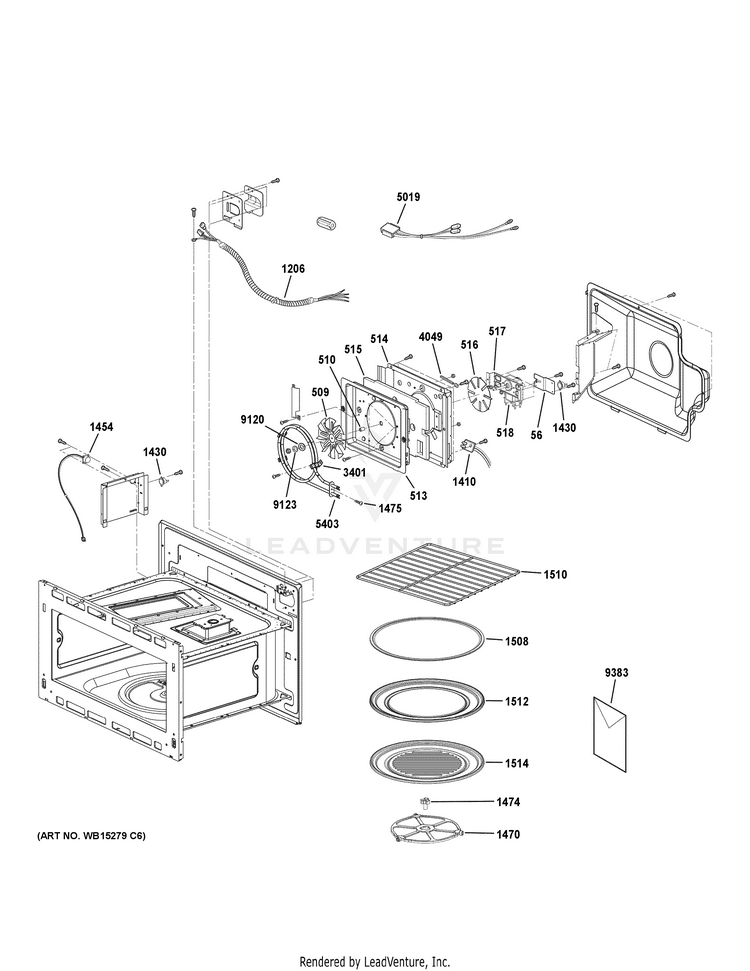

INTERIOR PARTS (1)

...
...
56
BRACKET- MAGNETRON GEH-WB02X10721
...
509
FAN - STIRRER GEH-WB06X10266
...
510
SPACER GEH-WB01X1518
...
513
CHAMBER GEH-WB06X10641
...
514
CHAMBER GEH-WB06X10642
...
515
GLASS WOOL GEH-WB06X10650
...
516
FAN BLADE GEH-WB06X0475
...
517
BRACKET - MTR CIRCU GEH-WB02X10542
...
518
MOTOR,AC FAN GEH-WB26X10211
...
1206
POWER CORD ASM GEH-WB18X21264
...
1410
THERMISTOR NTC GEH-WB18X10287
...
1430
THERMOSTAT GEH-WB20X10048
...
1454
SENSOR ASM GEH-WB27X10857
...
1470
ROTATING RING ASM GEH-WB06X10651
...
1474
SHAFT,TURNTABLE GEH-WB02X11360
...
1475
SCREW - HEATER SHEATH GEH-WB01X1504
...
1508
TRAY GLASS GEH-WB49X10166
...
1510
RACK GEH-WB49X10202
...
1512
TRAY,METAL GEH-WB49X10187
...
1514
TRAY, METAL BB GEH-WB49X10228
...
3401
HOLDER - HEATER GEH-WB06X10264
...
4049
HOLDER WIRE GEH-WB02X11233
...
5019
HARNESS, SINGLE GEH-WB18X21249
...
5403
HEATER SHEATH GEH-WB44X10050
...
9120
WASHER- PLAIN GEH-WB01X1521
...
9123
WASHER COMMON GEH-WB01X1522
...
9383
INSULATION FORM KIT GEH-WB35X10016
