product name

GE PSB9240EF1ES Microwave Or Advantium

Model: PSB9240EF1ES

Save Part Not Listed?
product name

CONTROL PARTS

...
...
22
CONTROL BOARD BRACKET GEH-WB34X22089
...
68
CONTROL PANEL ASM GEH-WB07X27147
...
97
HOLDER DISPLAY GEH-WB02X11227
...
1600
BOARD, DISPLAY GEH-WB27X11016
...
1605
LED BOARD GEH-WB27X11020
...
1610
ENCODER BOARD GEH-WB27X11022
...
1615
MAIN CONTROL BOARD GEH-WB27X26581
...
1618
KNOB GEH-WB03X21244
...
1643
TRANSFORMER GEH-WB26X26580
...
1652
POWER BOARD GEH-WB27X26582
...
1653
BOARD, RELAY GEH-WB27X11021
...
2003
SUPPORTER,BOARD GEH-WB02X11322
...
2041
HARNESS, PCB TO VFD GEH-WB18X10409
...
2042
HARNESS,PCB TO TOUCH PCB GEH-WB18X10410
...
2043
HARNESS,PCB TO DIAL PCB GEH-WB18X10411
...
2044
HARNESS,PCB TO LED PCB GEH-WB18X10412
...
2045
HARNESS,PCB TO RELAY GEH-WB18X10413
...
2046
HARNESS,PCB TO PWR PCB GEH-WB18X10414

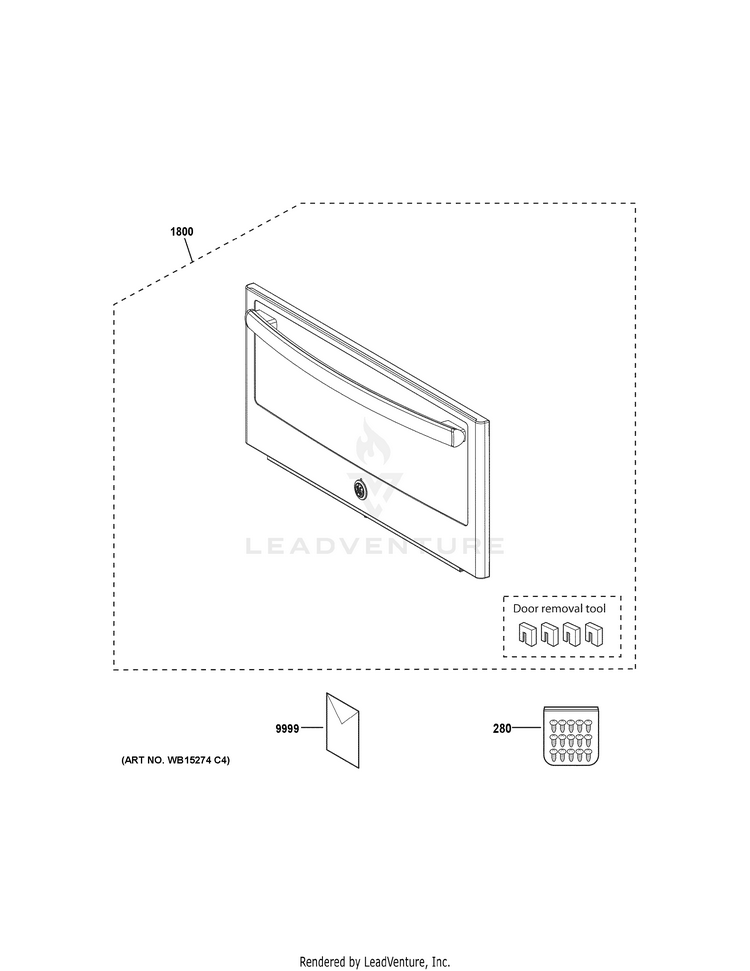

DOOR PARTS

...
...
280
ADV HARDWARE ASM BAG GEH-WB01X10304
...
1800
DOOR ASM & REMOVAL TOOL GEH-WB56X27142
...
9999
PM MINI MANUAL GEH-31-30805

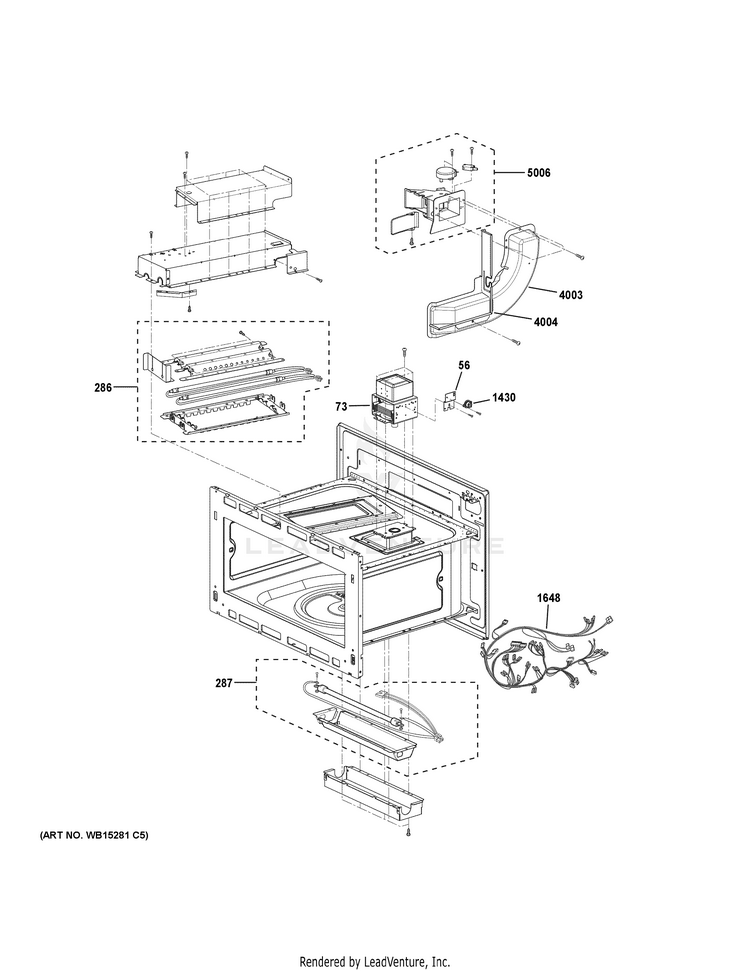

INSULATOR PARTS

...
...
56
BRACKET- MAGNETRON GEH-WB02X10721
...
73
MAGNETRON GEH-WB27X26081
...
286
HALOGEN HEATER ASM GEH-WB44X10053
...
287
CERAMIC HEATER ASSEMBLY GEH-WB44X10052
...
1430
THERMOSTAT GEH-WB20X10048
...
1648
HARNESS, SINGLE GEH-WB18X21265
...
4003
DUCT GEH-WB02X11230
...
4004
BARRIER GEH-WB02X22086
...
5006
DUCT ASM GEH-WB34X22117

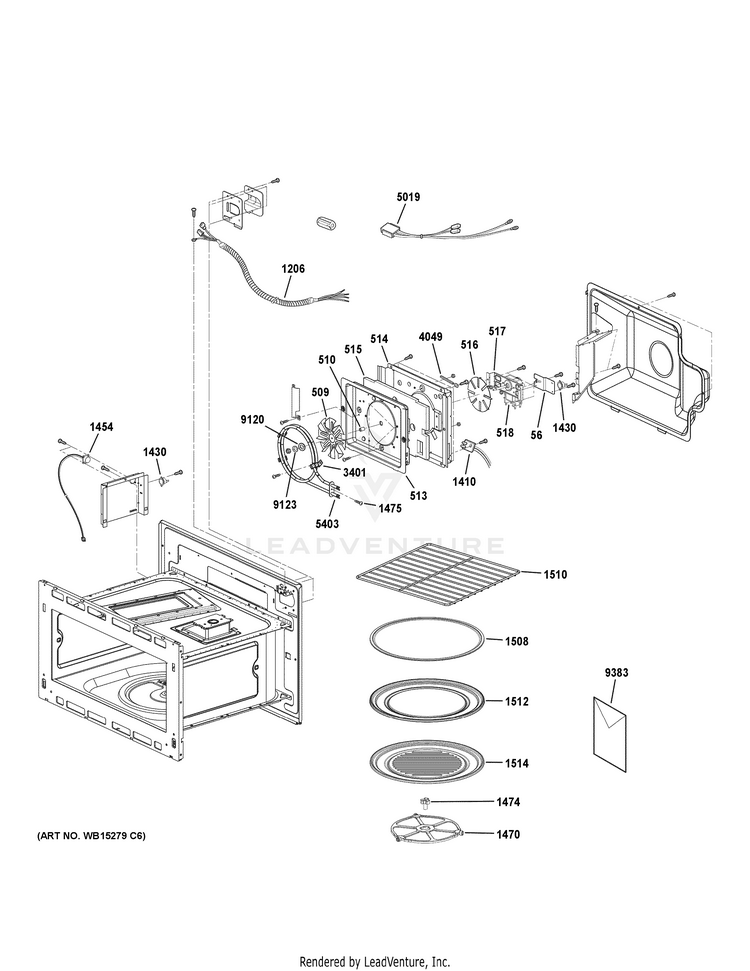

INTERIOR PARTS (1)

...
...
56
BRACKET- MAGNETRON GEH-WB02X10721
...
509
FAN - STIRRER GEH-WB06X10266
...
510
SPACER GEH-WB01X1518
...
513
CHAMBER GEH-WB06X10641
...
514
CHAMBER GEH-WB06X10642
...
515
GLASS WOOL GEH-WB06X10650
...
516
FAN BLADE GEH-WB06X0475
...
517
BRACKET - MTR CIRCU GEH-WB02X10542
...
518
MOTOR,AC FAN GEH-WB26X10211
...
1206
POWER CORD ASM GEH-WB18X21264
...
1410
THERMISTOR NTC GEH-WB18X10287
...
1430
THERMOSTAT GEH-WB20X10048
...
1454
SENSOR ASM GEH-WB27X10857
...
1470
ROTATING RING ASM GEH-WB06X10651
...
1474
SHAFT,TURNTABLE GEH-WB02X11360
...
1475
SCREW - HEATER SHEATH GEH-WB01X1504
...
1508
TRAY GLASS GEH-WB49X10166
...
1510
RACK GEH-WB49X10202
...
1512
TRAY,METAL GEH-WB49X10187
...
1514
TRAY, METAL BB GEH-WB49X10228
...
3401
HOLDER - HEATER GEH-WB06X10264
...
4049
HOLDER WIRE GEH-WB02X11233
...
5019
HARNESS, SINGLE GEH-WB18X21249
...
5403
HEATER SHEATH GEH-WB44X10050
...
9120
WASHER- PLAIN GEH-WB01X1521
...
9123
WASHER COMMON GEH-WB01X1522
...
9383
INSULATION FORM KIT GEH-WB35X10016

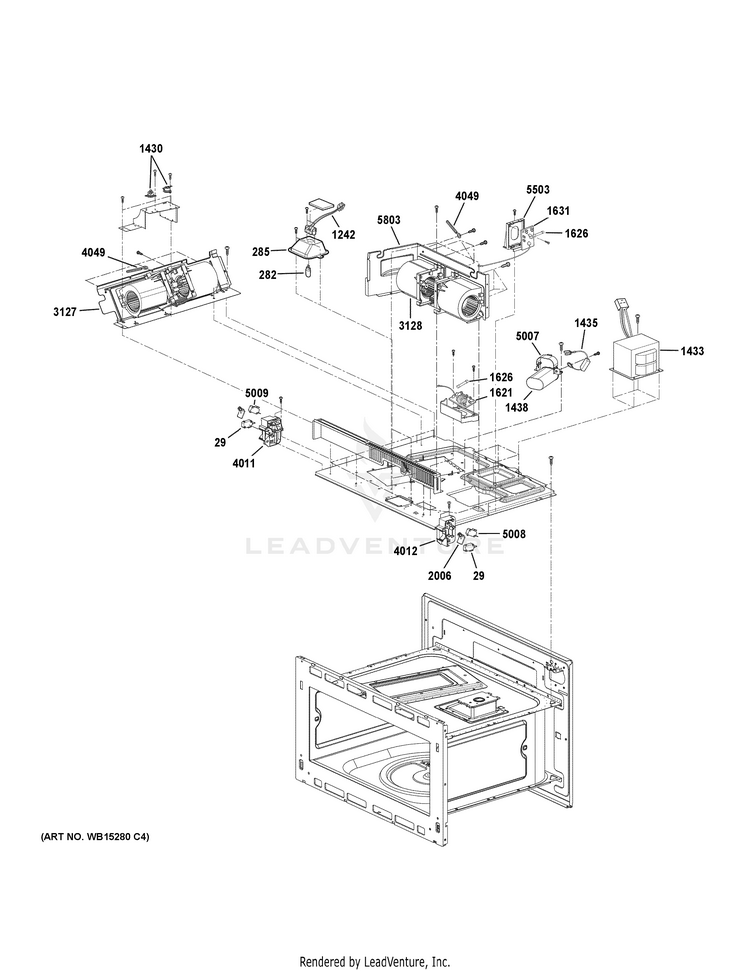

INTERIOR PARTS (2)

...
...
29
SWITCH MICRO GEH-WB24X0815
...
282
LAMP HALOGEN GEH-WB08X10057
...
285
COVER LAMP GEH-WB02X11211
...
1242
HOLDER ASM GEH-WB06X10646
...
1430
THERMOSTAT GEH-WB20X10048
...
1433
TRANSFORMER,HIGH VOLTAGE GEH-WB17X10030
...
1435
CABLE ASM GEH-WB18X10286
...
1438
CAPACITOR, H.V GEH-WB27X10701
...
1621
NOISE FILTER BOARD GEH-WB02X25914
...
1626
FUSE GEH-WB27X10388
...
1631
SURGE FILTER BOARD GEH-WB27X26322
...
2006
LEVER GEH-WB02X11214
...
3127
MOTOR, VENTILATION FAN GEH-WB27X11017
...
3128
MOTOR(CIRC) CIRCULATION GEH-WB26X10182
...
4011
BOARD LATCH LT GEH-WB06X10639
...
4012
BOARD LATCH RT GEH-WB06X10640
...
4049
HOLDER WIRE GEH-WB02X11233
...
5007
BRACKET CAPACITOR GEH-WB02X11226
...
5008
SWITCH MONTR GEH-WB24X817
...
5009
MICRO SWITCH GEH-WB24X10172
...
5503
SUPPORTER GEH-WB02X11229
...
5803
MOUNT GEH-WB06X10647

OVEN CAVITY PARTS

...
...
20
BRACKET GEH-WB02X11225
...
25
CASE,FLAT GEH-WB56X10840
...
30
DOOR SWITCH ACCESS CVR GEH-WB02X10684
...
31
WINDOW,GLASS GEH-WB06X10773
...
32
TRIM SIDE RIGHT GEH-WB07X21269
...
33
TRIM, SIDE LEFT GEH-WB07X11230
...
34
TRIM ASM GEH-WB07X27181
...
35
HOLDER,COOK AUXILIARY GEH-WB06X10776
...
65
BRACKET GEH-WB02X11224
...
66
BRACKET GEH-WB02X11221
...
86
MOUNT GEH-WB06X10649
...
96
MICA COVER GEH-WB06X10828
...
1473
TT MOTOR W/ GASKET GEH-WB26X10219
...
1478
HOLDER ASM GEH-WB06X10786
...
1818
CERAMIC-TOP GEH-WB36X10129
...
6001
BASE PLATE GEH-WB63X21383
