GE PSB9100SF2SS Microwave Or Advantium

Model: PSB9100SF2SS

Save Part Not Listed?
product name

CONTROL PARTS

...
...
22
CONTROL BOARD BRACKET GEH-WB34X22089
...
68
CONTROLER ASM GEH-WB07X25669
...
97
HOLDER DISPLAY GEH-WB02X11227
...
1600
DIGITRON GEH-WB27X10856
...
1603
INDICATOR GEH-WB27X11059
...
1605
SELECTOR BOARD GEH-WB27X30034
...
1615
MAIN BOARD GEH-WB27X27141
...
1618
KNOB GEH-WB03X21244
...
1643
TRANSFORMER POWER GEH-WB17X10021
...
1652
POWER BOARD GEH-WB27X10861
...
1652
POWER BOARD GEH-WB27X27144
...
1653
RELAY BOARD GEH-WB27X10859
...
2003
SUPPORTER,BOARD GEH-WB02X11322

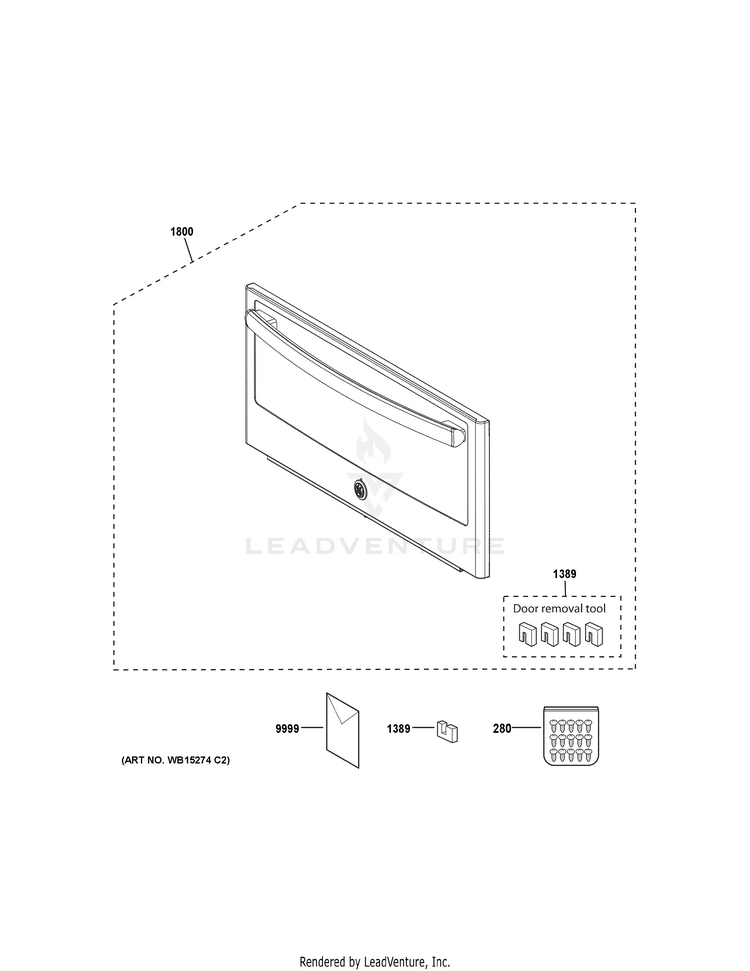

DOOR PARTS

...
...
280
ADV HARDWARE ASM BAG GEH-WB01X10304
...
1389
DOOR REMOVAL TOOL GEH-WB01X10364
...
1800
DOOR ASM & REMOVAL TOOL GEH-WB56X21242
...
9999
PM OWNERS MANUAL GEH-49-40685
...
9999
COOKBOOK GEH-49-40462
...
9999
MINI MANUAL GEH-49-40694
...
9999
PM INSTALL INSTRUCTIONS GEH-49-40689
...
9999
PM COOKING GUIDE GEH-49-40692

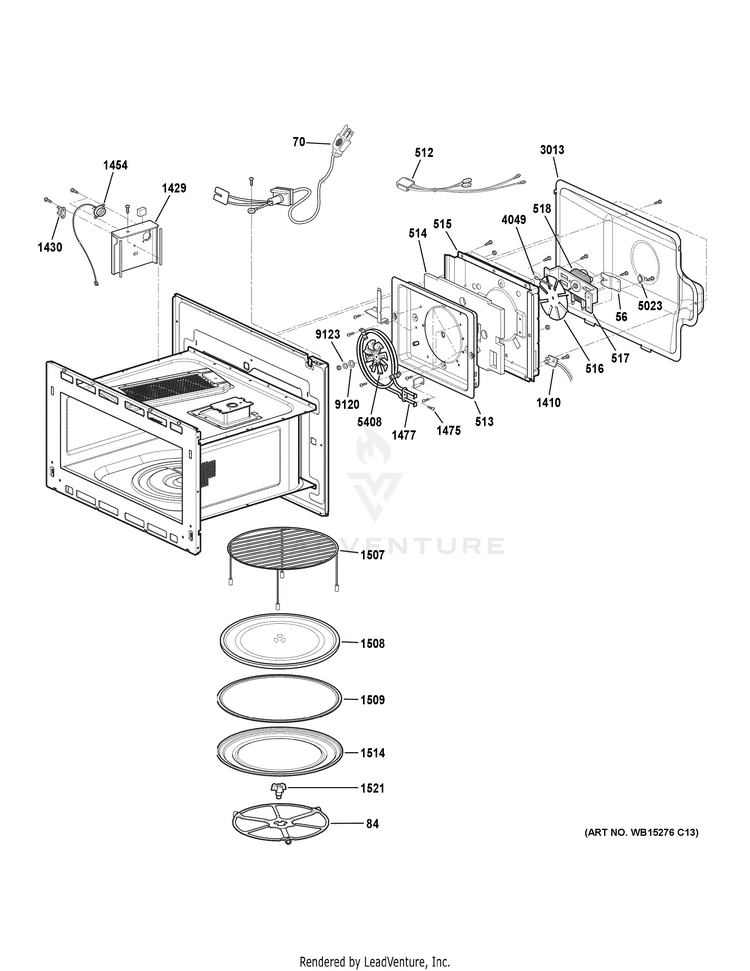

INTERIOR PARTS (1)

...
...
56
BRACKET- MAGNETRON GEH-WB02X10721
...
70
POWER CORD ASM GEH-WB18X21246
...
84
ROTATING RING ASM GEH-WB06X10651
...
512
HARNESS, SINGLE GEH-WB18X21249
...
513
CHAMBER GEH-WB06X10641
...
514
GLASS WOOL GEH-WB06X10650
...
515
CHAMBER GEH-WB06X10642
...
516
FAN BLADE GEH-WB06X0475
...
517
BRACKET - MTR CIRCU GEH-WB02X10542
...
518
MOTOR,AC FAN GEH-WB26X10211
...
1410
THERMISTOR NTC GEH-WB18X10287
...
1429
AIR TUNNEL GEH-WB02X11232
...
1430
THERMOSTAT GEH-WB21X10149
...
1454
SENSOR ASM GEH-WB27X10857
...
1475
SCREW - HEATER SHEATH GEH-WB01X1504
...
1477
HOLDER - HEATER GEH-WB06X10264
...
1507
RACK GEH-WB49X10213
...
1508
TRAY GLASS GEH-WB49X10166
...
1509
TRAY,METAL GEH-WB49X10187
...
1514
SPEEDCOOK TRAY FOR THE A GEH-WB49X10167
...
1521
SHAFT ASM GEH-WB06X10693
...
3013
COVER BACK GEH-WB56X10637
...
4049
HOLDER WIRE GEH-WB02X11233
...
5023
THERMOSTAT GEH-WB20X10048
...
5408
FAN - STIRRER GEH-WB06X10266
...
9120
WASHER- PLAIN GEH-WB01X1521
...
9123
WASHER COMMON GEH-WB01X1522

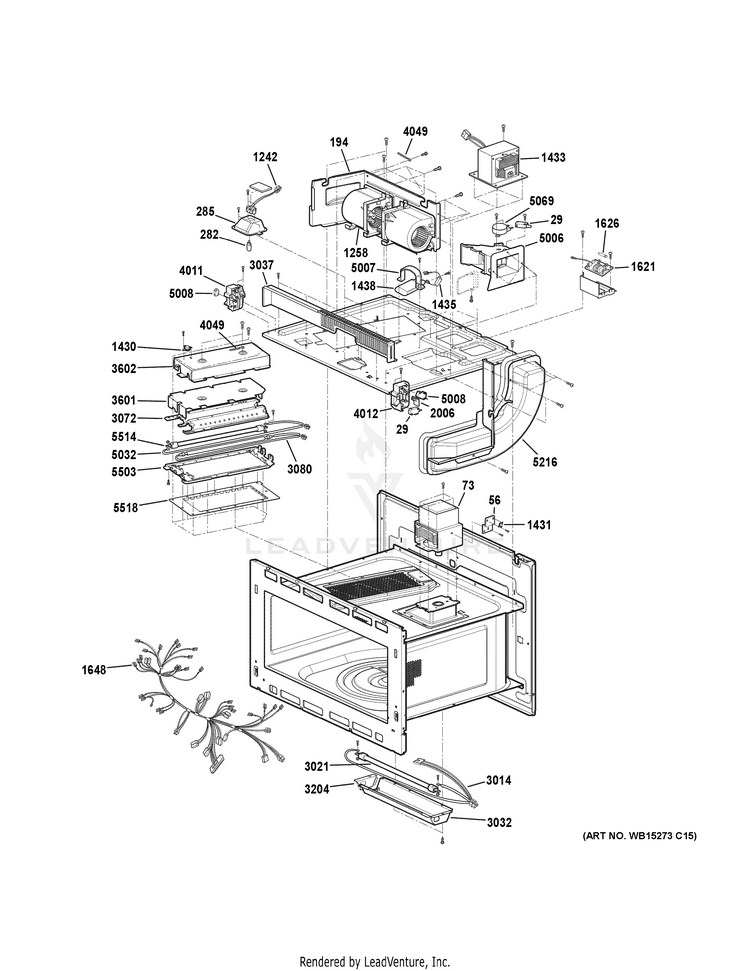

INTERIOR PARTS (2)

...
...
29
SWITCH MICRO GEH-WB24X0817
...
56
BRACKET- MAGNETRON GEH-WB02X10721
...
73
MAGNETRON GEH-WB27X10305
...
194
MOUNT GEH-WB06X10647
...
282
LAMP HALOGEN GEH-WB08X10057
...
285
COVER LAMP GEH-WB02X11211
...
1242
HOLDER ASM GEH-WB06X10646
...
1258
MOTOR(CIRC) CIRCULATION GEH-WB26X10182
...
1430
THERMOSTAT GEH-WB21X10149
...
1431
THERMOSTAT GEH-WB21X10148
...
1433
TRANSFORMER,HIGH VOLTAGE GEH-WB17X10030
...
1435
CABLE ASM GEH-WB18X10286
...
1438
CAPACITOR, H.V GEH-WB27X10701
...
1621
NOISE FILTER BOARD GEH-WB02X21093
...
1626
FUSE GEH-WB27X10388
...
1648
HARNESS, SINGLE GEH-WB18X21247
...
2006
LEVER GEH-WB02X11214
...
3014
HARNESS,SINGLE GEH-WB18X10387
...
3021
HEATER MIRACLON GEH-WB21X10141
...
3032
REFLECTOR GEH-WB02X11318
...
3037
PROTECTOR (MECH) GEH-WB06X10645
...
3072
REFLECTOR GEH-WB02X11210
...
3080
HEATER HALOGEN GEH-WB21X10142
...
3204
BRACKET HEATER GEH-WB02X11223
...
3601
COVER HEATER GEH-WB06X10644
...
3602
COVER HEATER GEH-WB06X10643
...
4011
BOARD LATCH LT GEH-WB06X10639
...
4012
BOARD LATCH RT GEH-WB06X10640
...
4049
HOLDER WIRE GEH-WB02X11233
...
5006
DUCT GEH-WB02X11231
...
5007
BRACKET CAPACITOR GEH-WB02X11226
...
5008
SWITCH MICRO GEH-WB24X0815
...
5032
HARNESS GEH-WB18X10290
...
5069
MOTOR GEH-WB26X10083
...
5216
DUCT GEH-WB02X11230
...
5503
SUPPORTER GEH-WB02X11461
...
5514
HEATER MIRACLON GEH-WB21X10143
...
5518
BRACKET GEH-WB02X11222

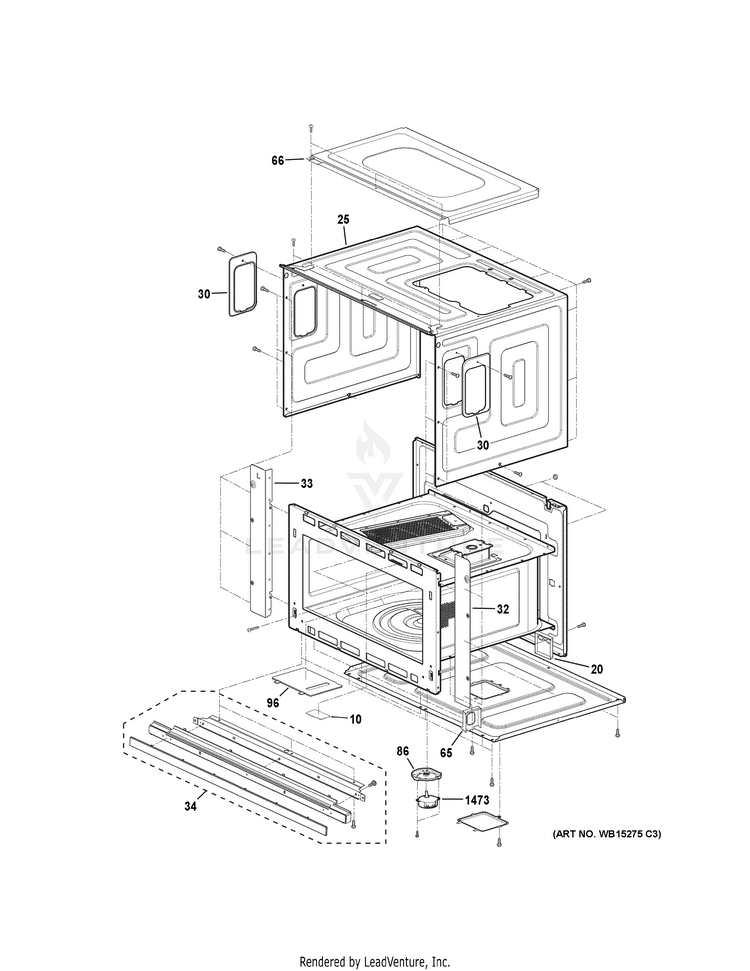

OVEN CAVITY PARTS

...
...
10
SEAL TAPE GEH-WB55X10802
...
20
BRACKET GEH-WB02X11225
...
25
OUTER CASE, FLAT GEH-WB56X26535
...
30
DOOR SWITCH ACCESS CVR GEH-WB02X10684
...
32
TRIM RT GEH-WB07X10916
...
33
TRIM LT GEH-WB07X10917
...
34
BOTTOM TRIM KIT ASM GEH-WB64X25884
...
65
BRACKET GEH-WB02X11224
...
66
BRACKET GEH-WB02X11221
...
86
MOUNT GEH-WB06X10649
...
96
CANOPY MICA GEH-WB06X10638
...
1473
MOTOR TURNTABLE GEH-WB26X10193
