product name

GE PSB9100BL1TS Microwave Or Advantium

Model: PSB9100BL1TS

Save Part Not Listed?
product name

DOOR PARTS

...
...
280
ADV HARDWARE ASM BAG GEH-WB01X10304
...
1389
DOOR REMOVAL TOOL GEH-WB01X10364
...
1800
BLACK STAINLESS DOOR ASM & REMOVAL TOOL GEH-WB56X30206
...
9999
PM MINI MANUAL GEH-31-30804
...
9999
PM OWNERS MANUAL GEH-49-40685
...
9999
INSTRUCTIONS INSTALL GEH-49-40689-1

INSULATOR PARTS

...
...
33
HARNESS, SINGLE GEH-WB18X21247
...
34
HARNESS GEH-WB18X10290
...
35
HARNESS,SINGLE GEH-WB18X10387
...
45
PROTECTOR (MECH) GEH-WB06X10645
...
47
FUSE GEH-WB27X10388
...
56
BRACKET- MAGNETRON GEH-WB02X10721
...
67
BRACKET GEH-WB02X11222
...
73
MAGNETRON GEH-WB27X26081
...
194
MOUNT GEH-WB06X10647
...
282
LAMP HALOGEN GEH-WB08X10057
...
285
COVER LAMP GEH-WB02X11211
...
286
REFLECTOR GEH-WB02X11318
...
287
REFLECTOR GEH-WB02X11210
...
1010
BOARD LATCH LT GEH-WB06X10639
...
1011
SWITCH MONTR GEH-WB24X817
...
1012
COVER HEATER GEH-WB06X10643
...
1013
COVER HEATER GEH-WB06X10644
...
1242
HOLDER ASM GEH-WB06X10646
...
1258
MOTOR(CIRC) CIRCULATION GEH-WB26X10182
...
1266
SCREW GEH-WB01X10121
...
1430
THERMOSTAT GEH-WB21X10148
...
1433
TRANSFORMER,HIGH VOLTAGE GEH-WB17X10030
...
1435
THERMOSTAT GEH-WB21X10149
...
1438
CAPACITOR, H.V GEH-WB27X10701
...
1445
SWITCH MICRO GEH-WB24X0817
...
1446
SWITCH MICRO GEH-WB24X0815
...
1473
BRACKET HEATER GEH-WB02X11223
...
1474
SCREW -LEAD WIRE ASSY GEH-WB02X10726
...
1648
CABLE ASM GEH-WB18X10286
...
2006
LEVER GEH-WB02X11214
...
3020
HEATER MIRACLON GEH-WB21X10143
...
3021
HEATER MIRACLON GEH-WB21X10141
...
3022
HEATER HALOGEN GEH-WB21X10142
...
4000
MOTOR GEH-WB26X10083
...
4001
DUCT GEH-WB02X11231
...
4002
BRACKET DAMPER GEH-WB02X11217
...
4003
DUCT GEH-WB02X11230
...
4049
HOLDER WIRE GEH-WB02X11233
...
5002
SUPPORTER GEH-WB02X11461
...
5007
BRACKET CAPACITOR GEH-WB02X11226
...
7003
NOISE FILTER BOARD GEH-WB02X25914
...
9076
SCREW -SWITCH MICRO GEH-WB01X1509

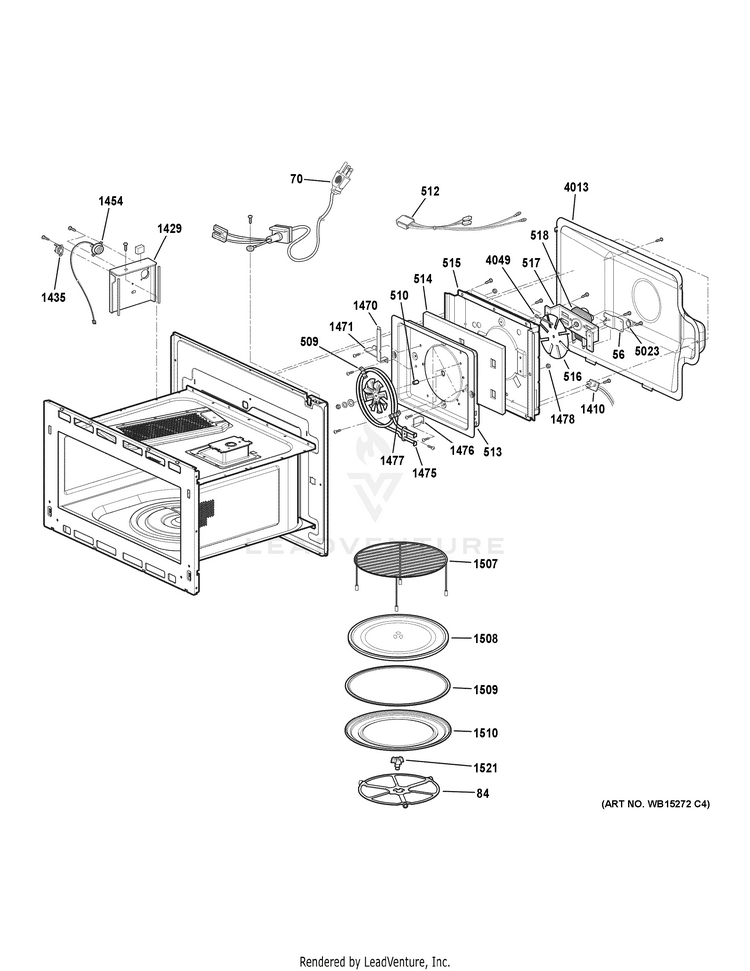

INTERIOR PARTS

...
...
56
BRACKET- MAGNETRON GEH-WB02X10721
...
70
POWER CORD ASM GEH-WB18X21246
...
84
ROTATING RING ASM GEH-WB06X10651
...
509
FAN - STIRRER GEH-WB06X10266
...
510
RING,SHAFT GEH-WB1X1518
...
512
HARNESS, SINGLE GEH-WB18X21249
...
513
CHAMBER GEH-WB06X10641
...
514
GLASS WOOL GEH-WB06X10650
...
515
CHAMBER GEH-WB06X10642
...
516
BLADE,MTR CL GEH-WB6X475
...
517
BRACKET - MTR CIRCU GEH-WB02X10542
...
518
MOTOR,AC FAN GEH-WB26X10211
...
1410
THERMISTOR NTC GEH-WB18X10287
...
1429
AIR TUNNEL GEH-WB02X11232
...
1435
THERMOSTAT GEH-WB21X10149
...
1454
SENSOR ASM GEH-WB27X10857
...
1470
BRACKET HEATER GEH-WB02X11218
...
1471
BRACKET HEATER GEH-WB02X11219
...
1475
HEATER SHEATH GEH-WB44X10050
...
1476
BRACKET HEATER GEH-WB02X11220
...
1477
HOLDER - HEATER GEH-WB06X10264
...
1478
NUT COMMON GEH-WB01X1520
...
1507
RACK GEH-WB49X10213
...
1508
TRAY GLASS GEH-WB49X10166
...
1509
TRAY,METAL GEH-WB49X10187
...
1510
TRAY, METAL BB GEH-WB49X10228
...
1521
SHAFT ASM GEH-WB06X10693
...
4013
COVER BACK GEH-WB56X10637
...
4049
HOLDER WIRE GEH-WB02X11233
...
5023
THERMOSTAT GEH-WB20X10048

OVEN CAVITY PARTS

...
...
10
SEAL TAPE GEH-WB55X10802
...
20
BRACKET GEH-WB02X11225
...
30
DOOR SWITCH ACCESS CVR GEH-WB02X10684
...
65
BRACKET GEH-WB02X11224
...
66
BRACKET GEH-WB02X11221
...
86
MOUNT GEH-WB06X10649
...
96
CANOPY MICA GEH-WB06X10638
...
102
SCREW TAPPING GEH-WB01X1514
...
332
TRIM RT GEH-WB07X10916
...
333
TRIM LT GEH-WB07X10917
...
336
TRIM ASM GEH-WB07X30212
...
1200
CASE,FLAT GEH-WB56X10868
...
1472
MOTOR TURNTABLE GEH-WB26X10193
...
6001
BASE PLATE GEH-WB63X21381

CONTROL PARTS

...
...
21
CONTROL BOARD BRACKET GEH-WB34X22089
...
68
BLACK STAINLESS CONTROLLER ASM GEH-WB56X30207
...
97
HOLDER DISPLAY GEH-WB02X11227
...
102
SCREW TAPPING GEH-WB01X1514
...
1603
INDICATOR GEH-WB27X30032
...
1618
BLACK STAINLESS KNOB GEH-WB03X30210
...
1643
TRANSFORMER GEH-WB26X26580
...
1655
SELECTOR BOARD GEH-WB27X30034
...
1657
DIGITRON GEH-WB27X10856
...
2002
MAIN BOARD GEH-WB27X27141
...
2003
SUPPORTER,BOARD GEH-WB02X11322
...
2004
POWER BOARD GEH-WB27X27144
...
2005
RELAY BOARD GEH-WB27X10859
