GE PSA2200RWW02 Microwave Or Advantium

Model: PSA2200RWW02

Back To Assemblies

Save Part Not Listed?
product name

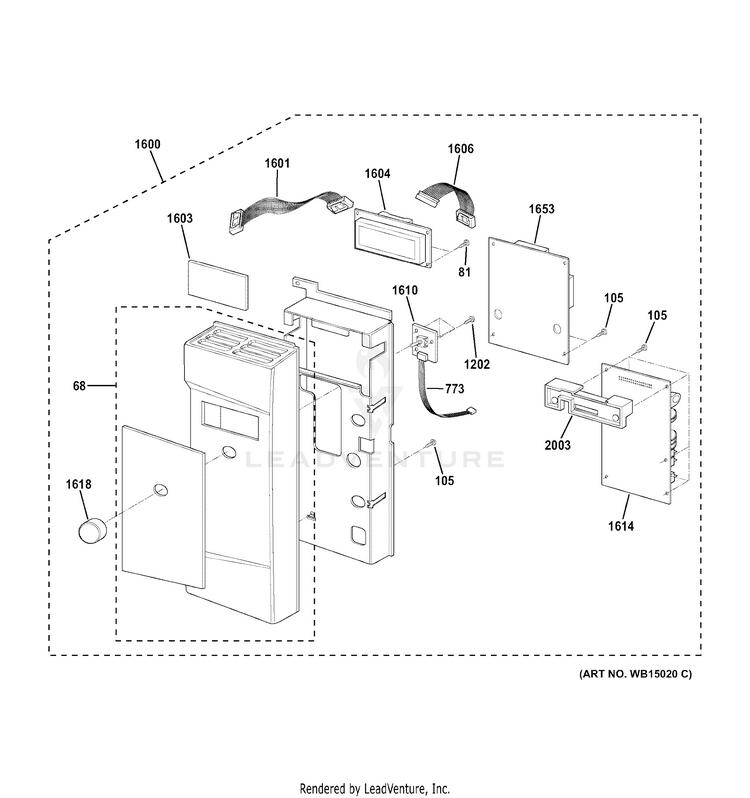

CONTROL PARTS

...
...
68
CONTROLLER PANEL, WW GEH-WB07X11315
...
81
SCREW - HAND GEH-WB02X10728
...
105
TAPPING SCREW GEH-TTL0402618
...
773
HARNESS,PCB TO DIAL PCB GEH-WB18X10411
...
1202
SCREW - PAN HEAD TAPPING GEH-WB02X10730
...
1600
CONTROLLER ASM GEH-WB27X11143
...
1601
HARNESS,SINGLE GEH-WB18X10457
...
1603
COVER,DISPLAY GEH-WB41X10001
...
1604
VF DISPLAY GEH-WB06X10835
...
1606
HARNESS,SINGLE GEH-WB18X10459
...
1610
ENCODER BOARD GEH-WB27X11022
...
1614
PCB ASM GEH-WB27X11111
...
1618
KNOB GEH-WB03X10330
...
1653
BOARD,MAIN GEH-WB27X11141
...
2003
HOLDER. PCB GEH-WB06X10840
