GE PP9830SJ1SS Electric Range

Model: PP9830SJ1SS

Save
 Part Not Listed?Part Not Listed?
product name

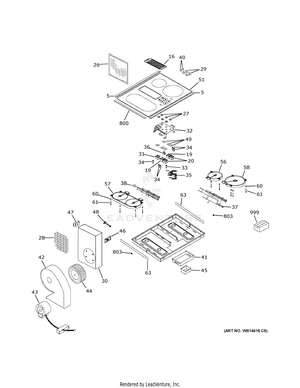

CONTROL PANEL & COOKTOP

...
...
5
TRIM ASM, SS GEH-WB07X25210
...
16
VENT GRILL BLACK GEH-WB07X11210
...
19
SWITCH, INFINITE GEH-WB24X10175
...
20
SWITCH, INFINITE GEH-WB24X10176
...
26
FILTER BLK GEH-WB02X10651
...
27
SEAL, SWITCH GEH-WB04X10033
...
28
WIRE GUARD GEH-WB02X11168
...
29
KNOB, SWITCH SS GEH-WB03X10324
...
30
PLENUM,WELD PAINT GEH-WB64X10019
...
31
SWITCH, LOCKOUT W/SCREW GEH-WB24X10177
...
32
CONTROL PANEL GEH-WB02X11367
...
33
INDICATOR LIGHT(CONTROL) GEH-WB25K10006
...
34
INDICATOR LIGHT GEH-WB25X10018
...
35
CONTROL HARNESS GEH-WB18X10426
...
36
SWITCH, FAN GEH-WB24X10174
...
37
RH WIRE HARNESS GEH-WB18X23140
...
38
LH WIRE HARNESS GEH-WB18X23141
...
40
KNOB SELECTOR (SS) GEH-WB03T10272
...
41
COVER, WIRE RADIANT GEH-WB02X11366
...
42
FAN HOUSING GEH-WB26X10129
...
43
FAN MOTOR W/CONNECTOR GEH-WB26X10220
...
44
FAN BLADE (BLOWER WHEEL) GEH-WB26X10130
...
45
BOX, WIRE GEH-WB02X11191
...
46
PLENUM, WALL GEH-WB02X11368
...
47
SUPPORT GEH-WB02X11364
...
48
BUZZER (240V) GEH-WB08T10038
...
49
GASKET, SWITCH GEH-WB04X10034
...
51
MAINTOP GLASS, BK GEH-WB62X25213
...
56
ELEMENT RADIANT 6 IN GEH-WB30T10129
...
57
ELEMENT RADNT BRIDGE GEH-WB30T10152
...
58
ELEMENT RADIANT 9 DUAL GEH-WB30T10133
...
60
SPRING, HEATER GEH-WB09X10035
...
61
STUD GEH-WB06X10756
...
63
INSULATION, RADIANT CHAS GEH-WB35X10007
...
800
FOAM TAPE GEH-WB02X11192
...
803
CLIP RETAINER GEH-WB01X10209
...
999
PM MINI MANUAL GEH-31-14997
...
999
INSTALLATION KIT GEH-WB02X11365
...
999
PM OWNERS & INSTALL GEH-49-80635
...
999
PM OWNERS MANUAL GEH-49-80519
...
...
...
