GE PK7500DF7BB Electric Range

Model: PK7500DF7BB

Back To Assemblies

Save Part Not Listed?
product name

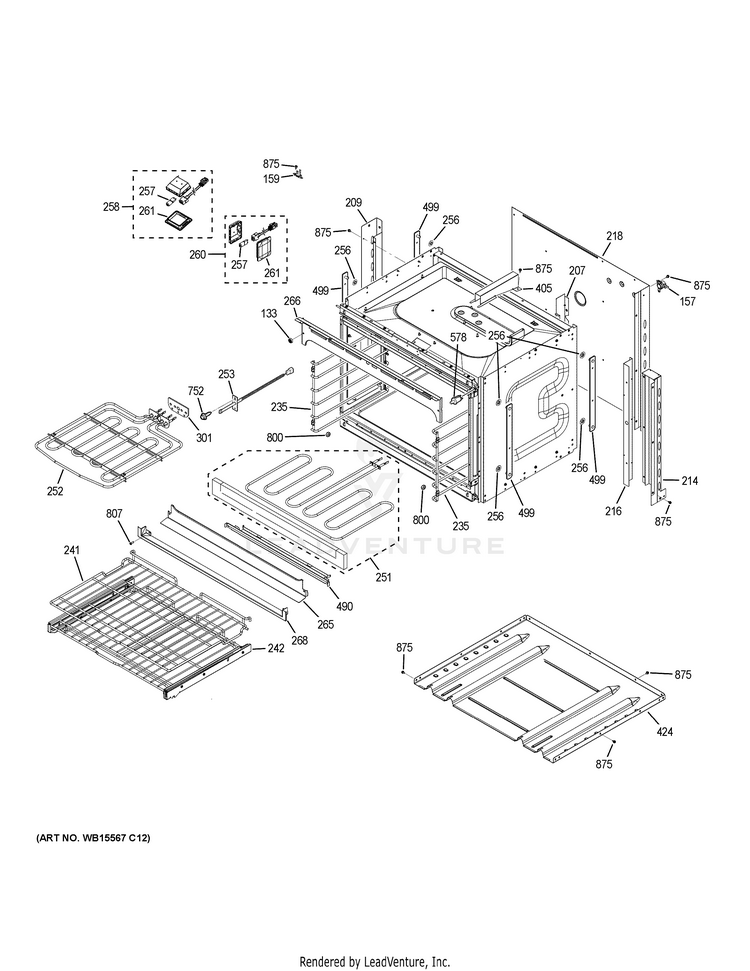

LOWER OVEN

...
...
133
BUMPER DOOR GEH-WB03T10341
...
157
SWITCH HIGH LIMIT GEH-WB24T10164
...
159
SWITCH LIMIT GEH-WB24T10180
...
207
DIVIDER AIR CENTER GEH-WB34T10137
...
209
CHANNEL REAR LT GEH-WB34X21910
...
214
CHANNEL REAR GEH-WB55X10971
...
216
DIVIDER AIR DUCT RIGHT GEH-WB34T10139
...
218
COVER LOWER REAR DUCT GEH-WB34T10138
...
235
GUIDE OVN RACK RT GEH-WB48X21765
...
235
GUIDE OVN RACK LT GEH-WB48X21766
...
241
RACK FLAT GEH-WB48X23816
...
242
RACK OVN SLIDE ASM GEH-WB48X21773
...
251
HIDDEN BAKE ELEMENT KIT GEH-WB44X21668
...
252
ELEMENT BROIL ASM GEH-WB44T10124
...
253
SENSOR ASM GEH-WB21X10165
...
256
RETAINER BOLT GEH-WB01T10107
...
257
LAMP HALOGEN BULB G9 GEH-WB25T10102
...
258
HALOGEN LAMP ASM GEH-WB25X31221
...
260
HALOGEN LAMP ASM GEH-WB25X31223
...
261
OVEN LIGHT LENS GEH-WB34X31317
...
265
TRIM VENT LWR GEH-WB07X21777
...
266
TRIM VENT UPR GEH-WB07X20183
...
268
TRIM BOTTOM CABINET GEH-WB07T10778
...
301
GASKET BROIL ELEMENT GEH-WB35X21972
...
405
CHANNEL LOWER AIR GEH-WB34T10160
...
424
COVER BOTTOM AIR DUCT GEH-WB34T10155
...
490
COVER HIDDEN BAKE GEH-WB55T10195
...
499
CAVITY BRACE ASM GEH-WB34X30789
...
578
SWITCH SPDT HIGH AMP GEH-WB24T10147
...
752
SCREW GEH-WB01X21742
...
800
RACK GUIDE NUT GEH-WB01X21270
...
807
SCREW-BLK GEH-WB01K5165
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
