GE PJ7000SF1SS Electric Range

Model: PJ7000SF1SS

Save Part Not Listed?
product name

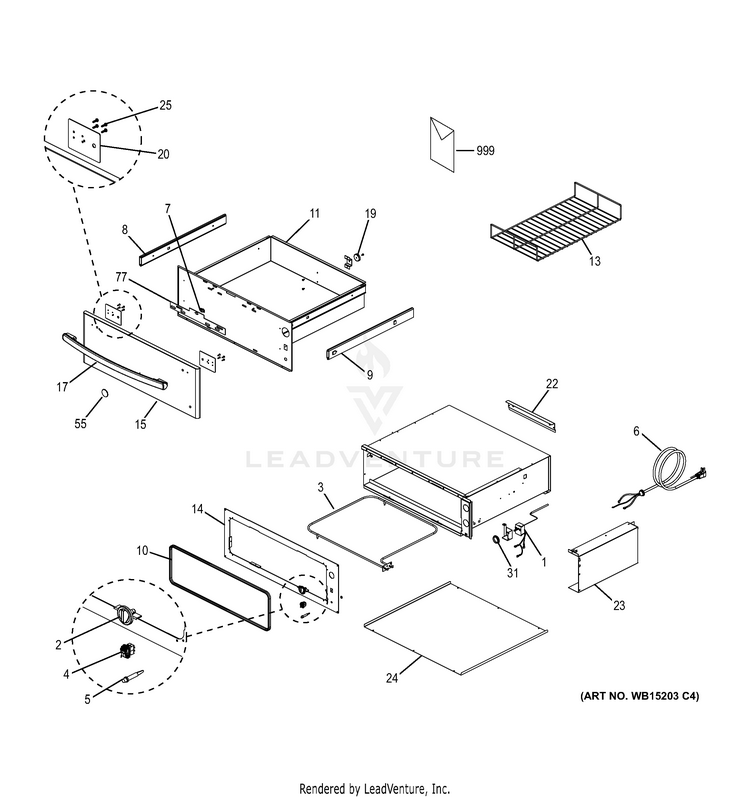

WARMING DRAWER

...
...
1
THERMOSTAT SERVICE ASSY GEH-WB20X10011
...
2
KNOB GEH-WB03X10349
...
3
HEATING ELEMENT GEH-WB44X10029
...
4
SWITCH, ROCKER GEH-WB24X10206
...
5
LAMP INDICATOR GEH-WB02X10819
...
6
CORD, POWER GEH-WB02X10588
...
7
VENT SLIDE KNOB SERVICE GEH-WB03X10061
...
8
SLIDE LH GEH-WB39X10014
...
9
SLIDE RH GEH-WB39X10015
...
10
GASKET SEAL 27" ASS'Y GEH-WB02X11288
...
11
DRAWER FRAME 27" GEH-WB63X20208
...
13
WIRE RACK GEH-WB48X10045
...
14
FACE PANEL 27" SERV ASS' GEH-WB56X20210
...
15
FRONT PANEL STAINLESS ST GEH-WB56X20211
...
17
HANDLE AND END CAP ASM GEH-WB15T10198
...
19
MAGNET CLOSED DETENT GEH-WB02X10592
...
20
HANDLE PLATE GEH-WB02X11552
...
22
BRACKET ANTI-TIP GEH-WB02X11553
...
23
CONTROL PANEL COVER GEH-WB02X11551
...
24
BOTTOM COVER 27" GEH-WB56X10782
...
25
SEMS #10 - 32- X 3/4 SS GEH-WB01X20209
...
31
GROMMET VALVE HOLE BLACK GEH-WB32X10019
...
55
BADGE GE GEH-WB02T10589
...
77
VENT SLIDE GEH-WB06X10692
...
999
USE & CARE MANUAL GEH-49-80507-3
