GE PHS930FL1DS Electric Range

Model: PHS930FL1DS

Save Part Not Listed?
product name

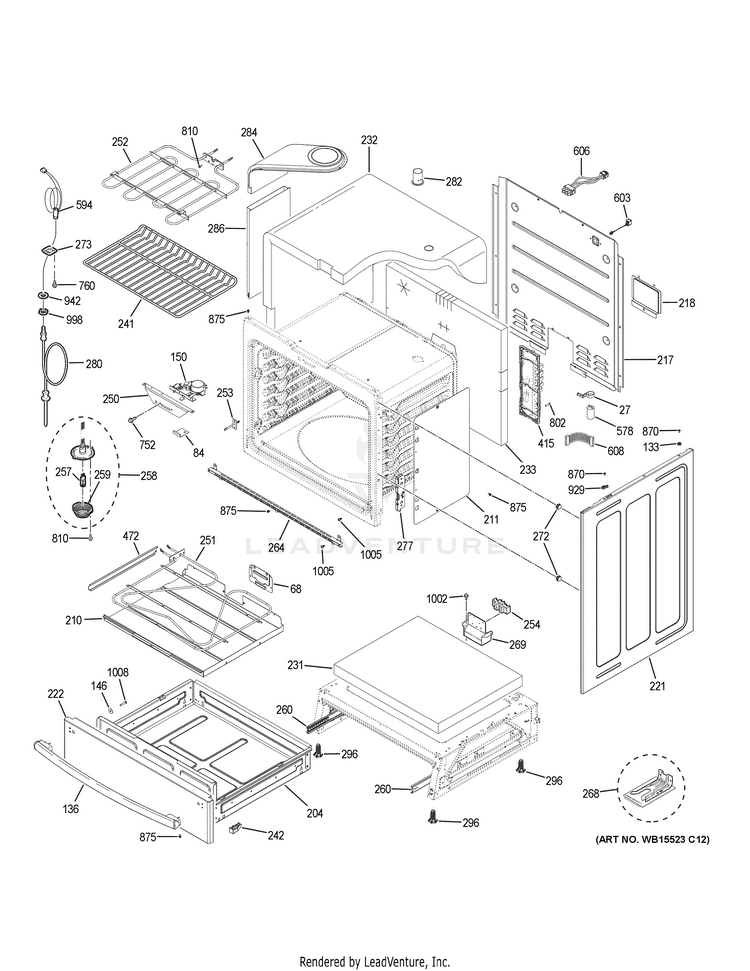

BODY PARTS

...
...
27
BRACKET CAPACITIOR GEH-WB02T10533
...
68
PLATE COVER (BK) GEH-WB02X21423
...
84
CLIP SEAM OVEN BODY GEH-WB02T10118
...
133
RANGETOP BUMPER GEH-WB02X29562
...
136
HANDLE AND END CAP ASM GEH-WB15X29162
...
146
WASHER .250 ID X .812 OD GEH-WB01K5117
...
150
LATCH ASM GEH-WB10X29077
...
204
DRAWER BODY AND SLIDES ASM GEH-WB63X29521
...
210
REFLECTOR PANE BAKE ELEM GEH-WB02T10509
...
211
SIDE INSULATION RETAINER GEH-WB34X29158
...
217
MAIN WIRE COVER GEH-WB34X29069
...
218
COVER TERMINAL BLOCK GEH-WB02T10560
...
221
SIDE PANEL DG GEH-WB63X28679
...
222
DRAWER PANEL DS GEH-WB56X30729
...
231
OVEN BOTTOM INSULATION GEH-WB35X29643
...
232
OVEN WRAPPER INSULATION GEH-WB35X29076
...
233
OVEN BACK INSULATION GEH-WB35X29074
...
241
RACK OVEN (SC) GEH-WB48T10082
...
242
DRAWER WEDGE GEH-WB02X29072
...
250
TRIM LATCH GEH-WB07X21459
...
251
UNIT ASM GEH-WB44T10104
...
252
BROIL ELEMENT ASM GEH-WB44X29151
...
253
SENSOR ASM GEH-WB21X22134
...
254
TERMINAL BLOCK ASM GEH-WB17T10011
...
257
LAMP HALOGEN G9 GEH-WB08T10045
...
258
LAMP HALOGEN ASM GEH-WB25X24909
...
259
OV LAMP LENS GEH-WB25T10013
...
260
DRAWER SLIDE AND BRACKET ASM GEH-WB63X29185
...
264
TRIM FRT FRM (BK) GEH-WB07T10516
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578
...
269
MOUNT TERMINAL BLOCK GEH-WB17T10021
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
273
PR0BE COVER GEH-WB34K5140
...
277
HINGE RECEIVER GEH-WB10T10068
...
280
MEAT PROBE GEH-WB20T10024
...
282
TUBE VNT ASM GEH-WB38T10029
...
284
UPPER DUCT ASM GEH-WB34X29182
...
286
SIDE DUCT ASM GEH-WB34X29183
...
296
LEG LEVELER GEH-WB02X10521
...
415
CONTROL BOARD ASM RC17 GEH-WB27X30452
...
472
SIDE REFLECTOR GEH-WB49T10007
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
594
MEAT PROBE RCPTK W/ HARN GEH-WB18X25985
...
603
RJ45 CONNECTOR HARNESS GEH-WB18X29523
...
606
TEMPERATURE SENSOR HARNESS WIRE GEH-WB18X29525
...
608
HIDDEN BAKE HARNESS WIRE GEH-WB18X29484
...
752
SCREW GEH-WB01K5200
...
760
SCREW GEH-WB01K5028
...
802
SCREW 8-18 AB SKT25 7/8 GEH-WB01X30451
...
810
SCREW GEH-WB01M10002
...
870
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
929
MAINTOP STRIKE GEH-WB02T10026
...
942
WASHER GEH-WB01X5573
...
998
NUT MEAT PROBE GEH-WB01X5572
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
...
1005
SCREW 10-32 TR T GEH-WB01T10008
...
1008
SCREW GEH-WB01X1258

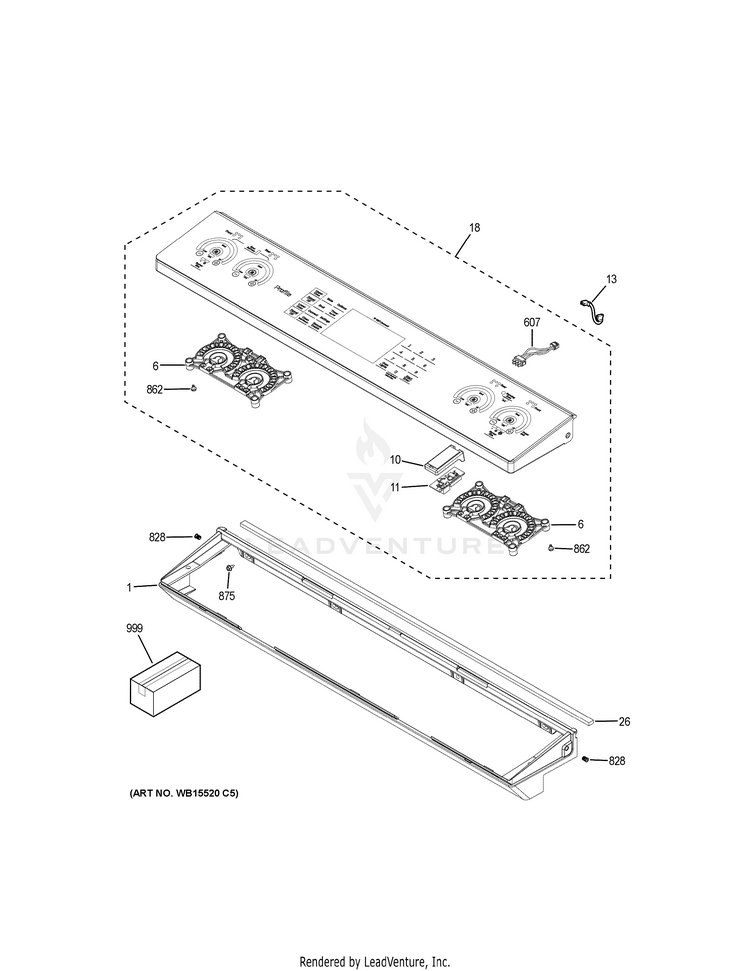

CONTROL PANEL

...
...
1
CONTROL PANEL TRIM ASM GEH-WB07X29081
...
6
CONTROL LIGHTS GUIDE GEH-WB63X29528
...
10
HOUSING TRANSCEIVER GEH-WB02X20265
...
11
BOARD WIFI CAT MODULE GEH-WB27X29798
...
13
JUMPER GEH-WB18T10506
...
18
CONTROL PANEL AND BOARDS ASM DS GEH-WB27X31106
...
26
CONTROL PANEL GASKET GEH-WB35X29473
...
607
LEAD WIRE 14 GA GN GEH-WB18X29582
...
828
INSERT PLUG GEH-WB01X29474
...
862
SCREW GEH-WB01X1178
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
999
PM INSTRUCTIONS INSTALL GEH-31-11105
...
999
INSTRUCTION INSTALL GEH-31-10617
...
999
PM INSTRUCTION CLEANING GEH-31-10870
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
999
PM WI FI INSTRUCTIONS GEH-31-11013
...
999
PM QUICK GUIDE GEH-49-80810
...
999
PM OWNERS MANUAL GEH-49-80806
...
999
MANUAL U&C TIP SHEET GEH-49-80597

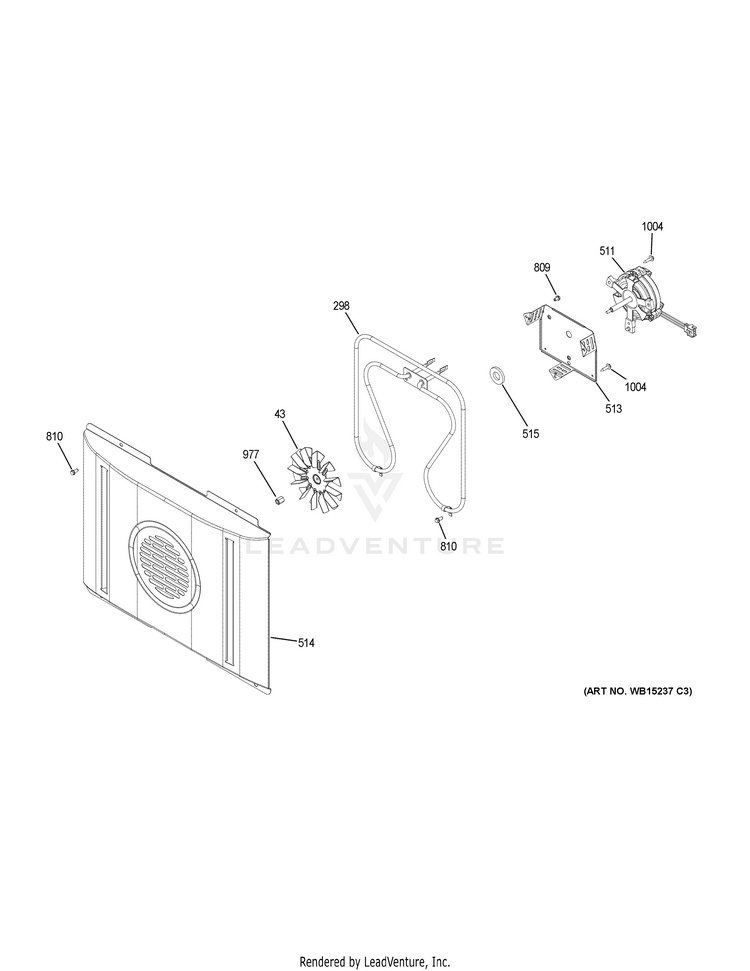

CONVECTION FAN

...
...
43
HUB BLADE ASM GEH-WB02X26501
...
298
CONVECTION ELEMENT GEH-WB44X29154
...
511
CONVECTION MOTOR GEH-WB26X29157
...
513
CONVECTION MOTOR BRACKET GEH-WB02X29181
...
514
COVER FAN CONVX (BK) GEH-WB34X20082
...
515
GASKET CONV FAN GEH-WB04T10080
...
809
SCREW GEH-WB01K5028
...
810
SCREW GEH-WB01M10002
...
977
NUT HEX GEH-WB02T10608
...
1004
SCR 8-18 AB HXW 3/4 GEH-WZ04X0416

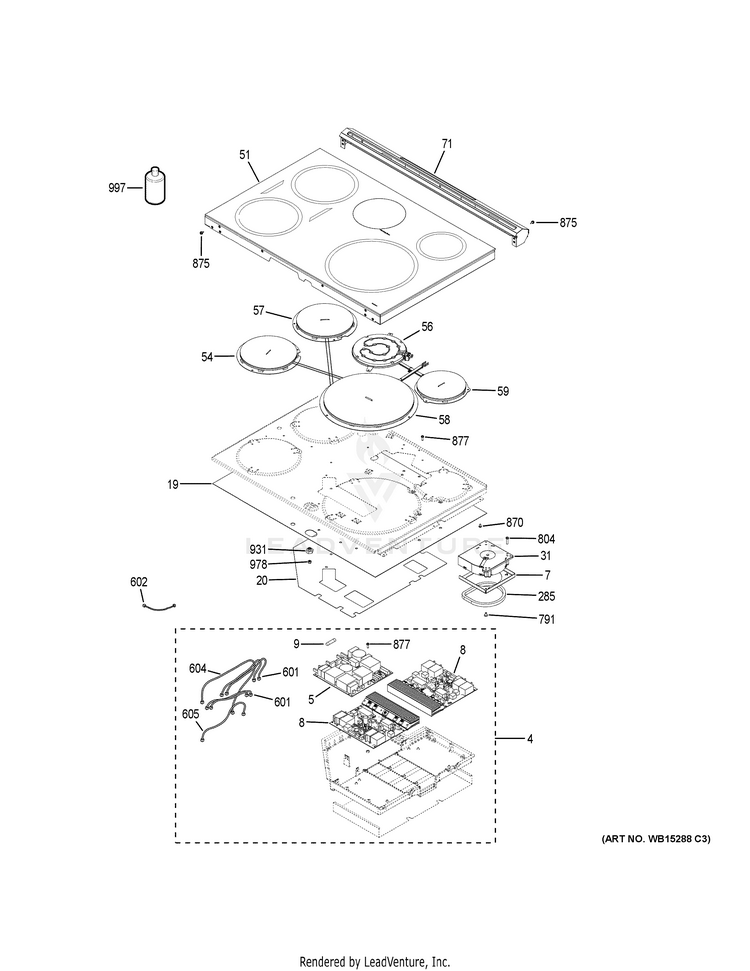

COOKTOP

...
...
4
INDUCTION ASM GEH-WB27X29189
...
5
FILTER BOARD GEH-WB27X29519
...
7
BRACKET FAN GEH-WB26X10271
...
8
GENERATOR BOARD ASM GEH-WB27X27182
...
9
FUSE 250V, 20A FB GEH-WB27X27316
...
19
INDUCTION INSULATION GEH-WB35X29195
...
20
MICA INSULATION GEH-WB35X29196
...
31
BLOWER CENTRIFUGAL 12V GEH-WB26X10272
...
51
MAINTOP GLASS ASM DG GEH-WB62X29197
...
54
INDUCTION ELEMENT 2500W GEH-WB30X29522
...
56
ELEMENT WARMER LOW PRF GEH-WB30X10035
...
57
INDUCTION ELEMENT 2500W GEH-WB30X29187
...
58
INDUCTION ELEMENT 3700W GEH-WB30X29186
...
59
INDUCTION ELEMENT 1800W GEH-WB30X29188
...
71
REAR VENT TRIM AND GASKET ASM GEH-WB07X29475
...
285
GASKET FOAM TAPE GEH-WB02T10591
...
601
POWER GENERATOR HARNESS WIRE GEH-WB18X29642
...
602
HARNESS WIRE WZ GEH-WB18X29193
...
604
JUMPER HARNESS WIRE GND GEH-WB18X29524
...
605
HARNESS WIRE INDUCTION COM GEH-WB18X29194
...
791
SCREW GEH-WB01K5162
...
804
BOLT CARRIAGE GEH-WB01T10117
...
870
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
877
SCR 7-19 HXW 1/2 GEH-WR01X1850
...
931
SPACER GEH-WB02T10482
...
978
NUT GEH-WB02T10494
...
997
GLASS CLEANER GEH-WB64X0093

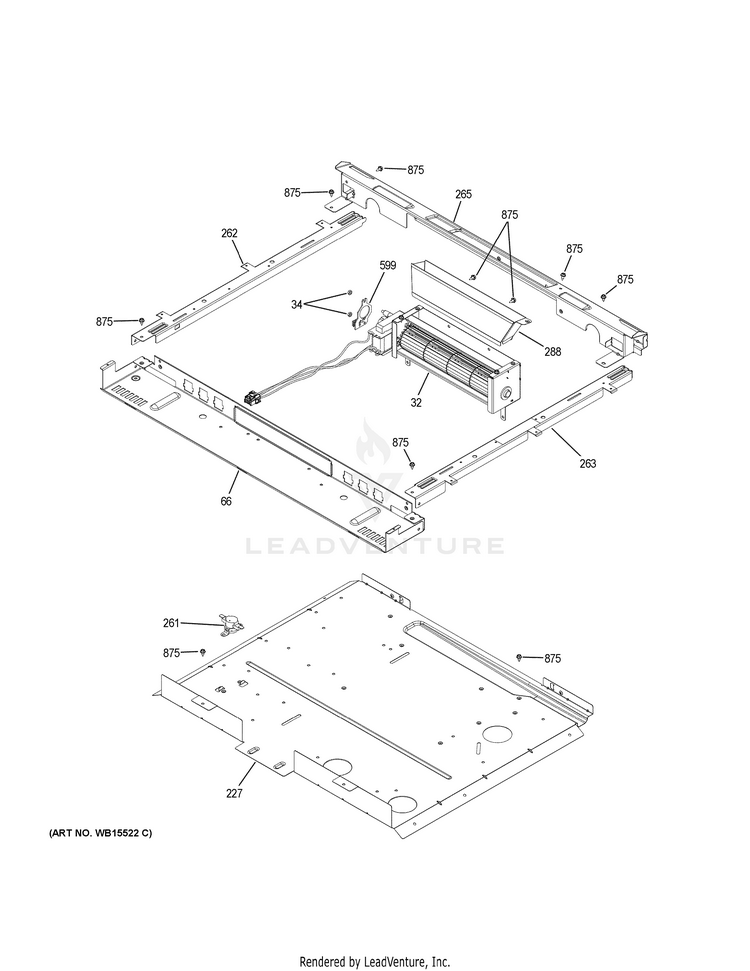

COOLING FAN

...
...
32
COOLING FAN ASM GEH-WB26X29468
...
34
NUT HEX M4-.7 THREAD GEH-WB01T10133
...
66
ENCLOSURE CONTROL GEH-WB34X29190
...
227
TOP INSULATION RETAINER GEH-WB34X29159
...
261
SWITCH HIGH LIMIT GEH-WB24X29064
...
262
CHASIS BRACE RT GEH-WB07X29079
...
263
CHASIS BRACE LT GEH-WB07X29078
...
265
REAR TRIM SUPPORT GEH-WB07X29632
...
288
COOLING FAN DUCT GEH-WB34X29483
...
599
BOARD SENSOR GEH-WB27X28659
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930

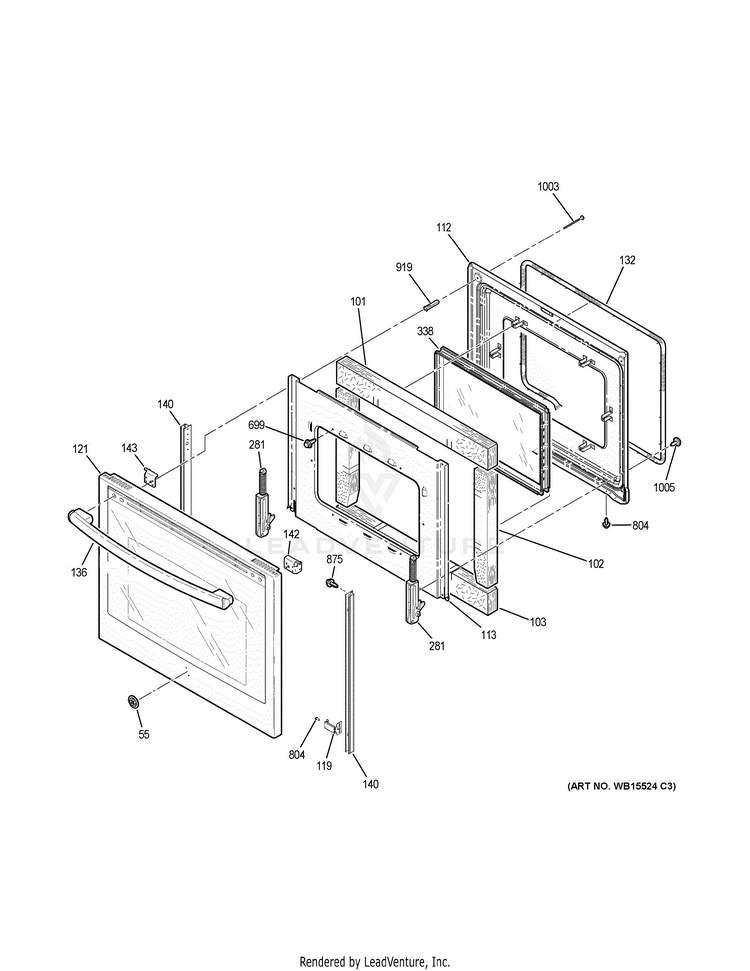

DOOR

...
...
55
BADGE ASM GEH-WB02X29637
...
101
INSULATION DOOR GEH-WB35T10134
...
102
INSULATION DOOR GEH-WB35T10135
...
103
INSULATION DOOR GEH-WB35T10255
...
112
LINER OVEN DOOR ASM (BK) GEH-WB55T10203
...
113
RETAINER OVN DR INSLN GEH-WB56T10178
...
119
DOOR GLASS BRACKET GEH-WB02X28578
...
121
OUTER DOOR PANEL ASM DS GEH-WB56X30736
...
132
OVEN DOOR GASKET GEH-WB35X30048
...
136
HANDLE AND END CAP ASM GEH-WB15X29162
...
140
FRAME DOOR SIDE (BK) GEH-WB56T10287
...
142
BRACKET OVN HDL VNT TRM GEH-WB34X25221
...
143
BRACKET OVN HDL VNT TRM GEH-WB34X25220
...
281
HINGE DOOR GEH-WB10T10070
...
338
WINDOW PACK ASM GEH-WB56X22160
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
804
BOLT CARRIAGE GEH-WB01T10117
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
919
SPACER GEH-WB02T10175
...
1003
SCR 10-32 CA TRT15 3.06 GEH-WB02X24268
...
1005
SCREW 10-32 TR T GEH-WB01T10008
