GE PGS960SEL2SS Gas Range Or Dual Fuel

Model: PGS960SEL2SS

Back To Assemblies

Save Part Not Listed?
product name

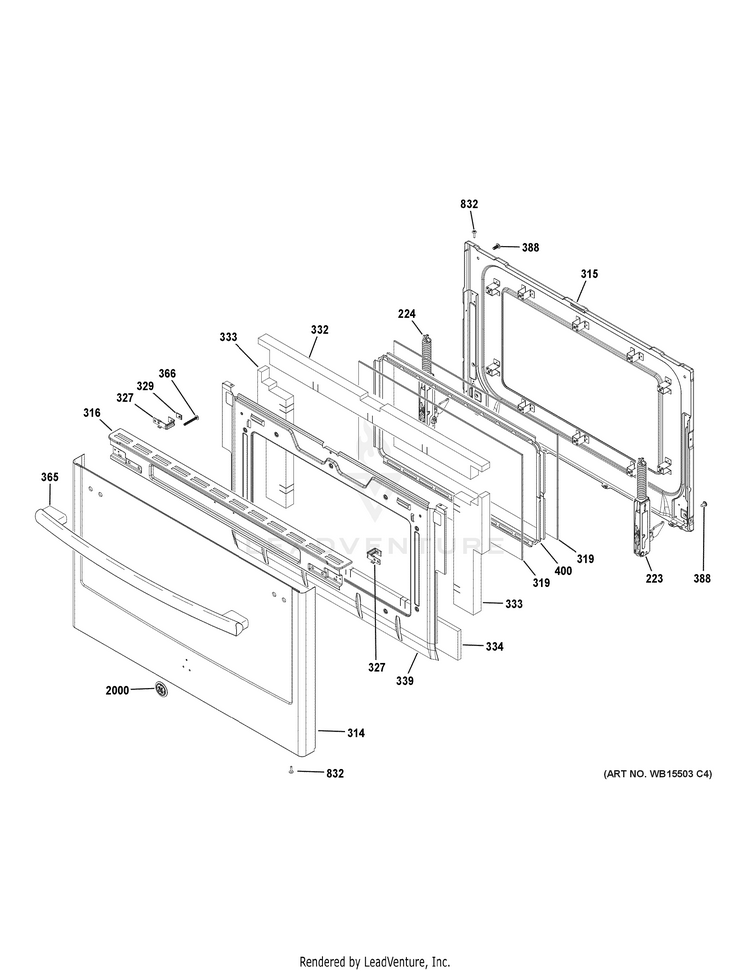

LOWER DOOR

...
...
223
HINGE DOOR GEH-WB10X26766
...
224
HINGE DOOR LH GEH-WB10X25637
...
314
GLASS & PANEL DOOR ASM GEH-WB56X28177
...
315
LINER DOOR WELD ASSEMBLY GEH-WB56X24931
...
316
TOP COVER ASM. DD GEH-WB56X29146
...
319
CRYSTAL WINDOW GEH-WB57K10155
...
327
BRACKET HANDLE GEH-WB02X20520
...
329
SPEEDNUT GEH-WB01K0002
...
332
INSULATION DOOR GEH-WB34X21727
...
333
INSULATION DOOR GEH-WB34X21726
...
334
INSULATION DOOR GEH-WB34X21728
...
339
GUARD INSULATION GEH-WB56K10079
...
365
HANDLE AND END CAP ASM GEH-WB15X27280
...
366
SCREW-MTG-DOOR GEH-WB01K10014
...
388
SCREW 10-32 TR T GEH-WB01T10008
...
400
FRAME WINDOW ASSY GEH-WB34X28741
...
832
SCREW GEH-WB01K0021
...
2000
BADGE ASM GEH-WB02X29479
Schematic Image Zoomed
