GE PGS960SEL1SS Gas Range Or Dual Fuel

Model: PGS960SEL1SS

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

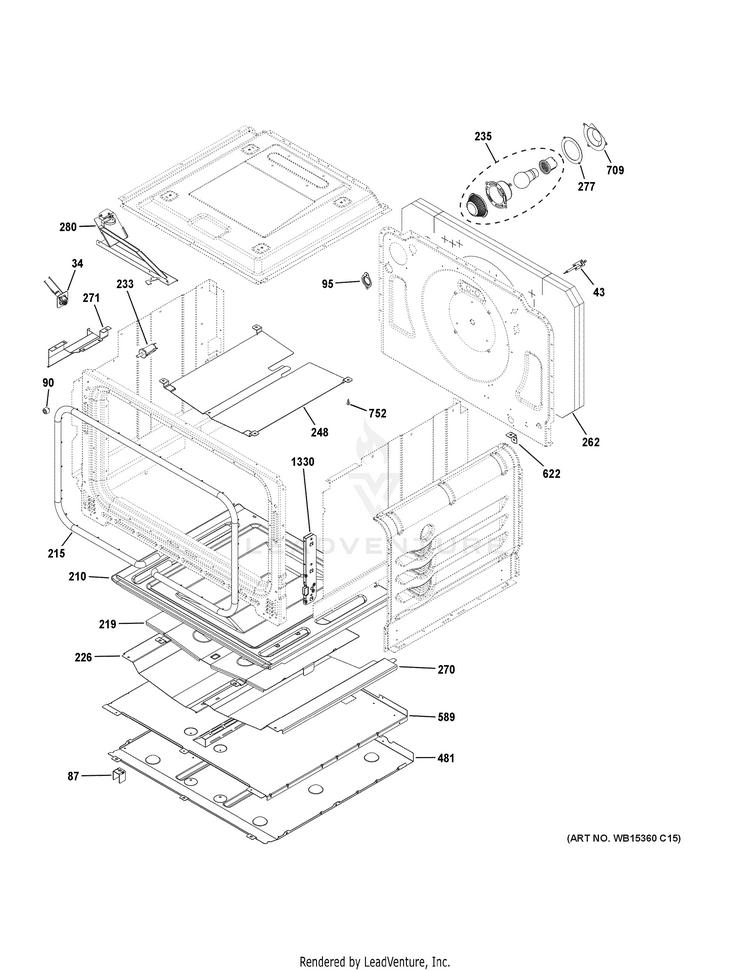

LOWER OVEN

...
...
34
RECEPTABLE ASM GEH-WB34K10134
...
43
SENSOR ASM GEH-WB24X25557
...
87
BARRIER BOTTOM FLOOR GEH-WB56X20457
...
90
FRAME FRONT BUMPER GEH-WB02X28738
...
95
COVER CAP GEH-WB02K10337
...
210
BOTTOM OVEN GEH-WB34X24912
...
215
GASKET OVEN LOWER CAVITY GEH-WB32X29538
...
219
DEFLECTOR OVEN GEH-WB34X20440
...
226
OVEN DEFLECTOR GEH-WB34X20443
...
233
PLUNGER SWITCH DUAL GEH-WB24X29265
...
235
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
248
DEFLECTOR GEH-WB34X29028
...
262
INSULATION OVEN BACK GEH-WB35X28789
...
270
OVEN DEFLECTOR GEH-WB34X20444
...
271
COVER LATCH GEH-WB34X21619
...
277
GASKET OVEN LIGHT GEH-WB32K10044
...
280
LATCH AUTOMATIC GEH-WB10X28795
...
481
BOTTOM RANGE GEH-WB63X20441
...
589
BOTTOM DUCT GEH-WB63X21725
...
622
ANGLE SUPPORT GEH-WB02K0003
...
709
COVER LAMP GEH-WB08K10018
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
1330
RECEIVER HINGE GEH-WB10X28563
