GE PGS930FEL2DS Gas Range Or Dual Fuel

Model: PGS930FEL2DS

Save Part Not Listed?
product name

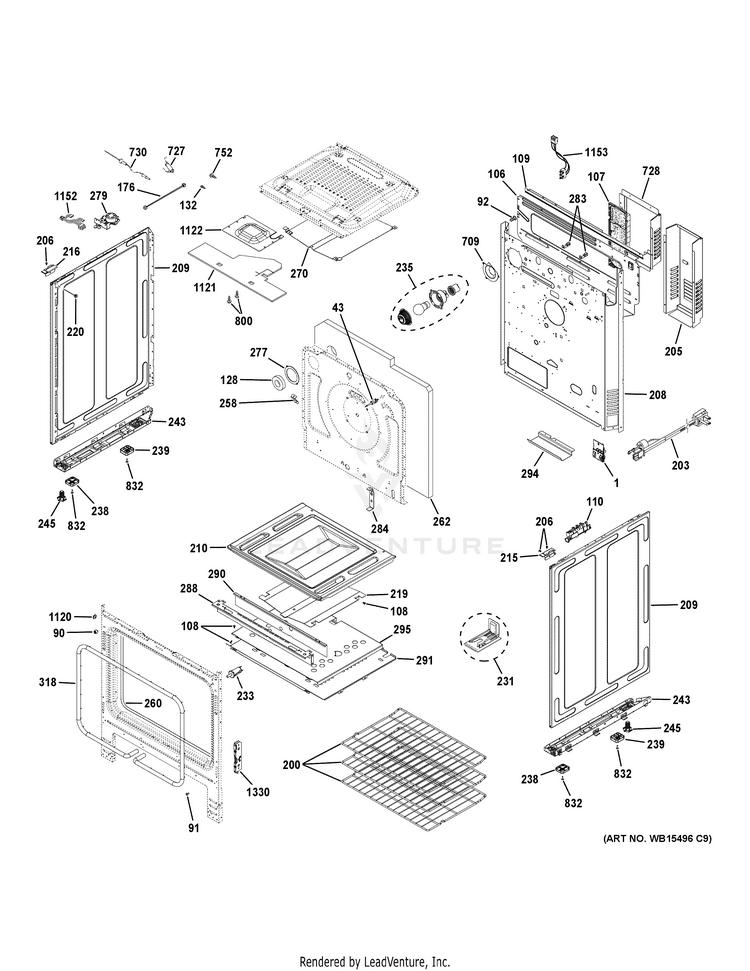

BODY PARTS

...
...
1
KIT NG HIGH ALTITUDE ASM GEH-WB28X29254
...
1
LABEL WIRE DIAGRAM GEH-295D2744P002
...
1
KIT LP HIGH ALTITUDE ASM GEH-WB28X29255
...
1
KIT LP CONVERSION ASM GEH-WB28X28140
...
43
SENSOR ASM GEH-WB24X25557
...
90
FRAME FRONT BUMPER GEH-WB02X28738
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
92
SCREW GROUND GEH-WB01X1261
...
106
COVER BACK GEH-WB34X28955
...
107
MACHINE BOARD WITH FRAME (SERVICE) GEH-WB27X29497
...
108
SCREW (BLK) GEH-WB01K0042
...
109
BACKGUARD COMPLEMENT GEH-WB34X28912
...
110
SPARK MODULE 6+0 GEH-WB13K10033
...
128
LAMP INSULATION GEH-WB02K10349
...
132
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
176
HARNESS GROUND GEH-WB18X25597
...
200
OVEN RACK GEH-WB48X21508
...
203
LINE CORD GEH-WB18X28855
...
205
COVER MOTOR GEH-WB34K10097
...
206
SCREW GEH-WB01K10091
...
208
RANGE BACK GEH-WB63X28974
...
209
PANEL SIDE GEH-WB56X28847
...
210
BOTTOM OVEN ASM GEH-WB63X21580
...
215
FRONT SUPPORT RH GEH-WB34X28747
...
216
FRONT SUPPORT LH GEH-WB34X30240
...
219
FLAME SPREADER GEH-WB49K0044
...
220
GROMMET GEH-WB02K0008
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
233
PLUNGER SWITCH GEH-WB24X27550
...
235
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
238
SPACER BASE FRONT GEH-WB16X20448
...
239
SPACER BASE REAR GEH-WB16X20449
...
243
SUPPORT BASE RT GEH-WB63X20215
...
243
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
258
DRAWER SLIDE ASSY RIGHT GEH-WB39K10020
...
260
GASKET OVEN SEAL LG GEH-WB32K0002
...
262
INSULATION OVEN BACK GEH-WB35X28786
...
270
DEFLECTOR GEH-WB34X28689
...
277
GASKET OVEN LIGHT GEH-WB32K10044
...
279
LATCH AUTOMATIC GEH-WB10X28793
...
283
CLIP CABLE GEH-WB02K0031
...
284
BOTTOM OVEN BRACKT SUPPO GEH-WB02K0032
...
288
BRACE BOTTOM GEH-WB63K0015
...
290
SHIELD RADIATION GEH-WB34K0012
...
291
GUARD BOTTOM GEH-WB63K0016
...
294
COVER TERMINAL GEH-WB63K10040
...
295
CONVECTION ELEMENT GEH-WB44X10051
...
318
GASKET OVEN ASM GEH-WB32X29539
...
709
COVER LAMP GEH-WB08K10018
...
727
PROBE RECEPTACLE & HARNE GEH-WB34K10121
...
728
CONTROL COVER GEH-WB34X28674
...
730
PROBE THERMISTOR GEH-WB20X5064
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
832
SCREW GEH-WB1K21
...
1120
SPACER SIDE GEH-WB02X20849
...
1121
INSULATION LATCH GEH-WB35X28986
...
1122
COVER LATCH GEH-WB34X21710
...
1152
HARNESS LATCH GEH-WB18X28892
...
1153
DC HARNESS GEH-WB18X28690
...
1330
RECEIVER HINGE GEH-WB10X28563

CONTROL PANEL & COOKTOP

...
...
2
KNOB ASM GEH-WB03X28960
...
5
PANEL MANIFOLD GEH-WB36X30813
...
113
GRATE ASM GEH-WB31X28755
...
114
RANGE TOP GEH-WB62X28229
...
115
CENTRAL GRATE GEH-WB31X28255
...
121
SCREW GEH-WB01K0001
...
122
CKT SCREW GEH-WB01X24735
...
131
TRIM KIT GEH-WB07X28825
...
132
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
136
GLASS & TOUCH BOARD ASM GEH-WB56X28190
...
137
BRACKET SWITCH GEH-WB34X28910
...
138
BRACKET GEH-WB34X28237
...
143
SCREW GEH-WB01X5754
...
146
ASM, BURNER CAP CENTER, GEH-WB29X24971
...
149
CAP OUTER GEH-WB29X28253
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
152
CAP BURNER ASM (15K) GEH-WB28K10222
...
153
CAP INNER GEH-WB16X28252
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
156
BURNER, MEDIUM V2 GEH-WB16X24724
...
157
BASE BURNER GEH-WB16X28656
...
158
ASM, BURNER AND END CAP DUAL OVAL GEH-WB16X28965
...
159
BURNER, XL V2 GEH-WB16X24722
...
162
HEAD BURNER GEH-WB16X28764
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
171
HARNESS INTERFACE GEH-WB18X28905
...
175
HARNESS GROUND GEH-WB18X30063
...
206
SCREW GEH-WB01K10091
...
311
BUMPER GEH-WB02X24790
...
317
VENT TRIM GEH-WB07X28819
...
700
SKIRT GEH-WB03X28169
...
711
KNOB ASM GEH-WB03X28957
...
712
KNOB ASM GEH-WB03X28959
...
713
KNOB ASM GEH-WB03X28958
...
781
REVERSIBLE GRIDDLE GEH-WB31X24998

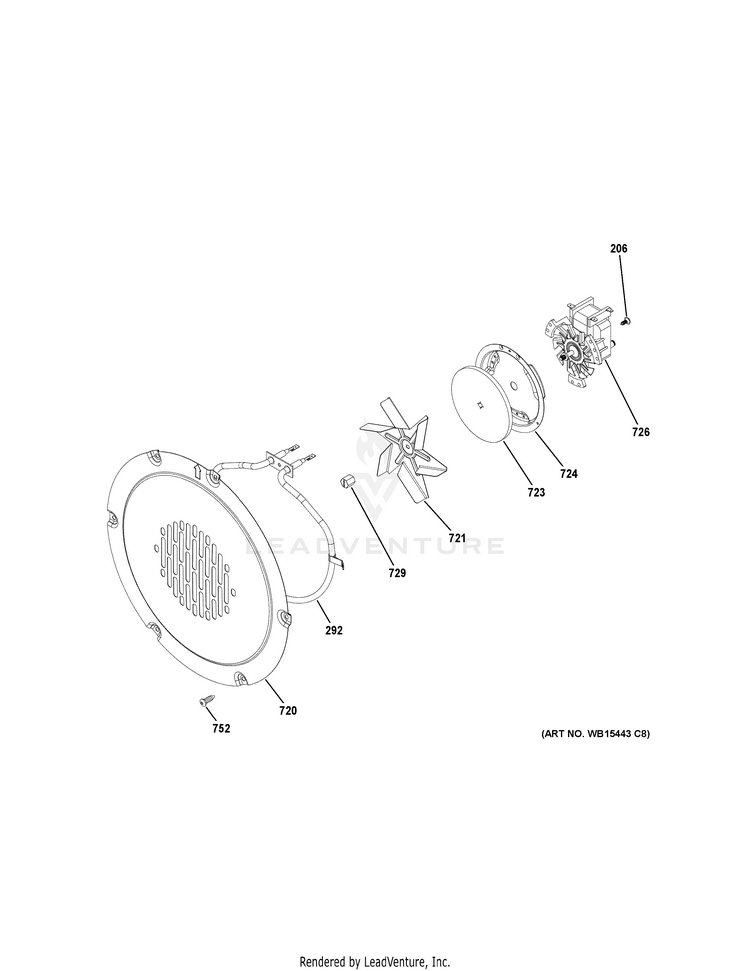

CONVECTION FAN

...
...
206
SCREW GEH-WB01K10091
...
292
BOTTOM INNER GUARD GEH-WB63K10187
...
720
FAN COVER GEH-WB34X28703
...
721
FAN BLADE GEH-WB02X8351
...
723
FAN INSULATOR GEH-WB35K10038
...
724
FAN SUPPORT GEH-WB02K10034
...
726
FAN MOTOR CONVECT GEH-WB26X28953
...
729
NUT GEH-WB02T10017
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345

DOOR & DRAWER PARTS

...
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
206
SCREW GEH-WB01K10091
...
212
SPEEDNUT GEH-WB01K0002
...
222
HINGE DOOR GEH-WB10X26766
...
223
HINGE DOOR LH GEH-WB10X24776
...
258
DRAWER SLIDE ASSY RIGHT GEH-WB39K10020
...
259
DRAWER SLIDE ASSY LEFT GEH-WB39K10021
...
300
KIT DRAWER BODY ASM GEH-WB49X26562
...
312
CONTOURED WASHER GEH-WB01X0119
...
313
COVER VENT TRIM GEH-WB34X28682
...
314
GLASS & PANEL DOOR ASM GEH-WB56X30823
...
315
SCREW M4X8 GEH-WB01X1189
...
319
CRYSTAL WINDOW GEH-WB57K10174
...
320
GROMMET HANDLE GEH-WB01K10023
...
331
GLASS DOOR BACKER GEH-WB56X28193
...
332
INSULATION GEH-WB35K10221
...
336
SCREW-MTG-DOOR GEH-WB01K10014
...
340
LINER DOOR WELD ASSEMBLY GEH-WB56X24760
...
344
BRACKET DRAWER GEH-WB02X24742
...
362
BARRIER DOOR GEH-WB07X28885
...
365
HANDLE AND END CAP ASM GEH-WB15X28756
...
366
SCREW 12-14, 5/8S GEH-WB01K0078
...
374
BRACKET HANDLE GEH-WB02X24743
...
375
BRACKET HANDLE GEH-WB02X24744
...
400
FRAME WINDOW ASSY GEH-WB34X28742
...
457
PANEL DRAWER GEH-WB56X30815
...
609
DOOR GUARD GEH-WB34X24749
...
667
INSULATION DOOR GEH-WB35X20077
...
673
INSULATION GEH-WB35K10222
...
832
SCREW GEH-WB1K21
...
1950
TRIM FRONT BOTTOM GEH-WB01K10072
...
2000
BADGE ASM GEH-WB02X29637

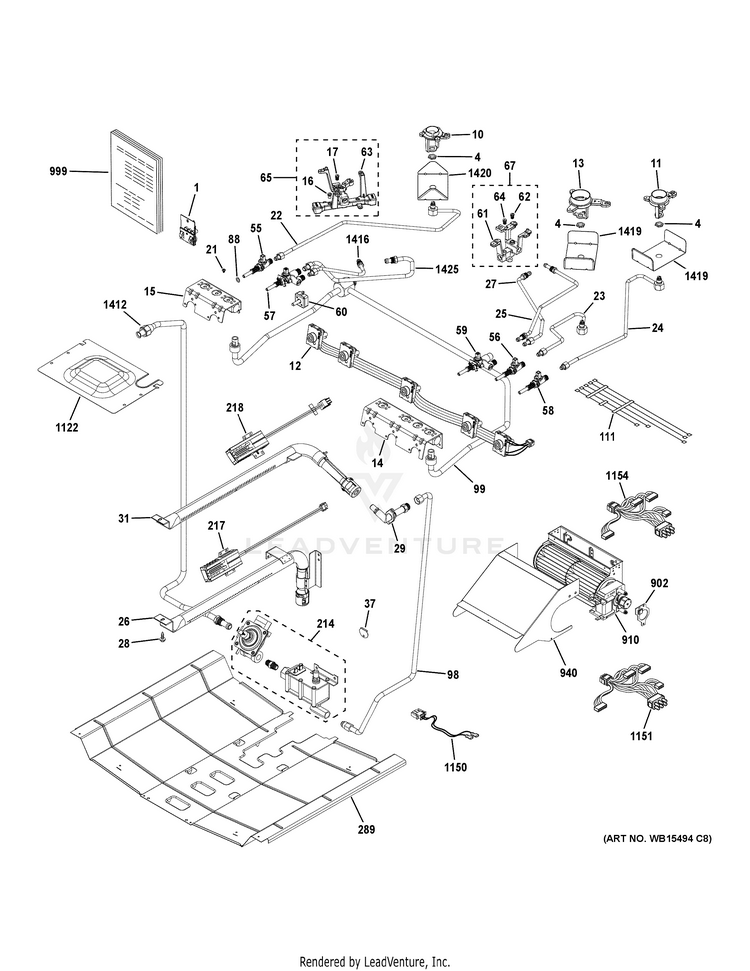

GAS & BURNER PARTS

...
...
1
LABEL WIRE DIAGRAM GEH-295D2744P002
...
1
KIT LP CONVERSION ASM GEH-WB28X28140
...
1
KIT LP HIGH ALTITUDE ASM GEH-WB28X29255
...
1
KIT NG HIGH ALTITUDE ASM GEH-WB28X29254
...
4
ECONOMIC NUT GEH-WB01K10037
...
10
INJET, SMALL V2 GEH-WB02X24728
...
11
INJET, MEDIUM V2 GEH-WB02X24727
...
12
HARNESS SWITCHES GEH-WB18X28760
...
13
INJET, XL V2 GEH-WB02X24725
...
14
MANIFOLD PIPE ASM GEH-WB28X28201
...
15
MANIFOLD PIPE ASM GEH-WB28X28199
...
16
ORIFICE SPUD NG GEH-WB28X28843
...
17
ORIFICE SPUD GEH-WB28X29600
...
21
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
22
LR ORIFICE HOLDER GEH-WB28X28143
...
23
RF ORIFICE HOLDER GEH-WB28X28145
...
24
RR ORIFICE HOLDER GEH-WB28X28149
...
25
TUBE SIMMER DUAL VALVE GEH-WB28X28160
...
26
BURNER BAKE GEH-WB16X28250
...
27
TUBE MAIN DUAL VALVE GEH-WB28X28154
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
29
ELBOW 90 ASM GEH-WB28X28697
...
31
BURNER BROIL GEH-WB16X28251
...
37
COVER IGNITOR GEH-WB34X24753
...
55
VALVE BURNER 270 GEH-WB21X25979
...
56
VALVE BURNER 270 GEH-WB21X20470
...
57
VALVE BURNER 3R 310 GEH-WB21X28821
...
58
VALVE BURNER 270 GEH-WB21X20612
...
59
VALVE BURNER 270 GEH-WB21X25002
...
60
ROTARY SWITCH GEH-WB24X28859
...
61
INJET, DUAL OVAL GEH-WB16X24983
...
62
ORIFICE SPUD GEH-WB28X25650
...
63
INJET MRHOB GEH-WB16X28863
...
64
ORIFICE SPUD NG GEH-WB28X28845
...
65
INJECT BURNER MRHOB ASM GEH-WB16X28867
...
67
INJECT DUAL OVAL BURNER ASM GEH-WB16X28864
...
88
COVER VALVE GEH-WB02X28680
...
98
TUBE BURNER SUPPLY GEH-WB28X24773
...
99
TUBE MANIFOLD SUPPLY GEH-WB28X28156
...
111
ELECTRODES & HARNESS H. V. GEH-WB18X28726
...
214
VALVE CONTROL ASM NOR. D GEH-WB21X28820
...
217
IGNITER GLOWBAR GEH-WB13X25500
...
218
IGNITER GLOWBAR GEH-WB13X24755
...
289
LOWER HEAT SHIELD GEH-WB34K10086
...
902
BOARD SENSOR GEH-WB27X28659
...
910
BLOWER TANGENTIAL GEH-WB26X29060
...
940
FAN SUPPORT GEH-WB34X28735
...
999
PM PROPANE HA INSTRUCTIONS GEH-31-11104
...
999
PM QUICK GUIDE GEH-49-88066
...
999
PM WI FI INSTRUCTIONS GEH-31-11013
...
999
PM INSTALL INSTRUCTIONS GEH-31-11085
...
999
PM MANUAL MINI & WD ASM GEH-31-17268
...
999
PM NG HA INSTRUCTIONS GEH-31-11103
...
999
PM INSTALL INSTRUCTIONS GEH-31-11052
...
999
PM OWNERS MANUAL GEH-49-85239
...
1122
COVER LATCH GEH-WB34X21710
...
1150
HARNESS DRAWER GEH-WB18X28724
...
1151
HARNESS MAIN GEH-WB18X28898
...
1154
HARNESS BLOWER GEH-WB18X28887
...
1412
TUBE BURNER BOX SUPPLY GEH-WB28X28151
...
1416
TUBE SIMMER DUAL VALVE GEH-WB28X28162
...
1419
AIR DEVIATOR GEH-WB02X28653
...
1420
AIR DEVIATOR GEH-WB02X28652
...
1425
TUBE MAIN DUAL VALVE GEH-WB28X28153
