GE PGS930EEL1ES Gas Range Or Dual Fuel

Model: PGS930EEL1ES

Back To Assemblies

Save Part Not Listed?
product name

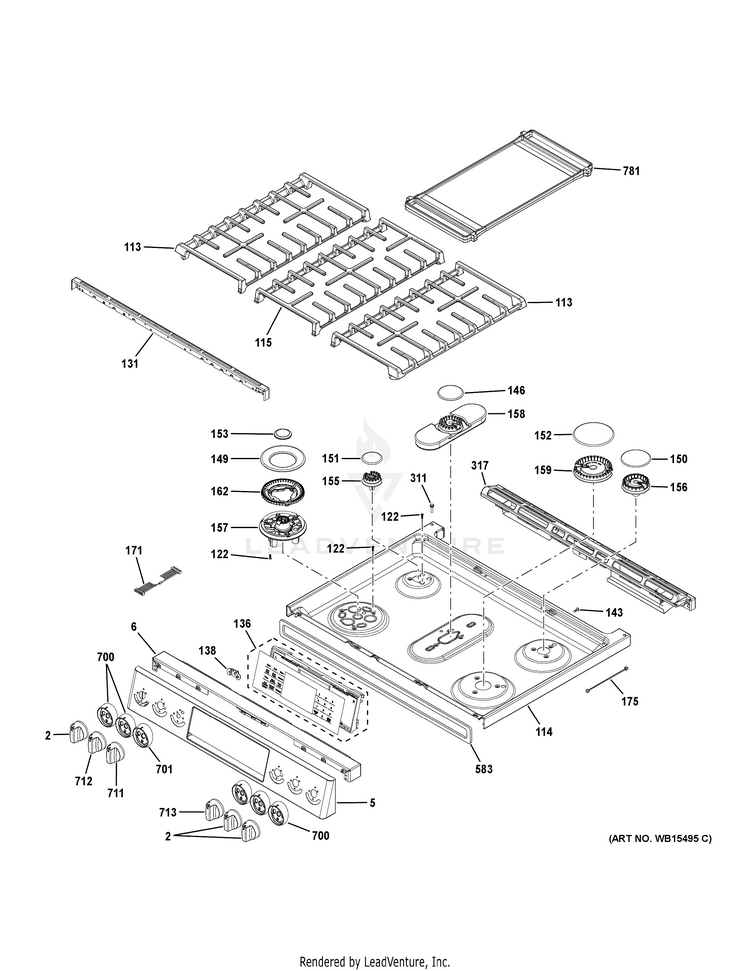

CONTROL PANEL & COOKTOP

...
...
2
KNOB ASM GEH-WB03X28962
...
5
PANEL MANIFOLD GEH-WB36X28219
...
6
PANEL MANIFOLD REAR GEH-WB36X28222
...
113
GRATE ASM GEH-WB31X28755
...
114
RANGE TOP GEH-WB62X28229
...
115
CENTRAL GRATE GEH-WB31X28255
...
122
CKT SCREW GEH-WB01X24735
...
131
TRIM KIT GEH-WB07X28825
...
136
GLASS & TOUCH BOARD ASM GEH-WB56X28190
...
138
BRACKET SWITCH GEH-WB34X28910
...
143
SCREW GEH-WB01X5754
...
146
ASM, BURNER CAP CENTER, GEH-WB29X24971
...
149
CAP OUTER GEH-WB29X28253
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
152
CAP BURNER ASM (15K) GEH-WB28K10222
...
153
CAP INNER GEH-WB16X28252
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
156
BURNER, MEDIUM V2 GEH-WB16X24724
...
157
BASE BURNER GEH-WB16X28656
...
158
ASM, BURNER AND END CAP DUAL OVAL GEH-WB16X28965
...
159
BURNER, XL V2 GEH-WB16X24722
...
162
HEAD BURNER GEH-WB16X28764
...
171
HARNESS INTERFACE GEH-WB18X28905
...
175
HARNESS GROUND GEH-WB18X25597
...
311
BUMPER GEH-WB02X24790
...
317
VENT TRIM GEH-WB07X28819
...
583
SEAL-COOKTOP BLACK TO WT GEH-WB04K10010
...
700
SKIRT GEH-WB03X28167
...
701
SKIRT GEH-WB03X28166
...
711
KNOB ASM GEH-WB03X28956
...
712
KNOB ASM GEH-WB03X28963
...
713
KNOB ASM GEH-WB03X28961
...
781
REVERSIBLE GRIDDLE GEH-WB31X24998
