GE PGP966DET5BB Gas Range

Model: PGP966DET5BB

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

GAS & BURNER PARTS

...
...
3
HIGH ALT ORIFICE LP MAIN GEH-WB28T10147
...
3
ORIFICE SPUD LP 84MM GEH-WB28K10107
...
3
ORIFICE SPUD LP 86L GEH-WB28K10215
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
ORIFICE SPUD (NG MAIN) GEH-WB28K10433
...
5
ORIFICE SPUD NG SIMMER GEH-WB28T10116
...
6
ORIFICE SPUD LP 88L GEH-WB28K10214
...
6
ORIFICE-LP 63MM GEH-WB28K10031
...
7
ORIFICE SPUD LP MAIN GEH-WB28T10118
...
28
BUMPER GEH-WB01T10123
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
61
BOTTOM BURN BOX GEH-WB64T10072
...
80
SHIELD BURN BOX BTM GEH-WB34T10103
...
101
INSULATION SDE GEH-WB35T10056
...
102
INSULATION SIDE GEH-WB35T10160
...
168
CLIP ELECTRODE GEH-WB01K10114
...
200
GASKET GEH-WB06T10009
...
300
SWITCH SPLASH GUARD GEH-WB02X21824
...
304
TUBE BURNER ASM LT FRONT GEH-WB28X22780
...
305
TUBE ASM LT REAR GEH-WB28T10127
...
306
TUBE ASM CTR GEH-WB28T10135
...
307
TUBE ASM RT REAR GEH-WB28T10125
...
308
INJET BURNER 18K GEH-WB28T10114
...
312
REGULATOR CONVERT PRESS GEH-WB19T10078
...
313
VALVE GAS GEH-WB19T10056
...
314
VALVE GAS GEH-WB19T10095
...
315
VALVE GAS GEH-WB19T10057
...
316
VALVE GAS GEH-WB19T10055
...
317
VALVE GAS GEH-WB19T10054
...
318
SPARK MODULE (0+6) GEH-WB13T10047
...
323
HARNESS SWITCH ASM GEH-WB18T10534
...
333
CLAMP GEH-WB02T10261
...
339
CKT BRACKET SMALL GEH-WB02K10360
...
340
CKT BRACKET MDM & LGE GEH-WB02K10361
...
341
CKT BRACKET MDM & LGE GEH-WB02K10362
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
399
SEAL MANIFOLD GEH-WB04T10023
...
400
MANIFOLD PIPE GEH-WB28T10101
...
404
TUBE BURNER (MAIN) GEH-WB28T10129
...
405
TUBE BURNER (SIMMER) GEH-WB28T10130
...
554
CORD RANGE GEH-WB18X25912
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
809
SCREW GEH-WB01X1137
...
874
SCREW GEH-WB01M0014
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
876
SCR 8-32 CA PNT15 1/2 S GEH-WB01T10116
...
998
HARNESS WIRE BURNER GEH-WB18X25911

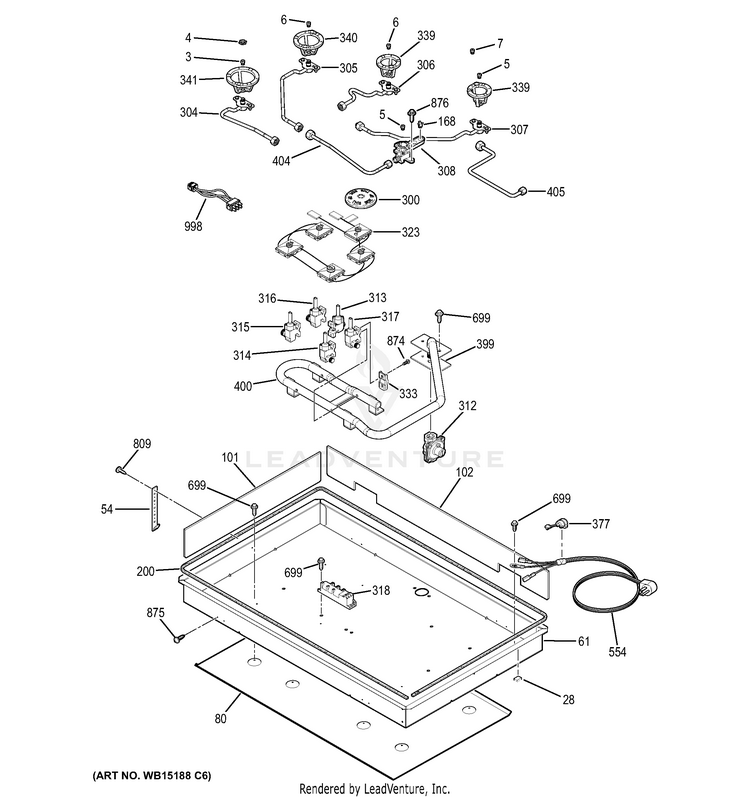

Schematic Image Zoomed
