GE PGP966DET5BB Gas Range

Model: PGP966DET5BB

Back To Assemblies

Save Part Not Listed?
product name

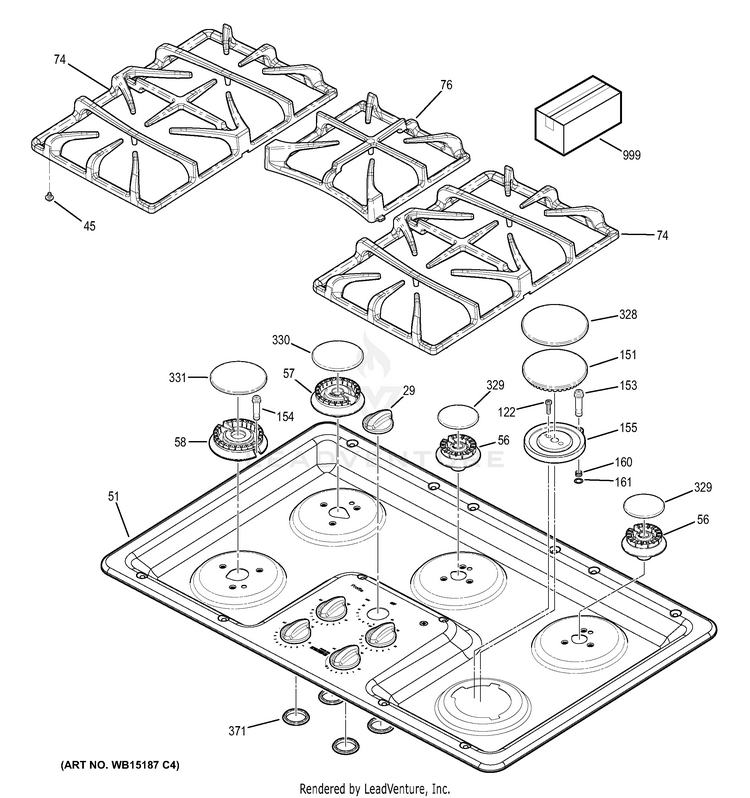

CONTROL PANEL & COOKTOP

...
...
29
KNOB GAS VLV (PRF-BK) GEH-WB03T10236
...
45
GRATE FOOT GEH-WB02T10461
...
51
MAINTOP GRAPHICS ASM 36 GEH-WB62X25896
...
56
SMALL BURNER V 5K GEH-WB16K10070
...
57
BURNER MEDIUM (9500) GEH-WB16K10055
...
58
BURNER 12K GEH-WB16T10046
...
74
GRATE ASM GEH-WB31T10087
...
76
GRATE ASM GEH-WB31T10095
...
122
SCR 6-32 CA OVT-15 5/8 GEH-WB01T10106
...
151
HEAD BURNER MAIN GEH-WB16T10038
...
153
ELECTRODE TOP GEH-WB13T10065
...
154
ELECTRODE TOP GEH-WB13K10014
...
155
BASE BURNER 18K-SIMMER GEH-WB16T10040
...
160
SPRING IGNITER GEH-WB09T10011
...
161
WASHER IGNITER GEH-WB02T10323
...
328
CAP BURNER GEH-WB13T10067
...
329
ASM BURNER CAP (5000) GEH-WB29K10022
...
330
ASM BURNER CAP (9500) GEH-WB29K10023
...
331
ASM BURNER CAP (12000) GEH-WB29K10024
...
371
SEAL CNTL (BLK) GEH-WB04T10042
...
999
PM INSTALL INSTRUCTIONS GEH-31-10832
...
999
PM MANUAL MINI & WD ASM GEH-31-17131
...
999
PM INSTALL INSTRUCTIONS GEH-31-10861
...
999
HI ALT & BUTANE KIT GEH-WB28T10283
...
999
PM INSTALL INSTRUCTIONS GEH-31-10833
...
999
PM OWNERS MANUAL GEH-49-80660
