GE PGP959SET5SS Gas Range Or Dual Fuel

Model: PGP959SET5SS

Back To Assemblies

Save Part Not Listed?
product name

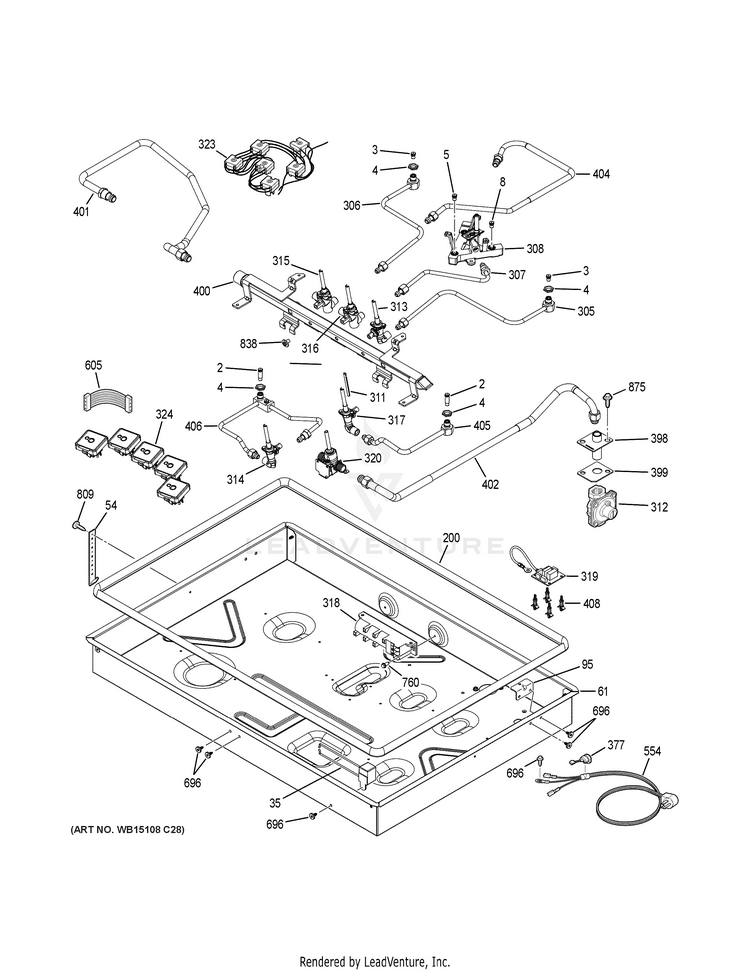

GAS & BURNER PARTS

...
...
2
ORIFICE SPUD LP 9.1K GEH-WB28T10246
...
3
ORIFICE SPUD LP 5K GEH-WB28T10245
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
ORIFICE SPUD GEH-WB28T10243
...
5
ORIFICE SPUD GEH-WB28T10242
...
8
ORIFICE SPUD GEH-WB28T10244
...
8
ORIFICE SPUD SIMMER LP GEH-WB28T10248
...
35
BUZZER (120V) GEH-WB08T10039
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
61
BOTTOM BURN BOX GEH-WB64T10070
...
95
BRACKET GEH-WB02T10567
...
200
SEAL FOAM TAPE GEH-WB02X22840
...
305
TUBE BURNER ASM GEH-WB28T10268
...
306
TUBE BURNER ASM GEH-WB28T10269
...
307
TUBE BURNER ASM GEH-WB28T10266
...
308
INJECT TOP BURNER ASM GEH-WB28T10259
...
311
PLUG VALVE STEM GEH-WB02T10569
...
312
REGULATOR CONVERT PRESS GEH-WB19T10089
...
313
VALVE GAS GEH-WB19T10084
...
314
VALVE GAS GEH-WB19T10085
...
315
VALVE DUAL GEH-WB19T10088
...
316
VALVE DUAL GEH-WB19T10087
...
317
VALVE GAS GEH-WB19T10092
...
318
SPARK MODULE (0+6) GEH-WB13T10047
...
319
CONTROL BOARD LED GEH-WB27T11382
...
320
VALVE LOCKOUT GEH-WB21X25925
...
323
HARNESS WIRE SWITCH ASM GEH-WB18X25930
...
324
BOARD LED ASM GEH-WB17T10026
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
398
SUPPLY INLET GEH-WB04T10082
...
399
SEAL MANIFOLD GEH-WB04T10084
...
400
BRACKET MANIFOLD ASM GEH-WB28T10249
...
401
TUBE MANIFOLD GEH-WB28T10251
...
402
TUBE SUPPLY GEH-WB28T10267
...
404
TUBE TRI RING OUTER GEH-WB28T10271
...
405
BURNER TUBE RF GEH-WB28X27817
...
406
GRIDDLE TUBE ASM GEH-WB28X29274
...
408
STANDOFF GEH-WB02T10207
...
554
CORD RANGE GEH-WB18X25912
...
605
HARNESS WIRE BURNER GEH-WB18X25794
...
605
HARNESS WIRE BURNER GEH-WB18X25793
...
696
SCR 8-18X.450 AB FLT20 S GEH-WB01T10110
...
760
SCREW GEH-WB01K5028
...
809
SCREW GEH-WB01X1137
...
838
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
