GE PGB975SEM4SS Gas Range Or Dual Fuel

Model: PGB975SEM4SS

Back To Assemblies

Save Part Not Listed?
product name

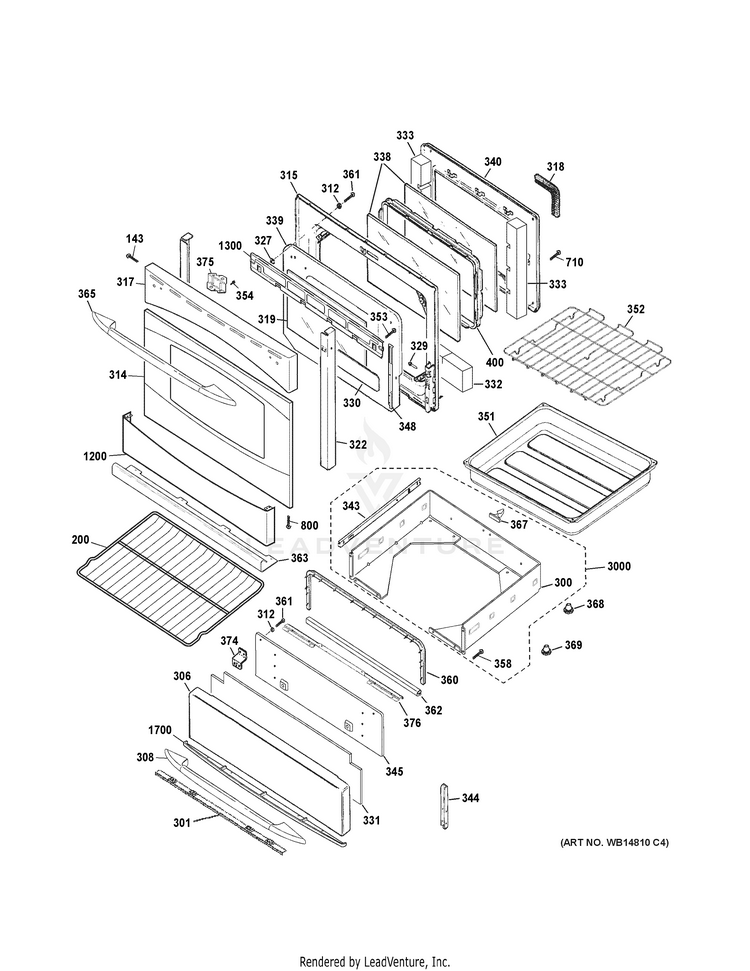

DOOR & DRAWER PARTS

...
...
143
SCREW GEH-WB01X5754
...
200
RACK OVEN GEH-WB48K10034
...
300
FRAME DRAWER GEH-WB58K10006
...
301
BARRIER DOOR GEH-WB07K10378
...
306
PANEL DRAWER GEH-WB55K10039
...
308
HANDLE PROFILE SS GEH-WB15T10129
...
312
CONTOURED WASHER GEH-WB01X0119
...
314
GLASS DOOR ASM GEH-WB57K10118
...
315
LINER ASM WELD DOOR GEH-WB55K10034
...
317
VENT TRIM SS GEH-WB07K10345
...
318
GASKET ASM DOOR GEH-WB04K10022
...
319
CRYSTAL WINDOW GEH-WB56K10021
...
322
TRIM POST LF GEH-WB07K10243
...
322
TRIM POST RT GEH-WB07K10244
...
327
SPEEDNUT GEH-WB01K10093
...
329
SCREW NAIL POINT GEH-WB01X0558
...
330
REFLECTOR 9.5 INCH GEH-WB35K0022
...
331
INSULATION DRAWER FRONT GEH-WB35K10053
...
332
INSULATION BOTTOM DOOR GEH-WB35K10150
...
333
INSULATION DOOR GEH-WB35K10096
...
338
CRYSTAL WINDOW GEH-WB56X23809
...
339
GUARD INSULATION DOOR GEH-WB56K10037
...
340
PANEL ASM WELD GEH-WB55K10033
...
343
SLIDE INTERNAL GEH-WB39K10027
...
344
BRACKET MOUNTING DRAWER GEH-WB39K0020
...
345
LINER DRAWER GEH-WB55K10024
...
348
BKT DOOR INNER GEH-WB02K10100
...
351
PAN DRAWER GEH-WB48K10009
...
352
RACK BAKING DRAWER GEH-WB48K10010
...
353
SCR 10-32 HXW 9/16 DWR GEH-WB01K10047
...
354
SCREW 10-32 MTG HANDLE GEH-WB01K10009
...
358
SCR 8-18 AB PHR 1/2 S GEH-WR01X10478
...
360
GASKET DRAWER ASM GEH-WB04K10017
...
361
SCREW 10-16 GEH-WB01K0065
...
362
GASKET LOWER GEH-WB04K10018
...
363
BARRIER DOOR GEH-WB07K10342
...
365
HANDLE PROFILE SS GEH-WB15K10063
...
367
STRIKE GEH-WB02K10111
...
368
BUMPER, BLUE GEH-WB02K10112
...
369
BUMPER, BLACK GEH-WB02K0015
...
374
PANEL DRAWER SPACER GEH-WB02K10064
...
375
BRACKET DOOR GEH-WB02K10151
...
376
BRACKET DRAWER GEH-WB63K10062
...
400
WINDOW SPACER ASM GEH-WB34K10087
...
710
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
1200
TRIM LOWER SS GEH-WB07K10287
...
1300
PANEL VENT BACKER GEH-WB55K10047
...
1700
TRIM LOWER DRAWER GEH-WB07K10245
...
3000
FRAME DRAWER & SLIDE ASM GEH-WB58K10010
