GE PGB911DEJ2WW Gas Range

Model: PGB911DEJ2WW

Back To Assemblies

Save Part Not Listed?
product name

CONTROL PANEL & COOKTOP

...
...
2

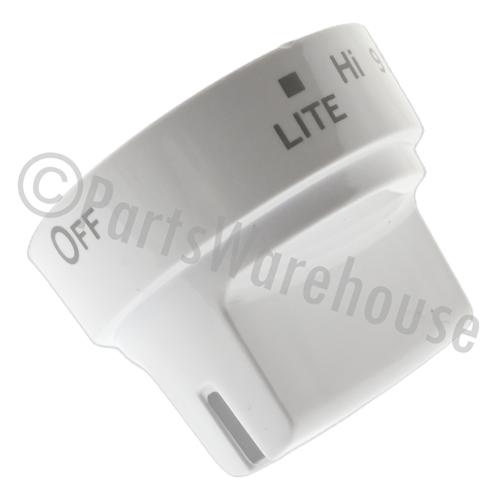

KNOB ASM GEH-WB03X24794
...
5
MANIFOLD PANEL GEH-WB36X25027
...
45
FLAT WASHER-M4 GEH-WB01X1378
...
100
END SUPPORT RH GEH-WB07X24791
...
101
END SUPPORT LH GEH-WB07X24792
...
104
BACKGUARD RANGE GEH-WB36X25024
...
105
OVERLAY AND CONTROL ASM GEH-WB49X25841
...
106
COVER BACK UPPER GEH-WB34X24745
...
107
COVER BACK LOWER GEH-WB34X24746
...
108
SCREW (CR) GEH-WB01X5364
...
112
HINGE RANGE TOP GEH-WB14K10003
...
113
GRATE ASM GEH-WB31X24736
...
114
RANGETOP & BRKT ASM GEH-WB62X24880
...
122
CKT SCREW GEH-WB01X24735
...
130
BACKGUARD EYEBROW GEH-WB34X25730
...
146
CLIP RANGETOP GEH-WB02X26569
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM. CAP, BURNER SMALL V GEH-WB29X24720
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
157
BURNER, XL V2 GEH-WB16X24722
...
158
OVAL BURNER ASM GEH-WB16K10076
...
159
BURNER, MEDIUM V2 GEH-WB16X24724
...
169
CLIP, IGNITER V2 GEH-WB02X24976
...
170
SCREW WH GEH-WB01X5874
...
175
HARNESS GROUND GEH-WB18X24748
...
204
SCREW (BLK) GEH-WB01K0042
...
206
SCREW GEH-WB01K10091
...
311
BUMPER GEH-WB02X24790
...
781
REVERSIBLE GRIDDLE GEH-WB31X24998
