GE PFDS450EL3WW Electric Dryer

Model: PFDS450EL3WW

Save Part Not Listed?
product name

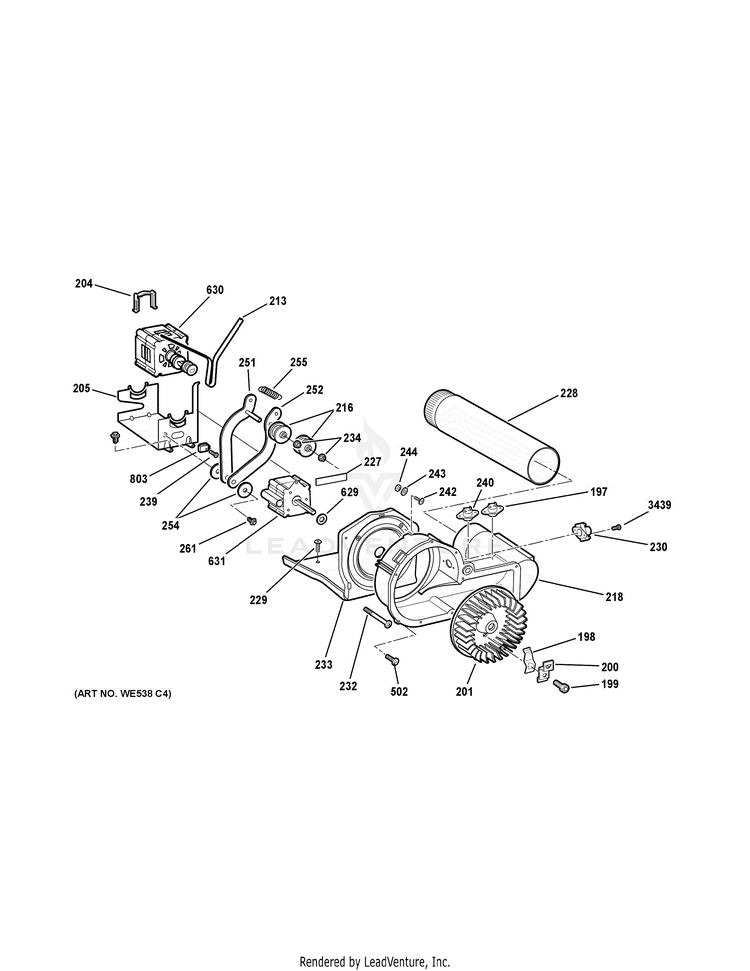

BLOWER & MOTOR

...
...
197
THERMOSTAT GEH-WE4M420
...
198
CLAMP GEH-WE1M984
...
199
SCREW GEH-WE2M98
...
200
CLAMP GEH-WE1M983
...
201
BLOWER WHEEL GEH-WE16M15
...
204
MOTOR BRACKET GEH-WE01X0921
...
205
MOTOR SUPPORT GEH-WE13M43
...
213
BELT DRIVE GEH-WE12M30
...
216
PULLEY IDLER GEH-WE12M8
...
218
BLOWER HOUSING GEH-WE14M238
...
227
ABSORBER-FOAM GEH-WD2M174
...
228
EXHAUST DUCT GEH-WE14X21035
...
229
SCREW GEH-WE2M200
...
230
T-STAT , OUTLET BKUP ORG GEH-WE4M300
...
232
SCREW GEH-WE2M202
...
233
MOTOR PLATE GEH-WE13M10001
...
234
CAP NUT GEH-WE2M96
...
239
SCREW GEH-WE2M236
...
240
OUTLET CNTRL THERMISTOR GEH-WE4M448
...
242
SCREW GEH-WE2M229
...
243
WASHER GEH-WH2M283
...
244
RUBBER GROMMET GEH-WE2M206
...
251
ARM & PIN LEFT ASM GEH-WE1M733
...
252
ARM & PIN RIGHT ASM GEH-WE1M734
...
254
NYLON WASHER GEH-WE2M234
...
255
SPRING IDLER GEH-WE1M735
...
261
IDLER PIVOT SCREW GEH-WE2M237
...
502
SCREW # 10 GEH-WE2M174
...
629
FOAM BLOWER MOTOR GEH-WE1M823
...
630
MTR & PULLY ASM DRM RVSE GEH-WE17M44
...
631
BLOWER MOTOR (W/CONTROL) GEH-WE17M45
...
803
IDLER MICROSWITCH GEH-WE4M425
...
3439
SCREW GEH-WE2M180

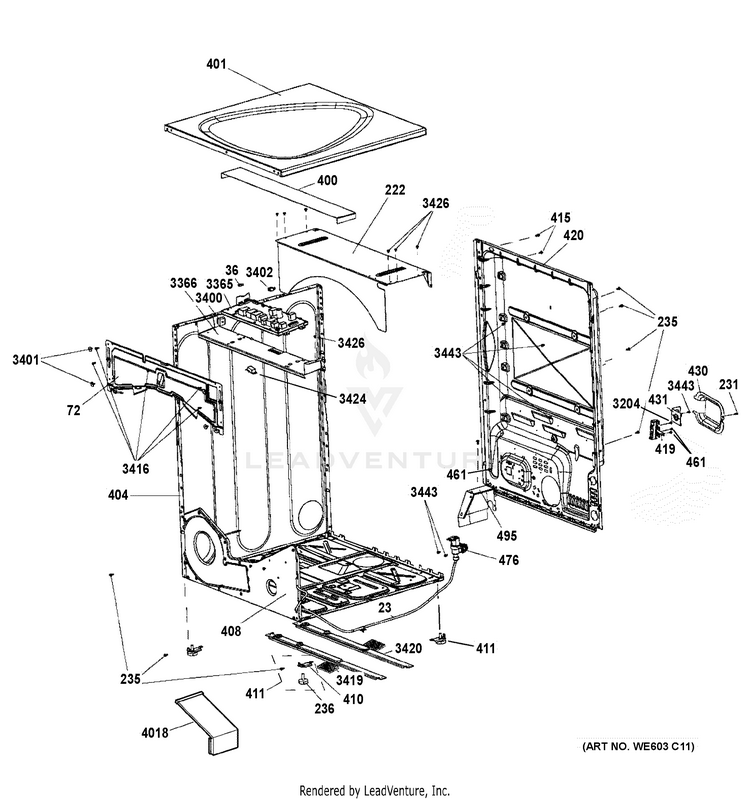

CABINET & TOP PANEL

...
...
23
MIST HOSE GEH-WE1M1105
...
36
HARNESS GEH-WD21X10105
...
72
FRONT SHIELD GEH-WE1M724
...
222
REAR PLATE GEH-WE20M476
...
231
SCREW GEH-WE2M187
...
235
SCR GEH-WE2X263
...
236
LEVELLING SCREW GRAY GEH-WE1M642
...
400
DAMPENING PLATE TOP PNL GEH-WE1M817
...
401
COVER TOP - WHITE GEH-WE20M372
...
404
SIDE PANEL WH GEH-WE20M400
...
408
CHASSIS BOTTOM GEH-WE20M380
...
410
REAR BRACKET LEVEL LEG GEH-WE1M528
...
411
LEVELINGLEGASM GEH-WE1M468
...
415
SCR 3/16''-FMLE HEX LOCK GEH-WE2M246
...
419
TERMINAL BLOCK GEH-WE4M553
...
420
REAR PANEL 7.5 C.F. GEH-WE20M381
...
430
TERM. BLOCK COVER GEH-WE1M1102
...
431
STRAIN RELIEF BRACKET GEH-WE1M457
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
476
VALVE WATER GEH-WE4M503
...
495
SHIELD WATER VALVE GEH-WE1M933
...
3204
SCR GEH-WH2M270
...
3365
MAIN POWER BOARD ASM (NO GEH-WE4M518
...
3366
MAIN POWER BOARD SUPPORT GEH-WE1M864
...
3400
TRIAC ASM W/HEAT SINK GEH-WE4M427
...
3401
WHEEL FRONT SHIELD GEH-WE1M757
...
3402
ENCLOSED SCREW GROMMET GEH-WE1M758
...
3416
SCREW WHEEL MOUNTING GEH-WE2M240
...
3419
SUPPORT CHANNEL GEH-WE1M779
...
3420
CHANNEL FOAM GEH-WE1M824
...
3424
RACK DRY INTERLOCK RELAY GEH-WE4M442
...
3426
SCREW GEH-WE2M223
...
3443
SCREW GEH-WE1M280
...
4018
SHIELD-DRUM MOTOR GEH-WE1M841

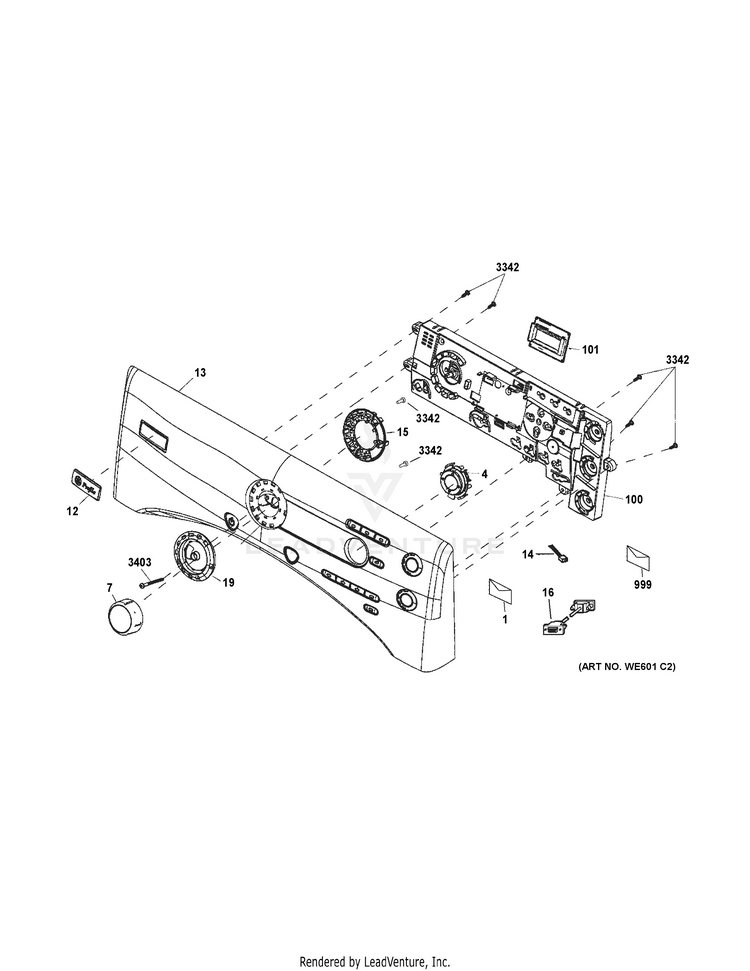

CONTROL PANEL

...
...
1
PM USE AND CARE GEH-49-90396
...
4
BUTTON CLUSTER GEH-WE1M952
...
7
KNOB ASM GEH-WE1M953
...
12
BADGE - GE PROFILE GEH-WE1M727
...
13
PANEL FRONT ASM WW-STEAM GEH-WE20M462
...
14
WIRING HARNESS GEH-WE5M52
...
15
BUTTON CLUSTER GEH-WE1M971
...
16
CABLE COMUNICATE WSH-DRY GEH-WE5M51
...
19
RING GEH-WE1M970
...
100
CHASSIS BOARD ASM GEH-WE4M517
...
101
BOARD DISPLAY VFD GEH-WE4M419
...
999
KIT REVERSIBLE ASM GEH-WE25M70
...
3342
SCREW FRONT GEH-WE2M211
...
3403
SCREW CENTER KNOB AREA GEH-WE2M264

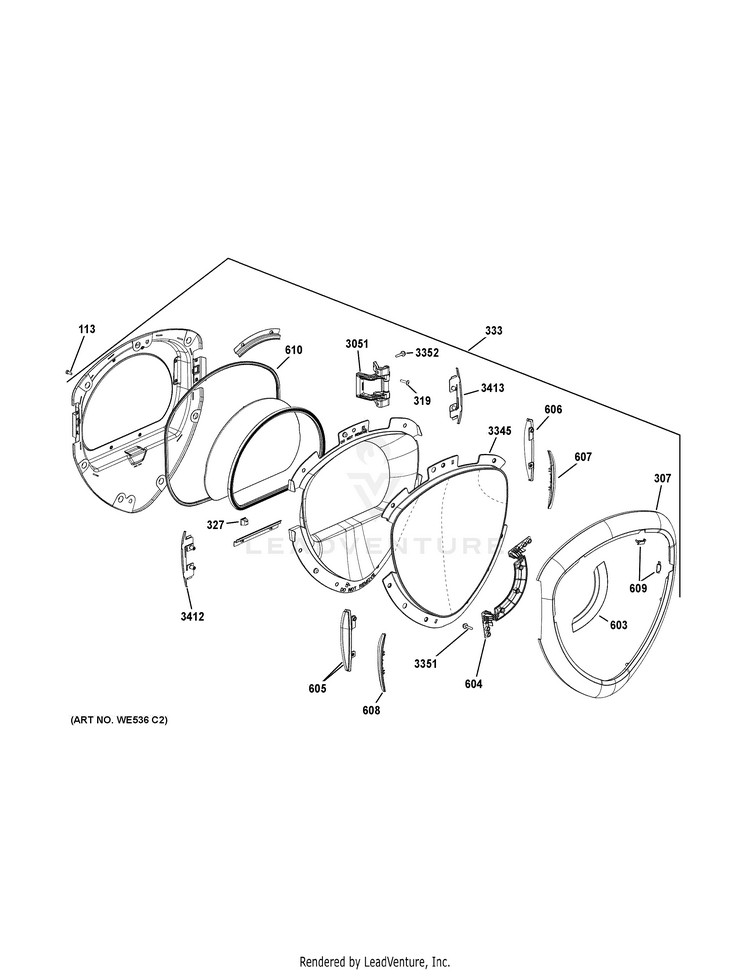

DOOR

...
...
113
PLASTIC SCREW PLUG GEH-WE1M741
...
307
OUTER RING GEH-WE1M954
...
319
SCREW GEH-WE2M173
...
327
LATCH DOOR GEH-WE1M1011
...
333
DOOR ASM GEH-WE10M137
...
603
DOOR HANDLE COVER GEH-WE1M955
...
604
HANDLE BOTTOM GEH-WE1M956
...
605
DOOR CAP GEH-WE1M957
...
606
DOOR CAP GEH-WE1M960
...
607
HINGE CAP LEFT GEH-WE1M961
...
608
HINGE CAP RIGHT GEH-WE1M959
...
609
HANDLE CAP GEH-WE1M958
...
610
DOOR GASKET W/ EXTN LIP GEH-WE9M46
...
3051
DOOR HINGE ASM GEH-WE1M751
...
3345
DOOR OUTER WINDOW GEH-WE1M752
...
3351
SCREW #8 X 5/8 SS DOOR H GEH-WE1M582
...
3352
SCREW #8-32 X 1/2 HINGE GEH-WE1M583
...
3412
INNER DOOR CAP LEFT GEH-WE1M761
...
3413
INNER DOOR CAP RIGHT GEH-WE1M762

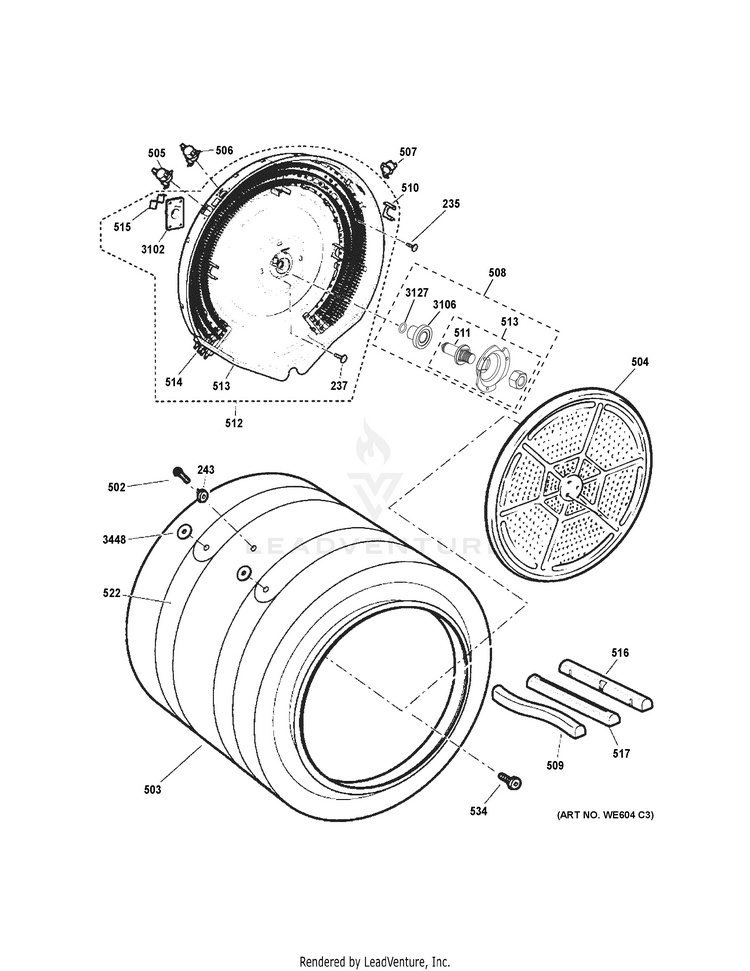

DRUM

...
...
235
SCR GEH-WE2X263
...
237
SCREW GEH-WE2M154
...
243
WASHER GEH-WH2M283
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM SS 7.5 IN GEH-WE21M25
...
504
DIFFUSER GEH-WE14X20082
...
505
THERMOSTAT SAFETY LEFT GEH-WE4M160
...
506
INLET CONTROL THERMOSTAT GEH-WE4M398
...
507
STD HIGH LMT THERMOSTAT GEH-WE4M457
...
508
SHAFT & BRACKET ASS'Y GEH-WE3M33
...
509
BAFFLE DRUM GEH-WE14M128
...
510
PROTECTION BRACKET GEH-WE1M780
...
511
SHAFT GEH-WE00X181L
...
512
MICA HEATER & HOUSING AS GEH-WE11M65
...
513
HOUSING HEATER GEH-WE11M31
...
514
MICA UNIT (5400W) GEH-WE11M39
...
515
GROUND STRAP ASM GEH-WE1M1015
...
516
HANG DRY BAFFLE ASM GEH-WE14M129
...
517
BAFFLE AND SCREEN ASM GEH-WE14M130
...
522
DAMPENING BAND - DRUM GEH-WE1M821
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461
...
3448
WASHER - DAMPENING BAND GEH-WE2M185

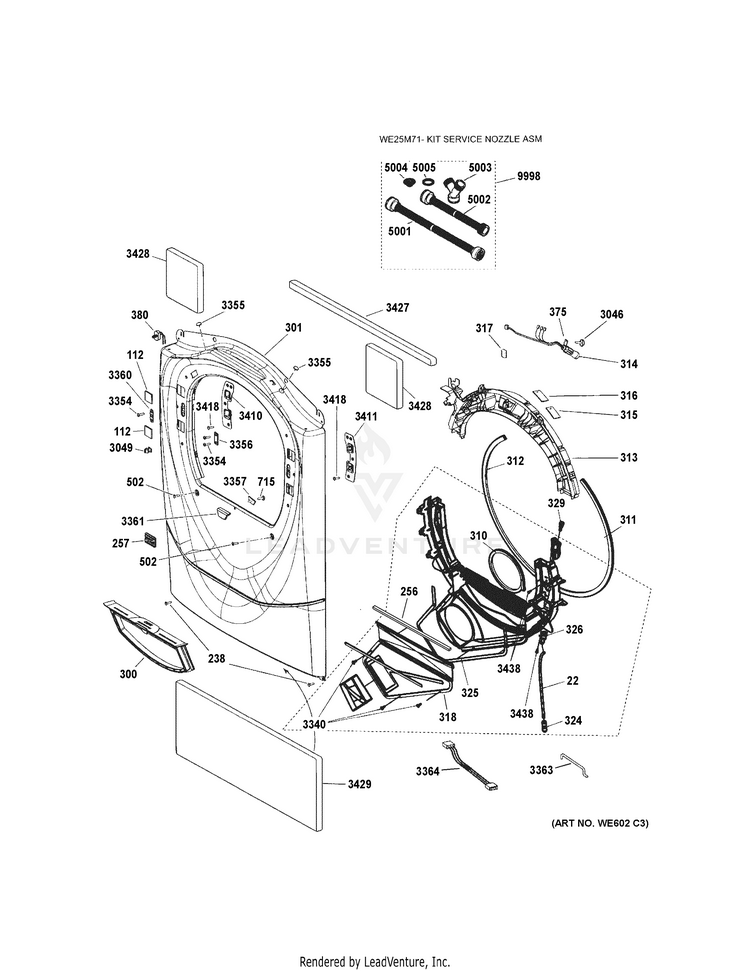

FRONT PANEL

...
...
22
TUBE WATER FRONT 11" GEH-WE1M941
...
112
FRNT OPENING PLUG WH GEH-WE1M728
...
238
SCREW WHITE #10-16 3/4 GEH-WE2M225
...
256
FM GSKT TRP DUCT CVR-TOP GEH-WE1M738
...
257
FOAM BLOCK SPACER GEH-WE1M739
...
300
FILTER AND MESH ASM GEH-WE18M38
...
301
FRONT PANEL - WHITE GEH-WE20M368
...
310
GASKET (AIR-DUCT) GEH-WE9M41
...
311
TRAP DUCT ASM GEH-WE14M187
...
312
FELT TRAP DUCT GEH-WE9M49
...
313
TOP BEARING GEH-WE14M241
...
314
LAMP GEH-WE4M305
...
315
BEARING SLIDE GEH-WE3M51
...
316
BEARING SLIDE GEH-WE3M52
...
317
FELT CLEANING GEH-WE9M31
...
318
TRAP DUCT COVER GEH-WE1M740
...
324
ELBOW & NOZZLE ASM GEH-WE1M943
...
325
FM GASKET AIR DUCT LONG GEH-WE1M737
...
326
CONNECTOR SERVICE GEH-WE01X20560
...
329
NOZZLE GEH-WE1M944
...
375
HARNESS ASM GEH-WE15X20701
...
380
DOOR SWITCH GEH-WE4M415
...
502
SCREW # 10 GEH-WE2M174
...
715
SCR GEH-WD2M101
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE DOOR GEH-WE01X1192
...
3340
SCREW GEH-WE2M173
...
3354
SCREW HINGE TO FRONT GEH-WE2M217
...
3355
PRONGUED PLUG BUTTON GEH-WE1M572
...
3356
STRIKE PLATE GEH-WE1M569
...
3357
NUT-STRIP DOOR GUIDE GEH-WE2M213
...
3360
STRIKE PLATE W/STRK HOLE GEH-WE1M570
...
3361
DOOR GUIDE GEH-WE1M755
...
3363
SENSOR RODS GEH-WE1M575
...
3364
HARNESS SENSORS GEH-WE5M54
...
3410
HINGE BRACKET LEFT GEH-WE1M759
...
3411
HINGE BRACKET RIGHT GEH-WE1M760
...
3418
SCREW - HINGE BASE GEH-WE2M262
...
3427
INSULATION FRNT TOP BRNG GEH-WE1M861
...
3428
INSULATION PAD HINGES GEH-WE1M859
...
3429
FRONT INSULATION GEH-WE1M816
...
3438
SCR 6-18 B B1Q1 3/4 S ZN GEH-WE2M282
...
5001
INLET HOSE (LONG) GEH-WE1M847
...
5002
INLET HOSE(SHORT) W/M & GEH-WE1M848
...
5003
Y ADAPTOR GEH-WE1M849
...
5004
SCREEN FOR WASHER HOSE GEH-WE1M850
...
5005
RUBBER WASHER FOR INTAKE GEH-WE1M851
...
9998
HOSE INLET ASM - KIT GEH-WE25M53
