GE PDWT580V50SS Dishwasher

Model: PDWT580V50SS

Save Part Not Listed?
product name

BODY PARTS

...
...
10
SCREW 10-32 GXTT FLP 595 GEH-WR01X10065
...
30
SPRING DOOR HEAVY DUTY GEH-WD03X10023
...
30
SPRING DOOR GEH-WD03X10022
...
50
LATCH KEEPER ASM GEH-WD13X10064
...
51
SCR 8-18 VA TRT 7/16 S N GEH-WD02X10117
...
70
SCREW LEVEL GEH-WD02X0320
...
101
ELEMENT HEATING ASM GEH-WD05X10010
...
104
NUT TOWER HEATER ASM GEH-WD01X10214
...
109
GROMMET HEATER GEH-WD01X10094
...
302
DOME FLOAT GEH-WD12X10119
...
305
FLOAT GEH-WD12X10406
...
306
STEM FLOAT GEH-WD12X10048
...
308
SWITCH FLOOD ASM GEH-WD21X10168
...
492
LOCKNUT GEH-WD12X10135
...
493
BASE FLOOD SWITCH GEH-WD12X10183
...
494
HSNG SPECIAL-WATER VALVE GEH-WD21X10355
...
495
SEAL FLOOD SWITCH GEH-WD01X10264
...
499
THERMOSTAT - SAFETY GEH-WD01X10512
...
500
BRACKET TCO GEH-WD01X10425
...
506
COVER INLET GEH-WD12X10400
...
508
FILTER SUMP & COVER ASM GEH-WD22X10077
...
568
BEARING SPRAY ARM UP GEH-WD01X10410
...
569
SCR 8-32 B HXW 1.13 SS GEH-WD02X10109
...
570
ARM SPRAY UPPER ASM GEH-WD22X10084
...
572
GASKET WATER INLET GEH-WD08X10044
...
573
COVER WATER INLET GEH-WD12X10129
...
574
NUT WATER INLET GEH-WD01X10220
...
575
FUNNEL AND GASKET ASM GEH-WD12X21322
...
576
HOSE FILL GEH-WD24X10024
...
585
CONDUIT MAIN GEH-WD12X10113
...
586
CONE DOCKING GEH-WD12X10121
...
714
SCREW GEH-WD02X10200
...
716
LINK HINGE ARM GEH-WD14X10009
...
733
CABLE ASM GEH-WD01X10235
...
734
PULLEY HINGE GEH-WD01X10217
...
735
CUP HINGE GEH-WD01X10218
...
741
BRACKET J BOX GEH-WD12X10124
...
743
COVER JUNCTION BOX GEH-WD12X448
...
744
VALVE WATER INLET GEH-WD15X10014
...
746
SCR 10-24X3/8 TT HEX GEH-WD02X0248
...
775
SCR 10-16X1/2 AB HEXW S GEH-WD02X5166
...
776
SCR 10-32 C HX 7/16 S GEH-WD02X10159
...
777
INSULATION TUB BLANKET GEH-WD01X10448
...
790
CLAMP HOSE GEH-WD01X22786
...
831
BRACKET HINGE RH GEH-WD01X10564
...
831
BRACKET HINGE LH GEH-WD01X10565
...
840
SPRING GASKET GEH-WD03X10020
...
842
TRIM GASKET GEH-WD08X10054
...
843
GASKET TUB GEH-WD08X10032
...
844
TRIM GASKET GEH-WD08X10055
...
860
PLUG BUTTON GEH-WD01X10223

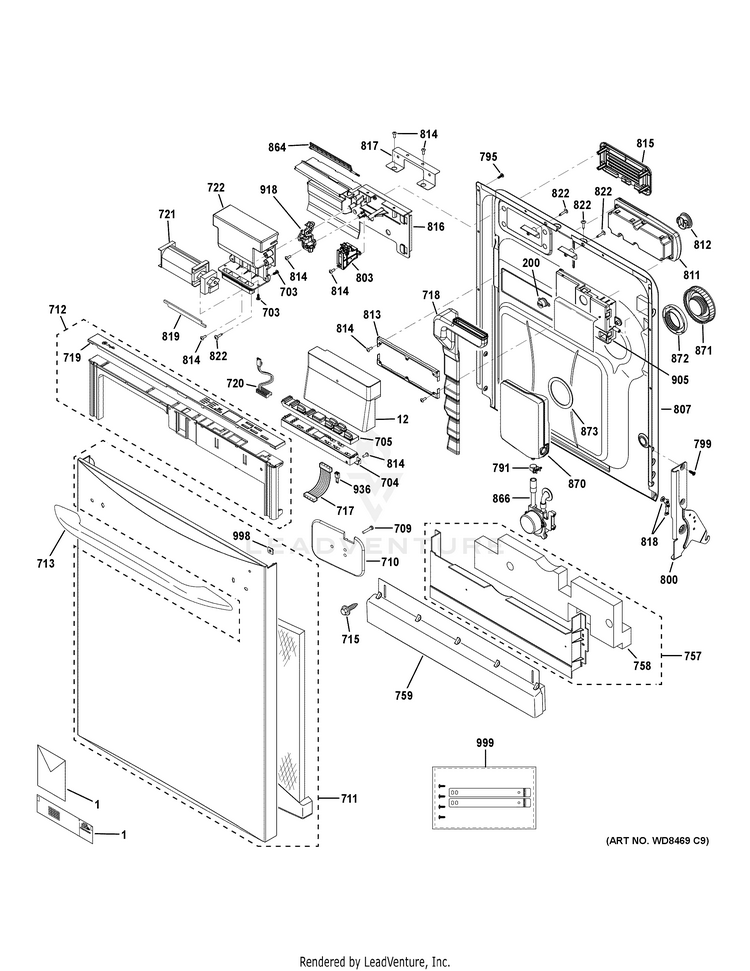

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM INSTALL INSTRUCTIONS GEH-31-30284
...
1
PM MANUAL USE & CARE GEH-49-55078
...
1
PM INSTRUCTION INSTALL GEH-31-30280
...
1
PM SHEET MINI MANUAL GEH-31-30637
...
1
STRIP HARDNESS TESTER GEH-WD01X10295
...
12
BOARD CNTRL SHIELD GEH-WD12X10387
...
200
TCO ASSEMBLY GEH-WD01X10537
...
703
SCR 8-18 AB HW 1/2 SS GEH-WD02X10166
...
704
TACTILE ASM HOUSING GEH-WD31X10132
...
705
BUTTON ASM SILICONE GEH-WD01X10591
...
709
SCR 10-24 UNC HXP 1S ZN GEH-WD01X10566
...
710
BRACKET DOOR HANDLE GEH-WD12X10283
...
711
PANEL ASM OUTER -PROFILE (SS) GEH-WD34X11769
...
712
SEVICE KIT FOR FFF-SS GEH-WD27X10373
...
713
HANDLE ASM SS DOOR GEH-WD13X10065
...
715
SCREW 8-18 B 1HW 1/2 SN GEH-WH02X10126
...
717
HARNESS HMI ASM GEH-WD01X10557
...
718
CONDUIT EXHAUST ASM GEH-WD12X10190
...
719
CONSOLE COVER ASM GEH-WD27X10348
...
720
HARNESS DISPLAY ASM GEH-WD01X10558
...
721
BLOWER DISHWASHER GEH-WD26X10056
...
722
INLET TRANSITION GEH-WD12X10351
...
757
KIT TOEKICK ASM GEH-WD27X10250
...
758
FOAM BRACE GEH-WD01X10421
...
759
TOEKICK ASM GEH-WD27X10324
...
791
CLAMP HOSE GEH-WD01X10293
...
795
SCR 8-18 AB OV .655 GEH-WD02X10202
...
799
SCR 10-24 TAP RNP 1/2 GEH-WD02X10201
...
800
HINGE ARM ASM RH GEH-WD14X10041
...
800
HINGE ARM ASM LH GEH-WD14X10040
...
803
LATCH GEH-WD13X10031
...
807
DOOR INNER & GASKET GEH-WD31X10131
...
811
MODULE RINSE AND CAP ASM GEH-WD12X10163
...
812
CAP RINSE ASM GEH-WD12X10122
...
813
BRACKET DETERGENT DISPLA GEH-WD01X10207
...
814
SCR 8-10 PL TRP 1/2 S GEH-WD02X10104
...
815
COVER VENT GEH-WD12X10127
...
816
VENT BRACKET ASM GEH-WD12X10383
...
817
LATCH BRACKET GEH-WD01X10551
...
818
BEARING HINGE ARM GEH-WD12X10313
...
819
GASKET CONDUIT GEH-WD12X10398
...
822
SCR 8-18 AB TR 7/8S GEH-WD02X10106
...
864
FLAPPER VENT GEH-WD12X10067
...
866
DISPENSING DET ASM GEH-WD12X10384
...
870
BOTTLE DETERGENT ASM GEH-WD35X10361
...
871
CAP ASM GEH-WD12X10282
...
872
LOCK NUT ASM GEH-WD12X10212
...
873
GASKET FILL HOLE GEH-WD08X10060
...
905
PS KIT AP3RTP GEH-WD21X10439
...
918
VENT DRIVER ASM GEH-WD21X10172
...
936
MODEL SELECTOR PLUG ASM GEH-WD21X10486
...
998
LENS INDICATOR GEH-WD01X10553
...
999
BAG AND BRACKET ASM GEH-WD35X10372

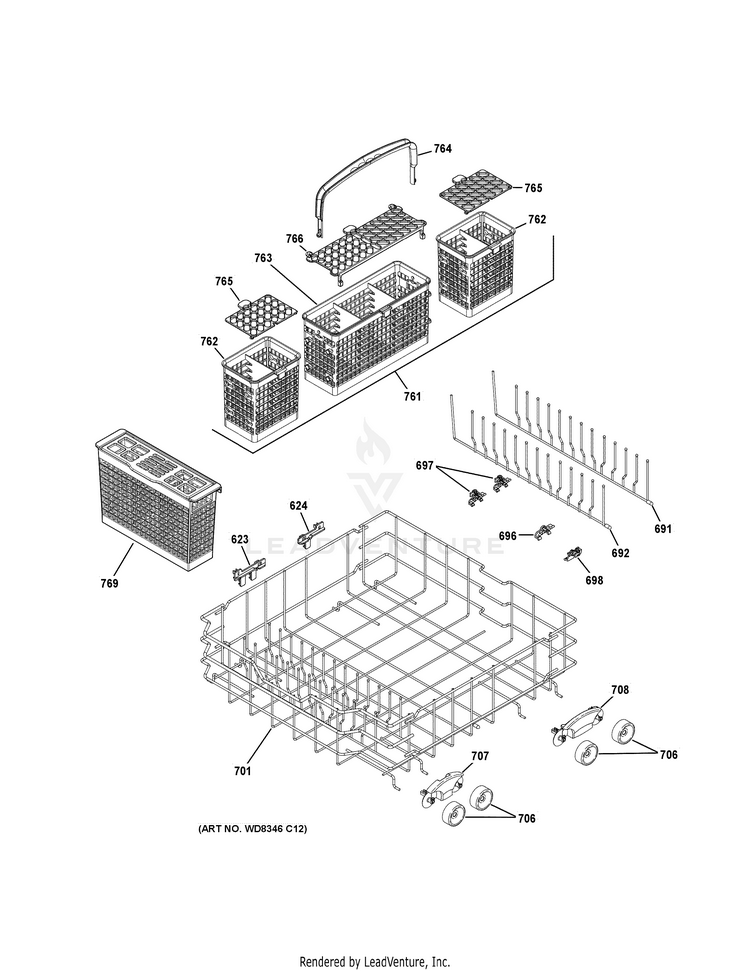

LOWER RACK ASSEMBLY

...
...
623
FINGER INDEXER GEH-WD12X10385
...
624
FINGER INDEXER GEH-WD12X10386
...
691
COMB ASM LOWER RACK GEH-WD28X10320
...
692
COMB ASM LOWER RACK GEH-WD28X10321
...
696
RETAINER COMB GEH-WD12X10116
...
697
RETAINER COMB GEH-WD12X10118
...
698
RETAINER COMB GEH-WD12X10117
...
701
RACK ROLLER ASM LOWER GEH-WD28X10318
...
706
LOWER RACK WHEEL GEH-WD28X10295
...
707
FENDER FRONT ASM GEH-WD01X10602
...
708
FENDER REAR ASM GEH-WD01X10603
...
761
BASKET 7 PC ASM GEH-WD28X10109
...
762
BASKET SILVERWARE END GEH-WD28X10107
...
763
BASKET SILVERWARE MIDDLE GEH-WD28X10106
...
764
HANDLE BASKET GEH-WD28X10108
...
765
LID BASKET GEH-WD28X10114
...
766
LID BASKET GEH-WD28X10113
...
769
BASKET SMALL ITEMS ASM GEH-WD28X10120

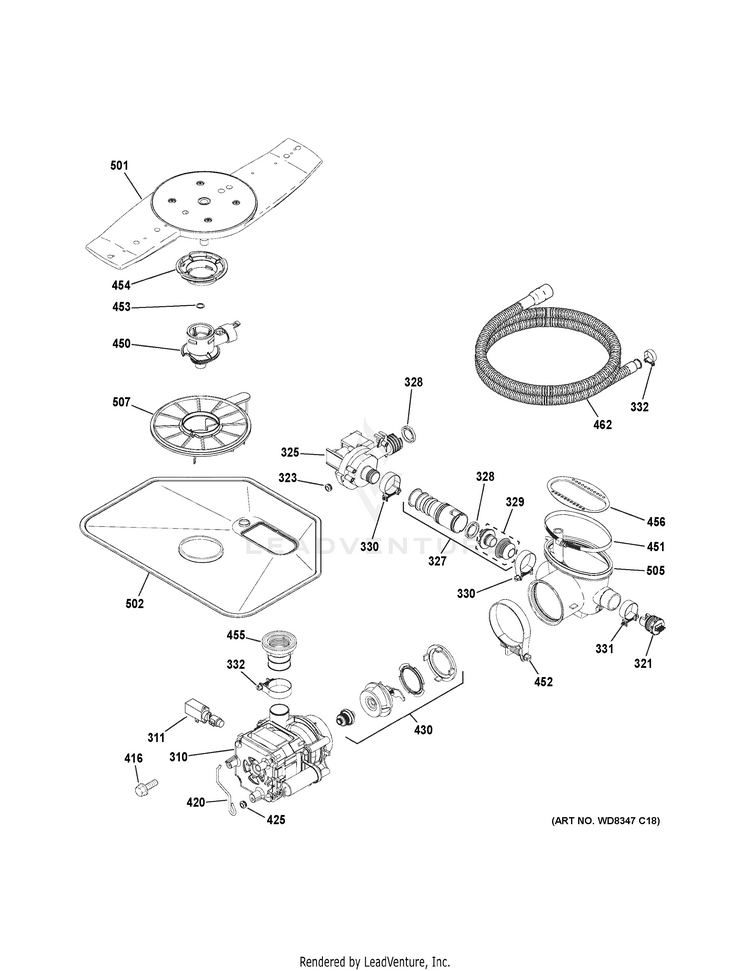

MOTOR-PUMP MECHANISM

...
...
310
MECHANISM ASM GEH-WD26X10054
...
311
ACTUATOR WAX ASM GEH-WD21X10235
...
321
SENSOR TURBIDITY GEH-WD21X10272
...
323
GROMMET GEH-WD01X10269
...
325
REPLACING WD26X10042 GEH-WD26X10048
...
327
ADAPTOR PUMP ASM GEH-WD12X10279
...
328
VALVE FLAPPER DUAL PUMP GEH-WD01X10406
...
329
SEAT CHECK VALVE GEH-WD01X10405
...
330
CLAMP GEH-WD01X10105
...
331
CLAMP GEH-WD01X10104
...
332
CLAMP GEH-WD01X10103
...
416
SCR 10-32 TT HEX .575S GEH-WD02X10141
...
420
HANGER MECH ASSY GEH-WD01X10211
...
425
GROMMET GEH-WD01X10101
...
430
KIT - IMPELLER ASM GEH-WD19X10038
...
450
HUB VENTURI ASM GEH-WD18X10050
...
451
CLAMP SUMP GEH-WD01X10210
...
452
CLAMP HOSE GEH-WD01X1392
...
453
BEARING SPRAY ARM LOW GEH-WD01X10107
...
454
NUT HUB FINE FILTER GEH-WD12X10061
...
455
CONNECTOR PUMP ASSY GEH-WD18X10010
...
456
PLATE SUMP GEH-WD01X10219
...
462
DRAIN TUBE ASM GEH-WD24X10035
...
501
ARM SPRAY LOW ASM GEH-WD22X10063
...
502
FILTER COARSE GEH-WD22X10038
...
505
SUMP INLET GEH-WD18X10026
...
507
FILTER FINE ASM GEH-WD12X10109

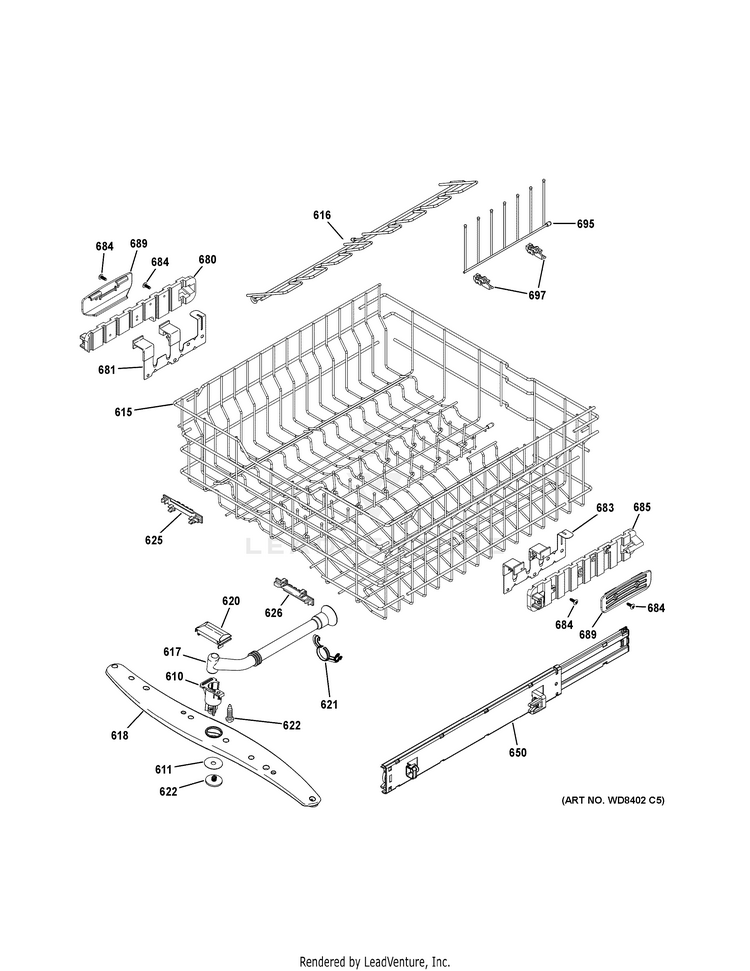

UPPER RACK ASSEMBLY

...
...
610
HUB SPRAY ARM MID GEH-WD12X10353
...
611
SCR B-16 HXW 1/2 SS GEH-WD02X10169
...
615
RACK ADJ ASM UPPER GEH-WD28X10319
...
616
SHELF CUP FULL LENGTH GEH-WD28X10263
...
617
CONDUIT MID SPRAY GEH-WD12X10145
...
618
ARM SPRAY MID ASM GEH-WD22X10083
...
620
BRACKET SPRAY ARM MID GEH-WD12X10405
...
621
CONDUIT CARRIER MID GEH-WD12X10114
...
622
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
625
FINGER INDEXER LH GEH-WD12X10120
...
626
FINGER INDEXER RH GEH-WD12X10137
...
650
INNER RAIL UPR RACK ASM GEH-WD30X10041
...
680
RACK ADJUSTABLE BRACKET GEH-WD01X10605
...
681
LEVER RACK ASM LH GEH-WD01X10395
...
683
LEVER RACK ASM RH GEH-WD01X10396
...
684
SCR 8-18 B POR 1/2 SS GEH-WD02X10111
...
685
RACK ADJUSTABLE BRACKET GEH-WD01X10604
...
689
TOUCH PAD SS GEH-WD01X10397
...
695
COMB UPPER RACK ASM GEH-WD28X10260
...
697
RETAINER COMB GEH-WD12X10118
