GE PDW7800J01WW Dishwasher

Model: PDW7800J01WW

Save Part Not Listed?
product name

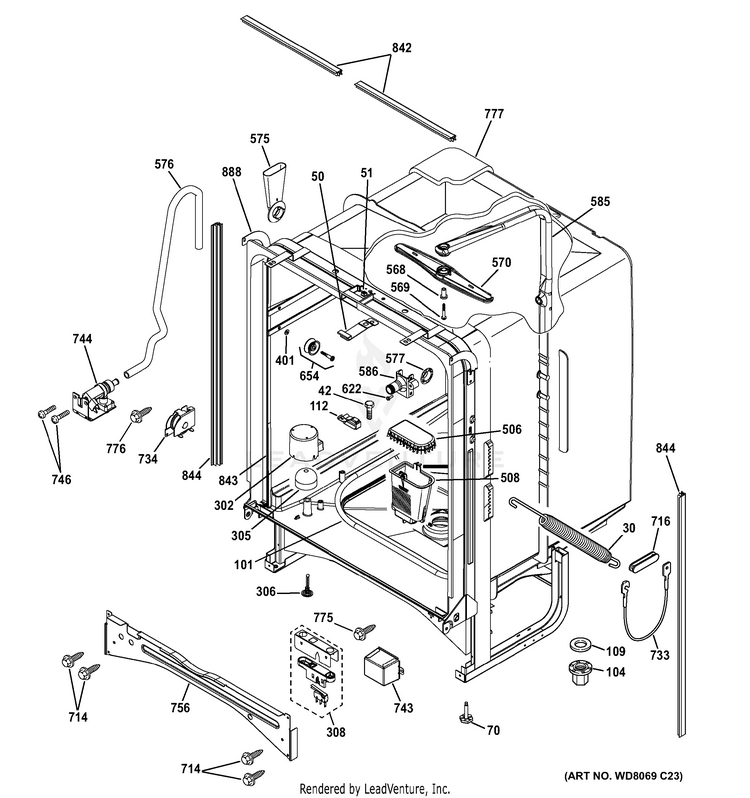

BODY PARTS

...
...
30
SPRING GEH-WD03X10012
...
42
SCREW #8-3/4 L HX HD SS GEH-WD02X10110
...
50
KEEPER LATCH ASM GEH-WD13X10019
...
51
SCREW 10-24X1/2 TT TRR S GEH-WD02X10066
...
70
SCREW LEVEL GEH-WD02X0320
...
101
ELEMENT HEATING ASSY GEH-WD05X10005
...
104
NUT TOWER HEATER GEH-WD01X10261
...
109
GROMMET HEATER GEH-WD01X10094
...
112
SUPPORT HEATER GEH-WD01X10098
...
302
DOME FLOAT GEH-WD12X10051
...
305
FLOAT GEH-WD12X10047
...
306
STEM FLOAT GEH-WD12X10048
...
308
SWITCH FLOOD ASM GEH-WD21X10168
...
401
WASHER ST STL GEH-WD03X0767
...
506
COVER INLET GEH-WD12X10049
...
508
FILTER SUMP GEH-WD22X10028
...
568
BEARING SPRAY ARM UP GEH-WD01X10102
...
569
SCREW 8-16 B HXW 1 08 SS GEH-WD02X10068
...
570
ARM SPRAY UPPER ASSY GEH-WD22X10027
...
575
FUNNEL FILL GEH-WD12X10180
...
576
HOSE FILL GEH-WD24X10026
...
577
GASKET FUNNEL FILL GEH-WD08X10053
...
585
CONDUIT MAIN GEH-WD12X10057
...
586
CONE DOCKING GEH-WD12X10059
...
622
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
654
ROLLER STUD ASM GEH-WD12X0332
...
714
SCREW 8-18 B HXW 480 S GEH-WD02X10083
...
716
LINK HINGE ARM GEH-WD14X10009
...
733
CABLE PULLEY ASSY GEH-WD01X10099
...
734
PULLEY BRACKET ASSY GEH-WD16X10009
...
743
COVER JUNCTION BOX GEH-WD12X448
...
744
KIT WATER VALVE PS GEH-WD15X10004
...
746
SCR 10-24X3/8 TT HEX GEH-WD02X0248
...
756
BRACE TOEKICK WHITE GEH-WD34X10566
...
775
SCR 10-16X1/2 AB HEXW S GEH-WD02X5166
...
776
SCR 10-32 T HEX 7/16 S GEH-WZ05X0222
...
777
INSULATION TUB BLANKET GEH-WD01X10259
...
842
TRIM TUB FLANGE WHITE GEH-WD08X10023
...
843
GASKET TUB GEH-WD08X10018
...
844
TRIM TUB FLANGE WHITE GEH-WD08X10024
...
888
BRACKET COUNTER GEH-WD35X10024

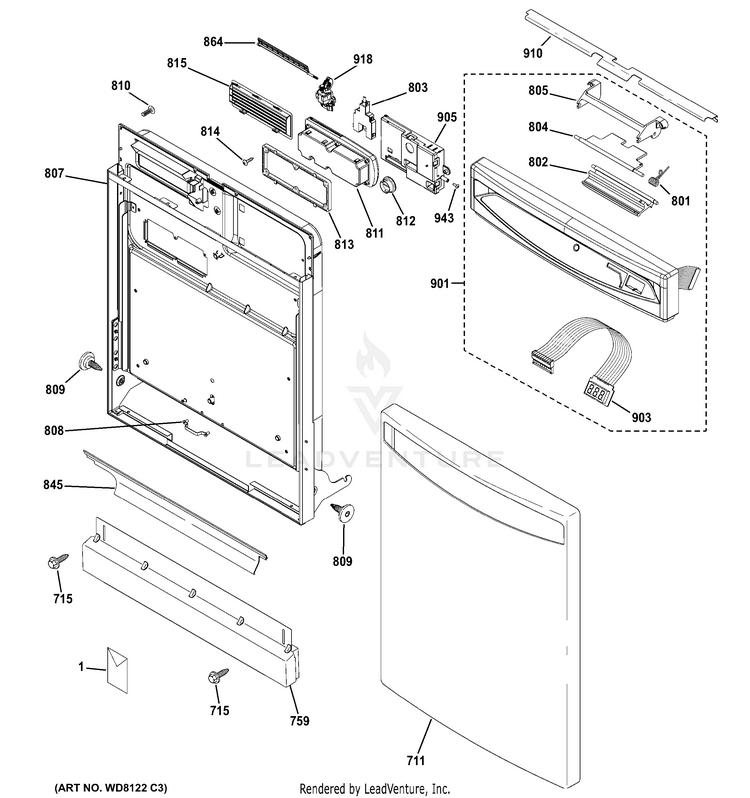

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM SHEET MINI MANUAL GEH-31-30365
...
1
PM INSTRUCTION INSTALL GEH-31-30551
...
1
OM -MONOGRAM DISHWASHER GEH-49-5954
...
711
PANEL BOWED TOX ASSY GEH-WD31X10052
...
715
SCREW 8-18 B 1HW 1/2 S N GEH-WD02X10086
...
759
TOEKICK ASSY WHITE GEH-WD27X10086
...
801
SPRING RECESS DOOR GEH-WR02X10585
...
802
HANDLE LATCH WHITE GEH-WD13X10010
...
803
SWITCH INTERLOCK ASM GEH-WD21X10169
...
804
ACTUATOR HANDLE GEH-WD13X10008
...
805
RETAINER HANDLE GEH-WD13X10009
...
807
INNER DOOR & HINGE ASSY GEH-WD31X10027
...
808
CLIP HARNESS GEH-WD01X10110
...
809
SCREW 10-32GX FLT25 615 GEH-WD02X10084
...
810
SCR 8-18 AB TR 7/8 S GEH-WD02X10099
...
811
MODULE RINSE ASSY GEH-WD12X10046
...
812
CAP ASSEMBLY GEH-WD12X10102
...
813
BRACKET RINSE MODULE GEH-WD12X10146
...
814
SCR 8-10 PL TRP 1/2 S GEH-WD02X10104
...
815
VENT GEH-WD12X10045
...
845
SEAL SHORT BOT DOOR GEH-WD08X10019
...
864
FLAPPER VENT GEH-WD12X10067
...
901
ESCUTCHEON BOWED SS ASM GEH-WD34X10993
...
903
MODULE 3 DIGIT DISPLAY GEH-WD21X10203
...
905
MODULE CONTROL ASM GEH-WD21X10196
...
910
BRACE ESCUTCHEON GEH-WD34X10871
...
918
VENT DRIVER ASM GEH-WD21X10172
...
943
SCREW GEH-WZ05X0219

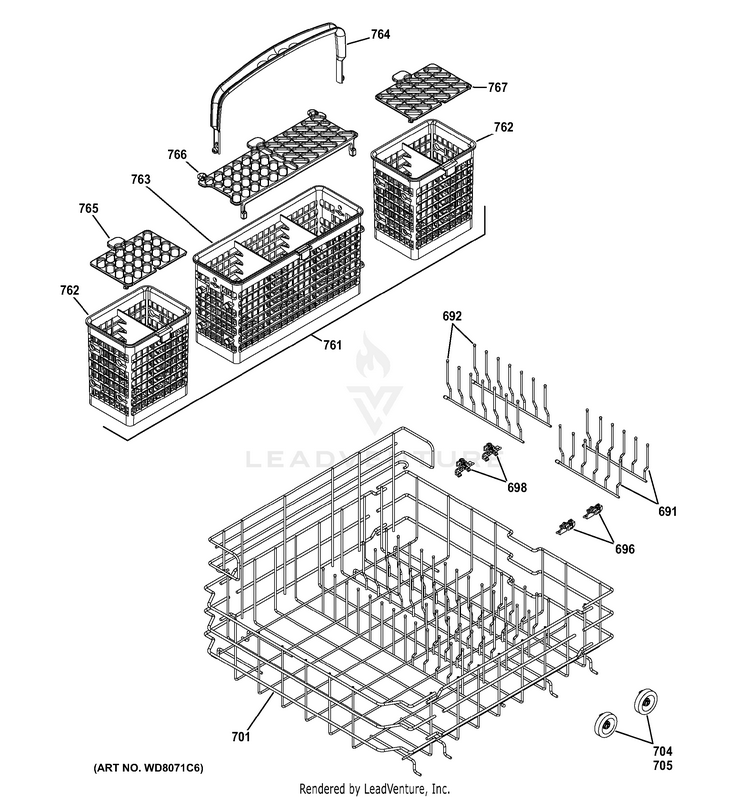

LOWER RACK ASSEMBLY

...
...
691
COMB LOWER RACK ASSY GEH-WD28X10065
...
692
COMB LOWER RACK ASSY GEH-WD28X10064
...
696
RETAINER COMB GEH-WD12X10064
...
696
RETAINER COMB GEH-WD28X10063
...
698
RETAINER COMB GEH-WD28X10062
...
701
RACK LOW ROLL ASM GEH-WD28X10138
...
704
WD12X10075 GEH-WD12X10101
...
705
ROLLER LOWER RACK GEH-WD12X10074
...
761
BASKET ASM SERVICE GEH-WD28X10058
...
762
BASKET SILVERWARE END GEH-WD28X10153
...
763
BASKET SILVERWARE MIDDLE GEH-WD28X10037
...
764
HANDLE BASKET GEH-WD28X10039
...
765
LID BASKET GEH-WD28X10066
...
766
LID BASKET GEH-WD28X10067
...
767
LID BASKET GEH-WD28X10068

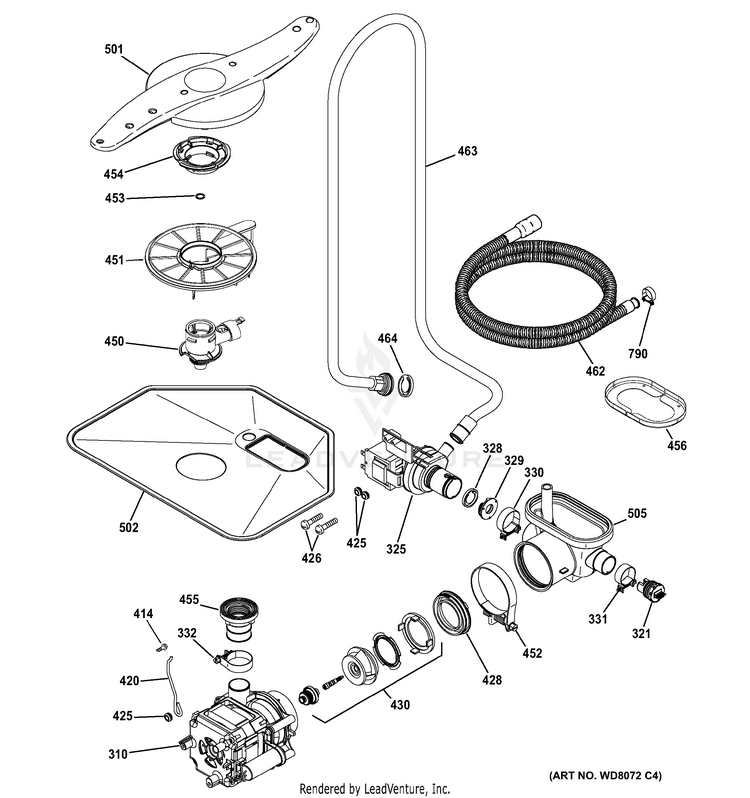

MOTOR-PUMP MECHANISM

...
...
310
MECHANISM ASSY GEH-WD26X10015
...
321
SENSOR TURBIDITY GEH-WD21X10202
...
325
PUMP DRAIN ASSY GEH-WD26X10016
...
328
WD01X10175 GEH-WD01X10178
...
329
SEAT CHECK VALVE GEH-WD01X10176
...
330
CLAMP GEH-WD01X10103
...
331
CLAMP GEH-WD01X10104
...
332
CLAMP GEH-WD01X10105
...
414
SCREW GEH-WD02X0444
...
420
HANGER MECH ASSY GEH-WD01X10093
...
425
GROMMET GEH-WD01X10101
...
426
WD02X10093 GEH-WD02X10094
...
428
RING SUCTION GEH-WD12X10060
...
430
IMPELLER ASSY GEH-WD19X10032
...
450
HUB VENTURI ASSY GEH-WD18X10009
...
451
FILTER FINE ASSY GEH-WD12X10050
...
452
CLAMP HOSE GEH-WD01X1392
...
453
BEARING SPRAY ARM LOW GEH-WD01X10107
...
454
NUT HUB FINE FILTER GEH-WD12X10061
...
455
CONNECTOR PUMP ASSY GEH-WD18X10010
...
456
RING SUMP GEH-WD01X10106
...
462
HOSE DRAIN GEH-WD24X10014
...
463
TUBE DRAIN ASSY GEH-WD24X10020
...
464
FLAPPER CHECK VALVE GEH-WD01X10177
...
501
ARM SPRAY LOW ASSY GEH-WD22X10030
...
502
FILTER COARSE GEH-WD22X10029
...
505
SUMP INLET GEH-WD18X10008
...
790
CLAMP HOSE GEH-WD01X10065
...
790
CLAMP HOSE GEH-WH01X2036

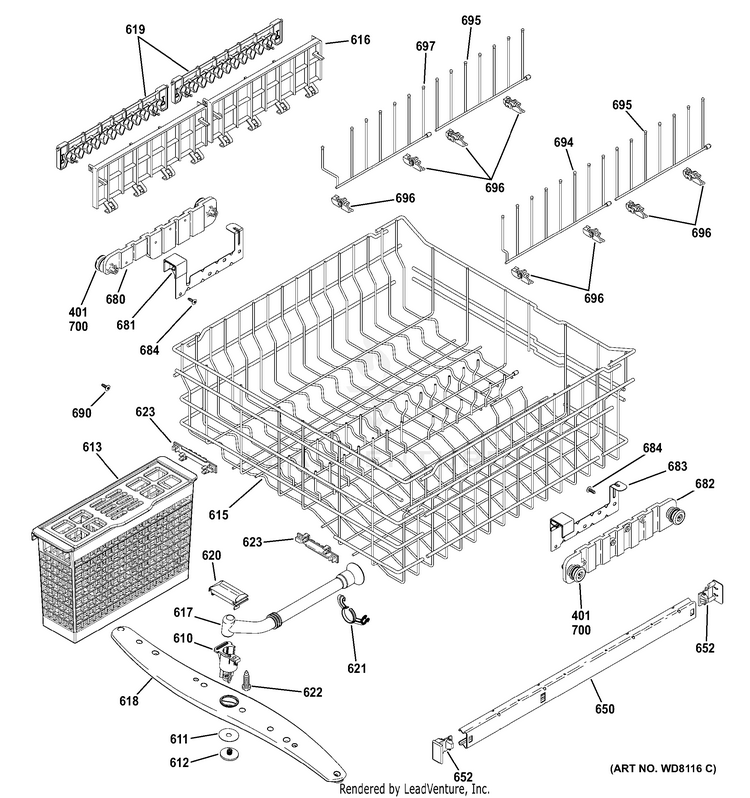

UPPER RACK ASSEMBLY

...
...
401
WASHER ST STL GEH-WD03X0767
...
610
HUB SPRAY ARM MID GEH-WD12X10066
...
611
BEARING SPRAY ARM MID GEH-WD01X10108
...
612
NUT HUB MID GEH-WD01X10109
...
613
BASKET SMALL ITEMS ASSY GEH-WD28X10002
...
615
RACK UPPER ROLL ASM GEH-WD28X10137
...
616
SHELF MULTI PURPOSE GEH-WD28X10012
...
617
CONDUIT MID SPRAY GEH-WD12X10147
...
618
ARM SPRAY MID ASSY GEH-WD22X10031
...
619
GRIPPER STEMWARE GEH-WD28X10013
...
620
BRACKET SPRAY ARM MID GEH-WD12X10053
...
621
CONDUIT CARRIER MID GEH-WD12X10054
...
622
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
623
FINGER INDEXER GEH-WD12X10062
...
623
FINGER INDEXER GEH-WD12X10063
...
650
RACK SLIDE GEH-WD30X0098
...
652
RACK SLIDE END CAP GEH-WD12X0344
...
680
BRACKET AND ROLLER ASM GEH-WD12X10149
...
681
LEVER RACK ASM GEH-WD01X10231
...
682
BRACKET AND ROLLER ASM GEH-WD12X10150
...
683
LEVER RACK ASM GEH-WD01X10232
...
684
SCR 8-18 B POR 1/2 SS GEH-WD02X10111
...
690
SCR 10-16 B RNP 18/25 SS GEH-WD02X10113
...
694
COMB UPPER RACK ASSY GEH-WD28X10060
...
695
COMB UPPER RACK ASSY GEH-WD28X10061
...
696
RETAINER COMB GEH-WD28X10063
...
696
RETAINER COMB GEH-WD12X10064
...
697
COMB UPPER RACK GEH-WD28X10139
...
700
ROLLER SLIDE GEH-WD12X10148
