GE PDT750SSF1ES Dishwasher

Model: PDT750SSF1ES

Save Part Not Listed?
product name

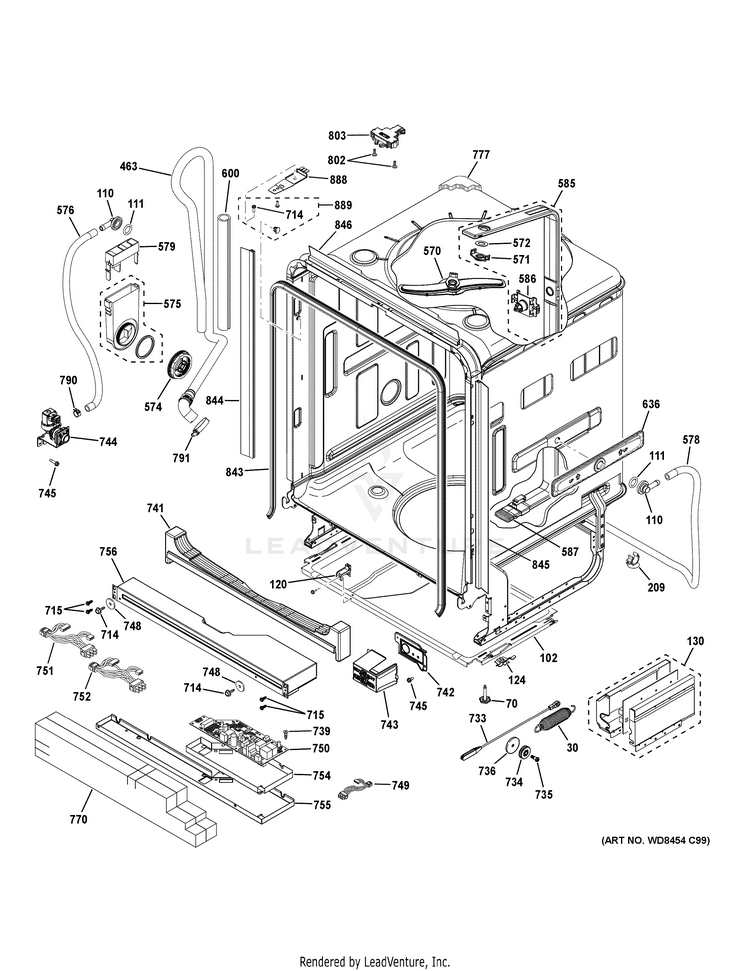

BODY PARTS

...
...
30
SPRING DOOR GEH-WD03X20316
...
70
SCREW LEVELING GEH-WD12X10417
...
102
PAN LEAK GEH-WD18X20461
...
110
FILL ELBOW GEH-WD22X20538
...
111
GASKET PLUG GEH-WD08X22854
...
120
SENSOR LEAK PAN GEH-WD21X20552
...
124
CLIP LEAK PAN GEH-WD18X20464
...
130
INVERTER ASM DISH PUMP GEH-WD21X20728
...
209
CLIP HOSE SIDE BLASTER GEH-WD01X22855
...
463
HOSE LOOP DRAIN HIGH GEH-WD24X10067
...
570
ARM SPRAY UPPER ASM GEH-WD22X10088
...
571
HUB UPPER SPRAY ARM GEH-WD12X22503
...
572
GASKET UPPER SPRAY ARM GEH-WD08X22502
...
574
NUT WATER INLET GEH-WD01X20738
...
575
FUNNEL AND GASKET ASM GEH-WD12X21322
...
576
HOSE FILL GEH-WD24X10064
...
578
HOSE FILL GEH-WD21X20339
...
579
CAP FILL FUNNEL GEH-WD12X20835
...
585
CONDUIT MAIN ASM GEH-WD12X20117
...
586
DOCKING PORT SS GEH-WD12X20118
...
587
SEAL CONDUIT GEH-WD08X10098
...
600
ISOLATOR DRAIN HOSE GEH-WD24X22856
...
636
SIDE BLASTER ASM GEH-WD22X20198
...
714
SCR 8-18 B HXW .480 S GEH-WD02X10160
...
715
SCR 10-32 GX HXW 3/8 GEH-WD02X10220
...
733
CABLE ASM PULLEY GEH-WD01X10569
...
734
PULLEY HINGE GEH-WD16X10013
...
735
PULLEY SCREW GEH-WD02X10206
...
736
FRICTION WASHER GEH-WD01X20565
...
739
SCREW GROUND GEH-WZ5X158
...
741
SPACER TUB FRONT GEH-WD01X20121
...
742
BRACKET JUNCTION BOX GEH-WD12X10411
...
743
COVER JUNCTION BOX GEH-WD12X10412
...
744
VALVE WATER ASM GEH-WD15X20326
...
745
SCR 10-32 TT HXW 14/25 S GEH-WD02X10221
...
748
WASHER CONTROL BOX GEH-WD02X22877
...
749
HARNESS ASM JUMPER GEH-WD21X20215
...
750
KIT BOARD MAIN BEST GEH-WD21X10539
...
751
HARNESS ASM AC GEH-WD21X20216
...
752
HARNESS ASM DC GEH-WD21X20217
...
754
SHIELD DIELECTRIC GEH-WD01X20238
...
755
CONTROL BOX BOTTOM GEH-WD30X20229
...
756
CONTROL BOX TOP GEH-WD27X10390
...
770
BARRIER TOEKICK GEH-WD01X10629
...
777
INSULATION TUB BLANKET GEH-WD01X20187
...
790
CLAMP HOSE GEH-WH01X2036
...
791
CLAMP GEH-WD01X10611
...
802
SCREW 10-32 GXTT FLP 595 GEH-WR01X10065
...
803
LATCH TUB SIDE STANDARD GEH-WD21X10490
...
843
GASKET TUB GEH-WD08X20675
...
844
LEFT SIDE TRIM TUB GEH-WD08X20201
...
845
RIGHT SIDE TRIM TUB GEH-WD08X20199
...
846
CENTER TRIM TUB GEH-WD08X20200
...
888
BRACKET COUNTERTOP GEH-WD01X10598
...
889
CT SCREW ASM GEH-WD35X10383

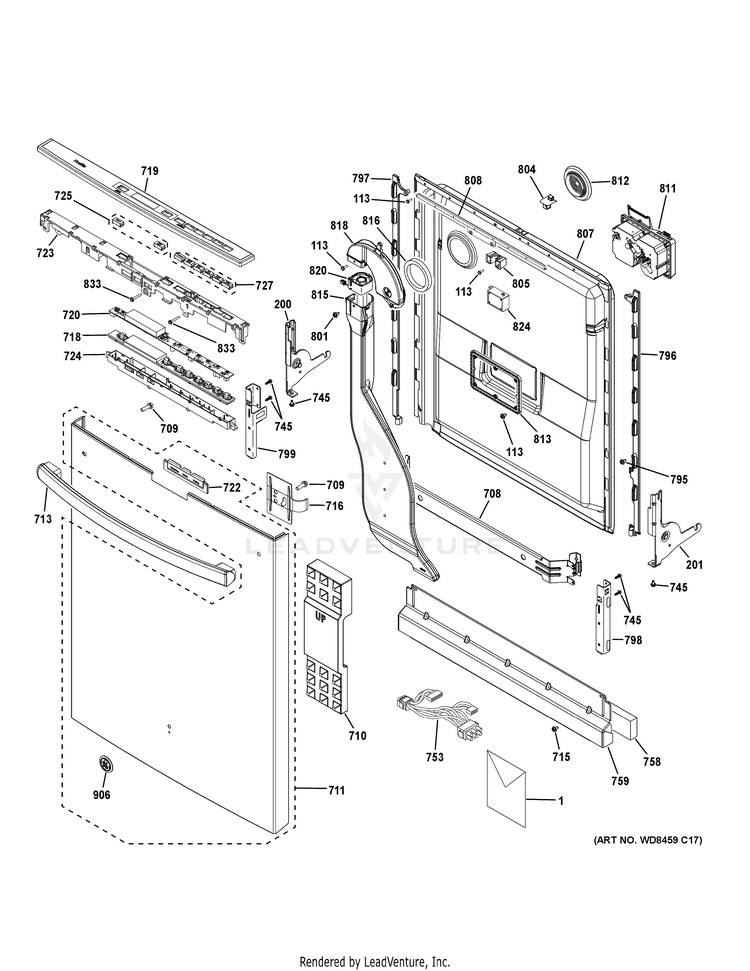

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
SCR 1/4-20 BT CB .563 ZN GEH-WD02X10211
...
1
PM OWNERS MANUAL GEH-49-55085
...
1
PM MINI-MANUAL GEH-31-30643
...
1
PM INSTALL INSTRUCTIONS GEH-31-31512
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
200
ARM HINGE ASM GEH-WD14X20129
...
201
ARM HINGE ASM GEH-WD14X20128
...
708
BRACE DOOR ASM GEH-WD30X10045
...
709
SCREW 1/4-20 TPT 1H 1/2 GEH-WH02X10123
...
710
BLOCK FOAM DOOR GEH-WD01X10585
...
711
SRV-DOOR ASM KIT GEH-WD34X20690
...
713
DOOR HANDLE ASM GEH-WD09X10101
...
715
SCR 10-32 GX HXW 3/8 GEH-WD02X10220
...
716
BRACKET HANDLE GEH-WD01X20135
...
718
KIT SERVICE UI LCD CSTN GEH-WD21X20482
...
719
BEZEL & CVR CONSOLE ASM GEH-WD09X20736
...
720
SILICONE LIGHT PIPE GEH-WDX20228
...
722
LENS AND ADHESIVE ASM GEH-WD09X20226
...
723
CONSOLE TOP CONTROL GEH-WD12X20223
...
724
HOUSING BOTTOM GEH-WD12X20225
...
725
BUTTON AND GRAPHICS ASM GEH-WD09X20734
...
727
COVER HANDLE REAR GEH-WD09X20508
...
745
SCR 10-32 TT HXW 14/25 S GEH-WD02X10221
...
753
HARNESS ASM DOOR GEH-WD21X20149
...
758
INSULATION TOE KICK GEH-WD01X10581
...
759
TOE KICK PAINTED ASM GEH-WD27X10392
...
795
SCREW T15 8-16 PLASTITE GEH-WD02X22628
...
796
ATTACH STRIP GEH-WD01X10633
...
797
ATTACH STRIP GEH-WD01X10634
...
798
BRKT SUPPORT HINGE ASM GEH-WD01X20126
...
799
BRKT SUPPORT HINGE ASM GEH-WD01X20127
...
801
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
804
STRIKER LATCH GEH-WD13X10071
...
805
STRIKER ADAPTER GEH-WD13X10068
...
807
KIT DOOR INNER ASM GEH-WD31X20489
...
808
ATTACHMENT STRIP TOP GEH-WD01X20220
...
811
MODULE DETERGENT GEH-WD12X20247
...
812
COVER VENT GEH-WD12X10450
...
813
PLATE DETERGENT GEH-WD12X10462
...
815
VENT CONDUIT ASM GEH-WD12X20218
...
816
DOOR VENT SEAL GEH-WD08X10092
...
818
TRANSITION PIECE ASM GEH-WD12X20244
...
820
VENT FAN ASM GEH-WD24X20256
...
824
SPEAKER GEH-WD01X22134
...
833
SCR 10-16 PL PNT 2.25 S GEH-WD02X20140
...
906
BADGE GE ASM GEH-WR04X10181

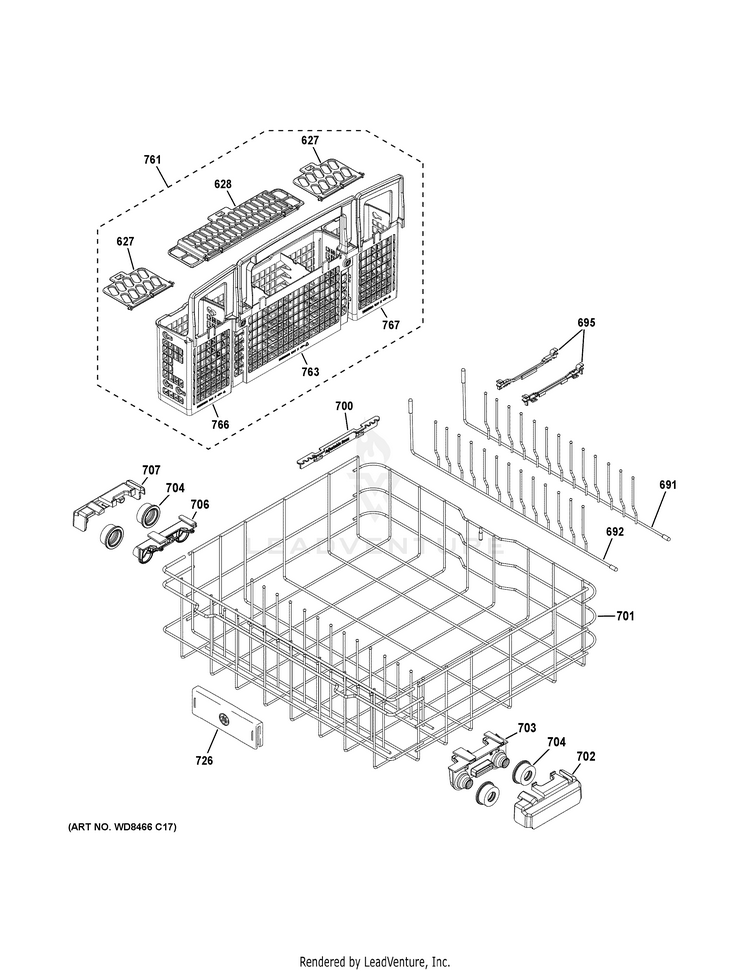

LOWER RACK ASSEMBLY

...
...
627
LID BASKET SIDE GEH-WD28X20156
...
628
LID BASKET MIDDLE GEH-WD28X20153
...
691
FDT COATED LOWER RACK GEH-WD28X20164
...
692
FDT COATED LOWER RACK GEH-WD28X20165
...
695
CLIP LOWER RACK GEH-WD12X20171
...
700
INDEXER GEH-WD28X20166
...
701
RACK LOWER ASM COMPLETE GEH-WD28X20157
...
702
COVER ROLLER GEH-WD12X20161
...
703
CARRIER ROLLER GEH-WD12X20158
...
704
ROLLER LOWER RACK GEH-WD12X10435
...
706
CARRIER ROLLER GEH-WD12X20159
...
707
COVER ROLLER GEH-WD12X20160
...
726
COVER HANDLE FRONT GEH-WD09X20507
...
761
BASKET SILVERWARE ASM GEH-WD28X20151
...
763
BASKET ASM MIDDLE GEH-WD28X20152
...
766
BASKET ASM SIDE GEH-WD28X20154
...
767
BASKET ASM SIDE GEH-WD28X20155

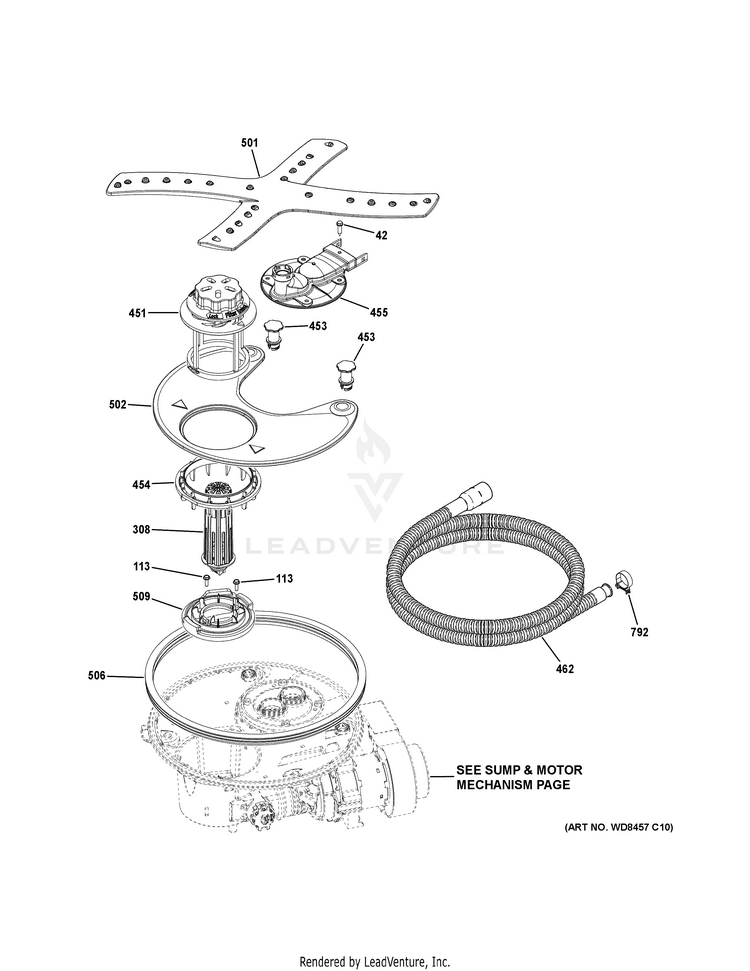

SUMP & FILTER ASSEMBLY

...
...
42
SCREW #8-3/4 L HX HD SS GEH-WD02X10110
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
308
SWITCH FLOOD ASM GEH-WD21X20204
...
451
FILTER MANUAL ASM GEH-WD12X20107
...
453
VENT FILTER GEH-WD24X10057
...
454
ADAPTOR FILTER GEH-WD12X10419
...
455
ADAPTER CONDUIT ASM GEH-WD18X20202
...
462
DRAIN TUBE ASM GEH-WD24X10062
...
501
ARM SPRAY LOWER ASM GEH-WD22X20230
...
502
FILTER COARSE SS GEH-WD22X10093
...
506
GASKET SUMP MANIFOLD GEH-WD08X20105
...
509
PLATE FLOOR MANUAL GEH-WD12X10421
...
792
CLAMP GEH-WD01X10104

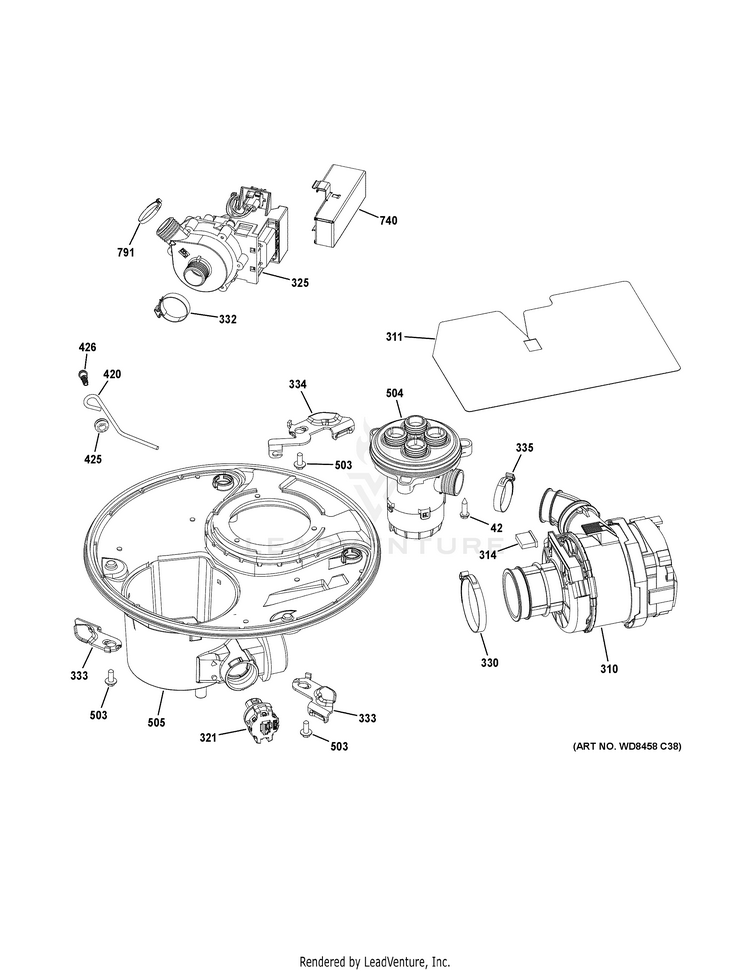

SUMP & MOTOR MECHANISM

...
...
42
SCREW #8-3/4 L HX HD SS GEH-WD02X10110
...
310
PUMP VARIABLE WASH ASM GEH-WD26X20213
...
311
HOSE WASH PUMP INLET GEH-WD24X10059
...
314
GROMMET ISOLATOR GEH-WD01X22890
...
321
SENSOR TURBIDITY ASM GEH-WD21X10494
...
325
P2B DRAIN PUMP KIT GEH-WD35X20876
...
330
CLAMP GEH-WD01X20302
...
332
CLAMP GEH-WD01X10573
...
333
LATCH CAM GEH-WD01X10632
...
334
LATCH CAM GEH-WD01X10575
...
335
CLAMP GEH-WD01X10572
...
420
HANGER DRAIN PUMP GEH-WD01X10579
...
425
GROMMET GEH-WD01X10101
...
426
WD02X10093 GEH-WD02X10094
...
503
SCR 10-16 AB HXW .532 GEH-WB01T10103
...
504
DIVERTER ACTIVE ASM GEH-WD18X20214
...
505
SUMP MANIFOLD GEH-WD18X10055
...
740
SHIELD DRAIN PUMP GEH-WD01X10584
...
791
CLAMP GEH-WD01X10611

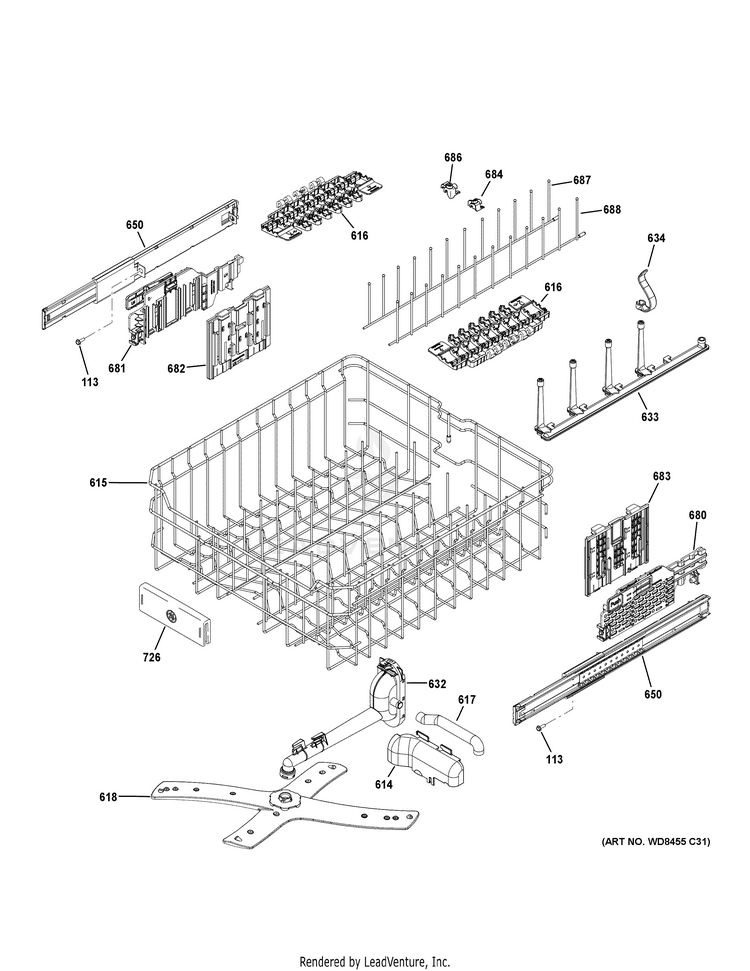

UPPER RACK ASSEMBLY

...
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
614
COVER BOTTLE BLASTER GEH-WD24X20263
...
615
SERVICE KIT UPPER RACK GEH-WD35X20454
...
616
SHELF CUP GEH-WD28X20177
...
617
CONDUIT MID TIERED ASM GEH-WD12X20172
...
618
ARM SPRAY MID ASM GEH-WD22X20189
...
632
CONDUIT TIERED BLAST ASM GEH-WD21X20192
...
633
BLASTER BOTTLE ASM GEH-WD22X20190
...
634
CLIP BOTTLE GEH-WD12X20191
...
650
INNER RAIL UPR RACK ASM GEH-WD30X20110
...
680
BRACKET ASM UPPER RACK GEH-WD12X20108
...
681
BRACKET ASM UPPER RACK GEH-WD12X20109
...
682
BRACKET FIXED GEH-WD12X20112
...
683
BRACKET FIXED GEH-WD12X20113
...
684
FDT CLIP TIER RK RT GEH-WD28X20196
...
686
FDT CLIP TIER RK LT GEH-WD28X20195
...
687
FDT ASM UPPER COATED GEH-WD28X20193
...
688
FDT ASM UPPER COATED GEH-WD28X20194
...
726
COVER HANDLE FRONT GEH-WD09X20507
