GE PB930TH2WW Electric Range

Model: PB930TH2WW

Back To Assemblies

Save Part Not Listed?
product name

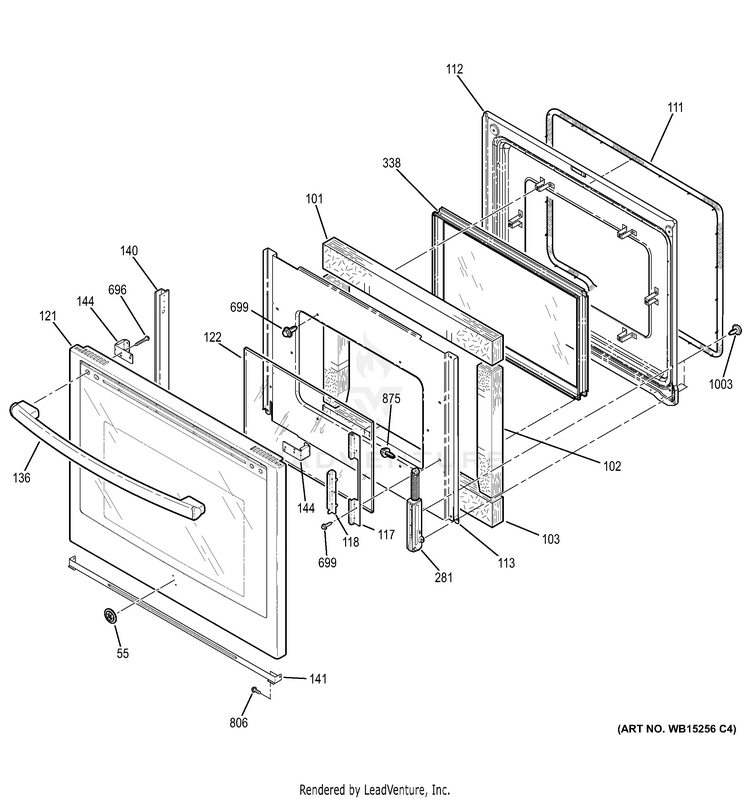

DOOR

...
...
55
BADGE GE GEH-WB02T10589
...
101
DOOR INSULATION GEH-WB35T10016
...
102
INSULATION DOOR GEH-WB35T10114
...
103
INSULATION DOOR GEH-WB35T10255
...
111
GASKET OVEN GEH-WB04T10086
...
112
LINER OVEN DOOR ASM (BK) GEH-WB55T10203
...
113
RETAINER OVN DR INSLN GEH-WB56T10178
...
117
RETAINER GLASS OVN DR GEH-WB56T10320
...
118
RETAINER GLASS OVN DR GEH-WB56T10321
...
121
PANEL ASM BONDED HE (WH) GEH-WB56X20108
...
122
OVEN DOOR GLASS-INNER GEH-WB57K5230
...
136
HANDLE (WH) GEH-WB15X21772
...
140
FRAME DOOR SIDE (WH) GEH-WB56T10290
...
141
GLASS BRACKET GEH-WB02X21494
...
144
BRACKET OFFSET HDL (HE) GEH-WB02T10611
...
281
HINGE DOOR GEH-WB10T10067
...
338
WINDOW PACK ASM GEH-WB56X22160
...
696
SCREW 10-16 X 1.000 HWH GEH-WB01T10066
...
699
WB1M1 GEH-WB1K5150
...
806
WZ4X245D GEH-WB01T10046
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
1003
SCREW 10-32 TR T GEH-WB01T10008
