GE PB911TJ3WW Electric Range

Model: PB911TJ3WW

Save Part Not Listed?
product name

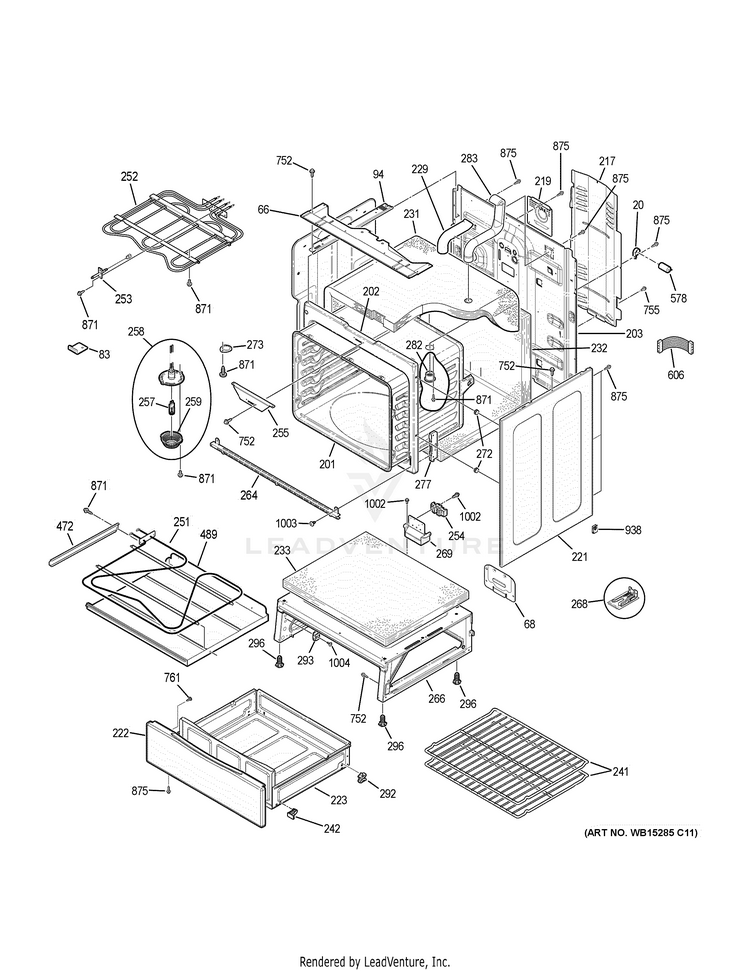

BODY PARTS

...
...
20
BRACKET CAPACITOR GEH-WB02T10194
...
66
RANGETOP ENCLOSURE GEH-WB34X26630
...
68
PLATE COVER (BK) GEH-WB02X21423
...
83
CLIP SEAM OVEN BODY GEH-WB02T10118
...
94
BRACE CHASSIS RADIANT RT GEH-WB02T10463
...
94
BRACE CHASSIS RADIANT LT GEH-WB34X26004
...
201
BODY OVN WELD ASM (BK) GEH-WB63X20923
...
202
FRAME FRONT 5.0 GEH-WB63X20870
...
203
BACK MAIN GEH-WB63T10176
...
217
COVER BACK GEH-WB34T10128
...
219
COVER RECEPTACLE GEH-WB34T10011
...
221
SIDE PANEL ASM GEH-WB63X27583
...
222
PANEL DRAWER (WH) GEH-WB56X20107
...
223
DRAWER BODY ASM MECH GEH-WB55T10178
...
229
VENT TUBE INSULATION GEH-WB35T10017
...
231
INSULATION OVEN GEH-WB35T10211
...
232
INSULATION OVN BCK & BTM GEH-WB35X21424
...
233
INSULATION HIDDEN BAKE GEH-WB35T10254
...
241
RACK OVEN GEH-WB48T10083
...
242
WEDGE DRAWER GEH-WB48T10068
...
251
UNIT ASM GEH-WB44T10104
...
252
UNIT BROIL ASM GEH-WB44X20897
...
253
SENSOR ASM GEH-WB21X22134
...
254
TERMINAL BLOCK ASM GEH-WB17T10011
...
255
TRIM LATCH GEH-WB07X21459
...
257
LAMP HALOGEN G9 GEH-WB08T10045
...
258
LAMP HALOGEN ASM GEH-WB25X24909
...
259
OV LAMP LENS GEH-WB25T10013
...
264
TRIM FRT FRM (BK) GEH-WB07T10516
...
266
BASE RIVET ASM GEH-WB63X25881
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578
...
269
MOUNT TERMINAL BLOCK GEH-WB17T10021
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
273
COVER GEH-WB02K5365
...
277
HINGE RECEIVER GEH-WB10T10068
...
282
VENT TUBE ASSY GEH-WB38T10012
...
283
TUBE VNT RADIANT GEH-WB28T10217
...
292
SUPPORT REAR GEH-WB48T10030
...
293
DRAWER SUPPORT FRT GEH-WB48T10013
...
296
LEG LEVELER GEH-WB02X10521
...
472
SIDE REFLECTOR GEH-WB49T10007
...
489
REFLECTOR PANE BAKE ELEM GEH-WB02T10509
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
606
HARNESS WIRE SENSOR GEH-WB18X25181
...
606
HARNESS WIRE (HB) GEH-WB18X25980
...
606
LEAD WIRE 14 GA GN GEH-WB18X25090
...
752
SCREW GEH-WB01K5200
...
755
SCREW GROUND GEH-WB01X1261
...
761
SCREW MTG GEH-WB1X5364
...
871
SCREW GEH-WB01M10002
...
875
WZ4X245D GEH-WB01T10046
...
938
CLIP GEH-WB01K5209
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
...
1003
SCREW 10-32 TR T GEH-WB01T10008
...
1004
SCR 8-15 A HXW 7/8 S GEH-WH02X0941

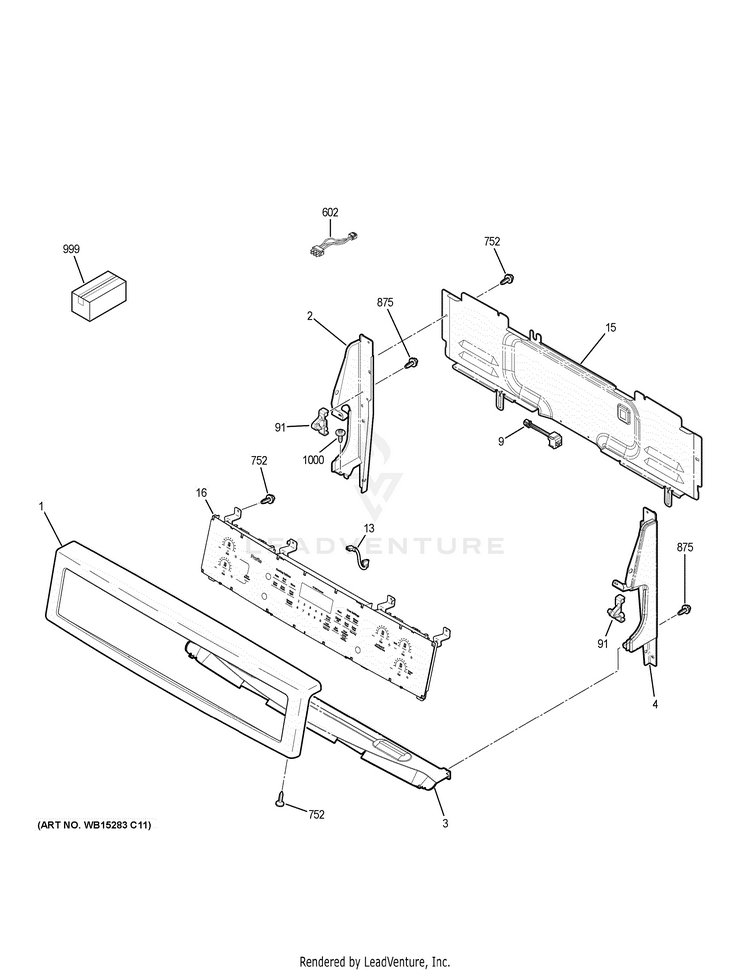

CONTROL PANEL

...
...
1
TRIM CONTROL ASM (WH) GEH-WB07X25106
...
1
LABEL WIRE DIAGRAM GEH-229C6460P001
...
2
PLATE END LH (WH) GEH-WB07X24950
...
3
SHIELD HEAT BKGD GEH-WB34X25151
...
4
PLATE END RH (WH) GEH-WB07X24951
...
9
RJ45 ASM GEH-WB27X25015
...
13
JUMPER GEH-WB18T10506
...
15
COVER CONTROL GEH-WB34X25565
...
16
OVEN CONTROL W/ OVERLAY GEH-WB27X27115
...
91
PIN RANGETOP HINGE GEH-WB10T10116
...
602
HARNESS WIRE COM GEH-WB18X25097
...
752
SCREW GEH-WB01K5200
...
875
WZ4X245D GEH-WB01T10046
...
999
PM QUICK GUIDE GEH-49-80770
...
999
MANUAL U&C TIP SHEET GEH-49-80597
...
999
PM INSTRUCTIONS INSTALL GEH-31-10816
...
999
INSTRUCTION INSTALL GEH-31-10617
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
999
PM MANUAL MINI & WD ASM GEH-31-17221
...
1000
SCR 8-18 AB HXW 1/2 S GEH-WB01T10126

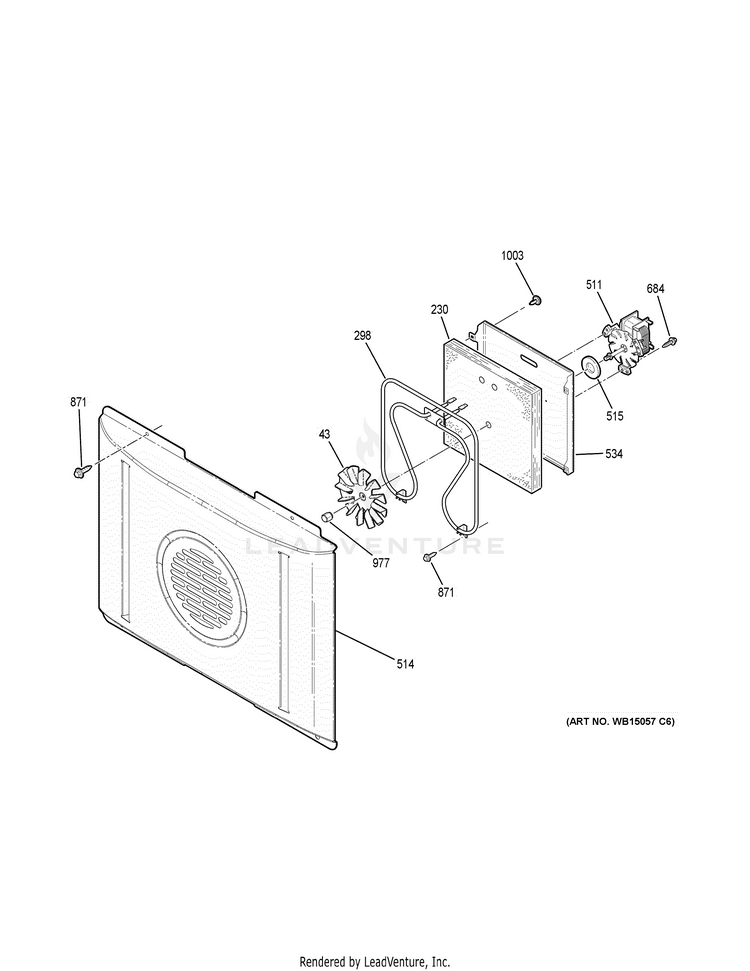

CONVECTION FAN

...
...
43
HUB BLADE ASM GEH-WB02T10289
...
230
INSULATION CONV GEH-WB35X25290
...
298
ELEMENT CONVX ASM GEH-WB44T10086
...
511
MOTOR PSC CONV GEH-WB26X24910
...
514
COVER FAN CONVX (BK) GEH-WB34X20082
...
515
GASKET CONV FAN GEH-WB04T10080
...
534
BRACKET CONV FAN GEH-WB02T10550
...
684
SCREW 8-32 X 625 M HXW S GEH-WB01T10047
...
871
SCREW GEH-WB01M10002
...
977
NUT GEH-WB02T10017
...
1003
SCREW 10-32 TR T GEH-WB01T10008

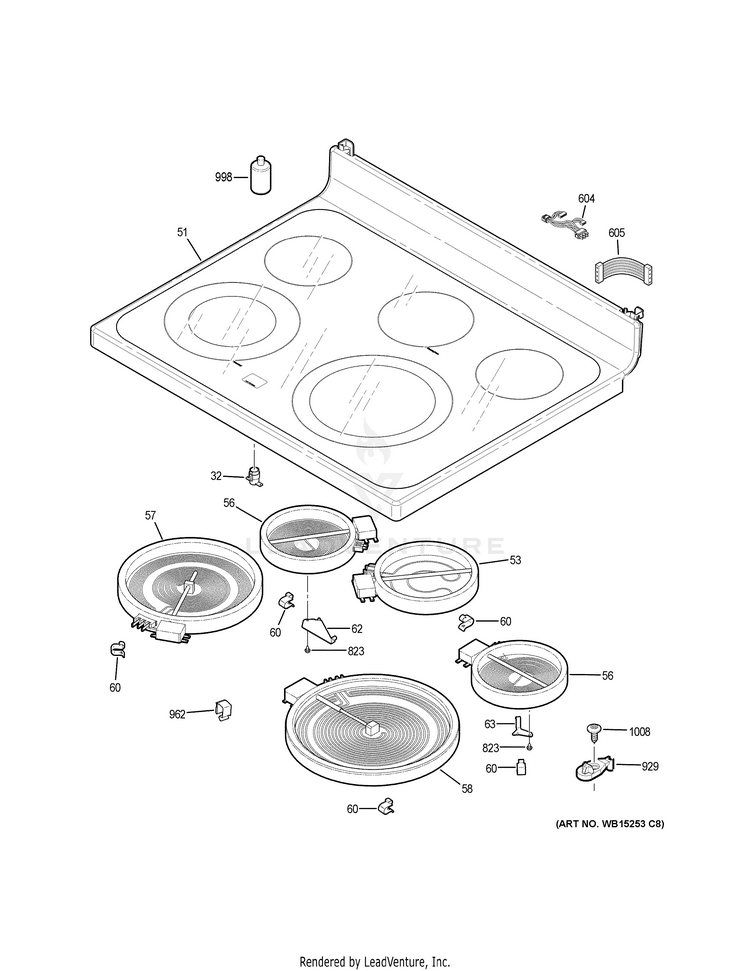

COOKTOP

...
...
32
LIGHT INDICATOR GEH-WB27T10668
...
51
RANGETOP GLASS ASM GEH-WB62X27694
...
53
ELEMENT RADIANT 6 WARMER GEH-WB30X20871
...
56
ELEMENT RADIANT 5.5 IN GEH-WB30T10145
...
57
ELEMENT RADIANT 9" DUAL GEH-WB30X24111
...
58
ELEMENT HALIANT 12 IN GEH-WB30T10130
...
60
SPRING RADIANT ELEMENT GEH-WB09T10013
...
62
BRACKET RADIANT ELEMENT GEH-WB02X25089
...
63
BRACKET RADIANT ELEMENT GEH-WB02X20902
...
604
LEAD WIRE 14 GA GN GEH-WB18X25098
...
605
HARNESS WIRE MAINTOP GEH-WB18X26161
...
823
SCR 10-16 AB IHW .625 NI GEH-WB01T10072
...
929
MAINTOP STRIKE GEH-WB02T10026
...
962
CLIP CABLE GEH-WB02X25982
...
998
GLASS CLEANER GEH-WB64X0093
...
1008
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904

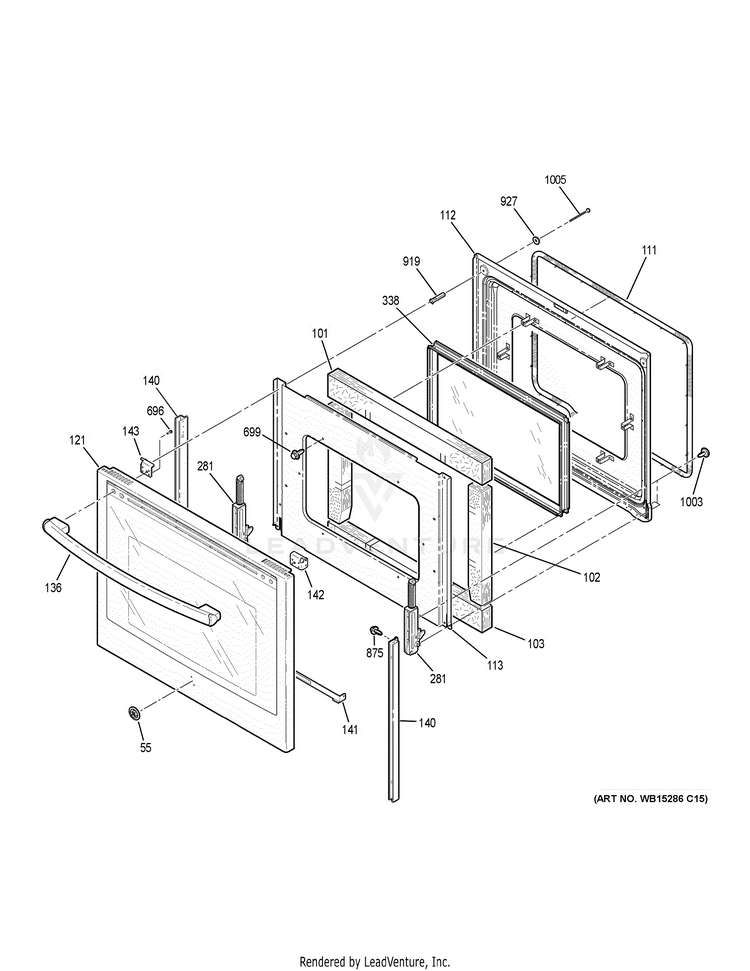

DOOR

...
...
55
BADGE GE GEH-WB02T10589
...
101
INSULATION DOOR GEH-WB35T10077
...
102
INSULATION DOOR GEH-WB35T10114
...
103
INSULATION DOOR GEH-WB35T10255
...
111
GASKET OVEN GEH-WB04T10086
...
112
LINER OVEN DOOR ASM (BK) GEH-WB55T10203
...
113
RETAINER OVN DR INSLN GEH-WB56T10178
...
121
PANEL ASM BONDED (WH) GEH-WB56X25105
...
136
HANDLE (LE-WH) GEH-WB15T10214
...
140
FRAME DOOR SIDE (WH) GEH-WB56T10290
...
141
GLASS BRACKET GEH-WB02X21494
...
142
BRACKET OVN HDL VNT TRM GEH-WB34X25221
...
143
BRACKET OVN HDL VNT TRM GEH-WB34X25220
...
281
HINGE ASM GEH-WB10T10143
...
338
PACK WINDOW ASM GEH-WB56T10105
...
696
SCR 10-16 AB HXW .532 GEH-WB01T10103
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
WZ4X245D GEH-WB01T10046
...
919
SPACER GEH-WB02T10175
...
927
CONTOURED WASHER GEH-WB01X0119
...
1003
SCREW 10-32 TR T GEH-WB01T10008
...
1005
SCR 10-16 PL PNT 2.5 S GEH-WB01T10067

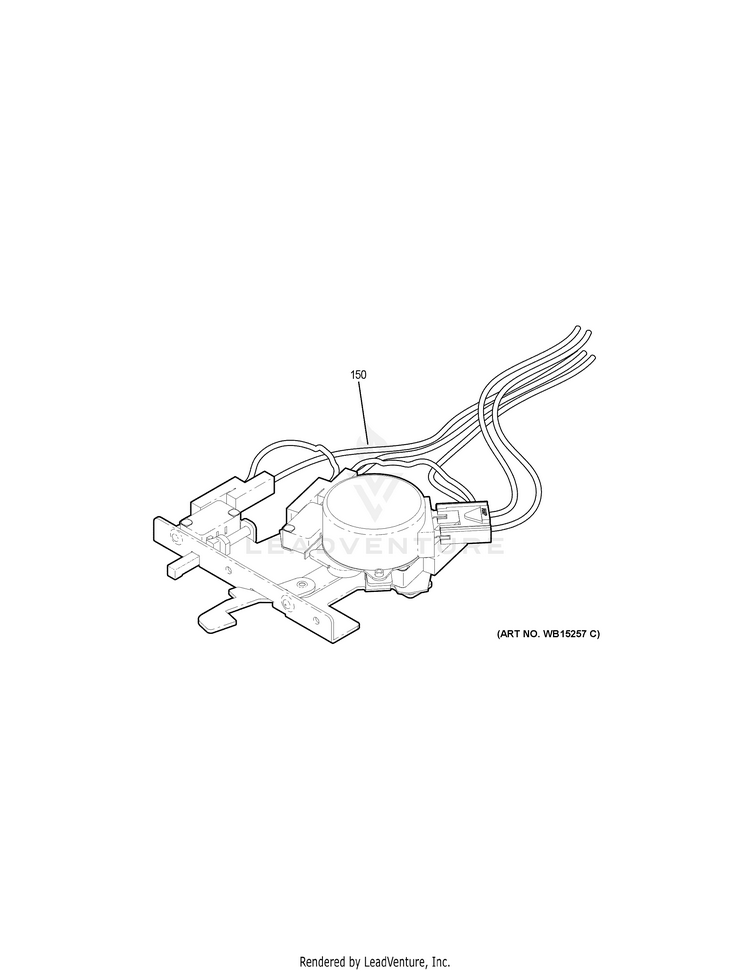

DOOR LOCK

...
...
150
LATCH ASM GEH-WB10X25007
