GE Monogram ZSB9231N1SS Microwave

Model: ZSB9231N1SS

Save Part Not Listed?
product name

CONTROL PARTS

...
...
211
RJ 45 CONNECTOR AND HARNESS GEH-WB18X33397
...
212
SINGLE HARNESS GEH-WB18X33399
...
213
SINGLE HARNESS GEH-WB18X33398
...
2006
MAIN BOARD ASM GEH-WB27X35127
...
2008
CONTROL BOARD BRACKET GEH-WB34X33405
...
2009
POWER CONTROL BOARD ASM GEH-WB27X33412
...
2011
MODULE BOARD GEH-WB27X35131
...
2031
POWER CONTROL BOARD ASM GEH-WB27X33404
...
2045
SINGLE HARNESS GEH-WB18X33401
...
2051
BOARD SUPPORTER GEH-WB02X32634
...
2381
CONTROL PANEL ASM GEH-WB56X35130
...
2555
SPEAKER GEH-WB27X33396

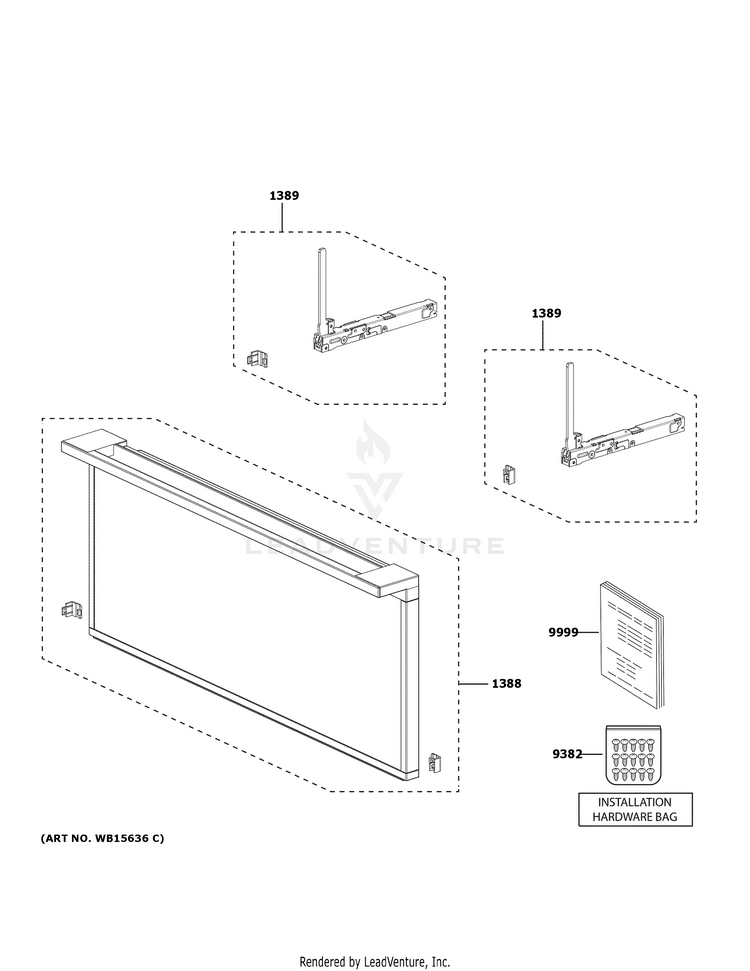

DOOR PARTS

...
...
1388
DOOR ASM GEH-WB56X35126
...
1389
HINGE ASM GEH-WB10X33389
...
9382
INSTALLATION HARDWARE GEH-WB01X32574
...
9999
PM QUICK OWNERS MANUAL GEH-49-7000081
...
9999
PM MINI MANUAL AND WIRING GEH-31-2000632
...
9999
PM INSTALL INSTRUCTIONS GEH-31-7000080
...
9999
PM OWNERS MANUAL GEH-49-7000076

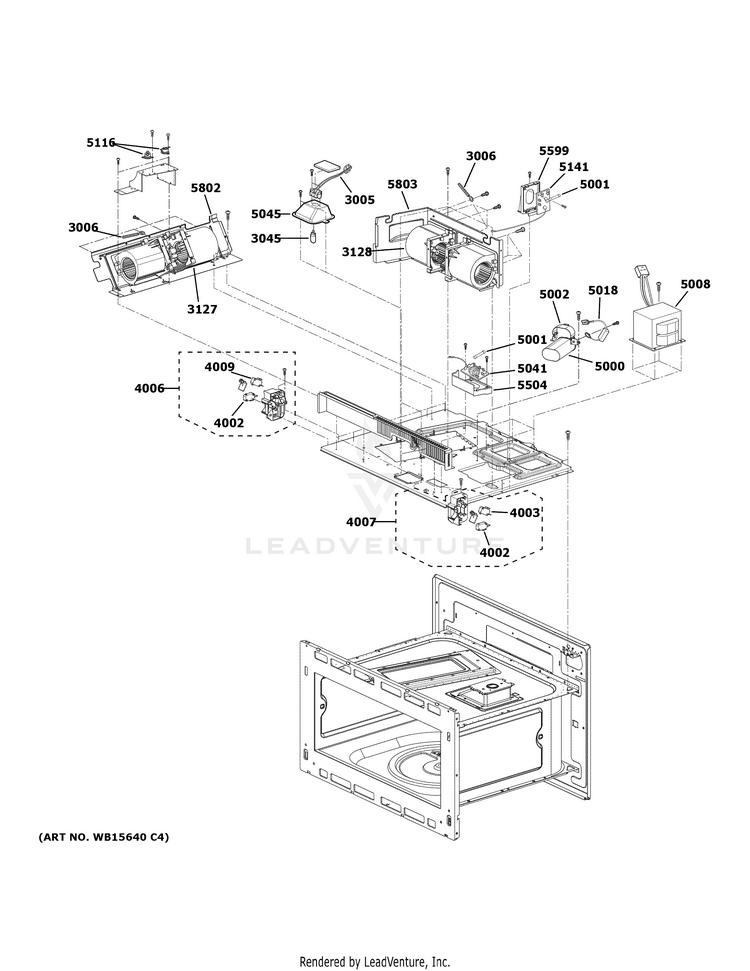

INSULATOR PARTS (1)

...
...
3005
HOLDER ASM GEH-WB06X10646
...
3006
HOLDER WIRE GEH-WB02X11233
...
3045
LAMP HALOGEN GEH-WB25X25393
...
3127
MOTOR, VENTILATION FAN GEH-WB27X11017
...
3128
MOTOR(CIRC) CIRCULATION GEH-WB26X10182
...
4002
SW PRIM INTERLOCK & DOOR GEH-WB24X10047
...
4003
SWITCH MONITOR INTERLOCK GEH-WB24X25397
...
4006
LATCH BRACKET ASM GEH-WB06X32995
...
4007
LATCH BODY ASM RIGHT GEH-WB10X33309
...
4009
MICRO SWITCH GEH-WB24X10172
...
5000
CAPACITOR, H.V GEH-WB27X10701
...
5001
FUSE GEH-WB27X10928
...
5002
CAPACITOR BRACKET GEH-WB02X32593
...
5008
TRANSFORMER,HIGH VOLTAGE GEH-WB17X10030
...
5018
DIODE GEH-WB27X10892
...
5041
NOISE FILTER BOARD GEH-WB02X33400
...
5045
LIGHT COVER GEH-WB34X32583
...
5116
THERMOSTAT GEH-WB20X10048
...
5141
SURGE FILTER BOARD GEH-WB27X26322
...
5504
SUPPORT GEH-WB02X32601
...
5599
SUPPORT GEH-WB02X32604
...
5802
MOTOR, VENTILATION FAN GEH-WB27X33417
...
5803
MOTOR BRACKET GEH-WB02X32599

INSULATOR PARTS (2)

...
...
3022
HEATER ASM GEH-WB18X32990
...
3122
HARNESS SINGLE GEH-WB18X32993
...
5009
MAGNETRON GEH-WB26X32629
...
5014
SINGLE HARNESS GEH-WB18X33415
...
5116
THERMOSTAT GEH-WB20X10048
...
5216
DUCT ASM GEH-WB34X32594
...
5387
DUCT ASM GEH-WB34X32608
...
5703
BARRIER BRACKET GEH-WB02X32590

INTERIOR PARTS

...
...
3002
TRAY GLASS GEH-WB49X10166
...
3008
RING ASSEMBLY GEH-WB06X10775
...
3012
SHAFT,TURNTABLE GEH-WB02X11360
...
3044
TRAY-METAL FLAT,NONSTICK GEH-WB49X10242
...
3144
TRAY-METAL GRILL,NONSTIC GEH-WB49X10243
...
3501
RACK GEH-WB49X10202
...
5010
POWER CORD ASM GEH-WB18X21264
...
5011
SENSOR ASM GEH-WB27X10857
...
5019
HARNESS WIRE GEH-WB18X33767
...
5021
THERMISTOR NTC GEH-WB18X10287
...
5116
THERMOSTAT GEH-WB20X10048
...
5400
CONVECTION ASM GEH-WB28X33420
...
5403
HEATER SHEATH GEH-WB44X10050

OVEN CAVITY PARTS

...
...
3000
MICA COVER GEH-WB06X10828
...
3001
OUTER CASE GEH-WB56X33392
...
3010
MOUNT GEH-WB34X32596
...
3011
WINDOW,GLASS GEH-WB06X32999
...
3036
HOLDER,COOK AUXILIARY GEH-WB06X10776
...
3070
CERAMIC-TOP GEH-WB36X10129
...
3313
TRIM LEFT GEH-WB07X33408
...
3314
TRIM RIGHT GEH-WB07X33410
...
3387
TT MOTOR W/ GASKET GEH-WB26X32994
...
3530
TRIM ASM GEH-WB07X35133
...
3600
TOP COVER GEH-WB07X33409
...
3604
CONTROL PANEL ACCESS COVER GEH-WB07X33407
...
5420
HOLDER ASM GEH-WB06X10786
...
5506
DOOR SWITCH ACCESS COVER GEH-WB34X32584
...
5557
BRACKET GEH-WB02X32591
...
5558
BRACKET GEH-WB02X32587
...
6001
BASEPLATE GEH-WB63X33416
