GE Monogram ZIS420NNBII Refrigerator

Model: ZIS420NNBII

Back To Assemblies

Save Part Not Listed?
product name

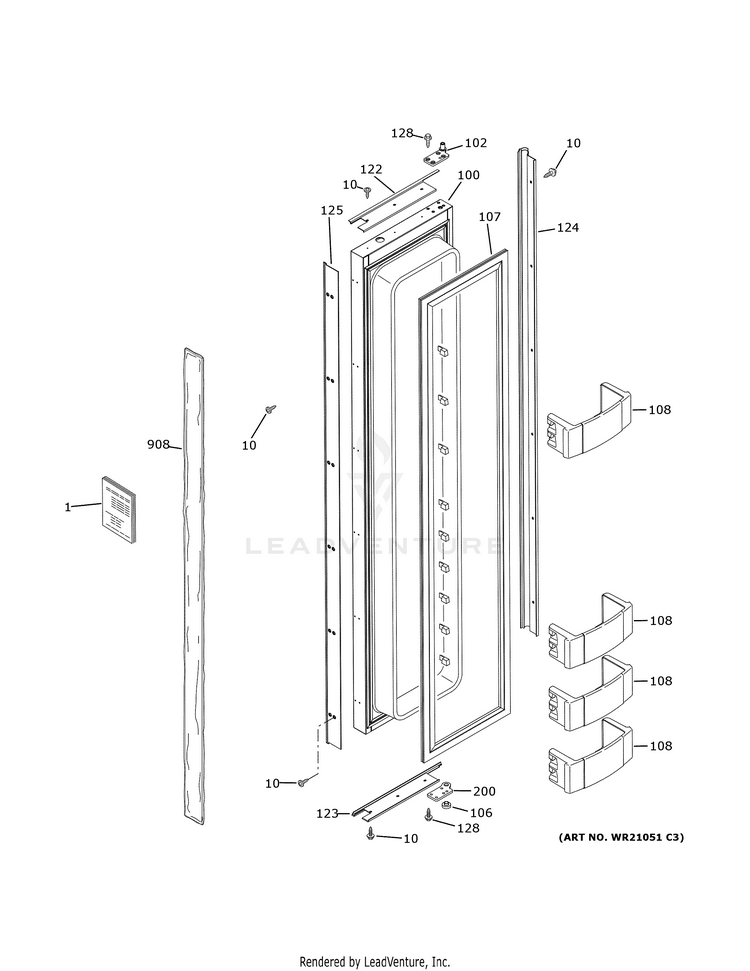

FREEZER DOOR

...
...
1
PM INSTALL INSTRUCTIONS GEH-31-49118
...
1
PM MINI MANUAL AND WIRING GEH-31-1000453
...
10
SCR 8- 18 BA OVT 5/8 SS GEH-WR01X24363
...
100
FREEZER NON DISPENSER DOOR 42" GEH-WR78X32685
...
102
TOP SXS FZ DOOR HINGE AS GEH-WR13X10238
...
106
FZ BOTTOM HINGE BUSHING GEH-WR01X10297
...
107
GASKET DOOR GEH-WR24X10204
...
108
BIN DOOR ASM 36/42 GEH-WR71X25605
...
122
DOOR TRIM FZ TOP GEH-WR38X10326
...
123
DOOR TRIM FZ BTM GEH-WR38X10327
...
124
DOOR TRIM FZ SIDE GEH-WR38X10270
...
125
HANDLE TRIM GEH-WR38X10271
...
128
SCREW, 1/4-20 TT BHT .87 GEH-WR01X21024
...
200
HINGE DOOR BTM GEH-WR13X10657
...
908
PS HANDLE TRIM COVER GEH-WR02X24343
