GE Monogram ZIBS240NASS Refrigerator

Model: ZIBS240NASS

Save Part Not Listed?
product name

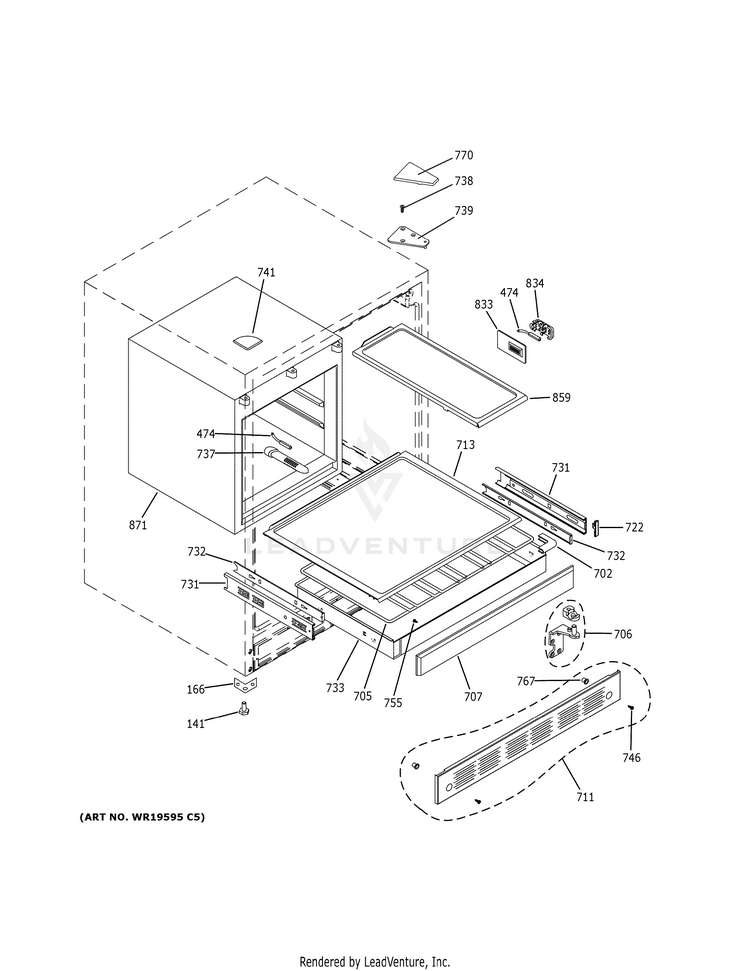

CABINET & SHELVES

...
...
141
LEVELLING LEG GEH-WR01X10456
...
166
LEVELLING LEG SUPPORT GEH-WR02X11844
...
474
TEMP SENSOR GEH-WR55X10409
...
702
CORNER PIECE GEH-WR02X11950
...
705
BOTTLE RACK SHORT GEH-WR71X10602
...
706
HINGE SUPPORT-LOWER RGHT GEH-WR13X10341
...
707
FRAME FRONT GEH-WR17X11810
...
711
KICK PLATE BLACK GEH-WR79X10029
...
713
GLASS SHELF GEH-WR02X11951
...
722
GUIDE FRONT GEH-WR02X11412
...
731
FRAME GUIDE SHORT SLID GEH-WR72X10123
...
732
INNER-LINER GUIDE SHORT GEH-WR17X11394
...
733
BOTTLE SHELF FRAME GEH-WR17X11811
...
737
TEMP.CONTROL BULB COVER GEH-WR02X11845
...
738
SCREW ST4 8X13 GEH-WR01X23887
...
739
UPPER HINGE - RIGHT GEH-WR13X10353
...
741
HINGE COVER GEH-WR13X23839
...
746
KICK PLATE SCREW - BLACK GEH-WR01X10457
...
755
SCREW FRAME FRONT GEH-WR01X10354
...
767
KICK PLATE SPACER GEH-WR02X11485
...
770
HINGE COVER RH GEH-WR02X12145
...
833
TEMP.CONTROL BULB COVER GEH-WR02X11813
...
834
TEMP.CONTROL BULB COVER GEH-WR02X11816
...
859
GLASS SHELF GEH-WR17X11813
...
871
ICEMAKER COMPARTMENT GEH-WR30X10059

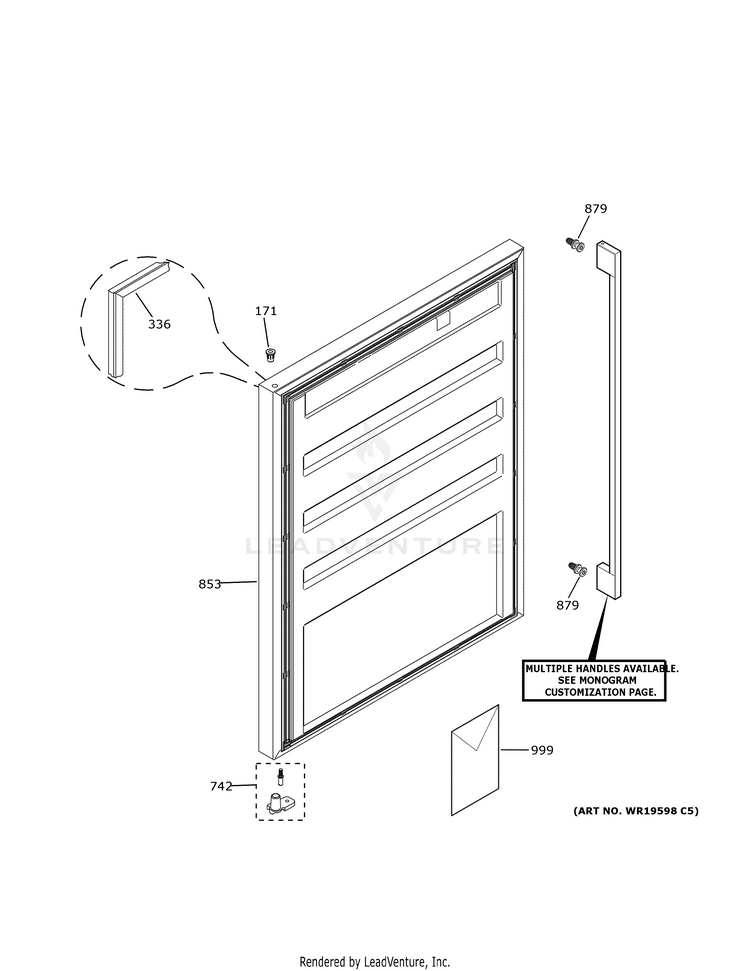

DOOR

...
...
171
HINGE FIL PLUG GEH-WR13X10337
...
336
MAGNETIC GASKET GEH-WR24X10159
...
742
DOOR HINGE ASM GEH-WR13X23844
...
853
STAINLESS STEEL DOOR GEH-WR78X32888
...
879
MOUNTING STUD GEH-WR01X33225
...
999
MINI MANUAL GEH-31-51547-1

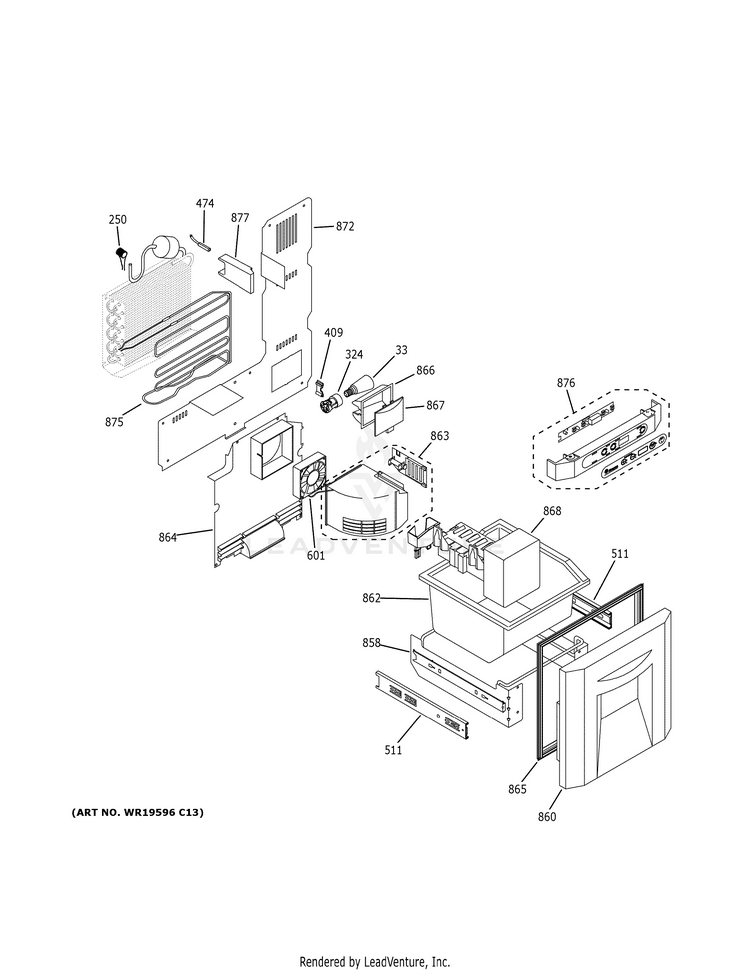

FREEZER CONTROLS & COMPONENTS

...
...
33
BULB LED 120V GEH-WR23X23840
...
250
ICEMAKER TUBE HEATER GEH-WR50X10064
...
324
SOCKET LAMP GEH-WR23X10376
...
409
SOCKET INSERT GEH-WR23X10408
...
474
TEMP SENSOR GEH-WR55X10409
...
511
INNER LINER GUIDE ICEMAK GEH-WR17X11809
...
601
FAN GEH-WR60X10182
...
858
DRAWER SUPPORT GEH-WR02X11969
...
860
ICEMAKER DRAWER FRONT GEH-WR02X11952
...
862
ICEMAKER PAN GEH-WR17X11814
...
863
EVAP FAN CVR & DAMPER AS GEH-WR13X10424
...
864
EVAP COVER GEH-WR17X11822
...
865
GASKET GEH-WR14X10190
...
866
SOCKET SUPPORT GEH-WR02X11954
...
867
LAMP SHIELD GEH-WR02X11955
...
868
ICEMAKER GEH-WR30X10058
...
872
AIR FLOW COVER GEH-WR17X11823
...
875
EVAPORATOR HEATER GEH-WR51X10084
...
876
CONTROL BOARD ASM GEH-WR55X23898
...
877
FAN COVER ISOLATION GEH-WR02X11956

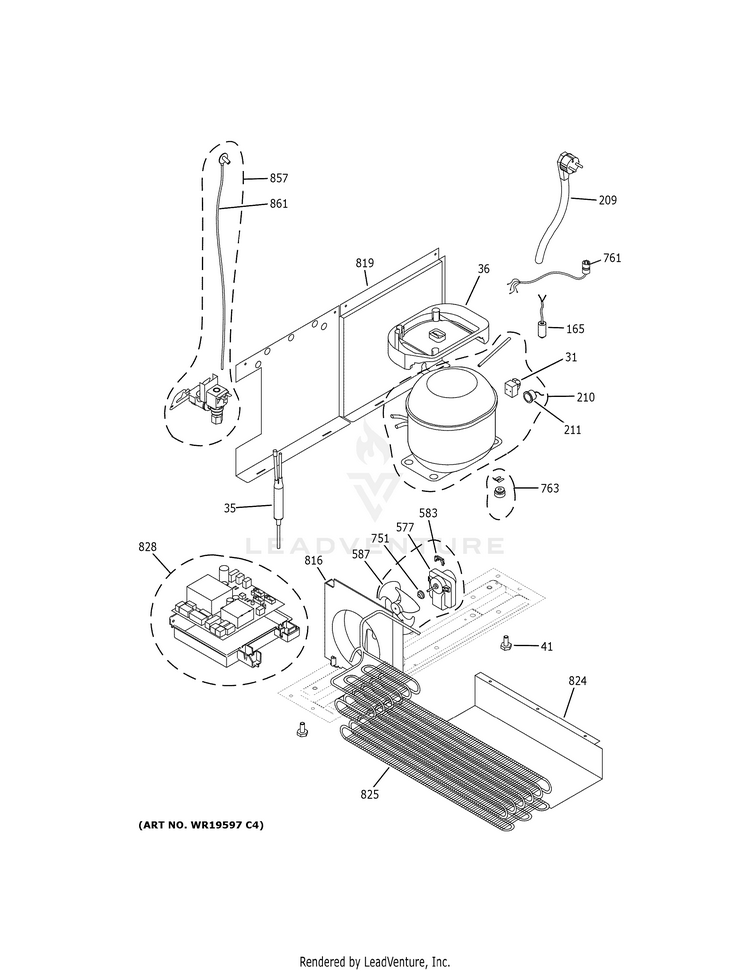

MACHINE COMPARTMENT

...
...
31
RELAY START GEH-WR07X10072
...
35
DRYER GEH-WR87X23836
...
36
DRAIN PAN GEH-WR17X11673
...
41
LEVELING LEG REAR GEH-WR01X10384
...
165
CAPACITOR, COMPRESSOR GEH-WR62X10033
...
209
POWER CORD GEH-WR23X10373
...
210
COMPRESSOR EMY60 ASM GEH-WR87X23899
...
211
OVERLOAD RELAY GEH-WR87X23901
...
577
FAN COND MOTOR GEH-WR60X23878
...
583
CONDENSER FAN SPRING PIN GEH-WR01X23838
...
587
FAN PROPELLER GEH-WR60X10164
...
751
FAN RUBBER GEH-WR01X10350
...
761
HARNESS ASM.COMP GEH-WR23X10374
...
763
COMPRESSOR MOUNTING KIT GEH-WR01X10452
...
816
CONDENSER FAN HOUSING GEH-WR17X11675
...
819
REAR ACCESS COVER GEH-WR17X11812
...
824
CONDENSER CANAL GEH-WR17X11679
...
825
CONDENSER S7 ASM GEH-WR87X23897
...
828
POWER SUPPLY BOARD ASM GEH-WR55X10430
...
857
WATER VALVE ASM GEH-WR57X23900
...
861
FILL TUBE GEH-WR02X11953

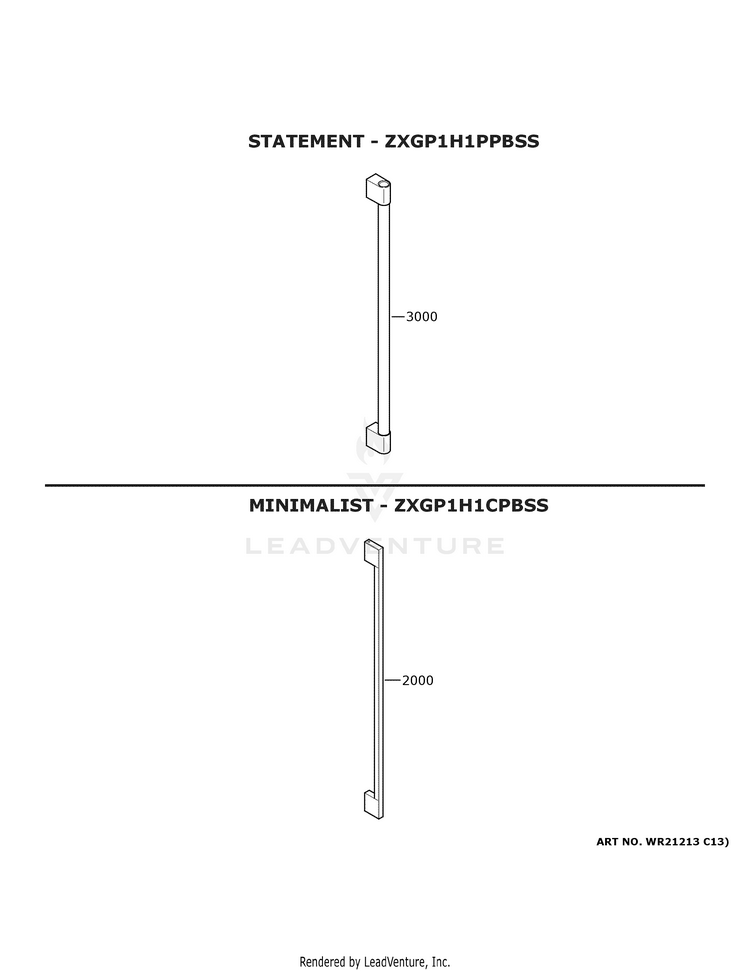

MONOGRAM CUSTOMIZATION

...
...
2000
MINIMALIST HANDLE GEH-WR12X33405
...
3000
STATEMENT HANDLE GEH-WR12X33407
