GE Monogram ZDT985SSN0SS Dishwasher

Model: ZDT985SSN0SS

Back To Assemblies

Save Part Not Listed?
product name

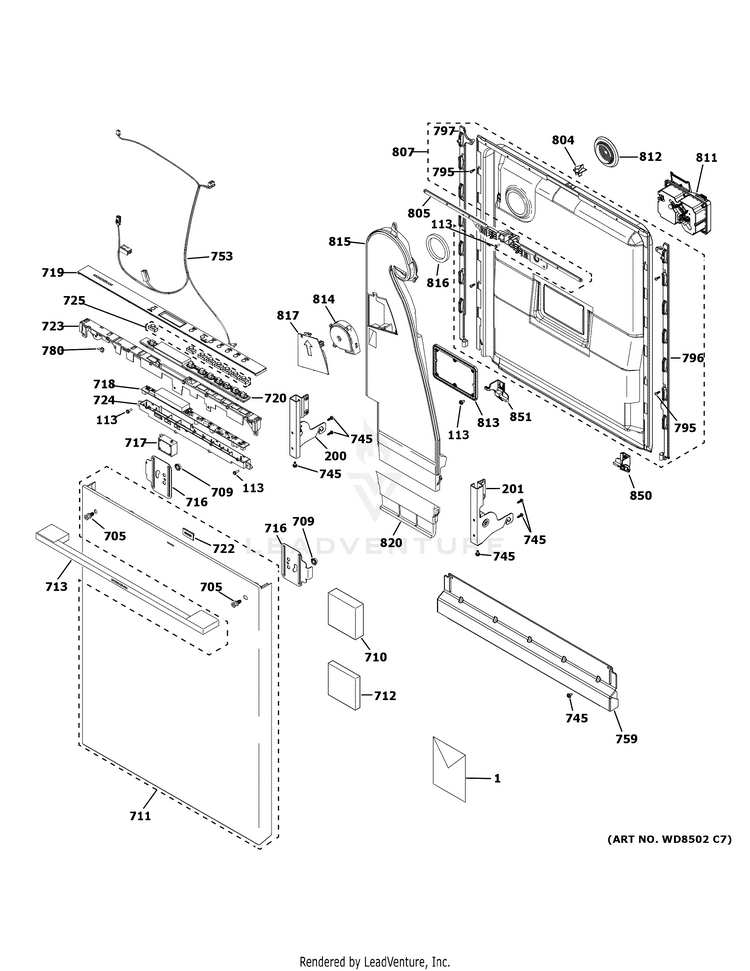

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM ATTENTION INSTALLER GEH-31-4000081
...
1
PM MINI MANUAL AND WIRING GEH-31-4000210
...
1
PM OWNERS MANUAL GEH-49-4000215
...
1
PM INSTALL INSTRUCTIONS GEH-31-4000212
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
200
ARM HINGE ASM LH GEH-WD14X22896
...
201
ARM HINGE ASM RH GEH-WD14X22895
...
705
FASTENER DOOR HANDLE GEH-WR01X11007
...
709
LOCK NUT 5/16-18 HX 1/2 S GEH-WD02X25303
...
710
BLOCK FOAM DOOR GEH-WD01X22930
...
711
STAINLESS STEEL MONOGRAM EURO OUTER DOOR GEH-WD34X25688
...
712
BLOCK FOAM DOOR GEH-WD01X22929
...
713
MONOGRAM DOOR HANDLE GEH-WD09X26018
...
716
HANDLE BRACKET GEH-WD01X25862
...
717
SPEAKER GEH-WD01X22942
...
718
CONFIGURED UI CONTROL BOARD GEH-WD21X25988
...
719
MONOGRAM CONSOLE COVER ASM GEH-WD34X26005
...
720
SILICONE LIGHT PIPE GEH-WD21X20299
...
722
LENS AND ADHESIVE ASM GEH-WD09X20398
...
723
CONSOLE TOP CONTROL GEH-WD12X22906
...
724
HOUSING BOTTOM GEH-WD12X20397
...
725
BUTTON GEH-WD09X20394
...
745
SCR 10-32 GX IHXW 9/16 S GEH-WD01X22514
...
753
DOOR HARNESS ASM GEH-WD21X25983
...
759
TOE KICK PAINTED ASM GEH-WD27X26218
...
780
GROUND CLIP ONSERT GEH-WD01X22934
...
795
SCREW T15 8-16 PLASTITE GEH-WD02X22628
...
796
ATTACH STRIP RH GEH-WD01X22836
...
797
ATTACH STRIP GEH-WD01X10634
...
804
STRIKER LATCH GEH-WD13X10071
...
805
ATTACHMENT STRIP TOP GEH-WD13X22837
...
807
STAINLESS INNER DOOR ASM GEH-WD27X25997
...
811
DETERGENT DISP SENSOR GEH-WD12X24060
...
812
VENT COVER GEH-WD01X25673
...
813
PLATE DETERGENT GEH-WD12X10462
...
814
BLOWER GASKET ASM GEH-WD08X25635
...
815
DOOR CONDUIT VENT ASM GEH-WD12X25634
...
816
DOOR VENT SEAL GEH-WD08X10092
...
817
CONDUIT FAN COVER GEH-WD01X25633
...
820
DOOR VENT GEH-WD24X26142
...
850
TRIM DOOR RH GEH-WD12X22835
...
851
TRIM DOOR LH GEH-WD12X22834
