GE Monogram ZDP484NGN1SS Gas Range Or Dual Fuel

Model: ZDP484NGN1SS

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

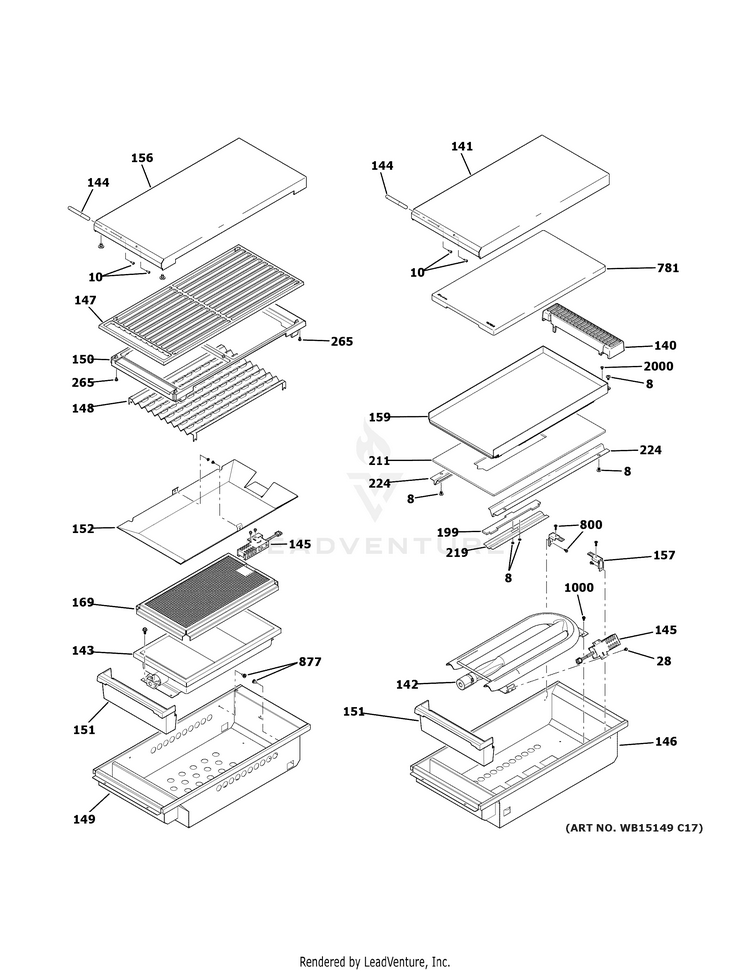

GRILL & GRIDDLE ASSEMBLY

...
...
8
SCREW 8-32 GEH-WB01K10002
...
10
SCREW 8-32 MCH PNT15 GEH-WB01T10104
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
140
VENT GRIDDLE GEH-WB07K10418
...
140
FT INSUL DOOR BTM 27" GEH-WB35K10178
...
141
COVER GEH-WB07K10431
...
141
RR INSUL DOOR TOP 27" GEH-WB35K10183
...
142
FT INSUL DOOR TOP 27" GEH-WB35K10175
...
142
BURNER GRIDDLE GEH-WB28K10636
...
143
BURNER IR GEH-WB28K10505
...
144
HANDLE COVER GEH-WB15K10088
...
145
IGNITER GLOWBAR GEH-WB13K10030
...
146
GRIDDLE BODY WELD GEH-WB49K10040
...
147
GRATE GRILL GEH-WB32K10056
...
148
BAFFLE GRILL GEH-WB36K10919
...
149
GRILL BODY WELD GEH-WB49K10041
...
150
FRAME GRILL GRATE ASM GEH-WB07K10419
...
151
TROUGH GREASE ASM GEH-WB49K10014
...
152
REFLECTOR ASM GEH-WB34K10131
...
156
COVER GEH-WB07K10432
...
157
BRACKET GRIDDLE GEH-WB02K10208
...
159
PLATE GRIDDLE WELD ASM GEH-WB32K10042
...
169
FRAME MESH ASM GEH-WB31K10226
...
199
INSULATION GEH-WB49K10039
...
211
PLATE GRIDDLE GEH-WB07K10295
...
219
SHIELD THERMOSTAT BULB GEH-WB49K10015
...
224
BRACKET SUPPORT GEH-WB02K10209
...
265
FOOT GRATE GRILL GEH-WB02K10231
...
781
BUTCHER BLOCK (GRIDDLE) GEH-WB31K10223
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
877
SCREW 10-16 SHLDR TYPE A GEH-WB01T10048
...
1000
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
2000
SCR 10-32 TRP 1/2 GEH-WB01K10100
