GE JSP42CK1CC Electric Range

Model: JSP42CK1CC

Save Part Not Listed?
product name

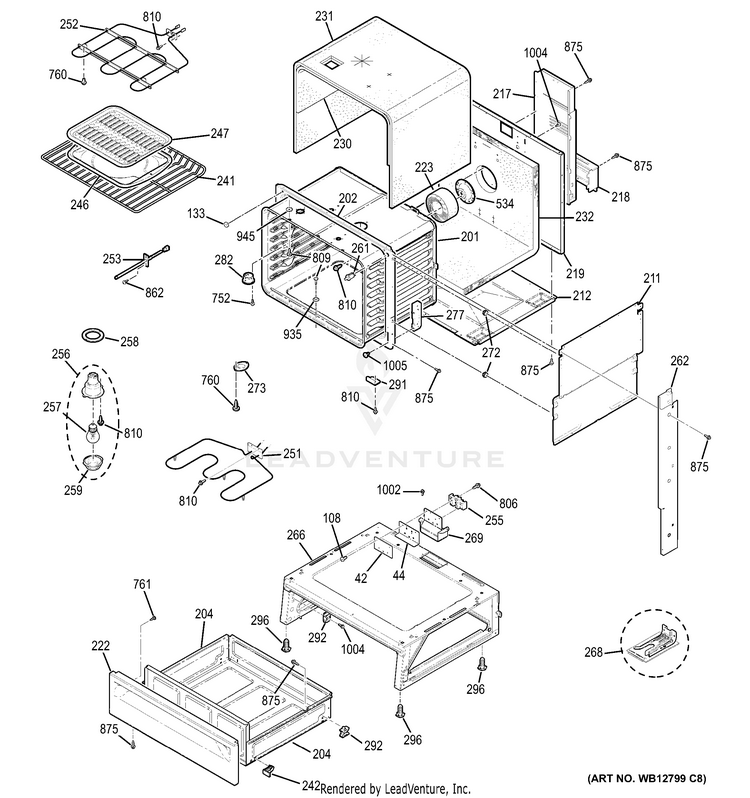

BODY PARTS

...
...
42
BARRIER HEAT GEH-WB17T10017
...
44
BRACKET GEH-WB02T10242
...
108
SCREW (CR) GEH-WB01X5364
...
133
DOOR BUMPER GEH-WB01T10022
...
133
TAPE FOAM GEH-WB01T10052
...
133
DOOR BUMPER GEH-WB03T10156
...
201
WRAPPER OVEN CAV GEH-WB63T10085
...
202
FRAME FRT LOWER GEH-WB63T10083
...
204
LINING STORAGE DRAWER GEH-WB55T10046
...
211
LOWER OVN INSLN RETAINER GEH-WB02K5306
...
212
RETAINER INSLN BTM GEH-WB02T10233
...
217
COVER WIRE REAR GEH-WB34K10049
...
218
COVER WIRE RR LWR GEH-WB34T10054
...
219
RETAINER INSLN BACK GEH-WB56T10136
...
222
DRAWER PANEL-BISQUE GEH-WB56T10056
...
223
WB35K5116 GEH-WB35K5117
...
230
INSULATION (INR) LWR GEH-WB35T10073
...
231
INSULATION (OUT) LWR GEH-WB35T10074
...
232
INSULATION BACK & BTM GEH-WB35K5116
...
241
OVEN RACK-LOWER GEH-WB48K5019
...
242
DRAWER GUIDE GEH-WB48T10012
...
246
WB48T10001 GEH-WB48T10005
...
247
BROIL PAN (261D656P010) GEH-WB48T10006
...
251
ELEMENT BAKE GEH-WB44K10009
...
252
UNIT BROIL ASM (DLX) GEH-WB44T10043
...
253
SENSOR ASM GEH-WB23T10015
...
255
TERMINAL BLOCK ASM GEH-WB17T10011
...
256
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
257
LAMP APPLIANCE GEH-WB08T10022
...
258
GASKET OVEN LIGHT GEH-WB04T10021
...
259
OVEN BULB LENS GEH-WB25T10002
...
261
SWITCH LIGHT SPOT GEH-WB24T10065
...
262
TRIM VERT SDE RT BQT GEH-WB07T10393
...
262
TRIM VERT SDE LT GEH-WB07T10394
...
266
BASE RIVET ASSY GEH-WB39T10001
...
268
ANTI TIP BKT GEH-WB02T10069
...
269
TERMINAL BOX GEH-WB17T10002
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
273
COVER GEH-WB02K5365
...
277
RECEIVER HINGE GEH-WB10T10053
...
282
TUBE VENT GEH-WB28T10073
...
282
VENT INLET DUCT GEH-WB28T10075
...
291
COVER GEH-WB02X9152
...
292
DRAWER SUPPORT FRT GEH-WB48T10013
...
292
SUPPORT REAR GEH-WB48T10030
...
296
LEG LEVELER GEH-WB02X10521
...
534
SUPPORT OVN CAV GEH-WB02T10249
...
752
SCREW GEH-WB01K5200
...
760
SCREW GEH-WB01K5028
...
761
SCREW 8-18 AB TRP 500 BQ GEH-WB01T10034
...
761
SCREW ST8-18X.500TRBRNI GEH-WB01K5062
...
806
SCR 8-18 AB IHW 5/8 S GEH-WH02X1186
...
809
SCREW GEH-WB01X1137
...
810
SCREW GEH-WB01X1253
...
862
SCREW GEH-WB01X1178
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
935
WASHER GEH-WB01K5174
...
945
LOCKWASHER GEH-WB01K5046
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
...
1004
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
...
1005
SCREW 10-32 TR T GEH-WB01T10008

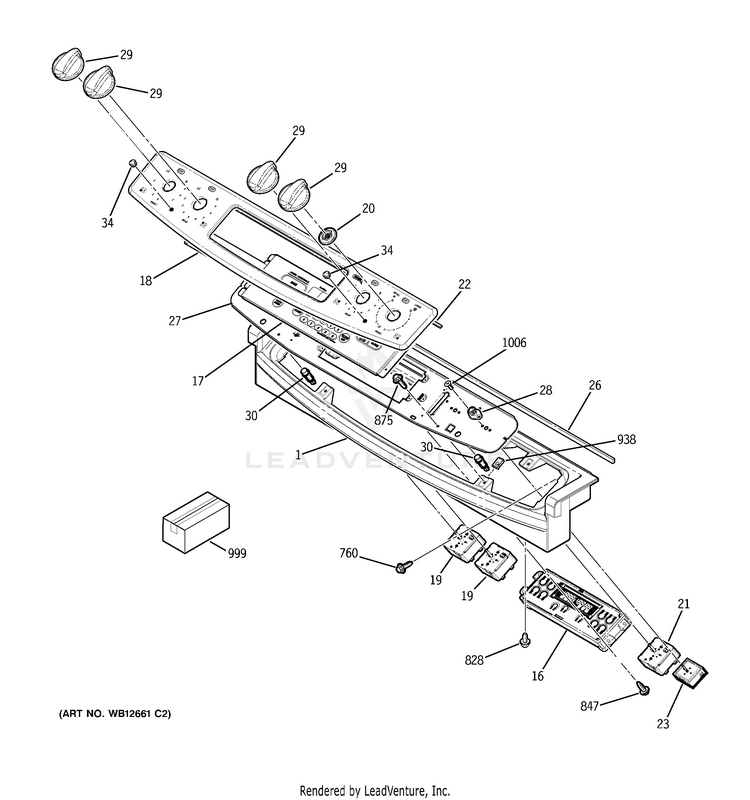

CONTROL PANEL

...

No Parts Available for this Schematic

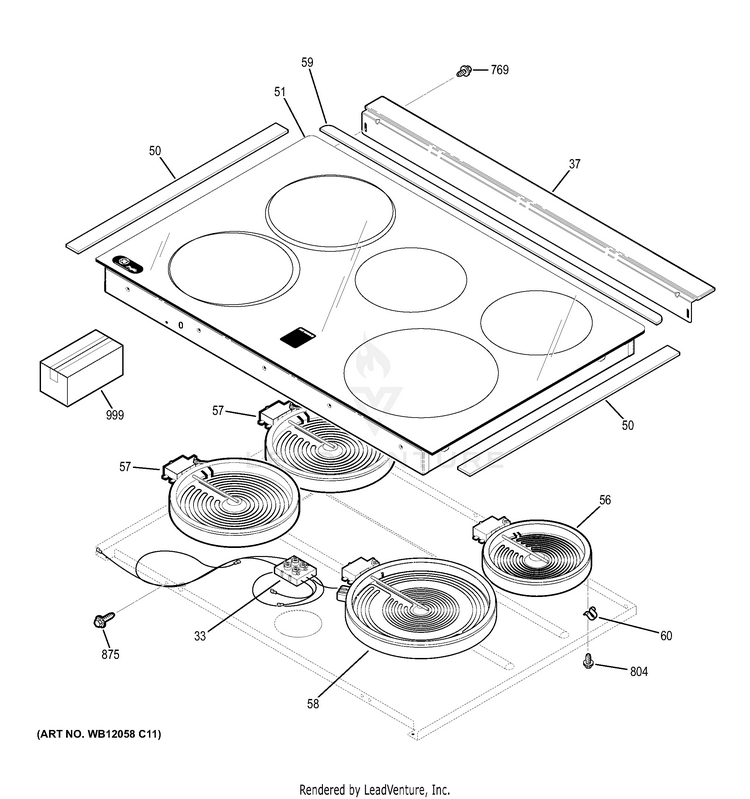

COOKTOP

...
...
33
MODULE INDICATOR LIGHT GEH-WB18T10349
...
37
BACKSPLASH FILLER BQT GEH-WB07K10156
...
50
GASKET MAINTOP LT GEH-WB02T10149
...
50
GASKET MAINTOP RT GEH-WB02T10148
...
51
MAINTOP GLASS ASM (BQT) GEH-WB56T10168
...
56
ELEMENT HALIANT 6" GEH-WB30T10047
...
57
HALIANT ELEMENT 8" GEH-WB30T10045
...
58
ELEMENT HALIANT 9" GEH-WB30T10044
...
59
GASKET MAINTOP OTR GEH-WB02T10150
...
60
RADIANT SPRING ELEMENT GEH-WB09T10002
...
769
SCR 8-18 B HXW 1/4 S GEH-WB01X0500
...
804
SCREW GEH-WB01X1127
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
999
MANUAL MINI & WD ASM GEH-31-14150
...
999
GLASS CLEANER GEH-WB64X0093
...
999
MANUAL USE & CARE GEH-49-80247

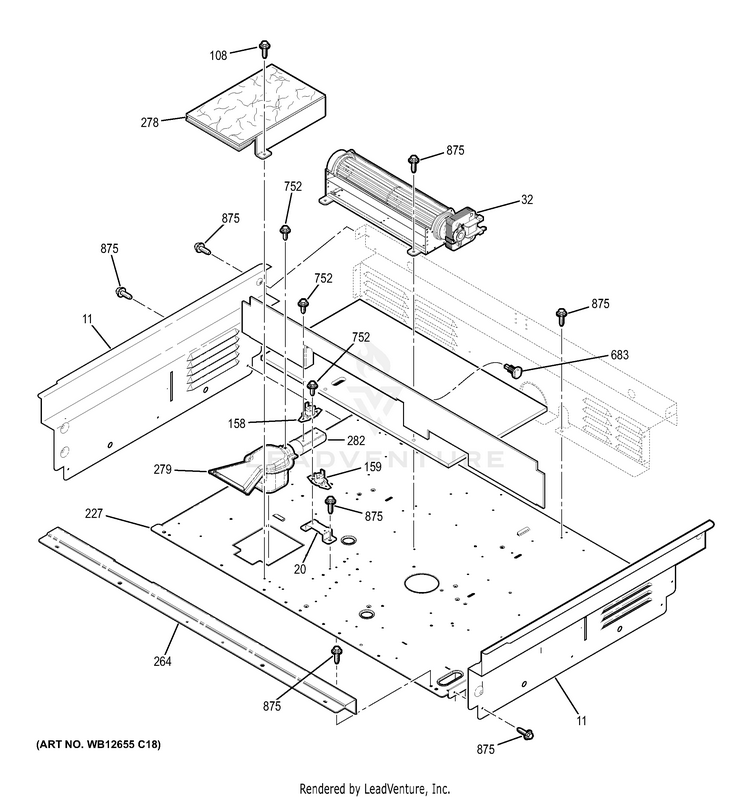

COOLING FAN

...
...
11
EXTENSION SDE LT GEH-WB07K10136
...
11
EXTENSION SIDE RT GEH-WB07K10135
...
20
CRYSTAL RETAINER GEH-WB02T10046
...
20
SWITCH BRACKET GEH-WB02K5238
...
32
BLOWER ASM W/BKTS GEH-WB26T10031
...
108
SCREW (CR) GEH-WB01X5364
...
158
SWITCH LIMIT BIMETAL GEH-WB24T10097
...
159
LIMIT SWITCH-UPPER(LOCK) GEH-WB24T10060
...
227
RETAINER INSLN TOP CENTE GEH-WB02T10144
...
264
TRIM VNT INR (BLK) GEH-WB07T10406
...
278
SHIELD VENT ASM GEH-WB34T10059
...
279
BOX VENT ASSY GEH-WB38T10019
...
282
TUBE VENT GEH-WB28T10073
...
282
VENT INLET DUCT GEH-WB28T10075
...
683
FASTENER PUSH GEH-WR02X10562
...
752
SCREW GEH-WB01K5200
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930

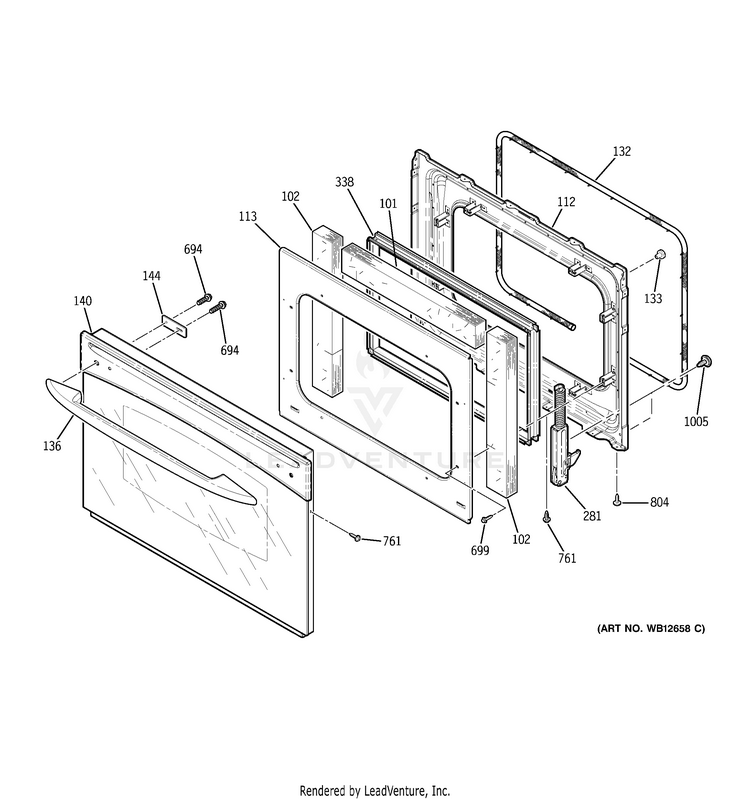

DOOR

...
...
101
INSULATION OVN DR TOP GEH-WB35T10072
...
102
INSULATION OVEN DR SDE GEH-WB35K10025
...
112
LINER OVN DR ASM GEH-WB55T10147
...
113
RETAINER INSLN OVN DR GEH-WB02T10145
...
132
GASKET OVEN DR LOWER GEH-WB41T10003
...
133
DOOR BUMPER GEH-WB01T10022
...
133
TAPE FOAM GEH-WB01T10052
...
133
DOOR BUMPER GEH-WB03T10156
...
136
HANDLE OVN DR (BQT) GEH-WB15T10110
...
140
DOOR OTR ASM 30 (BQ) GEH-WB56T10167
...
144
PLATE REINFORCEMEMT GEH-WB02T10147
...
281
HINGE DOOR LT GEH-WB10T10055
...
281
HINGE DOOR RT GEH-WB10T10054
...
338
PACK WINDOW ASM GEH-WB56T10105
...
694
SCREW 10-16 X 1.000 HWH GEH-WB01T10066
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
761
SCREW 8-18 AB TRP 500 BQ GEH-WB01T10034
...
761
SCREW ST8-18X.500TRBRNI GEH-WB01K5062
...
804
SCREW GEH-WB01X1127
...
1005
SCREW 10-32 TR T GEH-WB01T10008

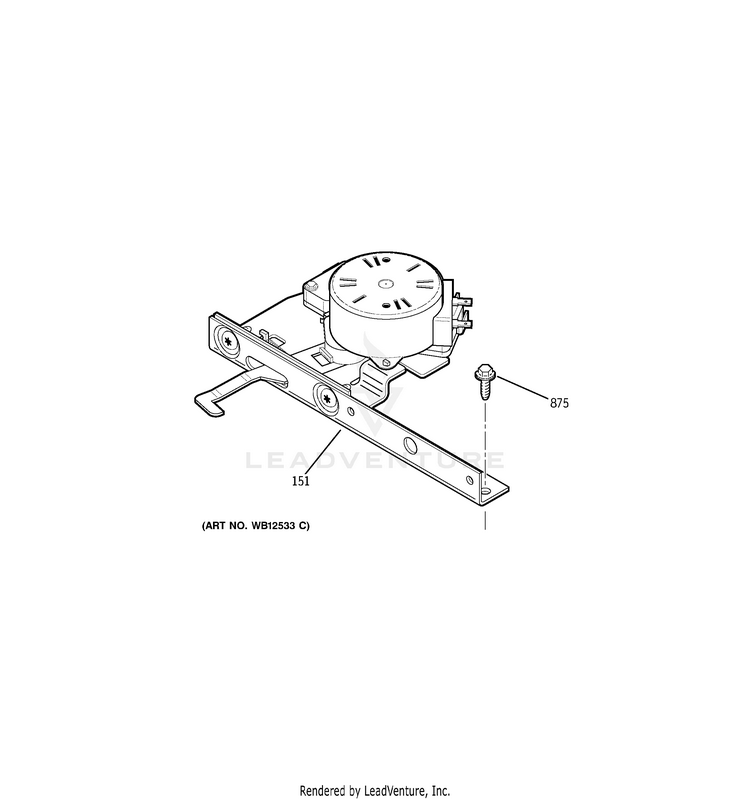

DOOR LOCK

...

No Parts Available for this Schematic
