GE JS750SF3SS Electric Range

Model: JS750SF3SS

Back To Assemblies

Save Part Not Listed?

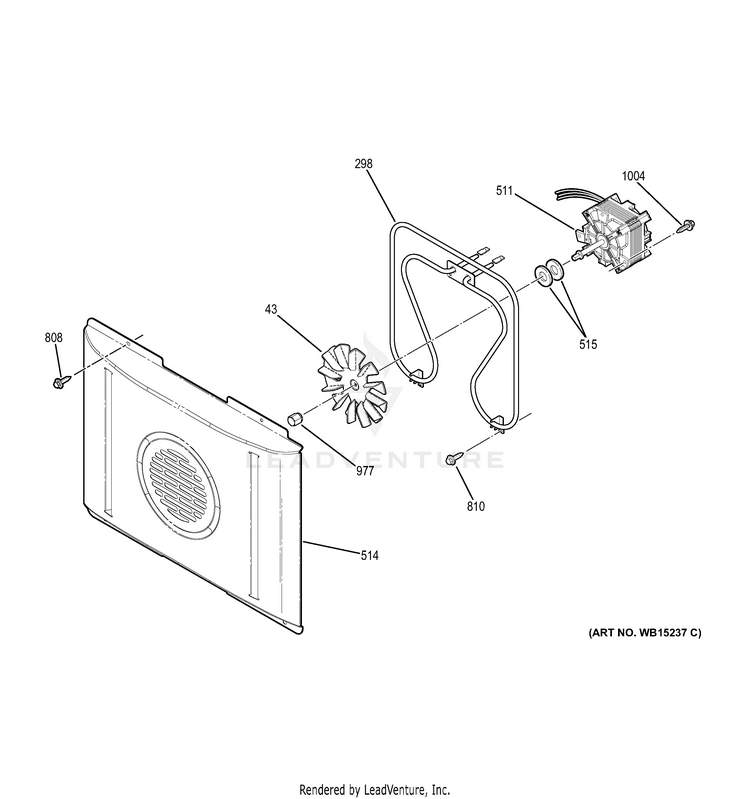

product name

CONVECTION FAN

...
...
43
HUB BLADE ASM GEH-WB02T10289
...
298
ELEMENT CONVX ASM GEH-WB44T10086
...
511
MOTOR PSC CONV GEH-WB26T10043
...
514
COVER FAN CONVX (BK) GEH-WB34X20082
...
515
GASKET CONV FAN GEH-WB04T10071
...
808
SCREW GEH-WB01M10002
...
977
NUT GEH-WB02T10017
...
1004
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
