GE JS750DF2WW Electric Range

Model: JS750DF2WW

Back To Assemblies

Save Part Not Listed?
product name

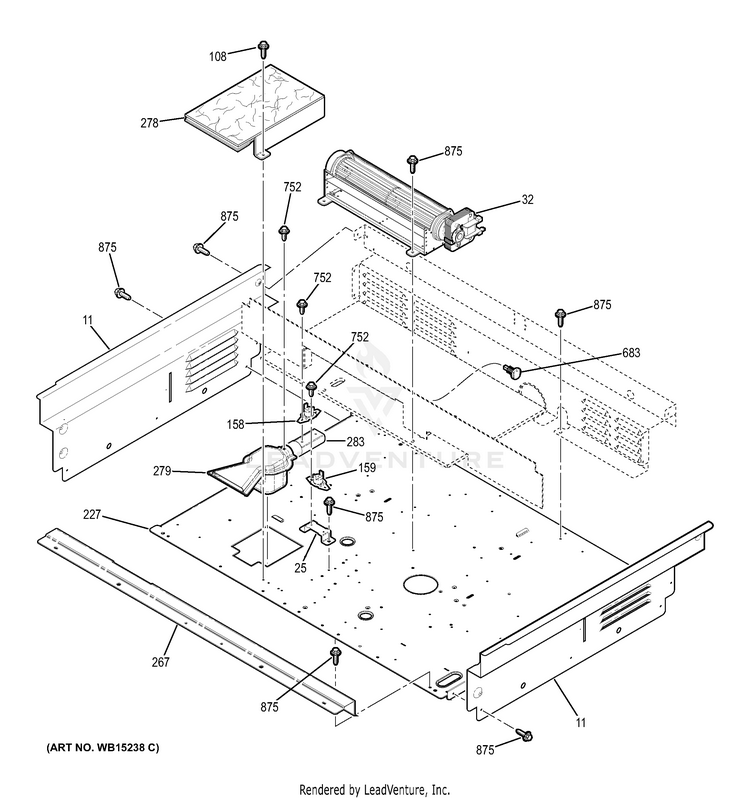

COOLING FAN

...
...
11
EXTENSION SIDE RT GEH-WB07T10497
...
11
EXTENSION SIDE LT GEH-WB07T10498
...
25
SWITCH BRACKET GEH-WB02K5238
...
32
BLOWER ASM GEH-WB26T10039
...
108
SCREW (CR) GEH-WB01X5364
...
158
SWITCH LIMIT GEH-WB24T10079
...
159
LIMIT SWITCH-UPPER(LOCK) GEH-WB24T10060
...
227
RETAINER INSLN TOP GEH-WB02X20949
...
267
TRIM ASM GEH-WB07T10496
...
278
SHIELD VENT ASM GEH-WB34T10059
...
279
BOX VENT ASSY GEH-WB38T10019
...
283
VENT INLET DUCT GEH-WB28T10075
...
683
FASTENER PUSH GEH-WR02X10562
...
752
SCREW GEH-WB01K5200
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
