GE JS750DF2WW Electric Range

Model: JS750DF2WW

Back To Assemblies

Save Part Not Listed?
product name

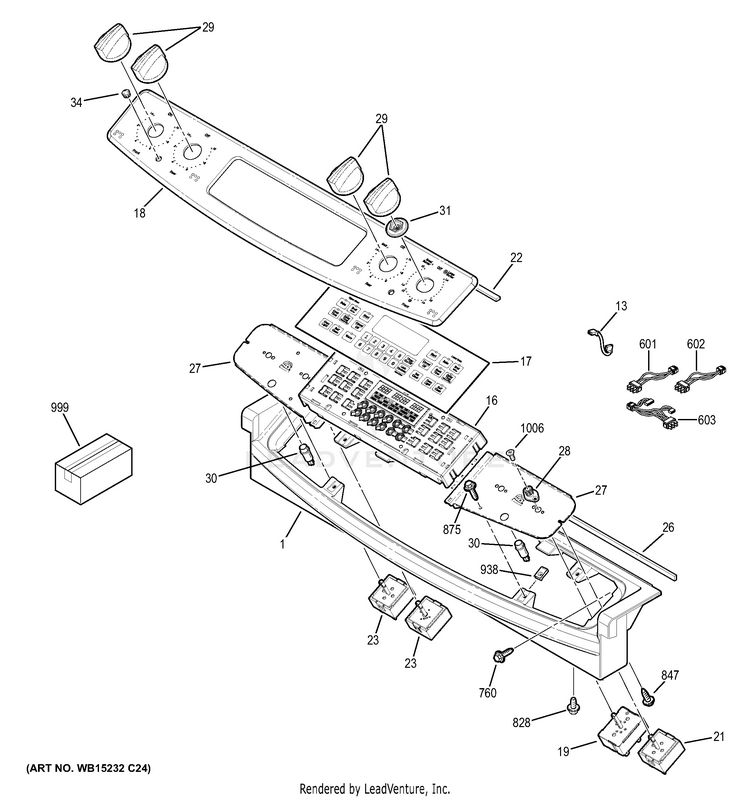

CONTROL PANEL

...
...
1
PANEL CNTL ASM GEH-WB36T10668
...
1
LABEL WIRE DIAGRAM GEH-229C6240P001
...
13
JUMPER GEH-WB18T10506
...
16
CONTROL BOARD T012 ELE GEH-WB27X21624
...
17
FACEPLATE GRAPHICS (WH) GEH-WB07X21416
...
18
FACEPLATE (SCR) GEH-WB27X20074
...
19
INF SWITCH CONTROL (WM) GEH-WB24T10012
...
21
SWITCH INFINITE CONTROL GEH-WB24T10139
...
22
GASKET FACEPLATE GEH-WB02X10744
...
23
INF SWITCH CONTROL (2000 GEH-WB24T10026
...
26
CONTROL PANEL GASKET GEH-WB02X10742
...
27
INSERT CNTL PNL LT GEH-WB27X20070
...
27
INSERT CNTL PNL RT GEH-WB27X20071
...
28
CRYSTAL MOUNT GEH-WB02T10047
...
29
KNOB ASM GEH-WB03T10334
...
30
LIGHT INDICATOR GEH-WB25T10055
...
31
CRYSTAL RETAINER GEH-WB02T10046
...
34
LENS SNAP-IN GEH-WB25T10022
...
601
HARNESS WIRE INF CNTL GEH-WB18X20950
...
602
HARNESS WIRE CNTL GEH-WB18X20963
...
603
HARNESS WIRE INFINITE GEH-WB18X21414
...
760
SCREW GEH-WB01K5028
...
828
SCREW GEH-WB01X0537
...
847
SCR 8-18 AB HXW 3/4 GEH-WZ04X0416
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
938
CLIP GEH-WB01K5209
...
999
PM OWNERS MANUAL GEH-49-80690
...
999
MANUAL U&C TIP SHEET GEH-49-80597
...
999
PM MANUAL MINI & WD ASM GEH-31-17057
...
999
PM INSTALL INSTRUCTIONS GEH-31-10836
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
999
INSTRUCTIONS INSTALL GEH-31-10651
...
1006
SCREW 8-32 TPT FLR 270 GEH-WB01T10053
