product name

GE JRP20SK3SS Electric Range

Model: JRP20SK3SS

Save Part Not Listed?
product name

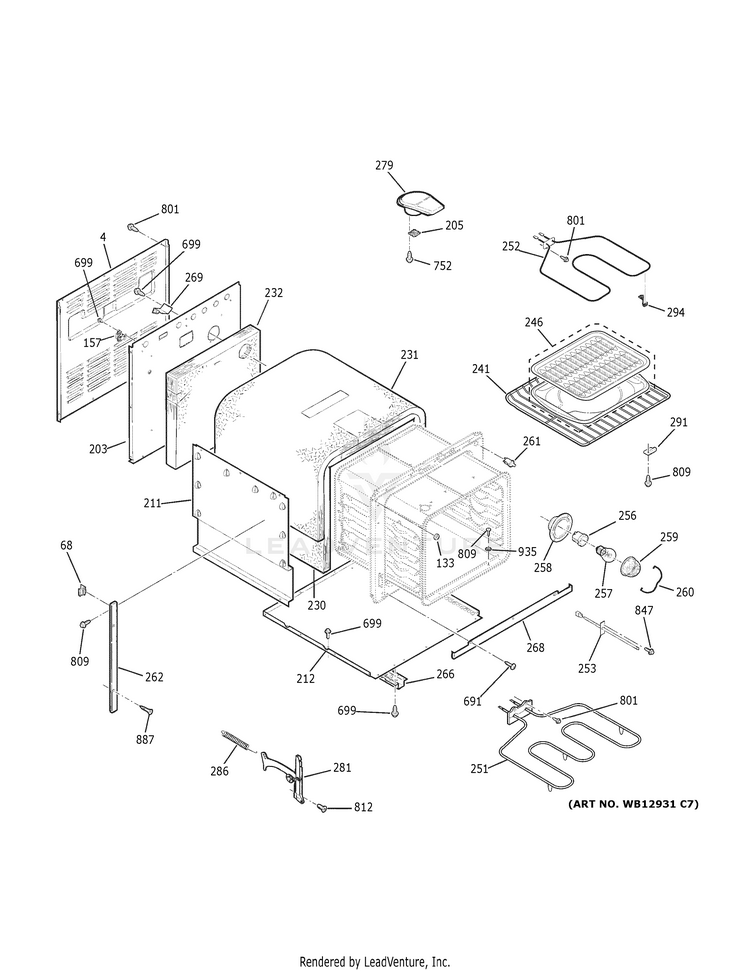

BODY PARTS

...
...
4
CABINET BACK GEH-WB63M0045
...
68
SPACER FRT TRIM (BLK) GEH-WB02T10164
...
133
DOOR BUMPER GEH-WB01T10022
...
157
LIMIT SWITCH-BODY GEH-WB24K5098
...
203
BACK MAIN GEH-WB63T10105
...
205
SMOKE ELIMINATOR SCREEN GEH-WB02X29256
...
211
RETAINER INSLN SDE GEH-WB02T10197
...
212
BOTTOM CAB GEH-WB63K5116
...
230
INSULATION-WRAPPER-INNER GEH-WB35K5048
...
231
INSULATION WRPR OTR GEH-WB35K5068
...
232
INSULATION-BACK/BTM UPPE GEH-WB35K5057
...
241
RACK OVEN GEH-WB48T10094
...
246
BROILER PAN & RACK LARGE GEH-WB48X10056
...
251
ELEMENT BAKE (2650W) GEH-WB44X26298
...
252
ELEMENT BROIL (3400W) GEH-WB44T10111
...
253
SENSOR ASM GEH-WB21X5301
...
256
OV LAMP HOLDER GEH-WB08X0303
...
257
40WATT 15AMP GEH-40A15
...
258
OVEN LIGHT CUP GEH-WB02T10037
...
259
OV LAMP LENS GEH-WB36X0389
...
260
LIGHT LENS BAIL GEH-WB02X7694
...
261
SWITCH SPDT HIGH AMP GEH-WB24T10160
...
262
TRIM VERT SDE GEH-WB07T10370
...
266
BOTTOM CHANNEL GEH-WB02X9634
...
268
TRIM FRT FRM LWR GEH-WB07T10415
...
269
CUP LIGHT SUPPORT GEH-WB02K5164
...
279
WB38K5051 GEH-WB38K5028
...
281
HINGE OV DR RT GEH-WB10T10060
...
281
HINGE OV DR LT GEH-WB10T10061
...
286
SPRING OVN DR GEH-WB09T10009
...
291
COVER GEH-WB02X9152
...
294
BROIL ELEMENT SUPPORT GEH-WB02X9719
...
691
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
752
SCREW GEH-WB01K5200
...
801
SCREW GEH-WB01M10002
...
809
SCREW GEH-WB01X1137
...
812
SCREW FLAT ZINC 10-32 GEH-WB01K5191
...
847
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
887
TRIM SCREW-BLK GEH-WB01K5173
...
935
WASHER GEH-WB01K5174

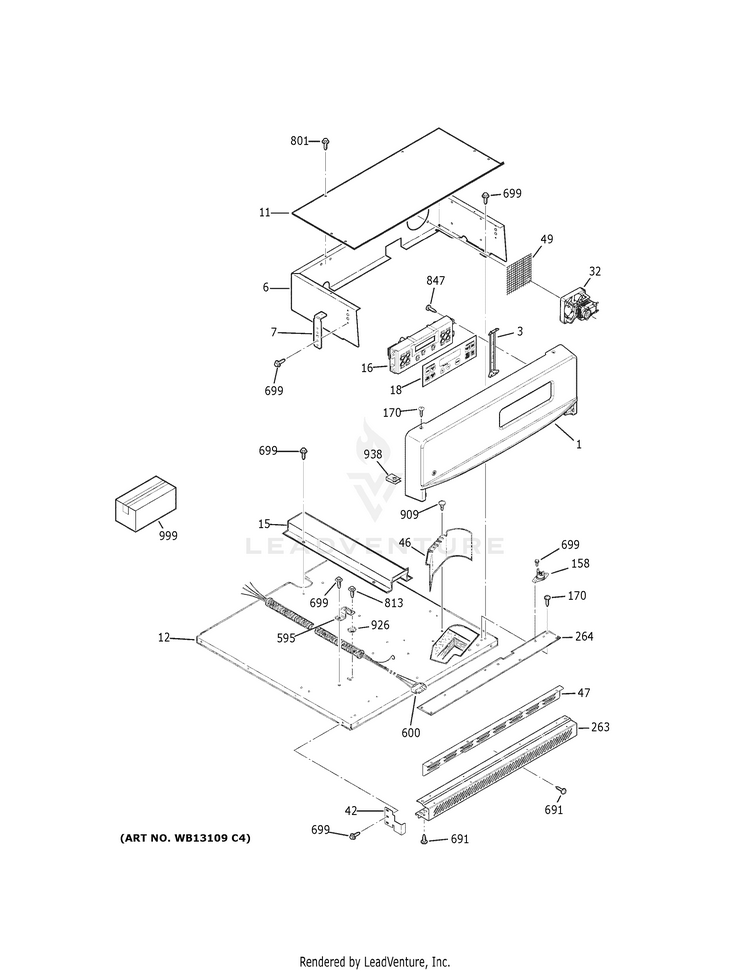

CONTROL PANEL

...
...
1
PANEL CNTL SWO (SCR-BLK) GEH-WB36T10756
...
3
BRACKET CNTL MTG 24 GEH-WB02T10250
...
6
CONTROL HOUSING GEH-WB37K5041
...
7
CONTROL PANEL BRACKET GEH-WB02K5406
...
11
CONTROL HOUSING TOP GEH-WB37K5040
...
12
TOP CABINET GEH-WB63K5120
...
15
WIRE COVER GEH-WB02X9665
...
16
ERC3B2K5 OVEN CONTROL GEH-WB27X27462
...
18
FACEPLATE GRAPHICS ASM GEH-WB27T10587
...
32
FAN-LOWER GEH-WB26K5072
...
42
HEAT SHIELD GEH-WB34K5249
...
46
WIRE SHIELD GEH-WB34K5099
...
47
BARRIER VENT GEH-WB38K5058
...
49
SCREEN FAN GEH-WB02X26291
...
158
SWITCH LIMIT BIMETAL GEH-WB24T10096
...
170
SCREW 8-18 (BK) 1/2 S GEH-WB01K0060
...
263
VENT TRIM-BLACK GEH-WB07K5491
...
264
EXTENSION VENT TRIM GEH-WB07K5121
...
595
CONDUIT CLAMP GEH-WB02K5126
...
600
CONDUIT WIRE ASM GEH-WB18X32566
...
691
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
801
SCREW GEH-WB01M10002
...
813
SCREW GROUND GEH-WB01X1261
...
847
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
909
RIVET GEH-WB01X1173
...
926
GROUND WASHER GEH-WB01X1260
...
938
CLIP GEH-WB01K5209
...
999
HARNESS WIRE DOOR SWITCH GEH-WB18X32563
...
999
HARNESS WIRE MAIN GEH-WB18X32528
...
999
PM INSTALL INSTRUCTIONS GEH-31-11047
...
999
HARNESS WIRE LCK MTR GEH-WB18X32562
...
999
MANUAL MINI & WD ASM GEH-31-14203
...
999
PM OWNERS MANUAL GEH-49-80715

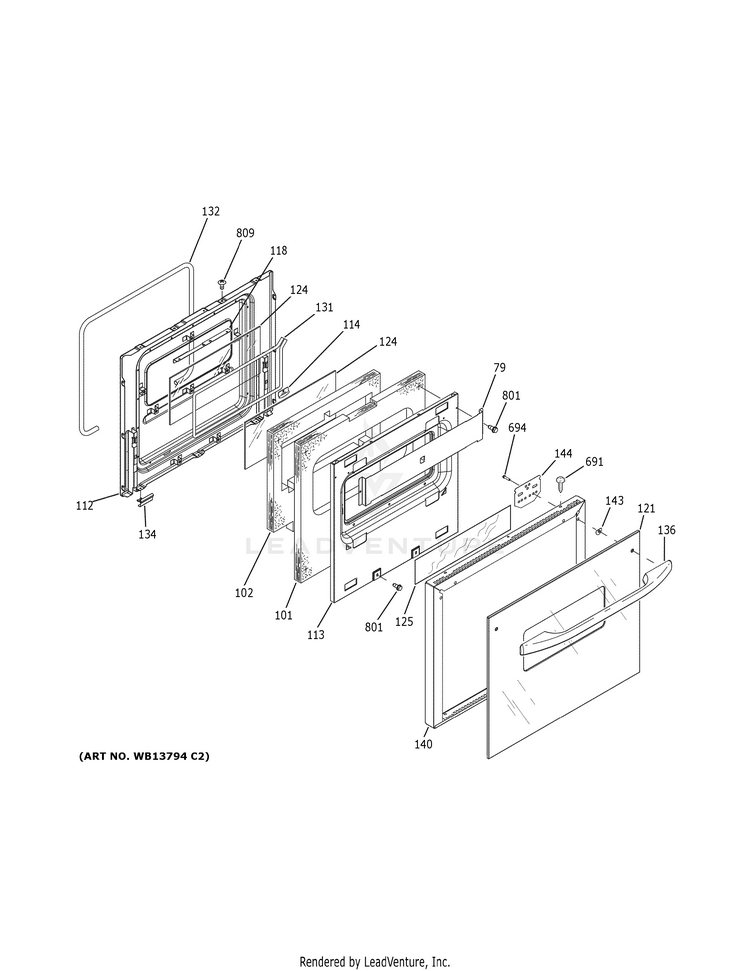

DOOR

...
...
79
OV DR BAFFLE GEH-WB34K5077
...
101
DOOR INSULATION GEH-WB35K5054
...
102
INSULATION GEH-WB35T10101
...
112
LINER OVN DR ASM GEH-WB63X26288
...
113
OV DR INS RETAINER GEH-WB02K5159
...
114
OV DR GLASS RETAINER GEH-WB02M0001
...
118
OV DR LINING STIFFENER GEH-WB02K5132
...
121
PANEL GLASS & TAPE ASM GEH-WB56T10232
...
124
GLASS OVN DR INR GEH-WB57T10315
...
125
HEAT REFLECTOR GEH-WB34X26884
...
131
SEAL GLASS OV DR INNER GEH-WB02X9168
...
132
GASKET OVN DR GEH-WB35X26289
...
134
BTM TRIM CLIP GEH-WB02T10117
...
136
HANDLE GE 24 GEH-WB15T10145
...
140
FRAME OVN DR (BLK) GEH-WB56T10162
...
143
GLASS SPACER GEH-WB02K5147
...
144
REINFORCEMENT PLATE GEH-WB02K5395
...
691
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
694
SCREW GEH-WB1K5210
...
801
SCREW GEH-WB01M10002
...
809
SCREW GEH-WB01X1137

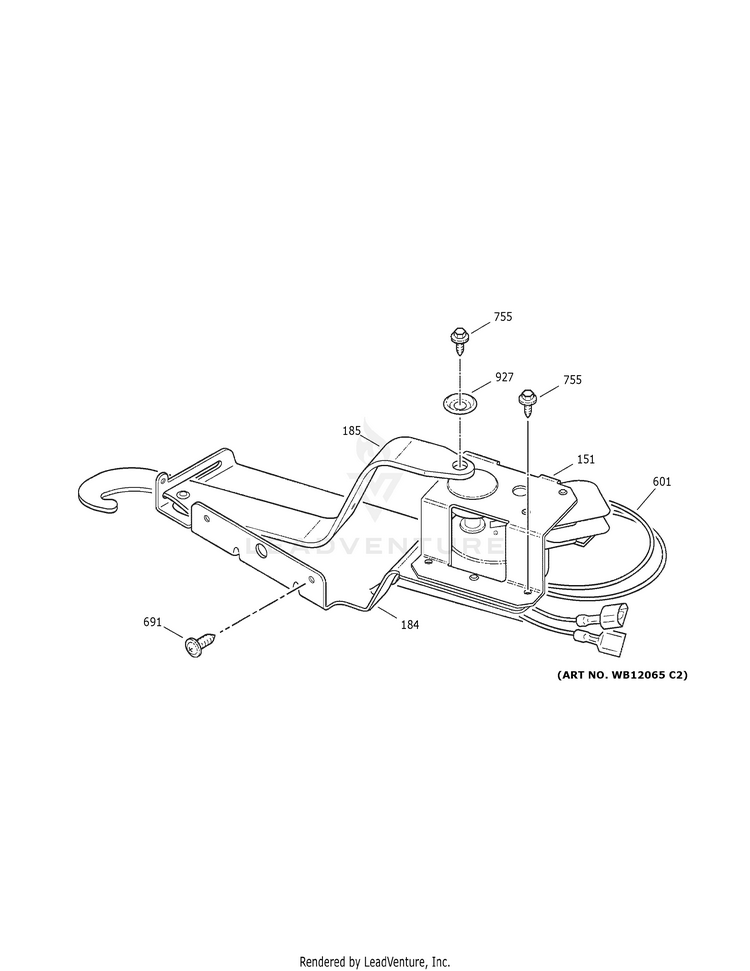

DOOR LOCK

...
...
151
OVEN DOOR LATCH GEH-WB14T10074
...
184
WB34K5228 GEH-WB34K5079
...
185
LEVER LOCK GEH-WB15K5016
...
601
HARNESS WIRE JUMPER GEH-WB18X32560
...
691
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
755
SCREW GEH-WZ04X0044
...
927
WASHR-PKG 12 GEH-WB1X119D
