GE JRP20BJ3BB Electric Range

Model: JRP20BJ3BB

Back To Assemblies

Save Part Not Listed?
product name

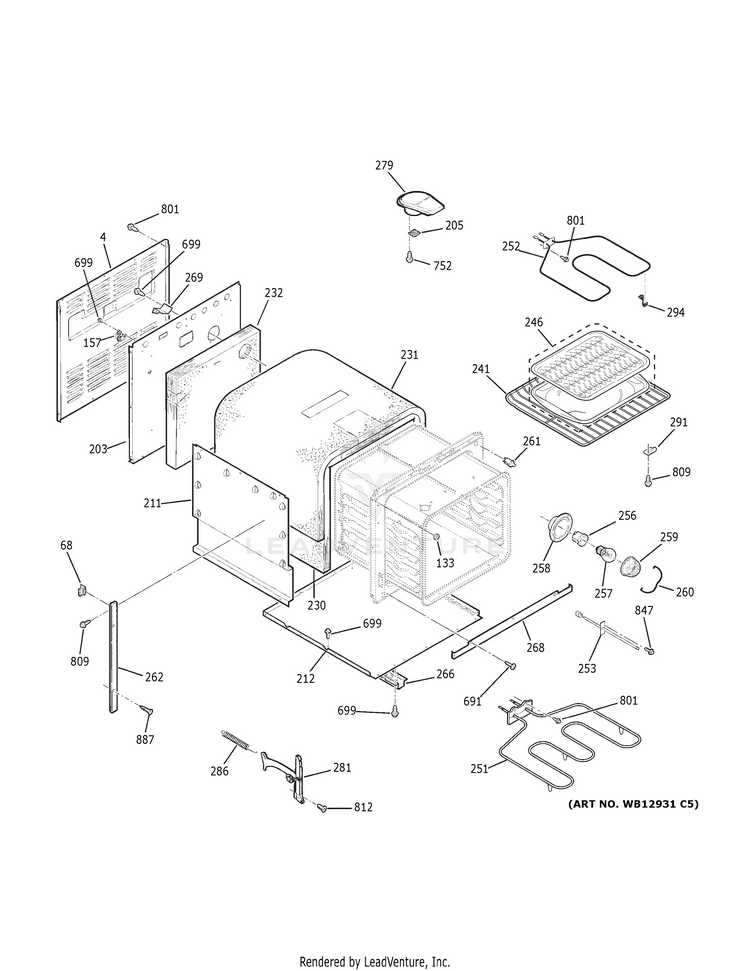

BODY PARTS

...
...
4
CABINET BACK GEH-WB63M0045
...
68
SPACER FRT TRIM (BLK) GEH-WB02T10164
...
133
DOOR BUMPER GEH-WB01T10022
...
157
LIMIT SWITCH-BODY GEH-WB24K5098
...
203
BACK MAIN GEH-WB63T10105
...
205
SMOKE ELIMINATOR SCREEN GEH-WB02X29256
...
211
RETAINER INSLN SDE GEH-WB02T10197
...
212
BOTTOM CAB GEH-WB63K5116
...
230
INSULATION-WRAPPER-INNER GEH-WB35K5048
...
231
INSULATION WRPR OTR GEH-WB35K5068
...
232
INSULATION-BACK/BTM UPPE GEH-WB35K5057
...
241
RACK OVEN GEH-WB48T10094
...
246
BROILER PAN & RACK LARGE GEH-WB48X10056
...
251
ELEMENT BAKE (2650W) GEH-WB44X26298
...
252
ELEMENT BROIL (3400W) GEH-WB44T10111
...
253
SENSOR ASM GEH-WB21X5301
...
256
OV LAMP HOLDER GEH-WB08X0303
...
257
40WATT 15AMP GEH-40A15
...
258
OVEN LIGHT CUP GEH-WB02T10037
...
259
OV LAMP LENS GEH-WB36X0389
...
260
LIGHT LENS BAIL GEH-WB02X7694
...
261
SWITCH SPDT HIGH AMP GEH-WB24T10160
...
262
TRIM VERT SDE GEH-WB07T10370
...
266
BOTTOM CHANNEL GEH-WB02X9634
...
268
TRIM FRT FRM LWR GEH-WB07T10415
...
269
CUP LIGHT SUPPORT GEH-WB02K5164
...
279
WB38K5051 GEH-WB38K5028
...
281
HINGE OV DR LT GEH-WB10T10061
...
281
HINGE OV DR RT GEH-WB10T10060
...
286
SPRING OVN DR GEH-WB09T10009
...
291
COVER GEH-WB02X9152
...
294
BROIL ELEMENT SUPPORT GEH-WB02X9719
...
691
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
752
SCREW GEH-WB01K5200
...
801
SCREW GEH-WB01M10002
...
809
SCREW GEH-WB01X1137
...
812
SCREW FLAT ZINC 10-32 GEH-WB01K5191
...
847
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
887
TRIM SCREW-BLK GEH-WB01K5173
