GE JP340WC1WW Electric Range

Model: JP340WC1WW

Save Part Not Listed?
product name

Popular Parts

Popular Parts

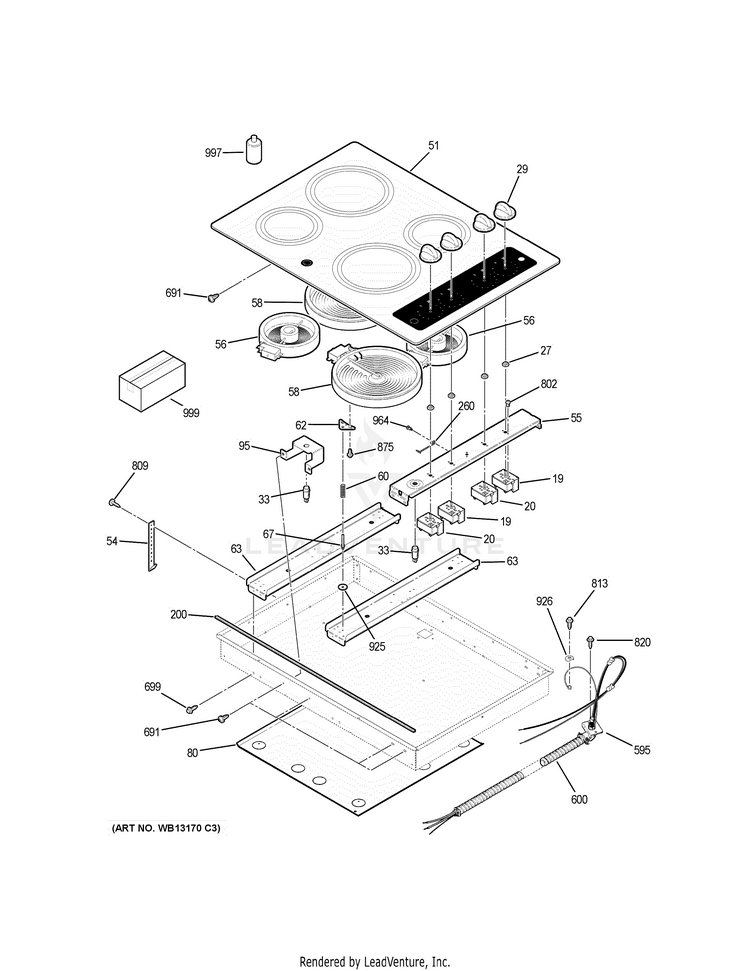

CONTROL PANEL & COOKTOP

...
...
19
ELEMENT CONTROL-1900W GEH-WB23M0009
...
20
ELEMENT CONTROL-1200W GEH-WB23M0008
...
27
INFINITE CONTROL SEAL GEH-WB02X9504
...
29
INF KNOB (WH GEH-WB03T10030
...
33
INDICATOR LIGHT GEH-WB25K5014
...
51
GLASS MAINTOP ASM GEH-WB62T10210
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
55
BRACKET INF SWITCH (30") GEH-WB02T10085
...
56
HALIANT ELEMENT 8" GEH-WB30T10045
...
58
ELEMENT HALIANT 1200W GEH-WB30T10043
...
60
SPRING RADIANT (COMP) GEH-WB09T10005
...
62
RADIANT HEATER BRACKET GEH-WB02K5318
...
63
BRACKET ELEM SUPT GEH-WB02T10084
...
67
RADIANT HEATER STUD GEH-WB02X9502
...
80
SHIELD BURN BOX BTTM GEH-WB34T10025
...
95
BRACKET HOT LIGHT GEH-WB02T10083
...
200
FOAM STRIP GEH-WB06K5042
...
200
TAPE GEH-WB06T10007
...
260
WIRE RETAINER GEH-WB02T10086
...
595
CONDUIT HARNESS PLATE GEH-WB02X9867
...
600
CONDUIT WIRE ASSY GEH-WB18T10150
...
691
SCREW GEH-WB01K5162
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
802
SCREW GEH-WB01K5123
...
809
SCREW GEH-WB01X1137
...
813
SCREW GROUND GEH-WB01X1261
...
820
SCREW, TRANSFORMER GEH-WB01X1424
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
925
WASHER .250 ID X .812 OD GEH-WB01K5117
...
926
GROUND WASHER GEH-WB01X1260
...
964
WB1X1347 GEH-342832
...
997
GLASS CLEANER GEH-WB64X0093
...
999
INSTRUCTION INSTALL GEH-31-10419
...
999
INSTRUCTION INSTALL GEH-31-10425
...
999
WIRE DIAGRAM GEH-31-13229
...
999
031-10178 GEH-SR10278
...
999
MANUAL USE & CARE GEH-49-80019
