GE JGS905SEK2SS Gas Range

Model: JGS905SEK2SS

Back To Assemblies

Save Part Not Listed?
product name

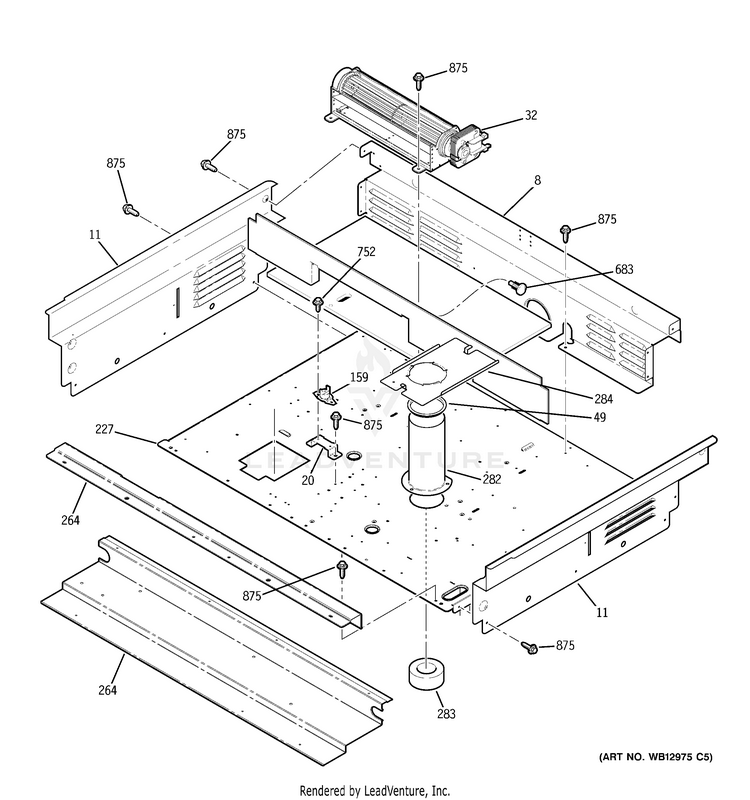

COOLING FAN

...
...
8
EXTENSION REAR GEH-WB07T10405
...
11
EXTENSION SIDE RT GEH-WB07T10497
...
11
EXTENSION SIDE LT GEH-WB07T10498
...
20
SWITCH BRACKET GEH-WB02K5238
...
32
BLOWER ASM GEH-WB26T10039
...
49
GASKET VENT GEH-WB04T10030
...
159
CLEAN TCO GEH-WB24T10061
...
227
RETAINER INSLN TOP GEH-WB02T10186
...
264
TRIM ASM GEH-WB07T10500
...
264
BAFFLE MANIFOLD GEH-WB34T10115
...
282
TUBE OVN VNT GEH-WB28T10096
...
283
INSULATION VENT TBE GEH-WB35T10092
...
284
BRACKET VNT GEH-WB02T10191
...
683
FASTENER PUSH GEH-WR02X10562
...
752
SCREW GEH-WB01K5200
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
