GE JGS760BEL3TS Gas Range Or Dual Fuel

Model: JGS760BEL3TS

Back To Assemblies

Save Part Not Listed?
product name

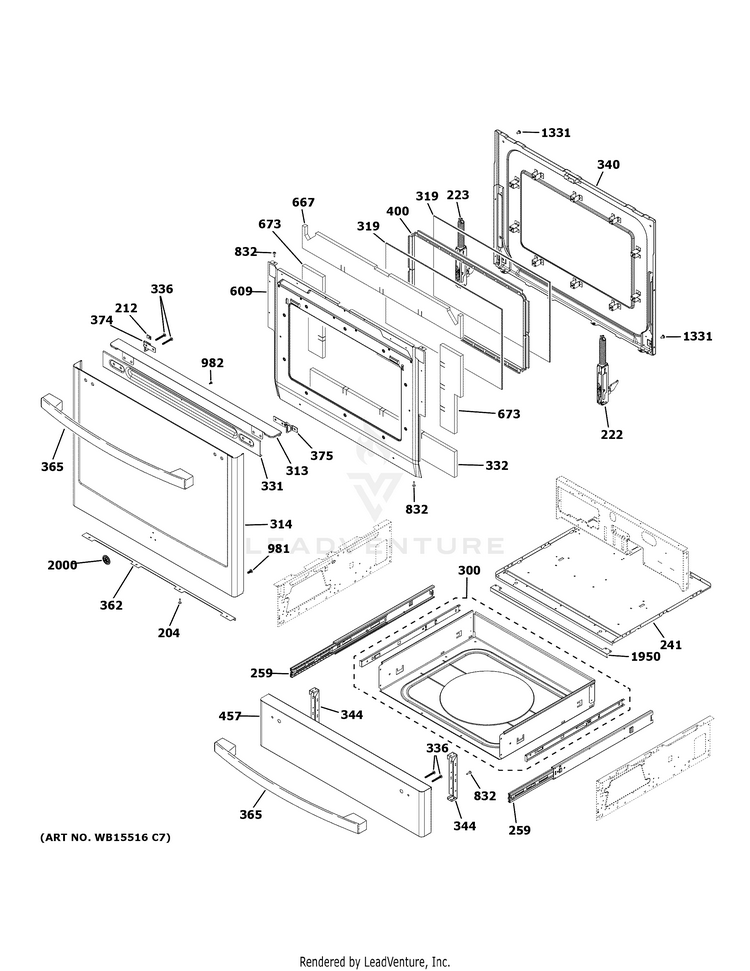

DOOR & DRAWER PARTS

...
...
204
SCREW (BLK) GEH-WB01K0042
...
212
SPEEDNUT GEH-WB01K0002
...
222
HINGE DOOR GEH-WB10X26766
...
223
HINGE DOOR LH GEH-WB10X24776
...
241
BOTTOM RANGE GEH-WB63K10041
...
259
DRAWER SLIDE ASSY RIGHT GEH-WB39K10020
...
259
DRAWER SLIDE ASSY LEFT GEH-WB39K10021
...
300
KIT DRAWER BODY ASM GEH-WB49X26562
...
313
COVER VENT TRIM GEH-WB34X28683
...
314
GLASS & PANEL DOOR ASM GEH-WB56X28183
...
319
CRYSTAL WINDOW GEH-WB57K10174
...
331
GLASS DOOR BACKER GEH-WB56X28193
...
332
INSULATION GEH-WB35K10221
...
336
SCREW-MTG-DOOR GEH-WB01K10014
...
340
LINER DOOR WELD ASSEMBLY GEH-WB56X24760
...
344
BRACKET DRAWER GEH-WB02X24742
...
362
BARRIER DOOR GEH-WB07X28885
...
365
BLACK STAINLESS HANDLE GEH-WB15X35051
...
374
BRACKET HANDLE GEH-WB02X24743
...
375
BRACKET HANDLE GEH-WB02X24744
...
400
FRAME WINDOW ASSY GEH-WB34X28742
...
457
PANEL DRAWER GEH-WB56X28808
...
609
DOOR GUARD GEH-WB34X24749
...
667
INSULATION DOOR GEH-WB35X20077
...
673
INSULATION GEH-WB35K10222
...
832
SCREW GEH-WB1K21
...
981
SCREW GEH-WB01K10091
...
982
SCREW 12-14, 5/8S GEH-WB01K0078
...
1331
SCREW 10-32 TR T GEH-WB01T10008
...
1950
TRIM FRONT BOTTOM GEH-WB01K10072
...
2000
BADGE ASM GEH-WB02X29637
