GE JGS750DEF3BB Gas Range

Model: JGS750DEF3BB

Back To Assemblies

Save Part Not Listed?
product name

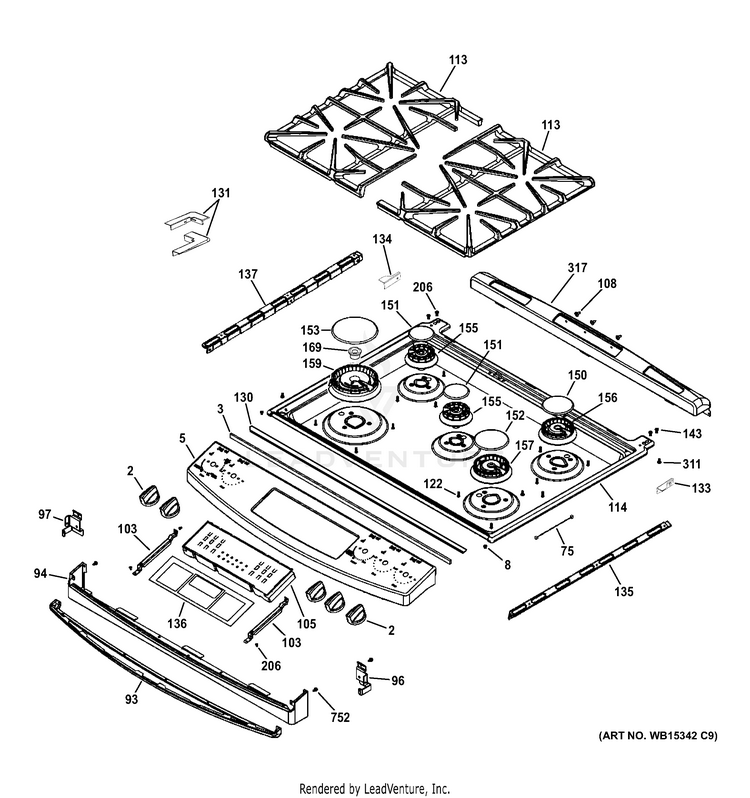

CONTROL PANEL & COOKTOP

...
...
2
KNOB ASM (2.0-HVY-WH) GEH-WB03X20725
...
3
SEAL-COOKTOP BLACK TO WT GEH-WB04K10010
...
5
PANEL MANIFOLD UPPER GEH-WB36X20588
...
8
SCREW 8-32 GEH-WB01K10002
...
75
HARNESS GROUND GEH-WB18K10083
...
93
PANEL MANIFOLD CMPLM GEH-WB36X20603
...
94
PANEL MANIFOLD BASE GEH-WB36X20599
...
96
BRACKET PANEL MANIFOLD GEH-WB02X20830
...
97
BRACKET PANEL MANIFOLD GEH-WB02X20831
...
103
BRACKET CONTROL MEMB GEH-WB02X26083
...
105
CONTROL BOARD T012 ELE GEH-WB27X25331
...
108
SCR 8-18 AB PHR 1/2 S GEH-WR01X10389
...
113
GRATE CAST GEH-WB31X20837
...
114
RANGE TOP GEH-WB62X20579
...
122
CKT SCREW GEH-WB01X24460
...
130
SEAL RANGE TOP GEH-WB35X21707
...
131
CORNER TRIM KIT GEH-WB49X23222
...
133
END SIDE RAIL BLACK GEH-WB07X21997
...
134
END SIDE RAIL BLACK GEH-WB07X21996
...
135
SPACER COMPLEMENT BB GEH-WB07X21985
...
136
OVERLAY T012 GEH-WB07X20571
...
137
SPACER COMPLEMENT BB GEH-WB07X21984
...
143
SCREW GEH-WB01X5754
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM BURNER CAP (5000) GEH-WB29K10022
...
152
ASM BURNER CAP (12000) GEH-WB29K10024
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
SMALL BURNER V 5K GEH-WB16K10070
...
156
BURNER MEDIUM (9500) GEH-WB16K10055
...
157
BURNER 12K GEH-WB16T10046
...
159
VISION BURNER XL GEH-WB16K10062
...
169
VENTURI 15K LP GEH-WB16K10085
...
206
SCREW GEH-WB01K0001
...
206
SCREW GEH-WB01K10091
...
311
BUMPER, BLACK GEH-WB02K0015
...
317
VENT TRIM GEH-WB34X21068
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
