GE JGRP20SEN1SS Gas Range Or Dual Fuel

Model: JGRP20SEN1SS

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

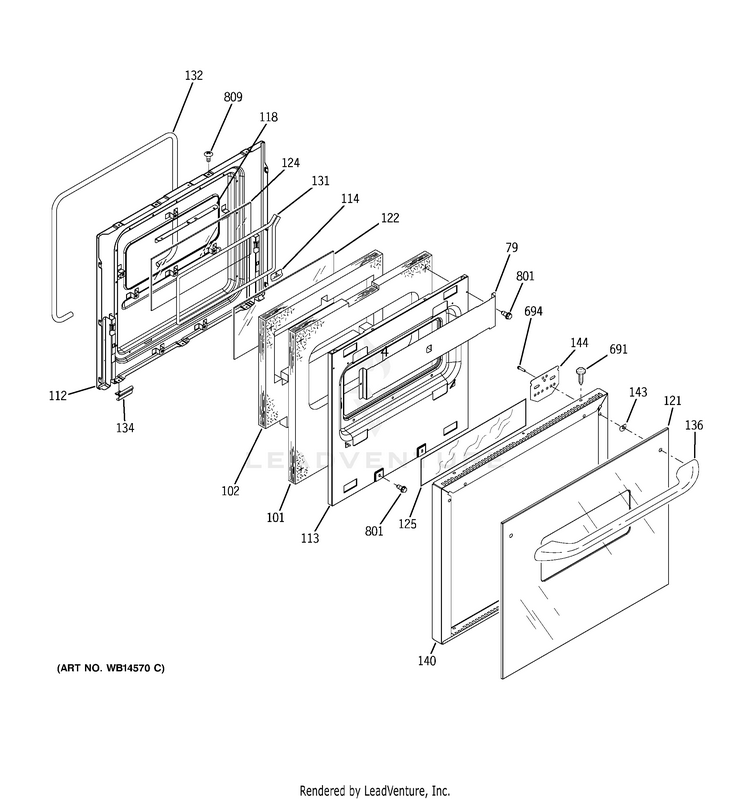

DOOR

...
...
79
OV DR BAFFLE GEH-WB34K5077
...
101
DOOR INSULATION GEH-WB35K5054
...
102
INSULATION GEH-WB35T10101
...
112
LINING OVEN DR ASSY UPPE GEH-WB55T10144
...
113
OV DR INS RETAINER GEH-WB02K5159
...
114
OV DR GLASS RETAINER GEH-WB02M0001
...
118
OV DR LINING STIFFENER GEH-WB02K5132
...
121
PANEL GLASS & TAPE ASM GEH-WB56T10280
...
122
GLASS OVN DR INR GEH-WB57T10315
...
124
DOOR INSULATOR-BLK GEH-WB35K5133
...
125
HEAT REFLECTOR GEH-WB34K5254
...
131
SEAL GLASS OV DR INNER GEH-WB02X9168
...
132
GASKET OVN DR GEH-WB04T10039
...
134
BTM TRIM CLIP GEH-WB02T10117
...
136
HANDLE GE 24 GEH-WB15T10145
...
140
FRAME FRT PNL LO (BLACK) GEH-WB07T10063
...
143
GLASS SPACER GEH-WB02K5147
...
144
REINFORCEMENT PLATE GEH-WB02K5395
...
691
TRIM SCREW-BLACK GEH-WB01K5177
...
691
SCREW GEH-WB01K5162
...
694
SCREW GEH-WB01X1116
...
801
SCREW GEH-WB01M0001
...
809
SCREW GEH-WB01X1137
