GE JGRP20BEJ2BB Gas Range

Model: JGRP20BEJ2BB

Save Part Not Listed?
product name

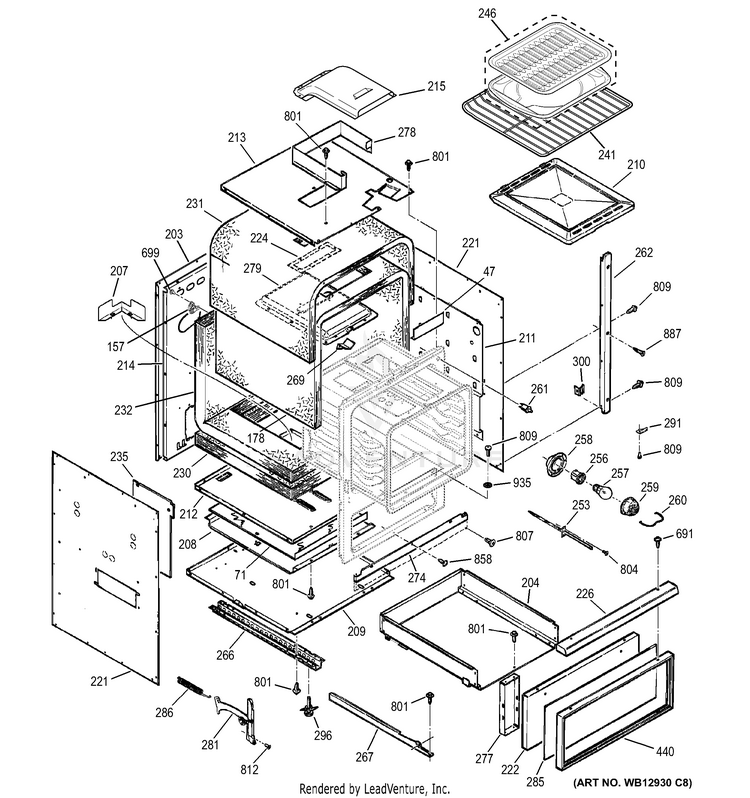

BODY PARTS

...
...
47
BARRIER GEH-WB38K5036
...
71
COMPARTMENT SHIELD INSUL GEH-WB35K5128
...
157
LIMIT SWITCH-LOWER GEH-WB24T10067
...
178
INSULATION TOP & SIDES GEH-WB35K5059
...
203
MAIN BACK GEH-WB63K5095
...
204
DRAWER STORAGE ASSY GEH-WB58T10002
...
207
COVER-BOTTOM INSULATION GEH-WB34K5238
...
208
COMPARTMENT SHIELD GEH-WB34K5253
...
209
BOTTOM MAIN GEH-WB63T10038
...
210
OVEN BOTTOM GEH-WB63X26304
...
211
OV SIDE INSUL RETAINER GEH-WB02K5266
...
212
OV BTM INSUL RETAINER GEH-WB02K5390
...
213
TOP INSULATION RETAINER GEH-WB02K5265
...
214
RETAINER INSLN RR GEH-WB02T10019
...
215
FLUE DEFLECT GEH-WB38T10003
...
221
BODY SIDE GEH-WB63K5099
...
222
LWR FRONT PANEL ASSY-BLA GEH-WB56T10006
...
224
FLUE GASKET GEH-WB04K5005
...
226
LO FRT PANEL HANDLE-BLAC GEH-WB15K5027
...
230
OVEN BTM INSULATION GEH-WB35K5056
...
231
INSULATION WRAPPER-OUTER GEH-WB35K5124
...
232
INSULATION-BACK/BTM UPPE GEH-WB35K5057
...
235
INSULATION-BODY SIDE GEH-WB35K5064
...
241
RACK OVEN GEH-WB48T10094
...
246
BROILER PAN & RACK LARGE GEH-WB48X10056
...
253
WB21X5301 GEH-WB21X5347
...
256
OV LAMP HOLDER GEH-WB08X0303
...
257
40WATT 15AMP GEH-40A15
...
258
OVEN LIGHT CUP GEH-WB02T10037
...
259
OV LAMP LENS GEH-WB36X0389
...
260
LIGHT LENS BAIL GEH-WB02X7694
...
261
SWITCH SPDT HIGH AMP GEH-WB24T10160
...
262
VERTICAL SIDE TRIM-BLK GEH-WB07K5278
...
266
BOTTOM CHANNEL GEH-WB02X9634
...
267
DRAWER GUIDE ASM-LT GEH-WB39M0003
...
267
DRAWER GUIDE ASM-RT GEH-WB39M0004
...
269
CUP LIGHT SUPPORT GEH-WB02K5164
...
274
TRIM FRT FRM LWR GEH-WB07T10373
...
277
LWR PNL LINER GEH-WB55T10025
...
278
SHIELD HEAT GEH-WB34K5100
...
279
VENT BOX GEH-WB38T10010
...
281
HINGE OV DR RT GEH-WB10T10060
...
281
HINGE OV DR LT GEH-WB10T10061
...
285
OVERLAY PNL LWR (BK) GEH-WB56K10048
...
286
SPRING OVEN DR UPPER GEH-WB09T10007
...
291
COVER GEH-WB02X9152
...
296
LEVELING LEG GEH-WB02X9635
...
300
SPACER FRT TRIM (BLK) GEH-WB02T10166
...
440
FRAME FRT PNL LO (BLACK) GEH-WB07T10063
...
691
SCREW GEH-WB01K5162
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
801
SCREW GEH-WB01M10002
...
804
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
807
SCREW-BLK GEH-WB01K5165
...
809
SCREW GEH-WB01X1137
...
812
SCREW FLAT ZINC 10-32 GEH-WB01K5191
...
858
WOOD SCREW-BLK GEH-WB01X1413
...
887
TRIM SCREW-BLK GEH-WB01K5173
...
935
WASHER GEH-WB01K5174

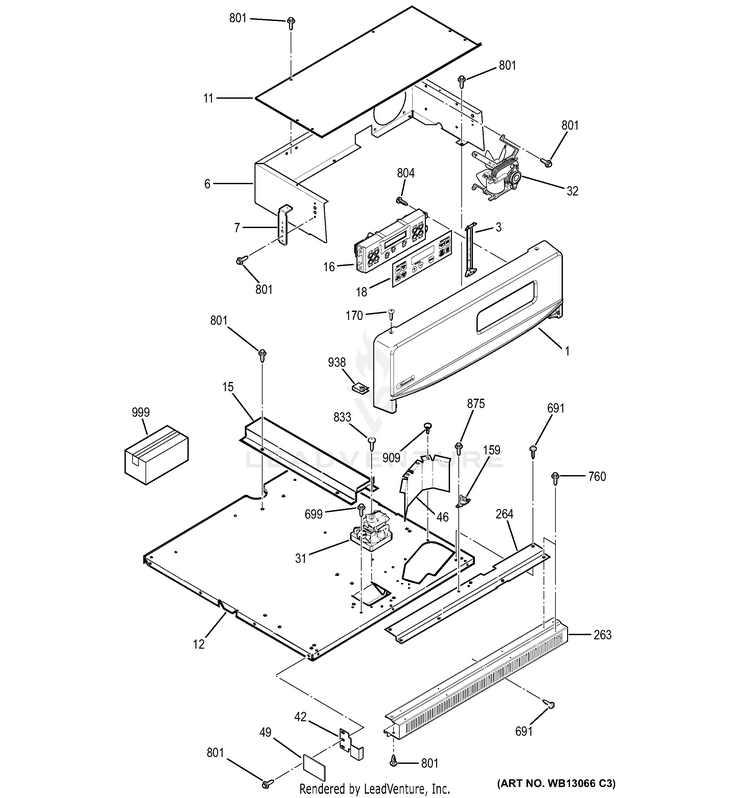

CONTROL PANEL

...
...
1
PANEL CNTL SWO (SCR-BLK) GEH-WB36T10756
...
3
BRACKET CNTL MTG 24 GEH-WB02T10250
...
6
CONTROL PANEL HOUSING GEH-WB36K5699
...
7
CONTROL PANEL BRACKET GEH-WB02K5406
...
11
CONTROL HOUSING TOP GEH-WB37K5040
...
12
CABINET TOP GEH-WB63K5198
...
15
WIRE COVER GEH-WB02X9665
...
16
CONTROL OVEN ERC3 GEH-WB27T10492
...
18
FACEPLATE GRAPHICS ASM GEH-WB27T10587
...
31
FAN ASM-TOP CABINET GEH-WB26X0114
...
32
FAN ASSY UPPER GEH-WB26K5061
...
42
HEAT SHIELD GEH-WB34K5249
...
46
WIRE SHIELD GEH-WB34K5263
...
49
HEAT SHIELD INSULATION GEH-WB35K5129
...
159
LIMIT SWITCH-FAN GEH-WB24K5041
...
170
SCREW 8-18 (BK) 1/2 S GEH-WB01K0060
...
263
VENT TRIM-BLACK GEH-WB07K5477
...
264
VENT TRIM EXTENSION GEH-WB07K5108
...
691
SCREW GEH-WB01K5162
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
760
SCREW GEH-WB01K5028
...
801
SCREW GEH-WB01M10002
...
804
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
833
SCREW GEH-WB01X1131
...
909
RIVET GEH-WB01X1173
...
938
CLIP GEH-WB01K5209
...
999
INSTRUCTION INSTALL GEH-31-10584
...
999
MANUAL MIMI & WD ASM GEH-31-14209
...
999
PM OWNERS MANUAL GEH-49-80713

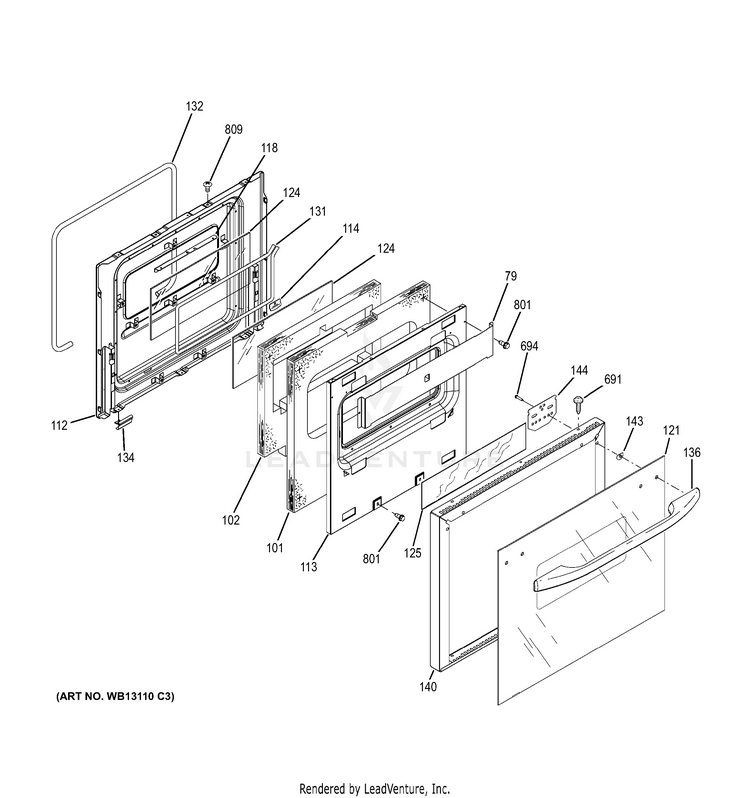

DOOR

...
...
79
OV DR BAFFLE GEH-WB34K5077
...
101
DOOR INSULATION GEH-WB35K5054
...
102
INSULATION GEH-WB35T10101
...
112
LINER OVN DR ASM GEH-WB63X26288
...
113
OV DR INS RETAINER GEH-WB02K5159
...
114
OV DR GLASS RETAINER GEH-WB02M0001
...
118
OV DR LINING STIFFENER GEH-WB02K5132
...
121
GLASS OVN DR OTR 24(BLK) GEH-WB15T10122
...
124
GLASS OVN DR INR GEH-WB57T10315
...
125
HEAT REFLECTOR GEH-WB34K5254
...
131
SEAL GLASS OV DR INNER GEH-WB02X9168
...
132
GASKET OVN DR GEH-WB35X26289
...
134
BTM TRIM CLIP GEH-WB02T10117
...
136
HANDLE GE 24 (BLK) GEH-WB15T10121
...
140
FRAME OVN DR (BLK) GEH-WB56T10162
...
143
GLASS SPACER GEH-WB02K5147
...
144
REINFORCEMENT PLATE GEH-WB02K5395
...
691
SCREW GEH-WB01K5162
...
694
WZ04X0408 GEH-WZ4X416
...
801
SCREW GEH-WB01M10002
...
809
SCREW GEH-WB01X1137

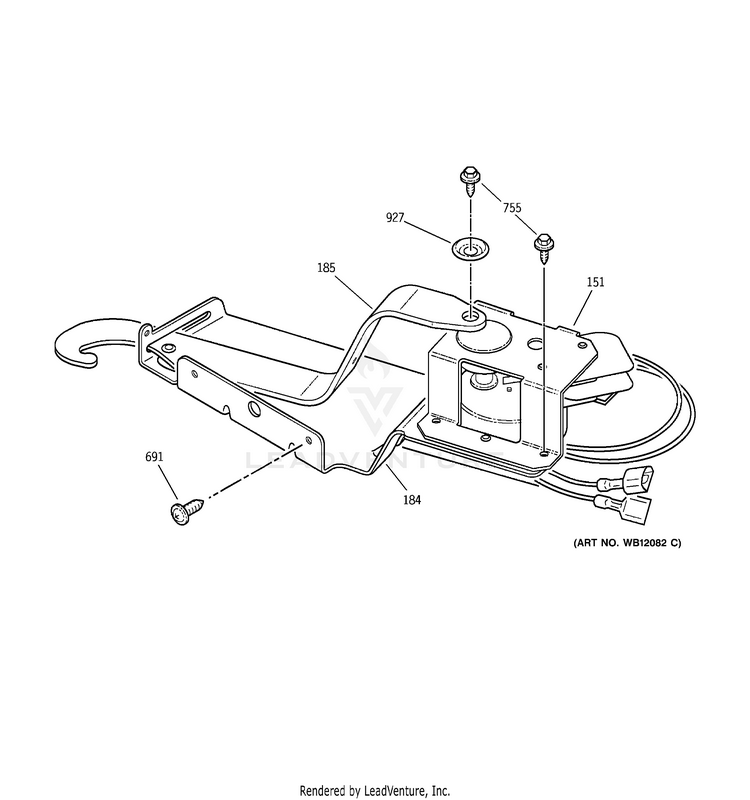

DOOR LOCK

...
...
151
LATCH OVEN ASM GEH-WB49T10020
...
184
WB34K5228 GEH-WB34K5079
...
185
LEVER LOCK GEH-WB15K5016
...
691
SCREW GEH-WB01K5162
...
755
SCREW GEH-WZ04X0044
...
927
WASHR-PKG 12 GEH-WB1X119D

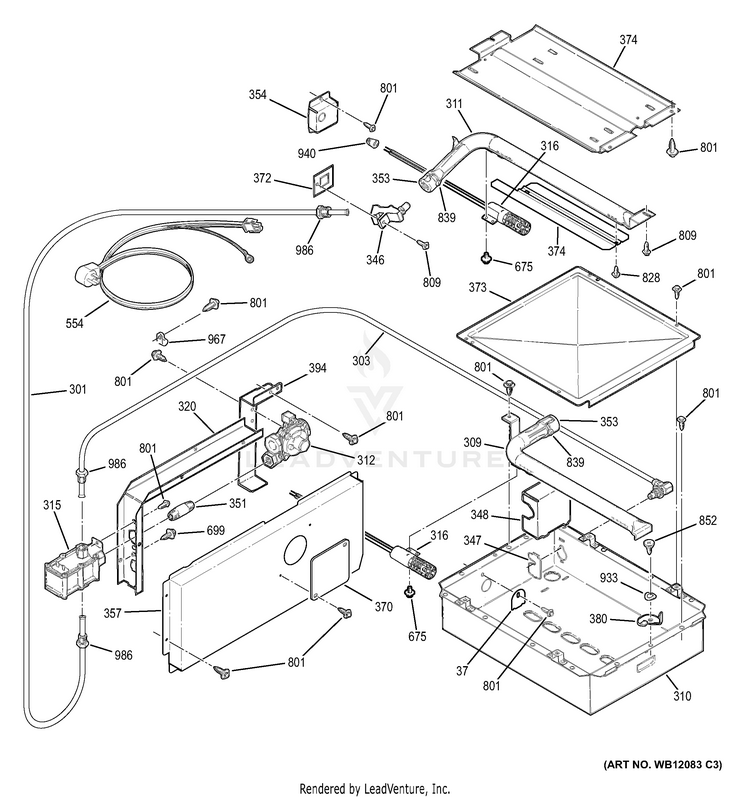

GAS & BURNER PARTS

...
...
37
IGNITER COVER GEH-WB34K0014
...
301
TUBE ASM GEH-WB28K5021
...
303
TUBE & ORIFICE ASSY GEH-WB28K5026
...
309
BAKE BURNER GEH-WB16K5062
...
310
BOTTOM BURNER BOX GEH-WB64K5098
...
311
BROILER BURNER GEH-WB16K5064
...
312
REGULATOR CONVERT PRESS GEH-WB19T10079
...
315
CONTROL VALVE GEH-WB20X0126
...
316
IGNITER-BROIL/OVEN GEH-WB02X9154
...
320
VALVE WIRE COVER GEH-WB34K5212
...
346
BROIL ORIFICE FITTING GEH-WB02X9646
...
347
ORIFICE FITTING PLATE GEH-WB02X9163
...
348
SHIELD ORIFICE GEH-WB34T10096
...
351
NIPPLE GEH-WB02X9611
...
353
AIR SHUTTER GEH-WB02X9014
...
354
IGNITOR WIRE COVER GEH-WB34K5257
...
357
REG COVER GEH-WB34T10007
...
370
REGULATOR COVER PLATE GEH-WB34T10021
...
372
CHIP COVER GEH-WB06K5043
...
373
OV BOTTOM BAFFLE GEH-WB34K5095
...
374
BROILER BURNER BAFFLE-LO GEH-WB34K5256
...
380
LATCH-BURNER BOX BOTTOM GEH-WB14X0115
...
394
REGULATOR SUPPORT GEH-WB02K5343
...
554
RANGE CORD GEH-WB08K5039
...
675
SCREW 10-32X5/32 GEH-WB01K5213
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
801
SCREW GEH-WB01M10002
...
809
SCREW GEH-WB01X1137
...
828
SCREW GEH-WB01X1141
...
839
AIR SHUTTER SCREW GEH-WB01X1124
...
852
SCREW 10-16 SHLDR TYPE A GEH-WB01T10009
...
933
WASHER SPRING GEH-WB01X1256
...
940
WIRE CONNECTOR GEH-WB01X1181
...
967
CLIP CABLE NYLON GEH-WB02X9020
...
986
INVERTED NUT 3/8" GEH-WB01X1117
