GE JGP333DET3WW Gas Range Or Dual Fuel

Model: JGP333DET3WW

Back To Assemblies

Save Part Not Listed?
product name

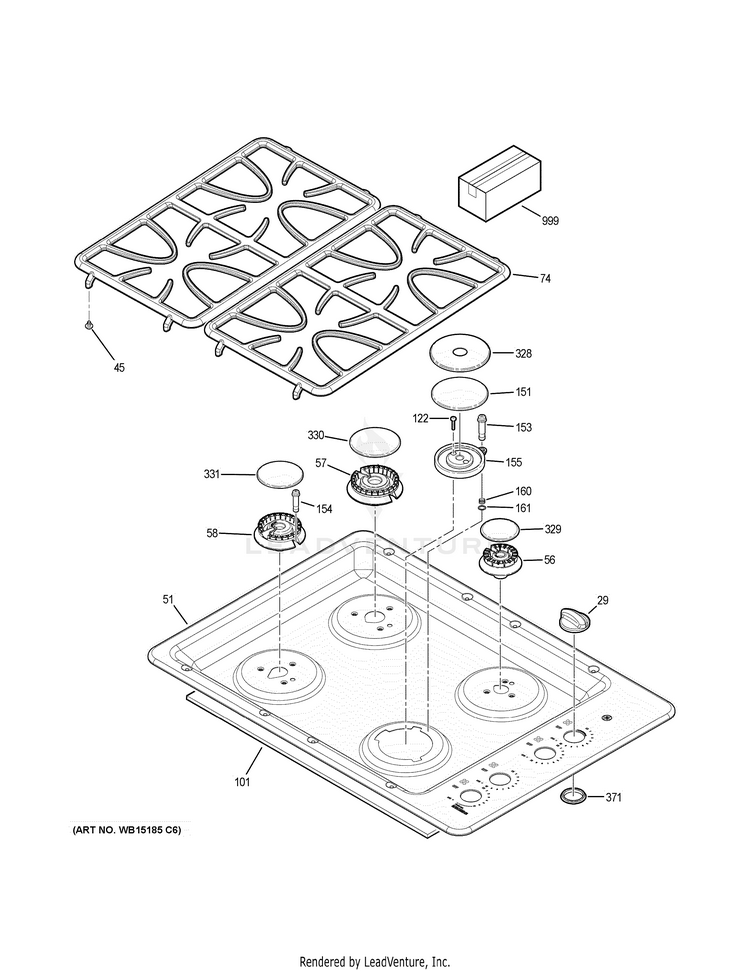

CONTROL PANEL & COOKTOP

...
...
29
KNOB GEH-WB03T10324
...
45
GRATE FOOT GEH-WB02T10461
...
51
MAINTOP GRAPHICS ASM 30 GEH-WB62X25893
...
56
SMALL BURNER V 5K GEH-WB16K10070
...
57
BURNER 12K GEH-WB16T10046
...
58
BURNER MEDIUM (9500) GEH-WB16K10055
...
74
GRATE ASM GEH-WB31T10154
...
101
INSULATION SIDE GEH-WB35T10159
...
101
INSULATION SDE GEH-WB35T10051
...
122
SCR 8-32 CA PNT15 1/2 S GEH-WB01T10116
...
151
HEAD BURNER MAIN GEH-WB16T10038
...
153
ELECTRODE TOP GEH-WB13T10065
...
154
ELECTRODE TOP GEH-WB13K10014
...
155
BASE BURNER 18K-SIMMER GEH-WB16T10040
...
160
SPRING IGNITER GEH-WB09T10011
...
161
WASHER IGNITER GEH-WB02T10323
...
328
CAP BURNER GEH-WB13T10067
...
329
ASM BURNER CAP (5000) GEH-WB29K10022
...
330
ASM BURNER CAP (12000) GEH-WB29K10024
...
331
ASM BURNER CAP (9500) GEH-WB29K10023
...
371
SEAL CNTL (WHT) GEH-WB04T10040
...
999
PM INSTALL INSTRUCTIONS GEH-31-10832
...
999
PM OWNERS MANUAL GEH-49-80660
...
999
PM INSTALL INSTRUCTIONS GEH-31-10833
...
999
PM INSTALL INSTRUCTIONS GEH-31-10860
...
999
HI ALT & BUTANE KIT GEH-WB28T10283
...
999
PM MINI MANUAL GEH-31-15012
