GE JGBS66EEK1ES Gas Range Or Dual Fuel

Model: JGBS66EEK1ES

Back To Assemblies

Save Part Not Listed?
product name

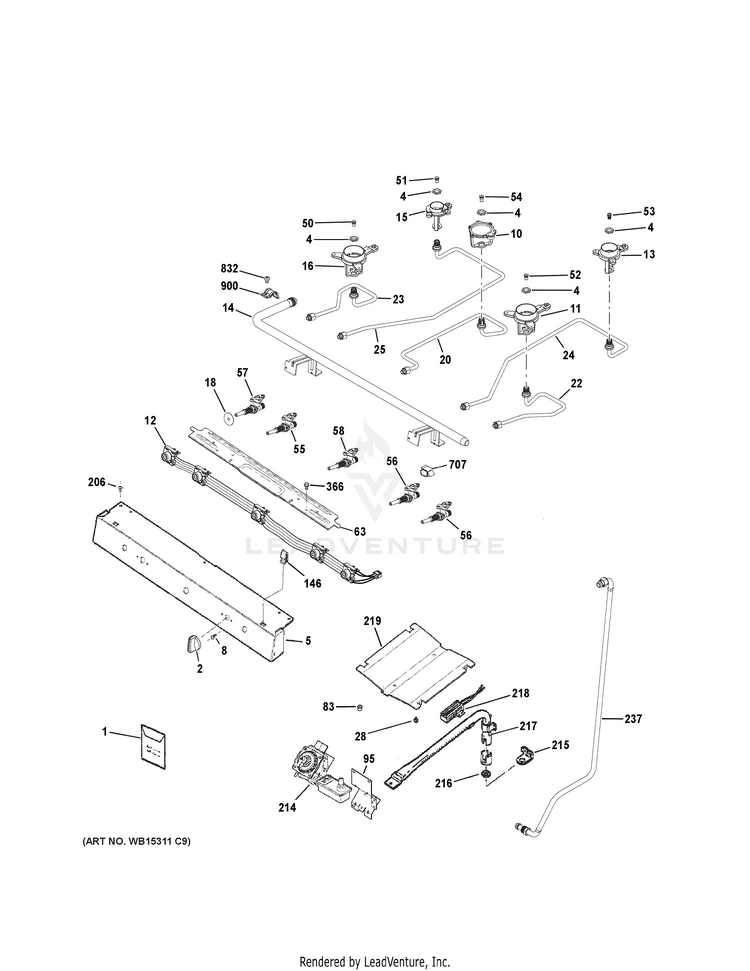

GAS & BURNER PARTS

...
...
1
PM GAS QUICK GUIDE GEH-49-85224
...
1
PM INSTALL INSTRUCTIONS GEH-31-10781
...
1
KIT LP CONVERSION ASM GEH-WB49X26658
...
1
PM MANUAL MINI & WD ASM GEH-31-17233
...
1
PM INSTALL INSTRUCTIONS GEH-31-10998
...
1
HINGE SERVICE KIT GEH-WB49X21392
...
2
KNOB ASM GEH-WB03X24818
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
PANEL AND COVER ASM GEH-WB36X24894
...
8
SCREW 8-32 GEH-WB01K10002
...
10
CKT BRACKET SMALL GEH-WB02K10360
...
11
INJET, MEDIUM V2 GEH-WB02X24727
...
12
HARNESS SWITCHES GEH-WB18X23202
...
13
INJET, LARGE V2 GEH-WB02X24726
...
14
MANIFOLD PIPE GEH-WB28X24765
...
15
INJET, SMALL V2 GEH-WB02X24728
...
16
INJET, XL V2 GEH-WB02X24725
...
18
COVER VALVE GEH-WB02K0024
...
20
ORIFICE HOLDER CENTRAL GEH-WB28X24762
...
22
ORIFICE HOLDER LR GEH-WB28X24766
...
23
ORIFICE HOLDER LF GEH-WB28X26621
...
24
ORIFICE HOLDER LF GEH-WB28X24764
...
25
ORIFICE HOLDER RR GEH-WB28X24763
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
50
ORIFICE SPUD GEH-WB28X26625
...
51
ORIFICE SPUD GEH-WB28K10834
...
52
ORIFICE-LP 89MM GEH-WB28K10023
...
53
ORIFICE-LP LG 99MM GEH-WB28K10032
...
54
ORIFICE SPUD LP 86L GEH-WB28K10215
...
55
VALVE BURNER 270 GEH-WB21X20261
...
56
VALVE BURNER 270 GEH-WB21X20260
...
57
VALVE BURNER 270 GEH-WB21X20262
...
58
VALVE BURNER 270 GEH-WB21X20394
...
63
MANIFOLD SUPPORT GEH-WB02K10272
...
83
OVEN ORIFICE SPUD GEH-WB28X21079
...
95
BRACKET REGULATOR GEH-WB02X22890
...
146
CLIP RANGETOP GEH-WB02X26569
...
206
SCREW GEH-WB01K10091
...
214
VALVE CONTROL ASM NOR. S GEH-WB21X20252
...
215
BRACKET SAFETY VALVE GEH-WB02K0065
...
216
NUT LOCK GEH-WB01K0006
...
217
BURNER OVEN ASSY GEH-WB16X20253
...
218
IGNITER-OVEN BAKE GEH-WB13K0021
...
219
FLAME SPREADER GEH-WB49K0044
...
237
TUBE MANIFOLD SUPPLY GEH-WB28X24772
...
366
SCR 10-16 PL PNT 2.5 S GEH-WB01X23700
...
707
CLIP WIRE GEH-WB02K10267
...
832
SCREW THERMOSTAT GEH-WB01K10080
...
900
BRACKET VALVE GEH-WB02K10297
