GE JGBS30REK1SS Gas Range Or Dual Fuel

Model: JGBS30REK1SS

Back To Assemblies

Save Part Not Listed?
product name

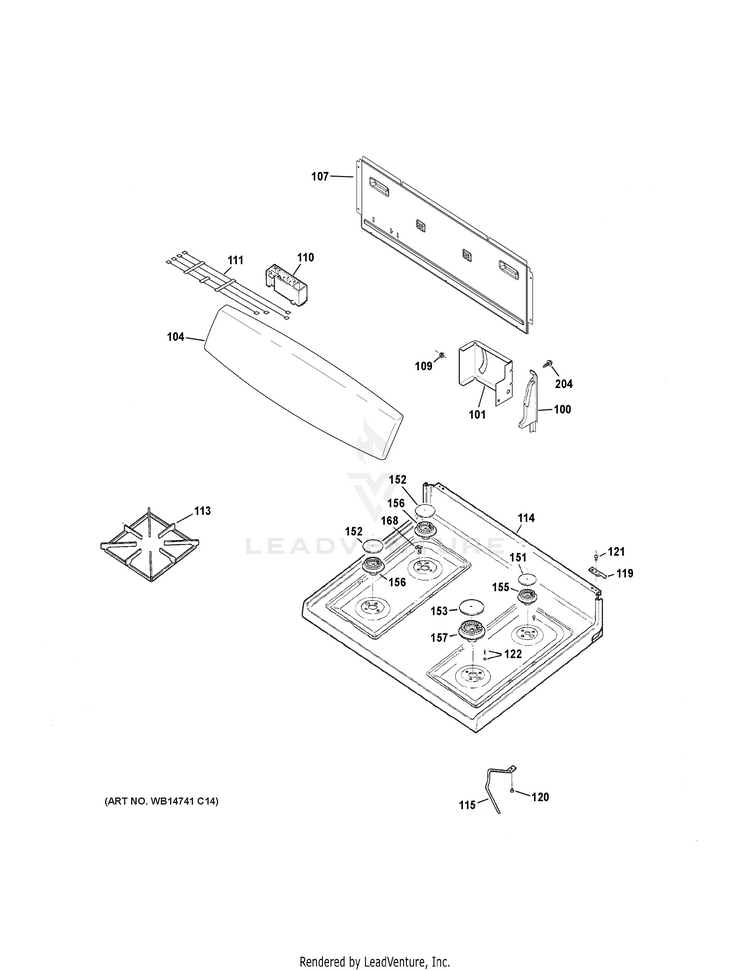

CONTROL PANEL & COOKTOP

...
...
100
END SUPPORT LT GEH-WB07X20197
...
100
END SUPPORT RT GEH-WB07X20194
...
101
BRACKET COOK TOP GEH-WB37X20193
...
101
BRACKET COOK TOP GEH-WB37X20196
...
104
TRIM AND PANEL ASM GEH-WB36X26252
...
107
COVER BACK GEH-WB34X20669
...
109
SPEEDNUT GEH-WB01X5743
...
110
IGNITION MODULE GEH-WB13X24323
...
111
ELECTRODES & HARNESS H.V. GEH-WB18X26607
...
113
GRATE (BLK) GEH-WB31K10033
...
114
RANGE TOP GEH-WB62X26321
...
115
SUPPORT COOKTOP GEH-WB02K10276
...
119
PIN HINGE GEH-WB14K0005
...
120
SCREW GEH-WB01K10043
...
121
SCREW GEH-WB01K0001
...
122
CKT SCREW GEH-WB01X24735
...
151
ASM. CAP, BURNER SMALL V2 GEH-WB16X29450
...
152
CAP-BURNER MED (BLACK) GEH-WB29K10001
...
153
CAP-BURNER LARGE (BLACK) GEH-WB29K10006
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
156
BURNER, MEDIUM V2 GEH-WB16X24724
...
157
BURNER, LARGE V2 GEH-WB16X24723
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
204
SCREW (BLK) GEH-WB01K0042
